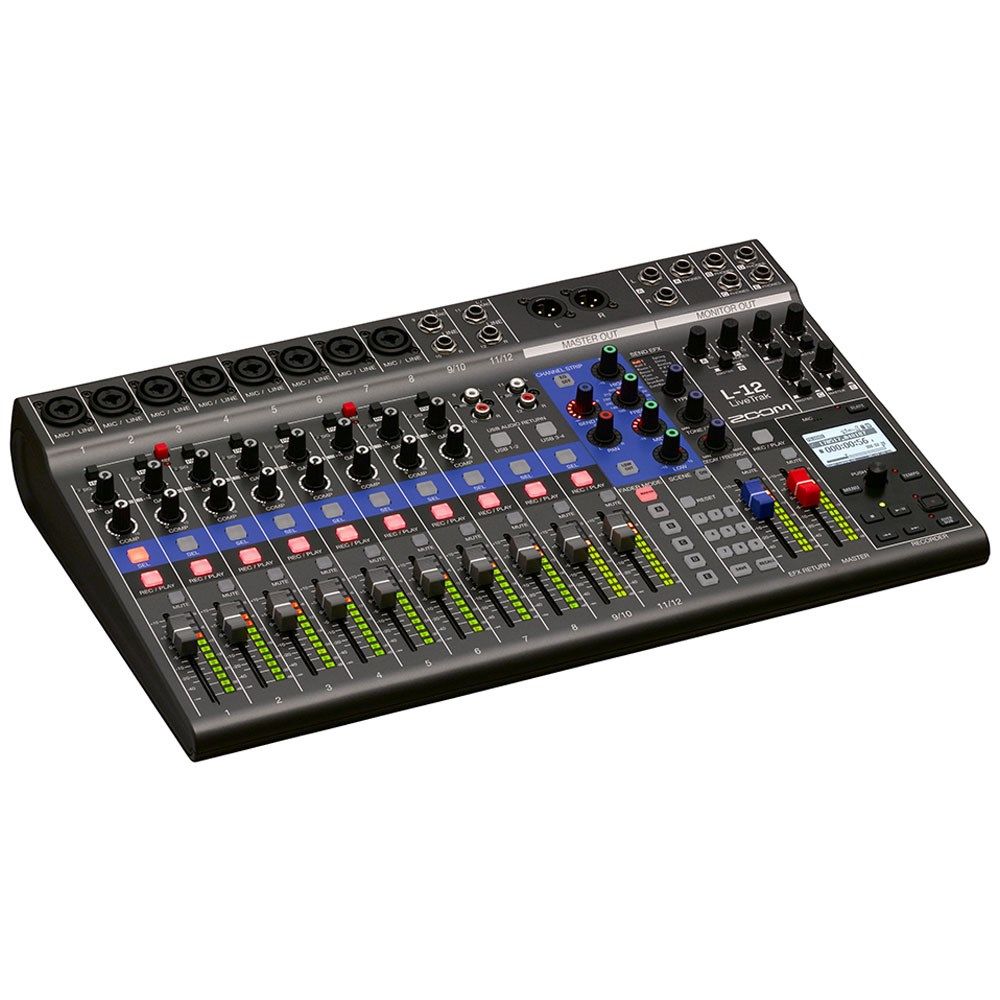

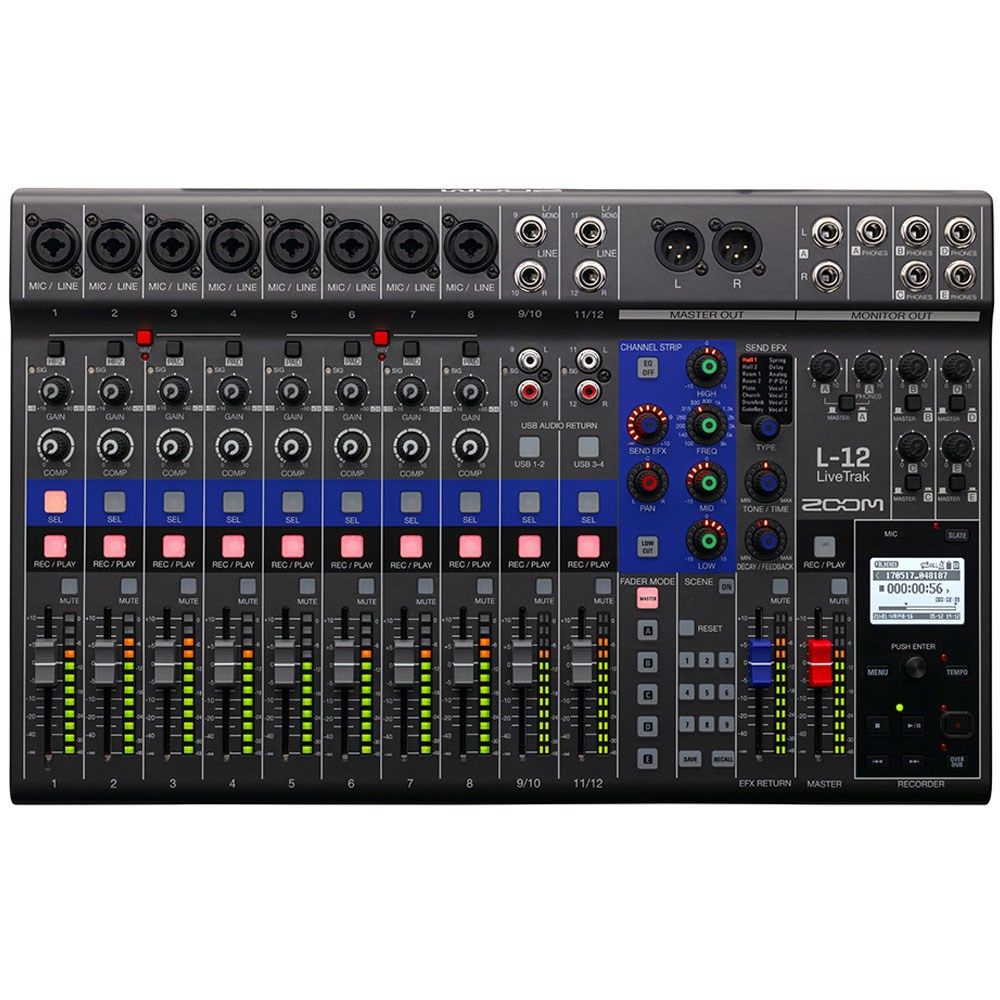

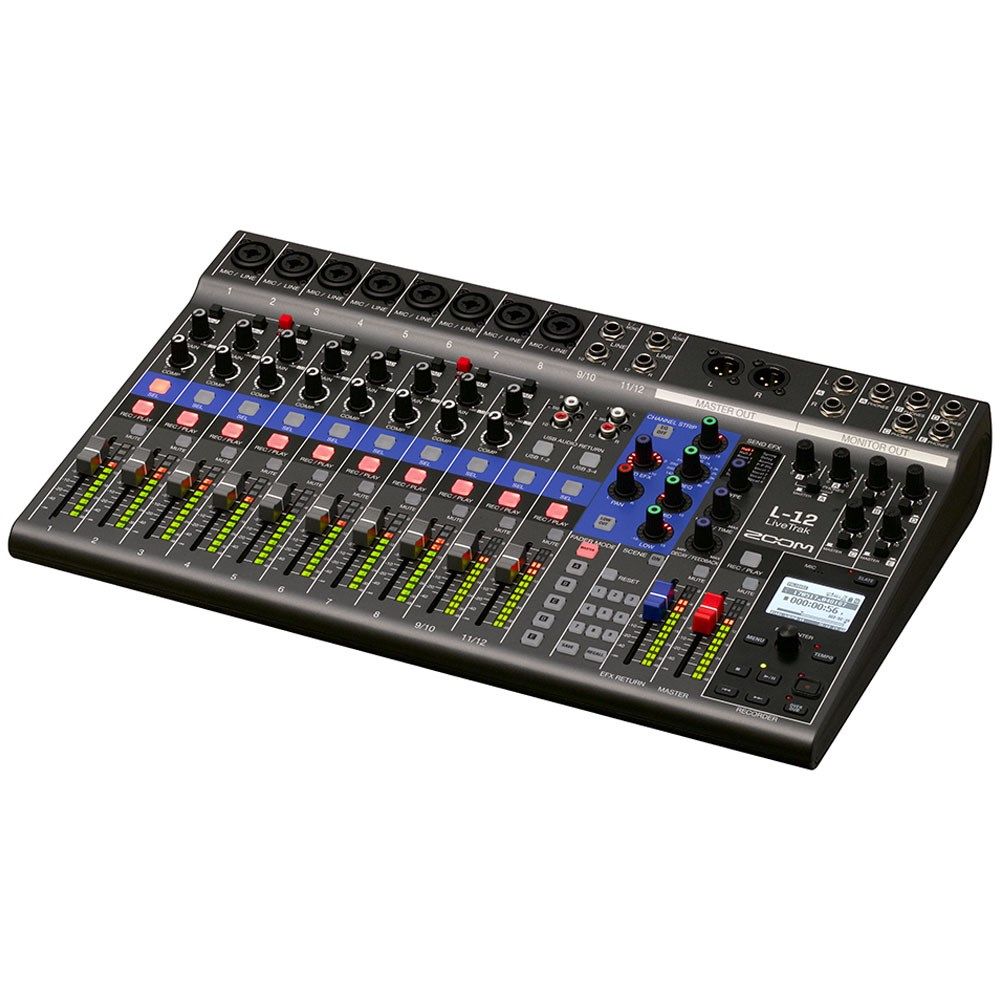

The LiveTrak L-12 delivers professional mixing, recording, and monitoring capabilities in one compact digital console, making it the ultimate solution for musicians who demand studio-quality results in live performance settings. This innovative 12-channel mixer (eight mono plus two stereo) features comprehensive 3-band mid-parametric EQ, dedicated compressors on all mono channels, and 16 built-in send effects that provide everything needed for intuitive live sound control.
Recording capabilities are equally impressive, with the L-12 capturing up to 12 discrete tracks at 24-bit/96 kHz WAV quality directly to SD card while you perform live. Tracks are recorded pre-EQ and effects, ensuring maximum flexibility when transferring to your preferred DAW for post-production work. The unit also functions as a 14-in/4-out USB audio interface with flexible routing options and class-compliant mode for iOS device compatibility.
Five individual headphone outputs set the L-12 apart from conventional mixers, allowing each performer to create and save their own custom monitor mix tailored to their specific needs. The powerful headphone amplifier delivers sufficient volume for any live environment without requiring additional monitoring equipment. Additional professional features include 48V phantom power, Hi-Z inputs, scene saving for up to nine presets, built-in slate microphone, automatic recording functions, and compatibility with the ZOOM FS01 footswitch for hands-free operation.
- 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
- 14-track simultaneous recording, 12-track playback
- 14-in/4-out USB audio interface connectivity
- 5 powered headphone outputs, each with a customizable and saveable mix
- Add backing/click tracks from your computer to your live mix and recording
- RCA and TRS line inputs
- 48V phantom power (channels 1-4 and 5-8)
- Hi-Z connectivity (channels 1 and 2)
- 26 dB pad (channels 3-8)
- Built-in compression control (Channels 1-8)
- Digital level meters -48 dB to -0 dB
- Master mute button
- Low-cut control
- Stereo panning
- Master and Monitor Outputs A-E
- Scene saving function, up to 9 scenes saved at a time
- 16 built-in delay and reverb effects with adjustable parameters
- Built-in slate mic
- Class-compliant mode (for iOS compatibility)
- SD card input
- Built-in metronome
- Automatic recording starting/stopping capability
- Project protection
- Import/export projects with USB 2.0 host port
- Latency adjustment for A-to-D conversion
- Compatible functions for ZOOM FS01 footswitch
