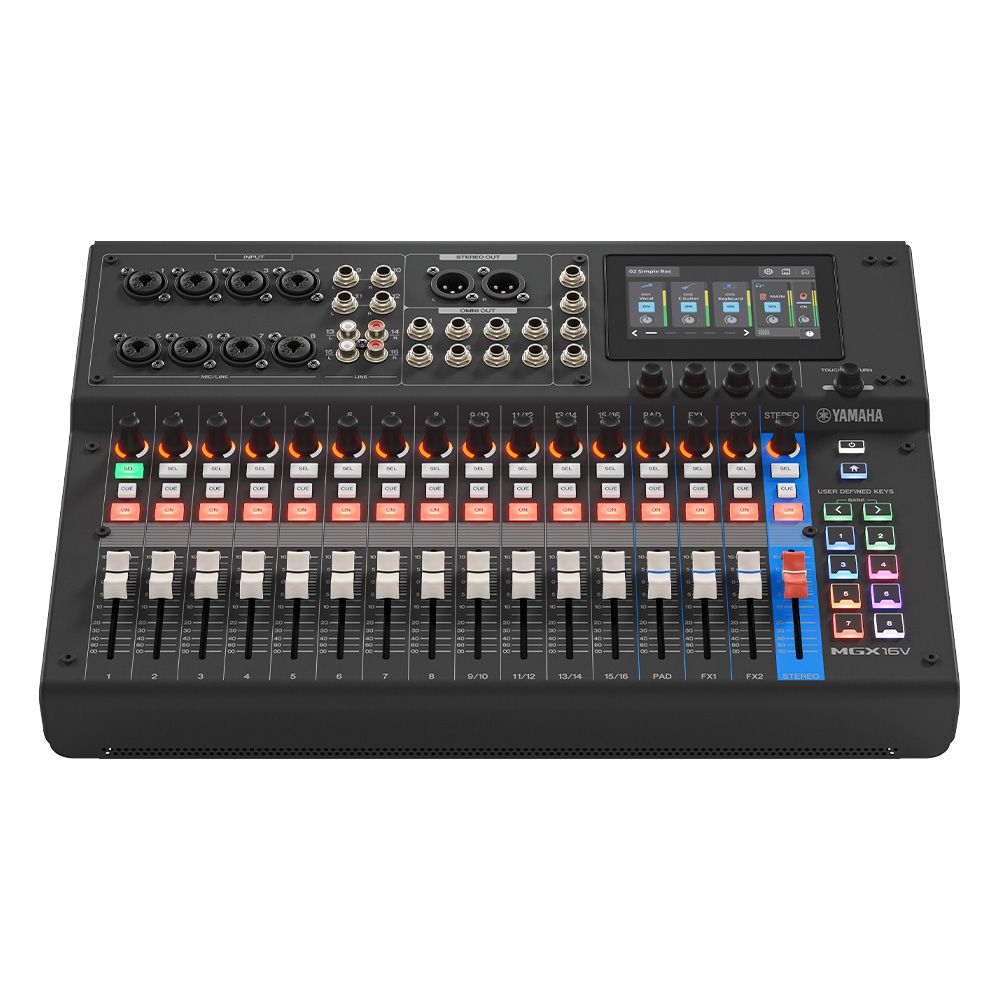

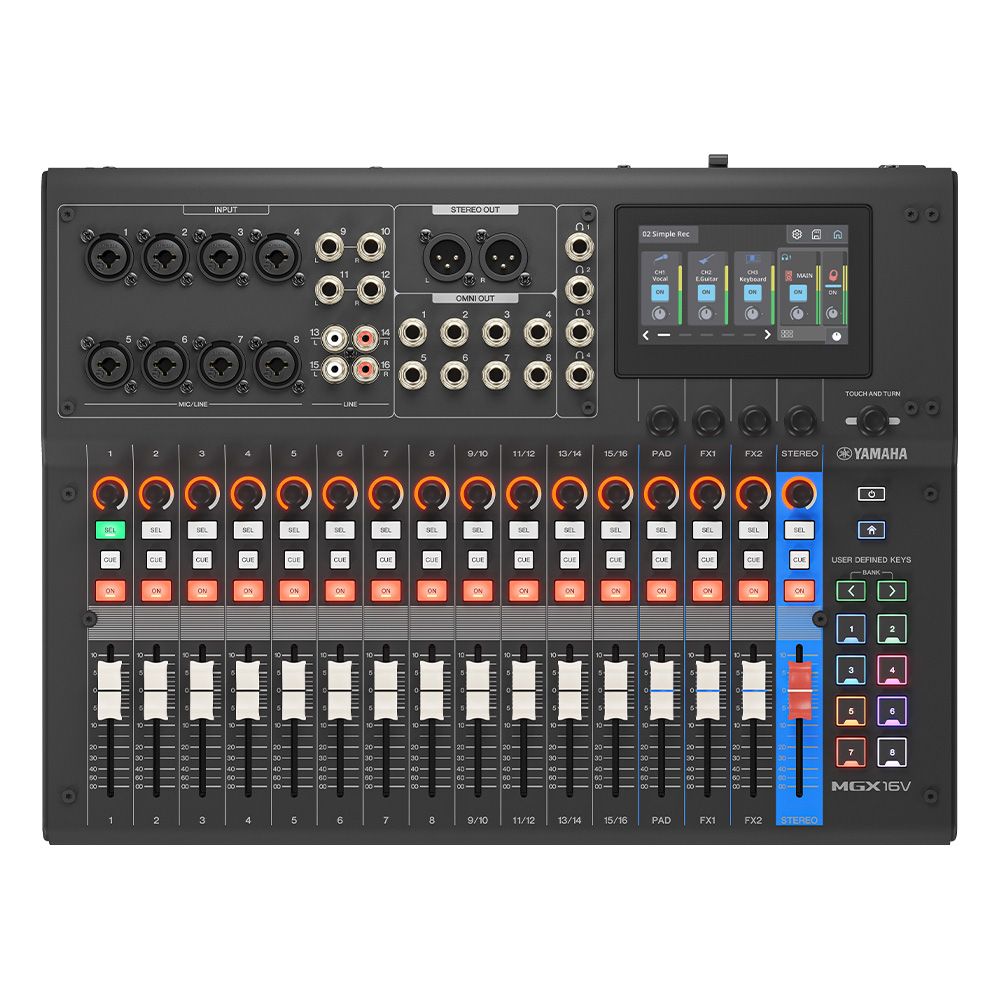

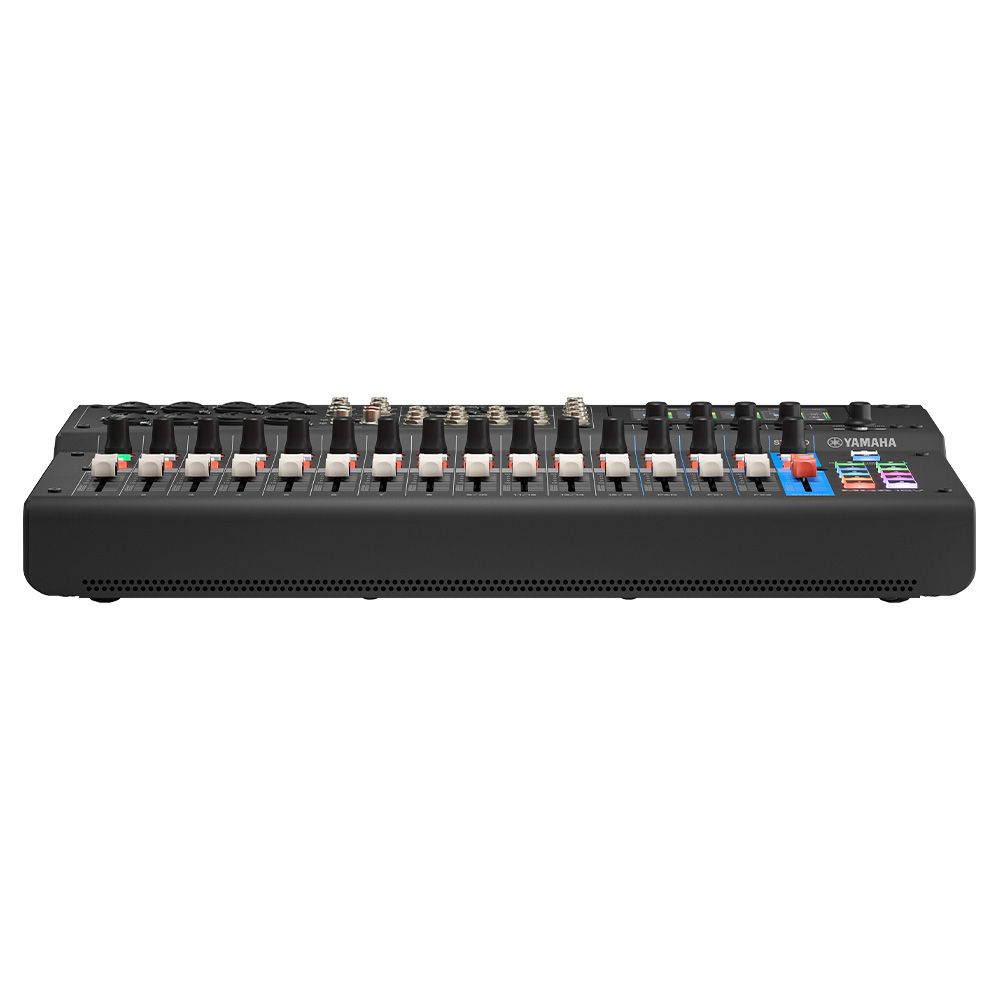

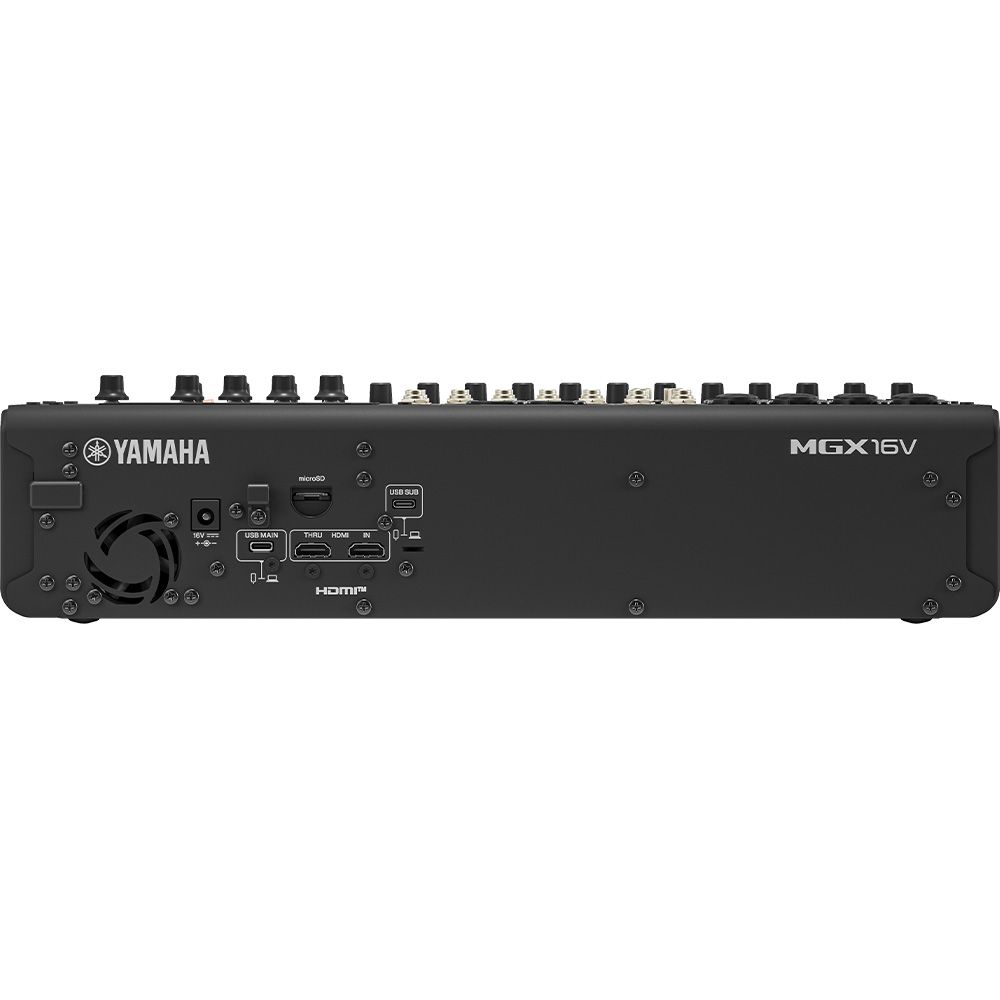

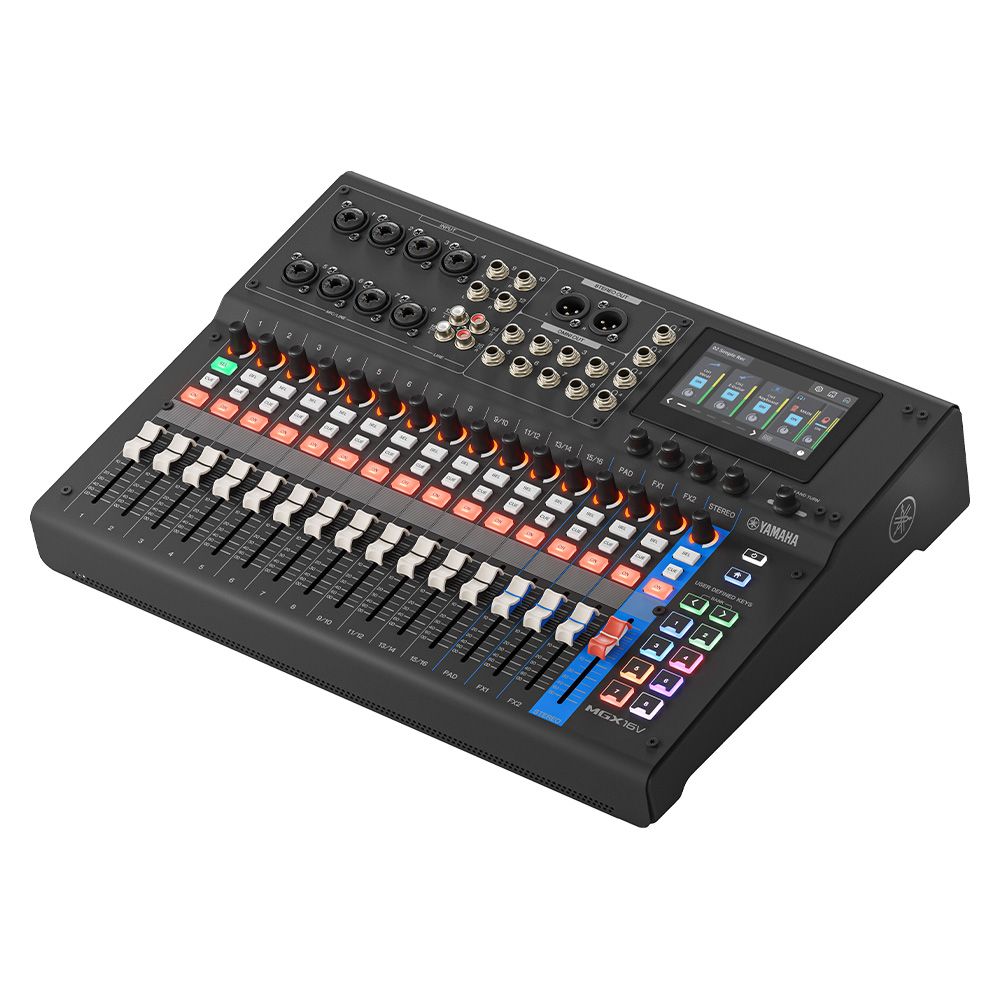

Yamaha MGX16V 16-Channel Digital Mixing Console w/ Video Interface (Black)

The MGX16V digital mixing console builds on Yamaha's MG legacy with 16 channels, versatile routing, and professional sound quality. Featuring a HDMI‐USB interface with capture and pass‐through, it integrates high‐definition video and audio seamlessly. Ideal for live sound, streaming, recording, and production, it ensures professional results in any environment.

Specs:

• 15 + 1 fader configuration (non‐motorized fader)
• A 4.3‐inch touchscreen with five control knobs
• Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2FX return
• Busses: 8 Mix + 2FX + 1 CUE + 1 STEREO
• Local I/O: 8 Mic/Line (8 XLR/TRS Phone Combo), 8 Line (4 TRS Phone, 4 RCA) inputs, and 2 XLR, 8 TRS Phone, 4 Headphones
• USB MAIN: 22 inputs / 22 outputs (32‐bit / 96 kHz)
• USB SUB: 2 inputs / 2 outputs (16‐bit / 48kHz)
• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
• microSD Card: 16‐track recording / 2‐track playback (24‐bit / Up to 96 kHz)
• HDMI‐to‐USB video/audio input with capture function and real‐time HDMI passthrough
• Built‐in DSP processor for professional sound and latency‐free monitoring
• Assistive features: Auto Gain, Clip Safe, Simple/Standard mode, Scene Recall
• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card (Cubase AI, WaveLab Cast, Basic FX Suite, Steinberg Plus), AC Power Adapter (PA‐300C)
