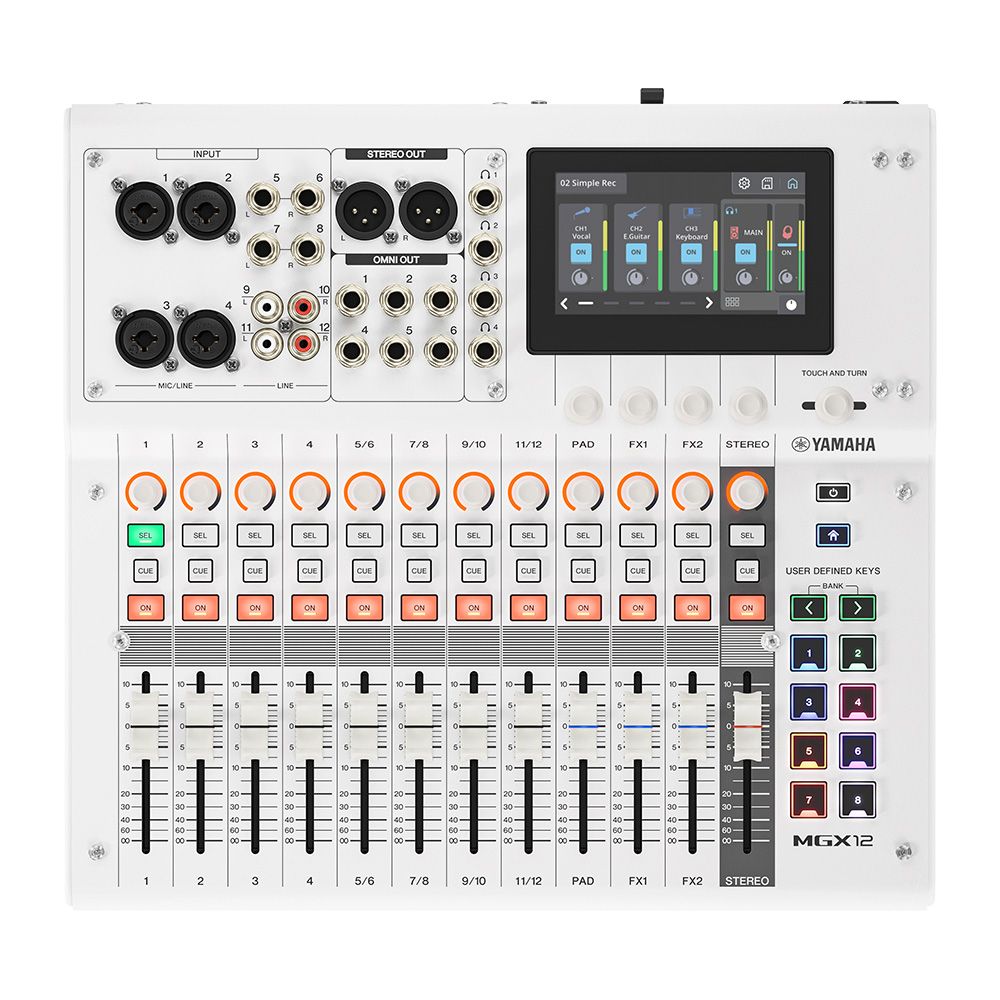

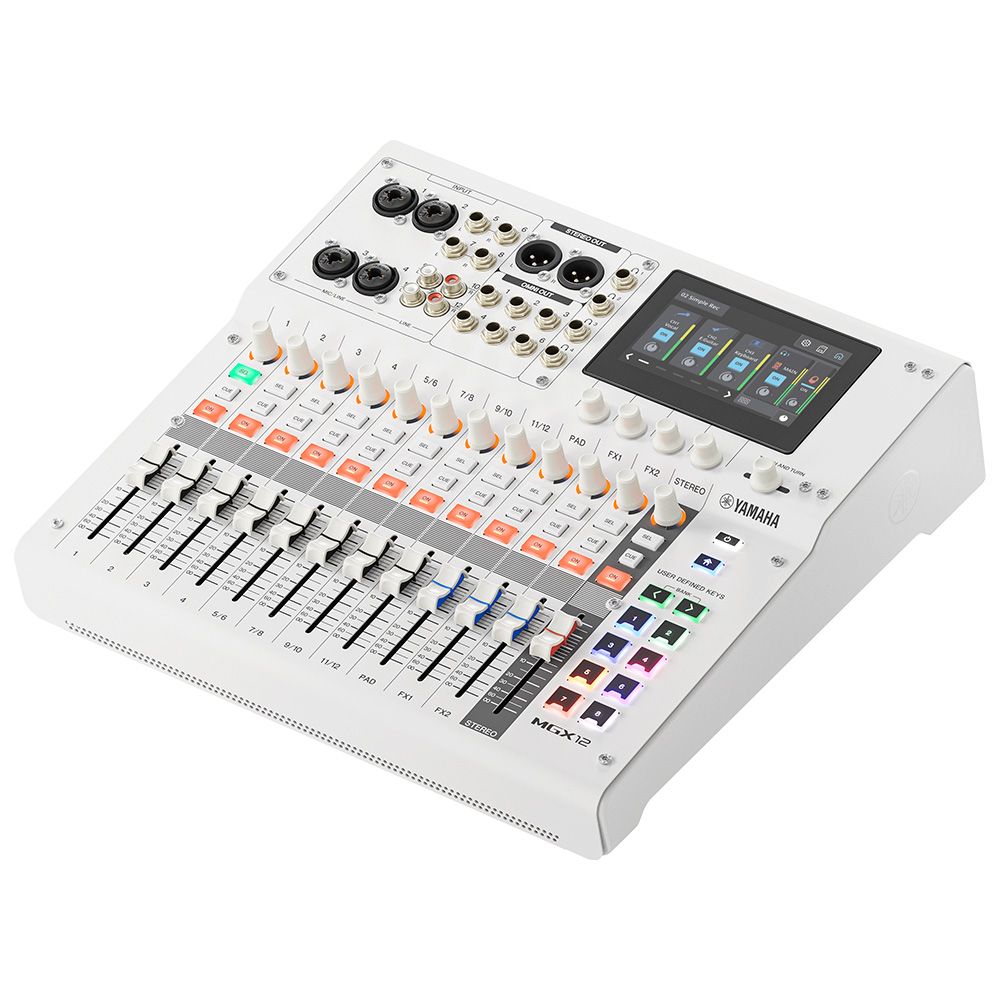

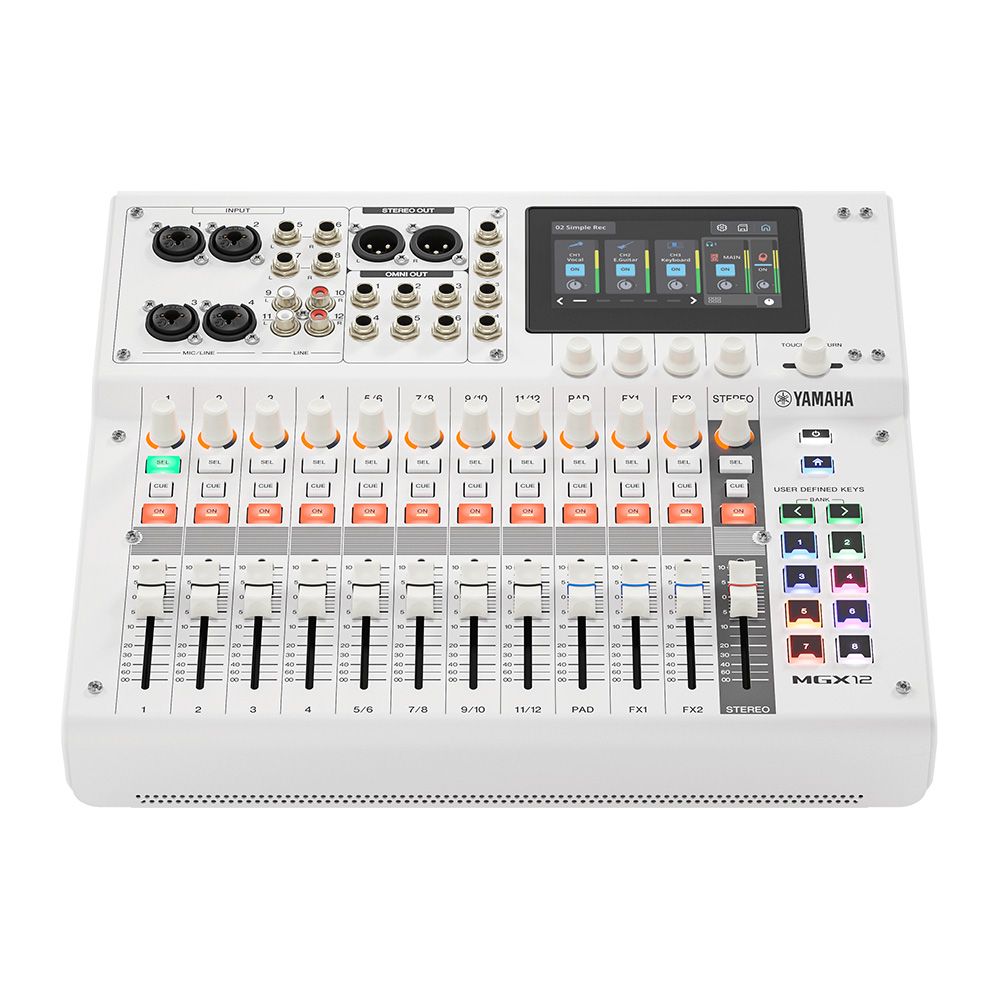

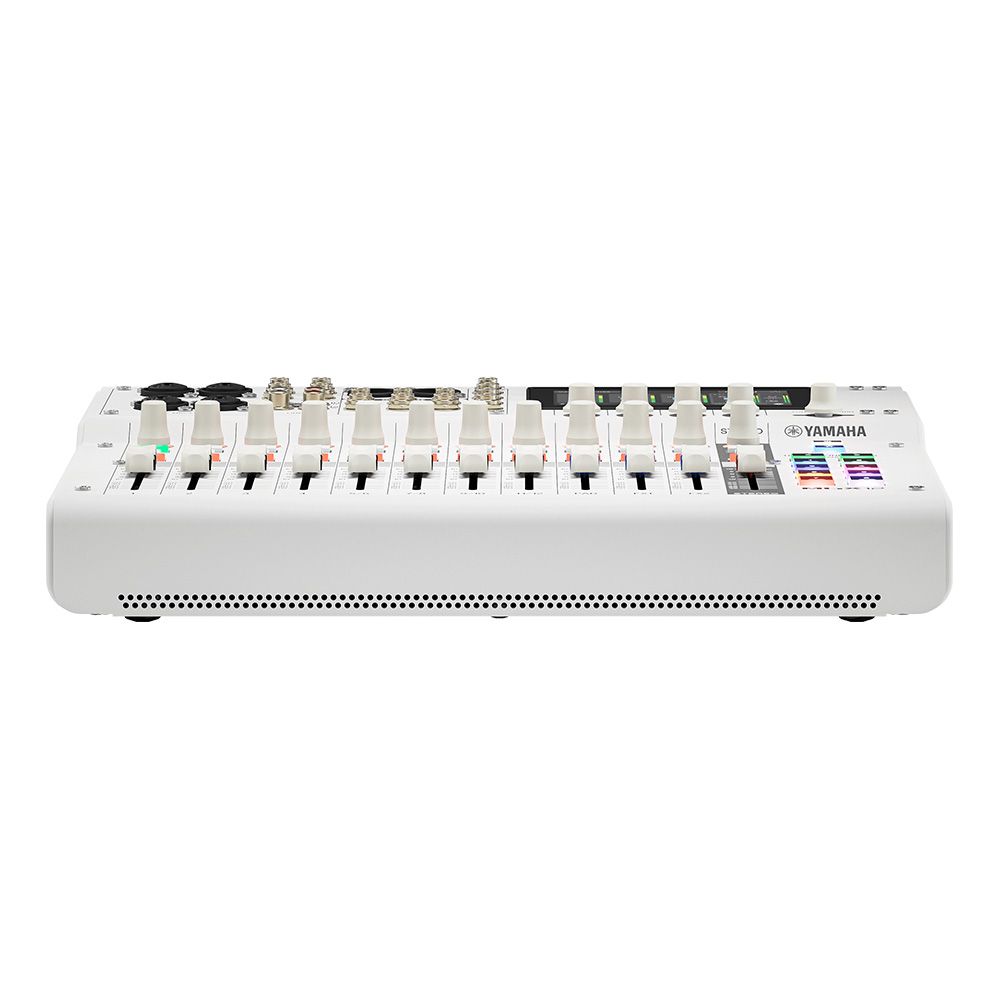

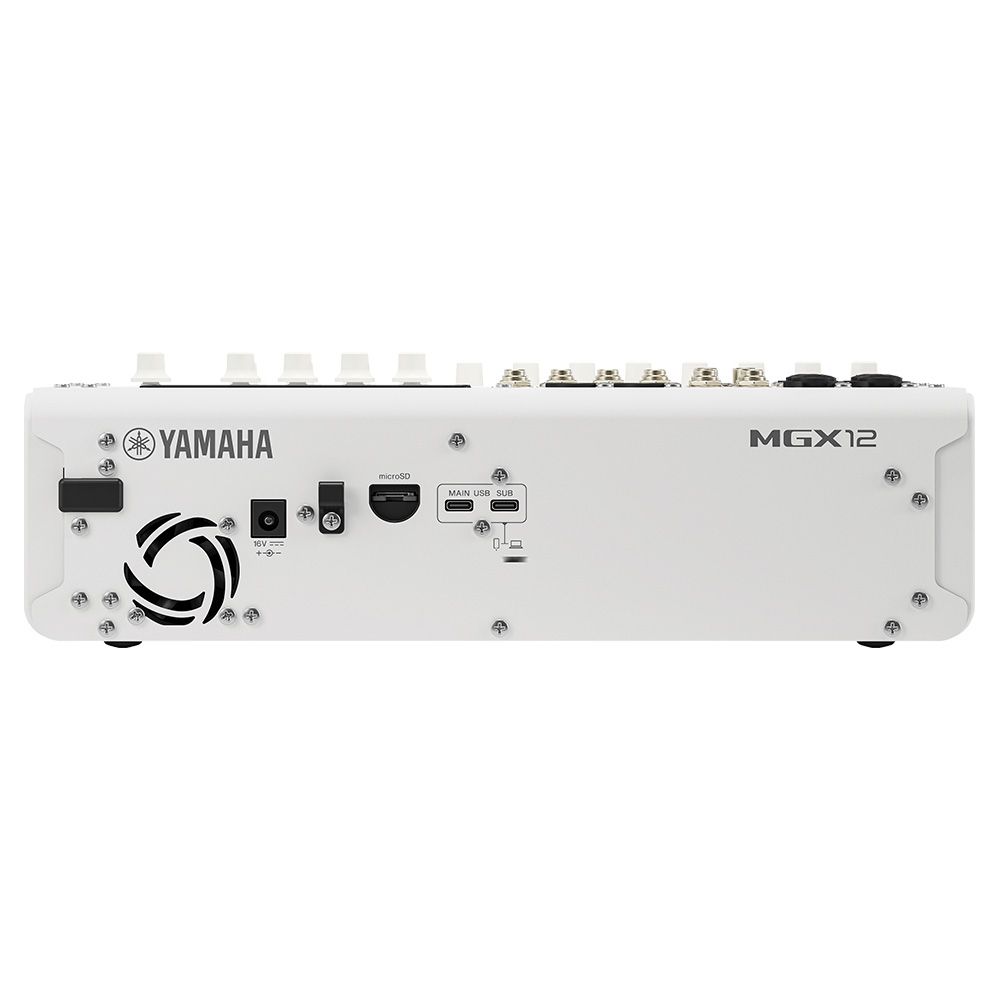

The MGX12 digital mixing console builds on Yamaha's MG heritage with premium sound, versatile I/O, and professional‐level features. Controlled through a touch‐panel GUI and physical controllers, it adapts seamlessly to live sound, installed systems, podcasting, and recording. Its intuitive workflow and sound quality captivate creators, performers, and audiences alike.
Specs:
- 11 + 1 fader configuration (non‐motorized fader)
- A 4.3‐inch touchscreen with five control knobs
- Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2FX return
- Busses: 8 Mix + 2FX + 1 CUE + 1 STEREO
- Local I/O: 8 Mic/Line (4 XLR/TRS Phone Combo), 8 Line (4 TRS Phone, 4 RCA) inputs, and 2 XLR, 6 TRS Phone, 4 Headphones
- USB MAIN: 18 inputs / 18 outputs (32‐bit / 96 kHz)
- USB SUB: 2 inputs / 2 outputs (16‐bit / 48kHz)
- Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
- microSD Card: 16‐track recording / 2‐track playback (24‐bit / Up to 96 kHz)
- Built‐in DSP processor for professional sound and latency‐free monitoring
- Assistive features: Auto Gain, Clip Safe, Simple/Standard mode, Scene Recall
- Included accessories: Start Guide, Safety Guide, Steinberg Software License Card (Cubase AI, WaveLab Cast, Basic FX Suite, Steinberg Plus), AC Power Adapter (PA‐300C)
