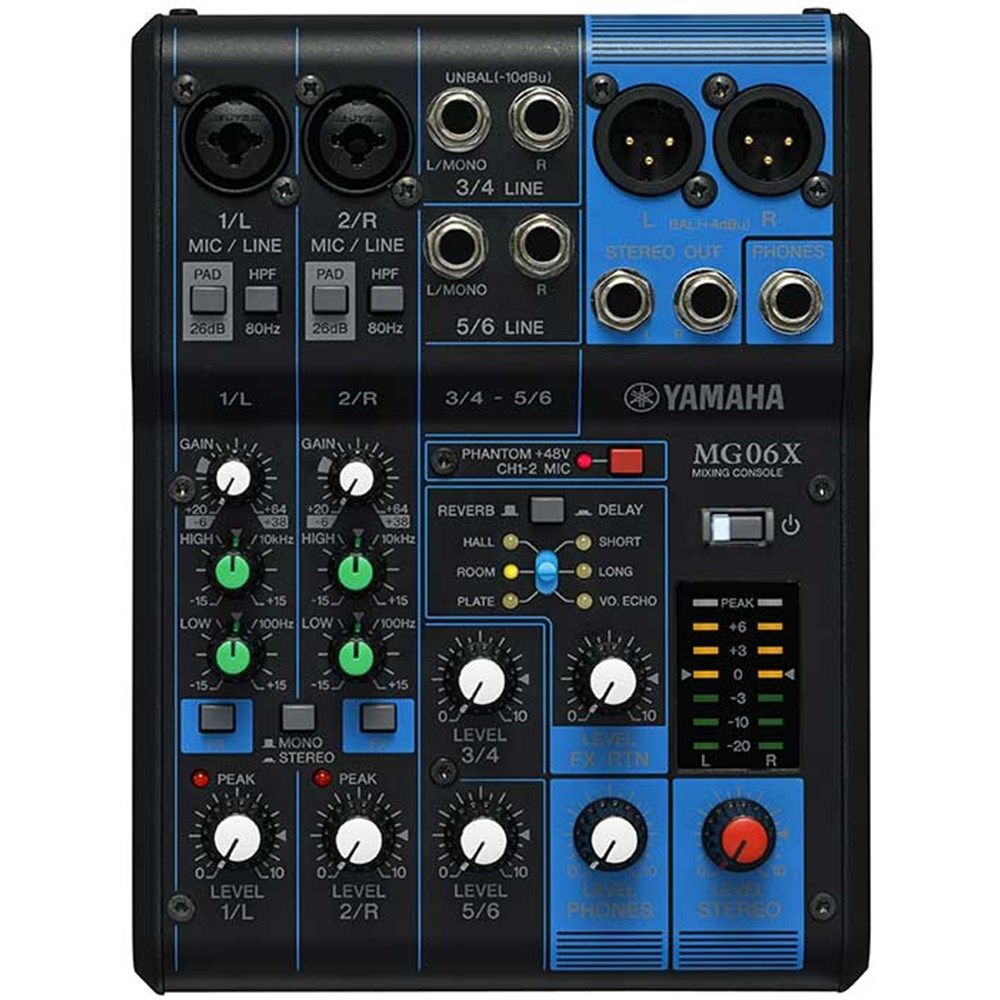

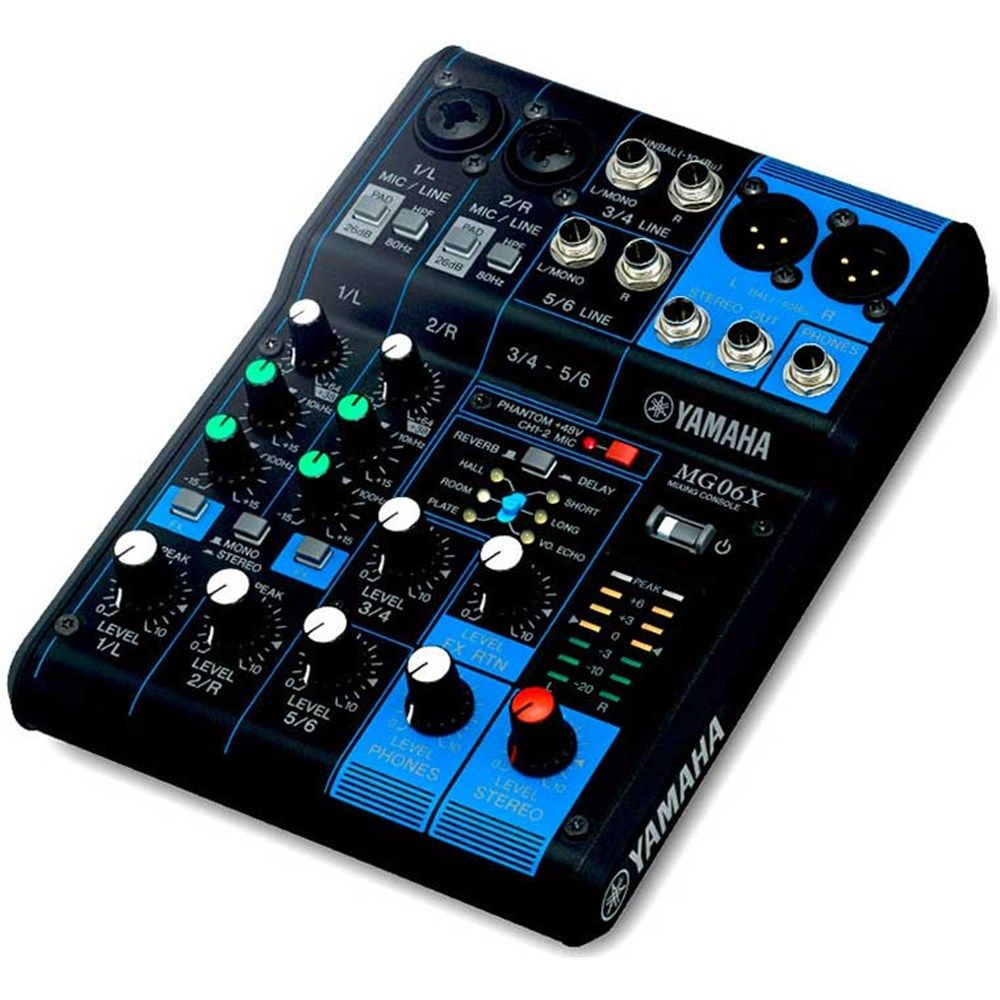

The Yamaha MG06X delivers professional mixing capabilities in a remarkably portable package that's built to handle the demands of gigging musicians. This compact 6-channel mixer features a robust metal chassis designed to withstand the rigours of constant transport, while its small footprint makes it perfect for cramped venues and mobile setups. With two dedicated microphone preamps equipped with Yamaha's "D-PRE" inverted Darlington circuitry, you can achieve clean, professional vocal reproduction that cuts through any mix.
Connectivity options are comprehensive despite the mixer's compact size, offering stereo XLR balanced outputs for PA systems and monitors, plus TRS 1/4-inch outputs that work seamlessly with powered speakers, amplifiers, and digital recording equipment. The unit accommodates up to six inputs through a combination of two mono channels and two stereo channels, with PAD switches on the mono inputs and +48V phantom power for condenser microphones. A dedicated 1/4-inch headphone output provides convenient monitoring capabilities.
The integrated SPX effects processor sets the MG06X apart from basic mixers, featuring six selectable programs including three reverb settings for vocal enhancement and three delay options to add depth and movement to your sound. Colourful LED level indicators for both left and right outputs help you maintain optimal signal levels while avoiding unwanted distortion and clipping, making it easier to achieve consistent, professional results in any performance environment.
- 6-Channel Mixing Console
- Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
- 1 Stereo Bus
- “D-PRE” mic preamps with an inverted Darlington circuit
- High-grade effects: SPX with 6 programs
- XLR balanced outputs
- PAD switch on mono inputs
- +48V phantom power
- Metal chassis
- Dimensions (W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
- Net Weight: 0.9 kg (1.98 lbs.)
