Raw power meets cutting-edge innovation in the DXR15mkII, a powered loudspeaker that pushes the boundaries of what’s possible in professional sound reinforcement. This powerhouse achieves an impressive maximum SPL of 134dB through its potent Class-D amplifier paired with a high-power woofer and Yamaha’s advanced technologies. The inclusion of D-CONTOUR processing creates such deep, rich low-end response that you’ll swear there’s a subwoofer in the mix.
The DXR Series has built its reputation on combining serious output capability with technological sophistication, consistently providing high-quality sound reinforcement that professionals can rely on. The mkII Series represents a significant upgrade, featuring enhanced SPL capabilities and a larger 1.75” Neodymium HF compression driver that’s actually lighter than its predecessor. This driver excels at reproducing vocals with exceptional clarity while maintaining excellent musicality across the frequency spectrum.
Development of the DXR mkII Series benefited from close collaboration with touring loudspeaker specialists NEXO, whose real-world expertise helped shape design improvements that address the constantly changing needs of sound reinforcement professionals. The result is a speaker system that handles both permanent installations and mobile live performances with equal confidence, backed by Yamaha’s proprietary advanced DSP functions that ensure the reliability and outstanding clarity the DXR Series is known for.
- 15" 2-way, Bi-amp powered speaker, Bass-reflex type
- Louder and lighter than previous iterations
- Yamaha ingenuity and NEXO expertise
- Combines raw power with proprietary advanced DSP functions
- High power output woofers
- Neodymium precision HF compression drivers
- Ultra-Precise 48Bit DSP processing for high-definition Sound
- Intelligent dynamic control with the D-CONTOUR multi-band compressor
- D-CONTOUR offers consistent clarity at any output level
- Extensive DSP Protection Functions for Maximum Output
- High-Efficiency 1100W Class-D Amplifiers
- Intelligent onboard 3-channel mixer
- Durable, compact ABS enclosures
- Symmetrical enclosure design for mirror-mode floor monitoring
- Dual-angle pole mount socket
- Rigging points for standard eye-bolts and optional U-brackets
- Frequency range (-10dB): 49Hz - 20kHz

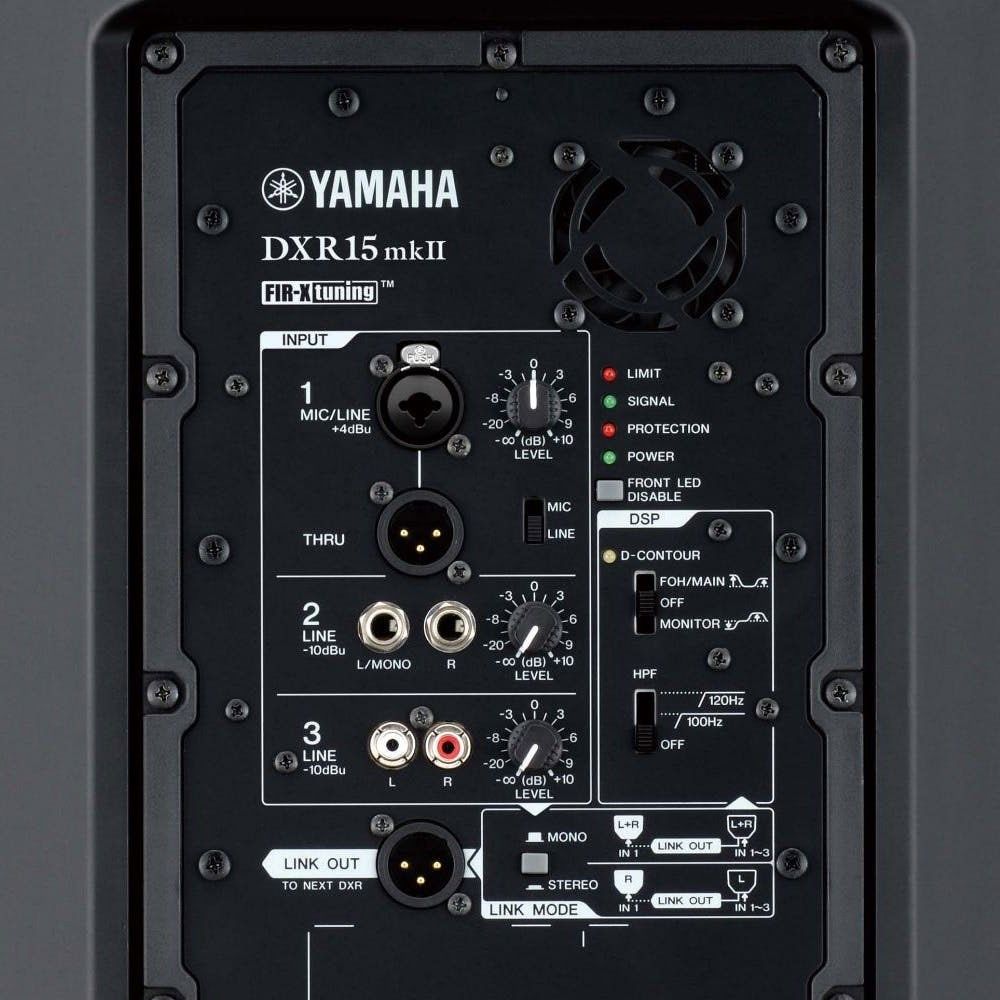

- Input: 1x XLR-3-31, 2x Phone, 2x RCA PIN
- Thru: 1x XLR3-32 (Parallel with Input 1)
- Link Out: 1x XLR
