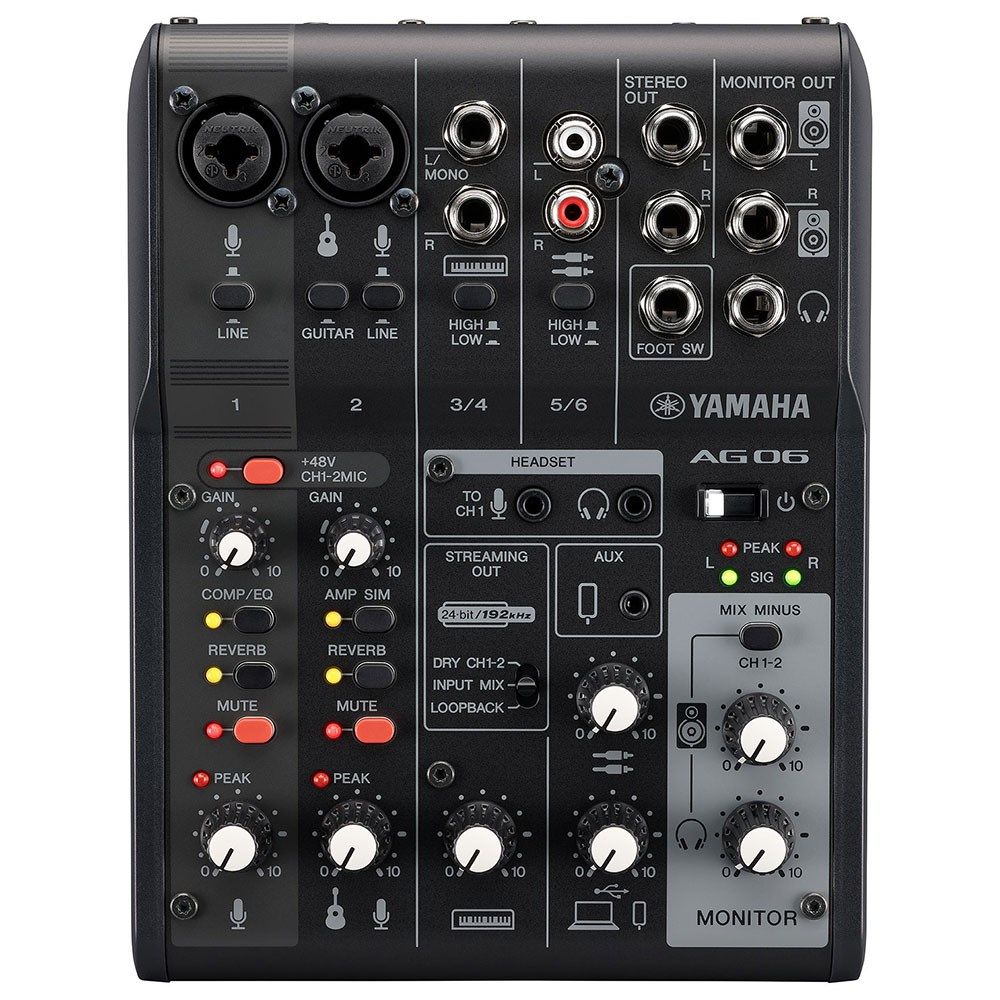

Input Channels

  • Mono[MIC/LINE]:
    • CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8″) stereo mini (Headset mic, Plug-in power),
    • CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
  • Stereo[LINE]: 2 – L/R Stereo: Phone, RCA
  • Smartphone: 1 – PHONES / HEADSET PHONES *Cannot be used simultaneously
  • USB: 1

Output Channels

  • PHONES: 2 – PHONES / HEADSET PHONES *Cannot be used simultaneously
  • Smartphone: 1 – 4-pole mini input/output (TRRS)
  • MONITOR OUT: 1
  • STEREO OUT: 1
  • USB: 1
  • Bus: 1 Stereo
  • Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
  • DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller

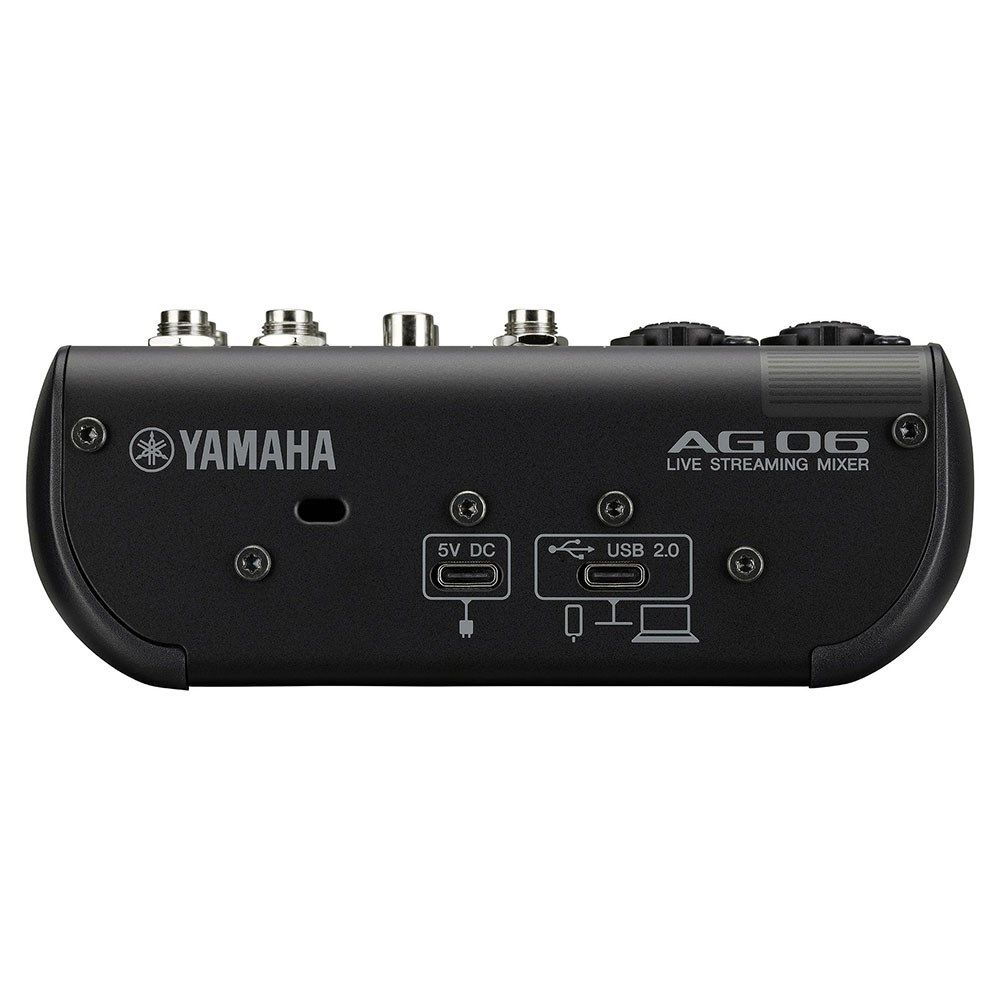

  • USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
  • USB DC Power input: 1 – Type-C, 5 V DC, 900 mA
  • Power requirements: 5 V DC, 900 mA
  • Power consumption: Max. 4.5 W

Dimensions

  • Width: 152 mm (6.0″)
  • Height: 63 mm (2.5″)
  • Depth: 201 mm (7.9″)
  • Net weight: 0.9 kg (2.0 lbs)

Included Accessories

  • USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
