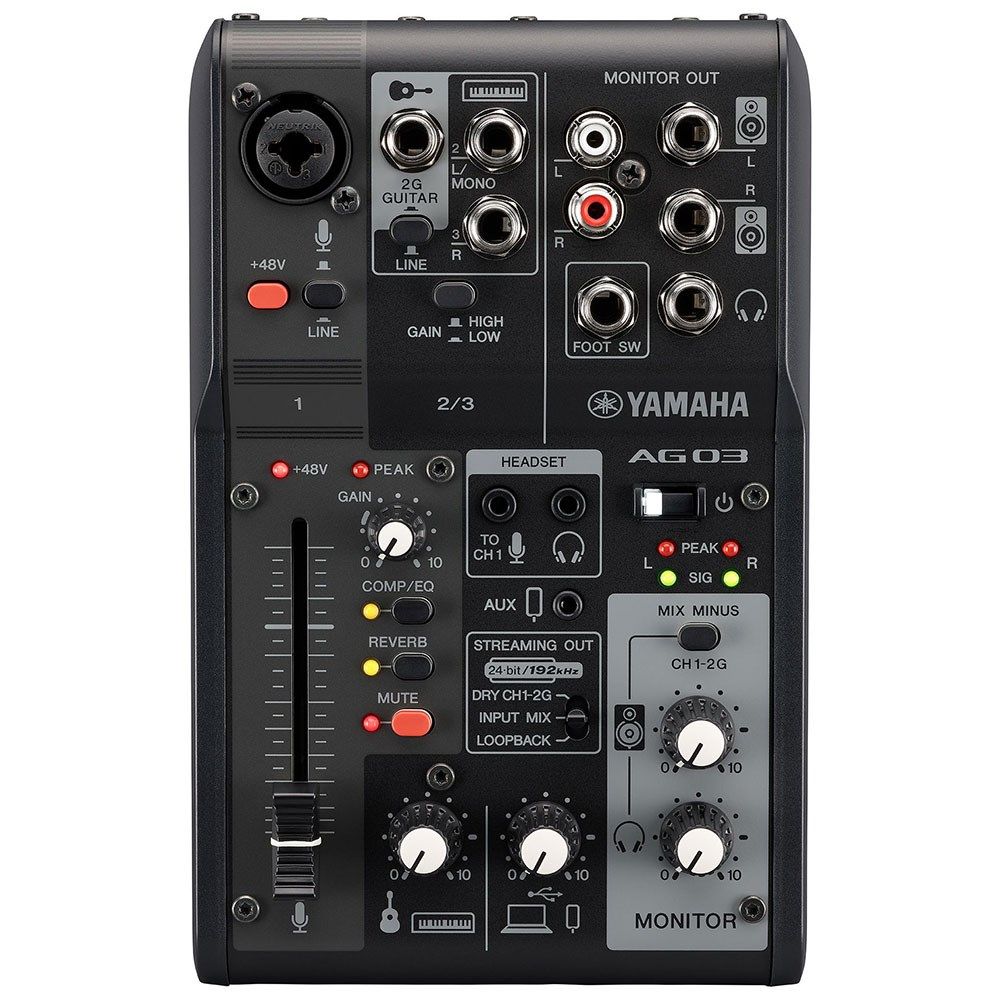

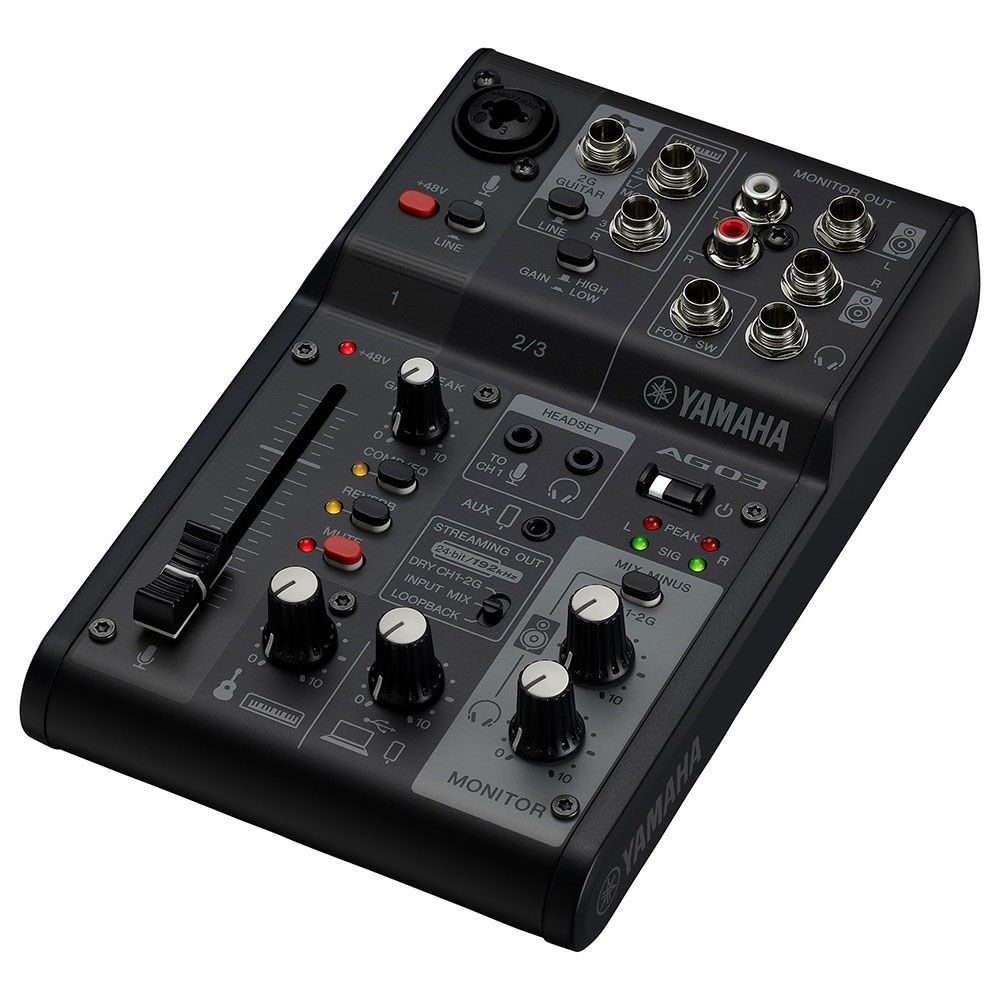

Yamaha AG03MK2 3-Channel Live Streaming Mixer with USB Audio Interface - Black

YAM-AG03MK2B

$250

Price Challenge!
Buy Now
Free Shipping

Anywhere Australia wide*

$62.50
4 payments

Late Fees Apply

Up to 12 months interest free

Fees Apply

More Info

4 payments
$30-$2000

No Fees/Interest

More Info

The Yamaha AG03MK2 represents the next evolution in live streaming audio technology, building upon the success of its predecessor with enhanced connectivity and professional-grade features. This 3-channel live streaming mixer combines a USB audio interface with comprehensive DSP effects and the essential LOOPBACK function that made the original AG03 a favourite among content creators. The MK2 version introduces crucial improvements including 4-pole mini I/O for expanded streaming compatibility, a dedicated mute button for instant audio control, and refined internal circuitry that enhances overall sound quality.

Professional features include a substantial 60mm fader for mic channel 1, +48V phantom power for condenser microphones, and Hi-Z input on channel 2 for direct guitar connection. The mixer supports high-resolution 24-bit, 192kHz audio recording and playback, whilst the flexible TRRS input/output accommodates various streaming setups across multiple platforms. Built-in amp simulation, one-touch compression/EQ, and reverb effects provide immediate sound enhancement without requiring external processing.

Connectivity options span Windows and Mac systems via USB-C, iOS devices through Apple Camera Adapter (with external power), and Android compatibility through the 4-pole mini connection. The AG Controller software for Windows, Mac, and iOS enables precise parameter adjustment, whilst included software packages feature Cubase AI, WaveLab Cast, Cubasis LE, and Rec'n'Share. Optional FC5 foot switch control for reverb and mute functions allows hands-free operation during performances or streaming sessions.

Input Channels

  • Mono[MIC/LINE]: 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously
  • Stereo[LINE]: 1 - Stereo Line / Guitar Input (Mono)
  • Smartphone: 1 - 4-pole mini input/output (TRRS)
  • USB: 1

Output Channels

  • PHONES: 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
  • Smartphone: 1 - 4-pole mini input/output (TRRS)
  • MONITOR OUT: 2 - L/R Stereo: Phone, RCA
  • USB: 1

General

  • Bus: 1 Stereo
  • Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
  • DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
  • USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C

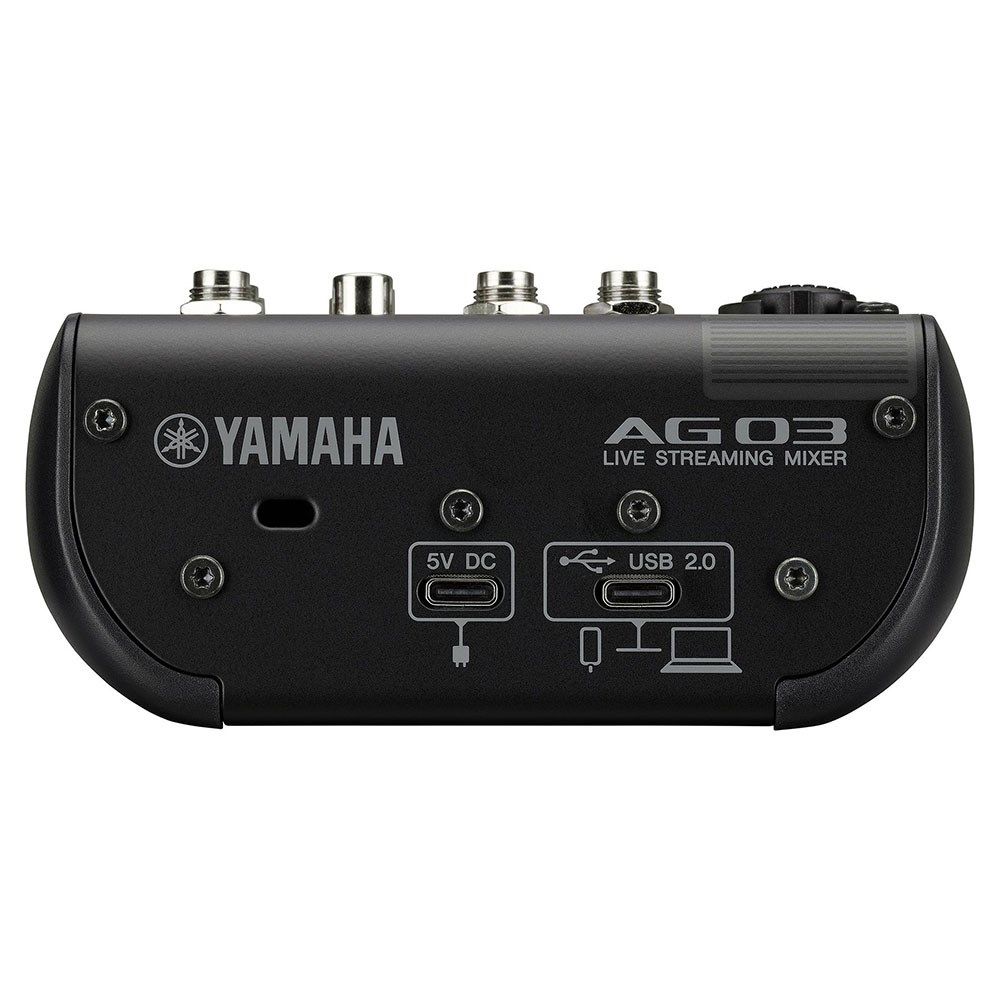

  • USB DC Power input: 1 - Type-C, 5 V DC, 900 mA
  • Power requirements: 5 V DC, 900 mA
  • Power consumption: Max. 4.5 W
  • Dimensions WxHxD: 126 mm (5.0") x 63 mm (2.5") x 201 mm (7.9")
  • Net weight: 0.8 kg (1.8 lbs)
  • Included Accessories: USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
  • Others: Operating Temperature: 0 to + 40 ℃
