This feature–packed, compact utility ensures that your cables and gear are always up to the gig! It outputs a 1 kHz sine wave or pink noise audio signal through XLR male, 1/4″, and 1/8″ connectors, with three output level options: −10 dB, −20 dB, and −40 dB. It can also test whether all three pins of the XLR cable are functioning properly or measure the input volume level of the XLR female connector. When an audio source is connected to the XLR female / 1/4″ input, you can monitor the signal with headphones or speakers via the 1/8″ headphone jack.
Features

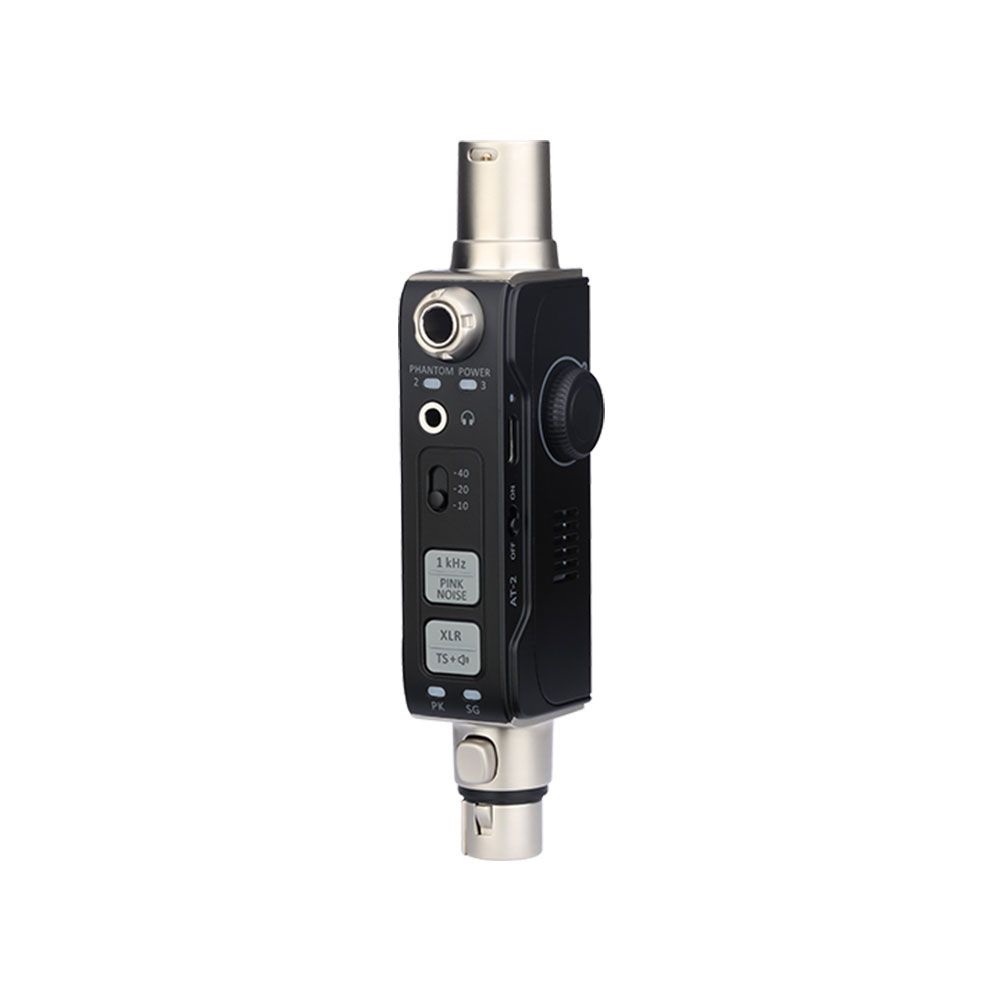

- AT–2 Audio Tester Pro
- Signal Generator emits 1 kHz tones or pink noise audio signals
- XLR Cable Tester for detecting whether XLR cables are damaged
- XLR Input Metering to measure the strength of XLR input signals
- Phantom Power Check to test voltage and ensure normal operation
- Headphone and Speaker Monitoring to check input signals
- Suitable for testing powered PA speakers, effect pedals, cables, DI boxes, IEM systems, mixers, and other audio equipment
- Charges via USB–C in 1.5 hrs
- Up to 4 hours of operation on a full charge
