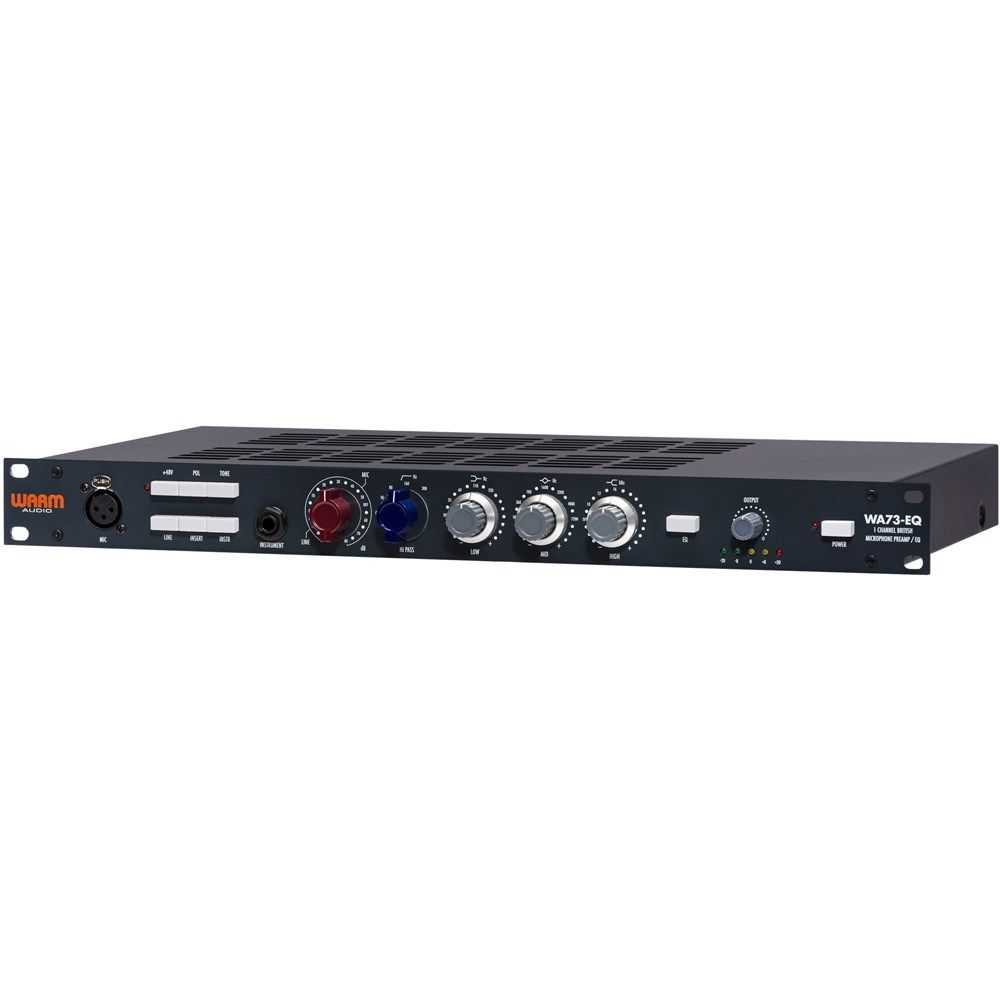

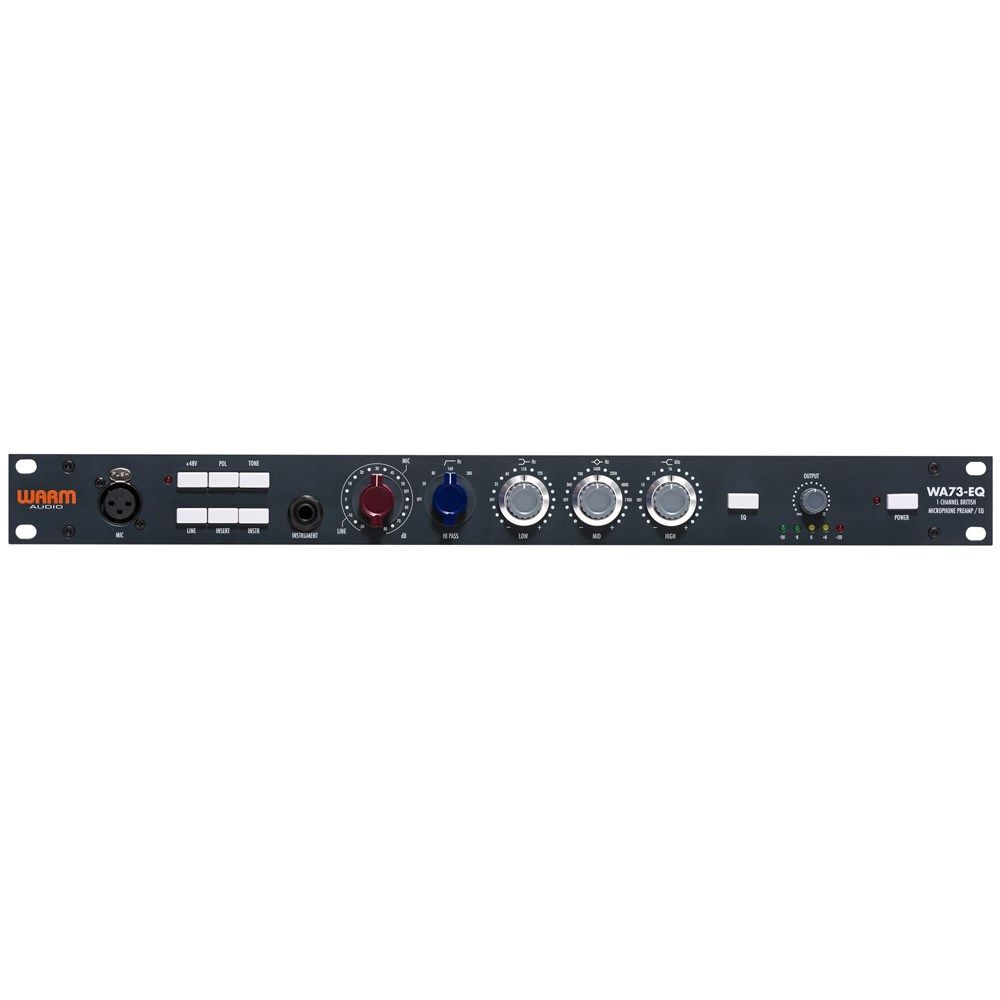

• Single channel, class a, '73-style British microphone preamp with EQ
  • UK made Carnhill transformers
  • UK made - Blore Edwards EQ dual-concentric switch potentiometers

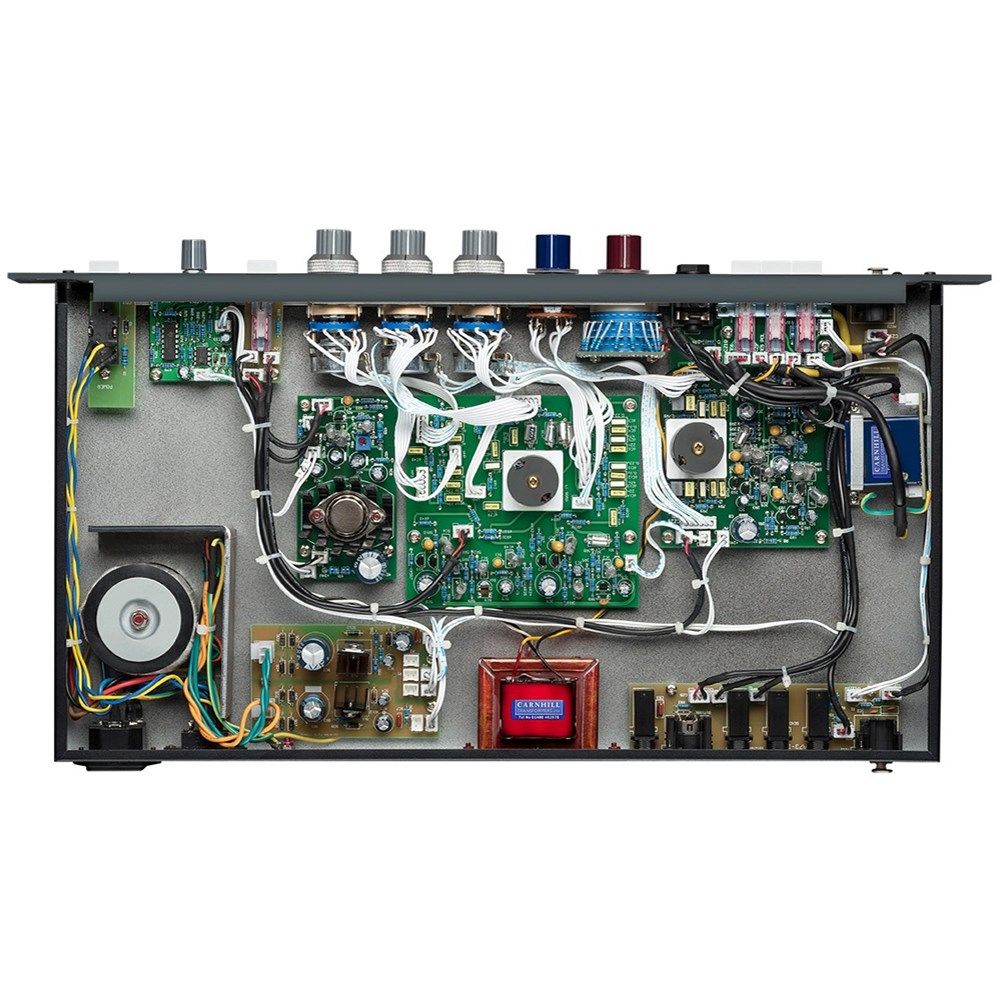

  • Hand wired, hand assembled
  • 80dB of gain - resistor stepped gain switch
  • Fully discrete
  • Tone button - changes input transformer impedance for varying tone
  • Polarity switch
  • 48v phantom power
  • Inductor based 3 band EQ
  • Low band boost/cut - 35, 60, 11 0, 220 Hz
  • Mid band boost/cut - 360, 700, 1600, 3200, 4800, 7200 Hz
  • High band boost/cut - 10, 12, 16 kHz
  • Additional high band frequency EQ points added (compared to vintage 1073)
  • 4 position inductor based hipass filter - 50, 80, 160, 300 hz

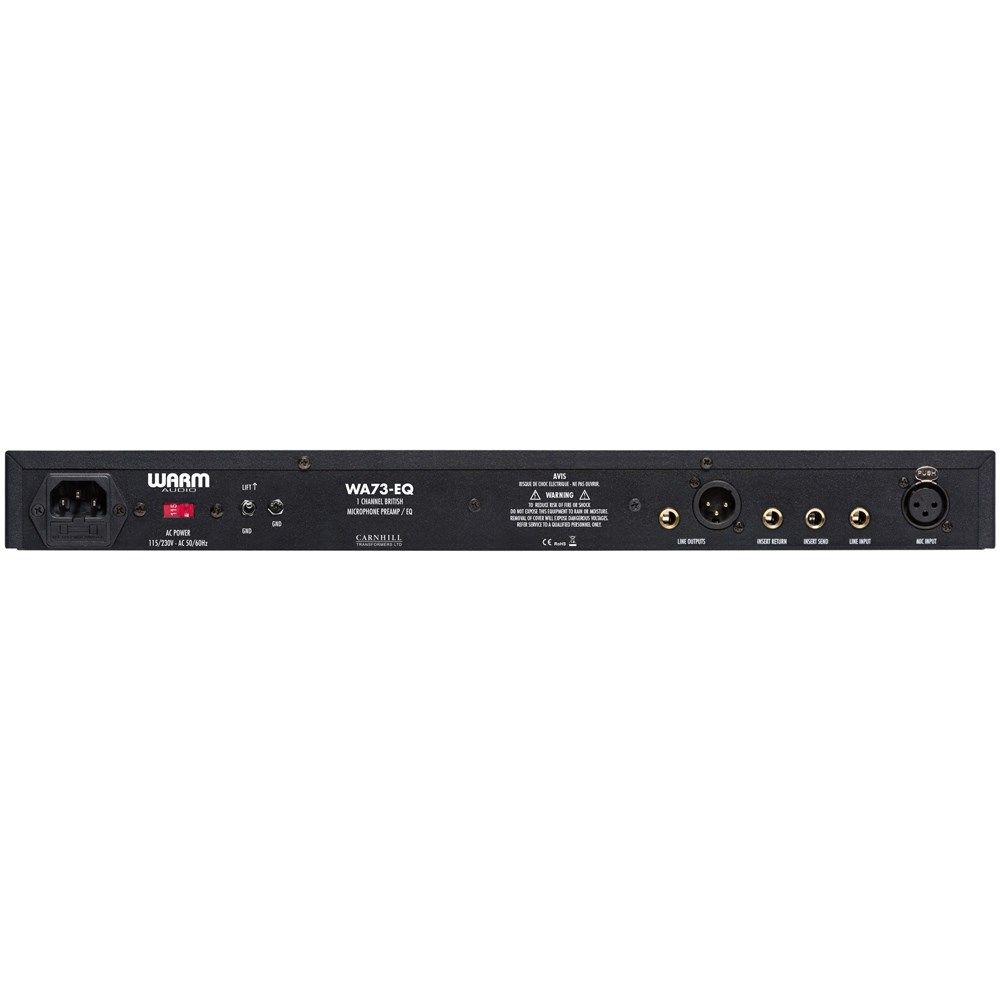

  • XLR mic inputs (front & back)
  • Line level TRS input
  • TS send/receive insert jacks
  • XLR & TRS line level outputs
  • Direct in, instrument input
  • Output control
  • LED level indication
  • Freq response 20hz - 20khz +/-.5 db
  • 19" rack mountable
  • Internal IEC 115v/230v power inlet
