Many preamps on the market today simply boost signal levels without adding any character or warmth, leaving you with sterile recordings that require extensive post-production work to bring them to life. The WA12 MKII Black takes a completely different approach, actively shaping and enhancing your signal to create exciting sounds that cut through a mix with professional polish and depth.
This completely discrete, high voltage, dual-transformer microphone preamplifier offers exceptional specifications including high gain (+71dB), generous headroom, and low noise performance that makes it suitable for all recording applications. At the heart of the WA12 MKII Black sits the X731 discrete op-amp, a faithful reproduction of the classic Melcor 1731 – widely regarded as the warmer predecessor to modern 2520-style op-amps.
The X731 op-amp produces vibrant, clean and lifelike tones at moderate levels, but can be pushed into pleasing mild saturation at higher gain settings. This saturation ranges from subtle warmth to more obvious colouration, yet always remains musical and ear-friendly. The design accepts any discrete op-amp conforming to the +/-16v, 2520 pinout standard, offering flexibility for future upgrades.

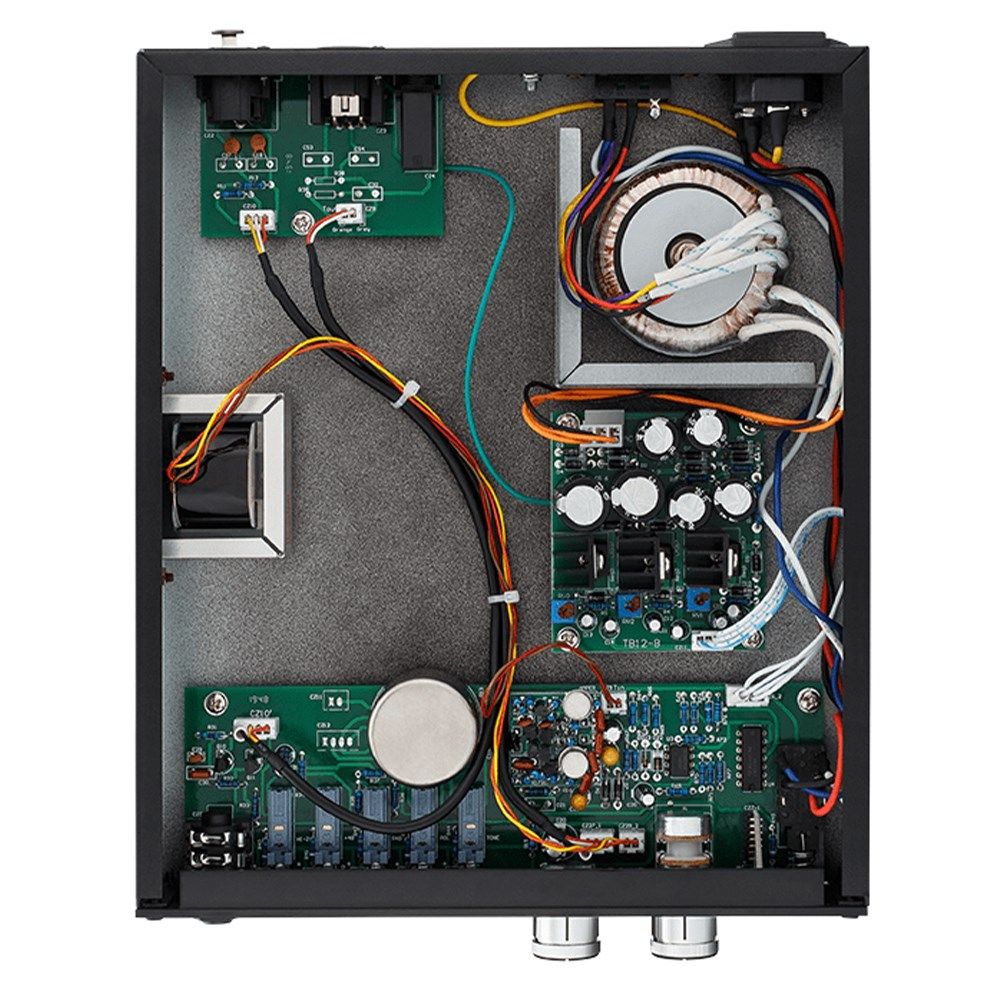

Built with CineMag USA transformers and maintaining an all-discrete signal path throughout, the WA12 MKII Black provides the essential building blocks found in high-end preamps. This robust and professional design comes packaged in a compact, affordable unit that punches well above its weight class.
- Utilises premium-grade input and output transformers from CineMag USA
- Fully discrete design with a robust 71db of gain
- Utilises a discrete 6-pin socketed 1731-style opamp, which can be swapped with other designs that conform to the 6-pin, 2520 footprint +/- 16vdc standard for varying tone and flavour
- 20db pad
- Tone button - switches the input impedance from 150 to 600 ohms and changes the tone of both the mic and hi-z inputs

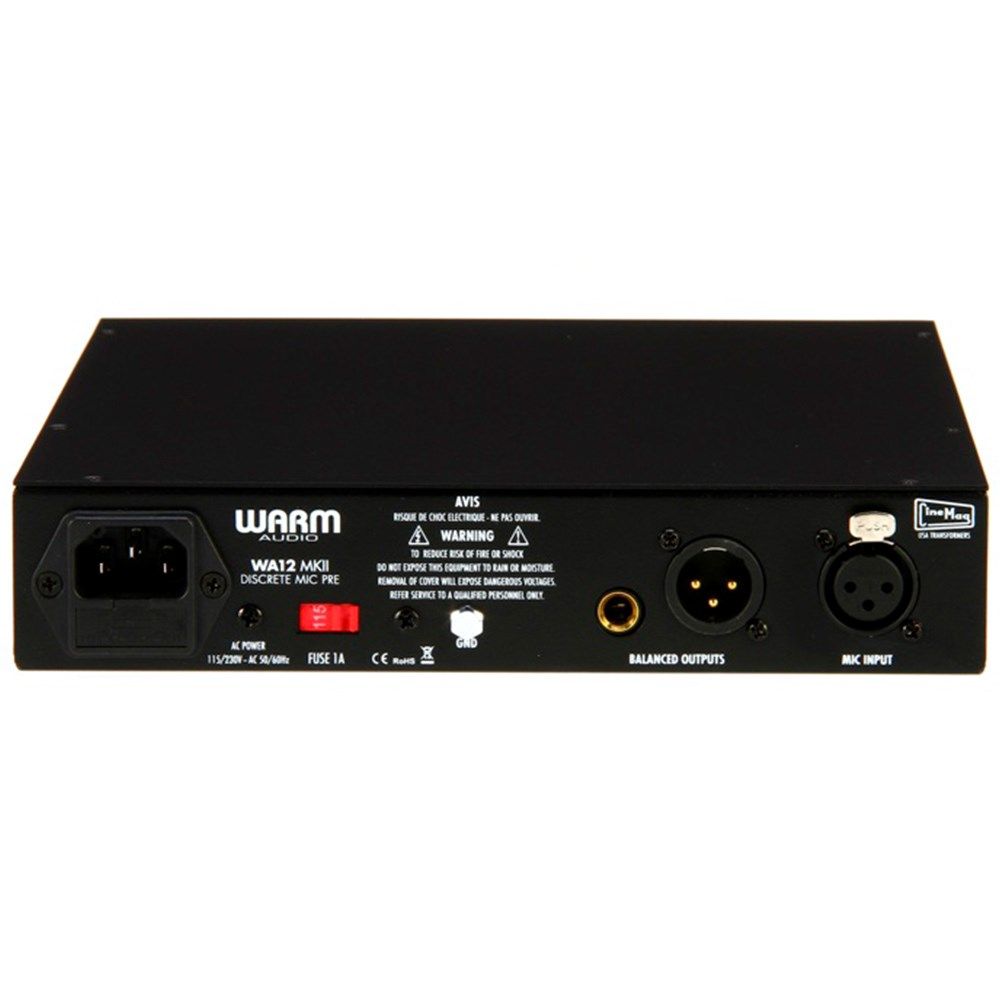

- Mic level balanced input: XLR
- 2 megohm true hi-z input on the front panel which sends the signal through the entire circuit, including both CineMag transformers and the x731 opamp - great for guitars, bass, keys, keyboards and any instrument with a 1/4” output jack
- Balanced outputs: XLR and 1/4″/TRS
- 48 volt phantom power
- Led meter gain indication
- Output attenuation control (positioned after the CineMag output transformer) allows for driving the preamp and transformers into saturation
- Switchable 115/230 volt IEC power inlet
