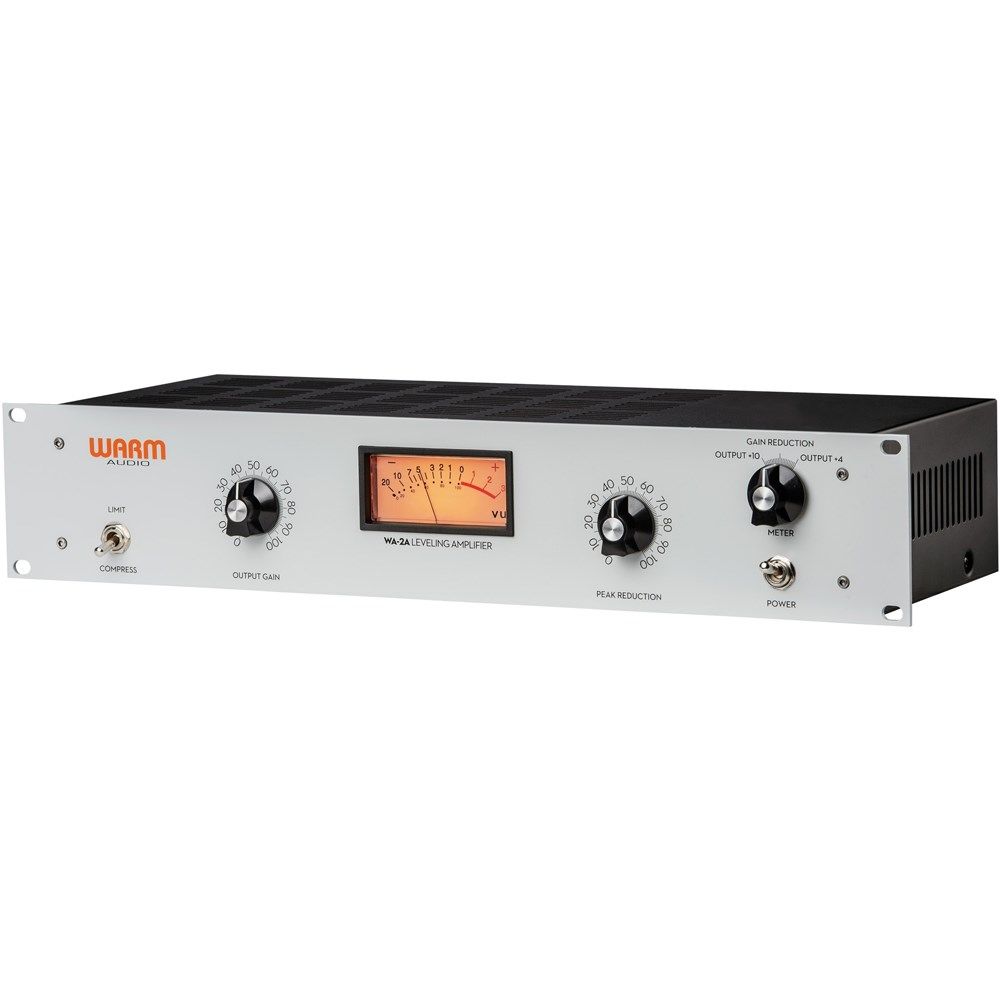

'2A style, transformer balanced, high voltage, opto tube compressor?
Utilizes premium grade input and output cinemag usa transformers
USA made Kenetek opto-cell attenuator t4' style module - socketed to allow retro-fitting with other opto-cells
Premium Tung-Sol and Electro-Harmonix tubes - 2X 12ax7, 1x 12bh7, 1x 6aq5 or 6p1
Fully discrete signal path
Variable pre-emphasis, allows for compression hipass filtering (tone control)
Stereo-link capable via TRS connector
Input impedance - 600 ohms, bridges-t control (floating)
XLR and TRS balanced line level outputs - 600 ohms impedance
XLR and TRS balanced line level inputs - 600 ohms impedance
Frequency response +/- 1 db, 15 Hz to 20kHz
Gain 40 dB ±1dB
Input level +16 dB maximum
Output level +10 db nominal, +16 db maximum
Distortion less than 0.1% THD at ±10 dBm
Noise = -74db
Attack time - 10 milliseconds
Release time - 0.06 seconds for 50% release - 0.5 to 5 seconds for complete release
Meter displays both db gain reduction and db output
Power - 115/230 volts (switchable), 50/60 Hz
Dimensions - 19" rackmount chassis, 2U - 19" X 7" x 3.5"
