Voodoo Lab Pedal Power 3

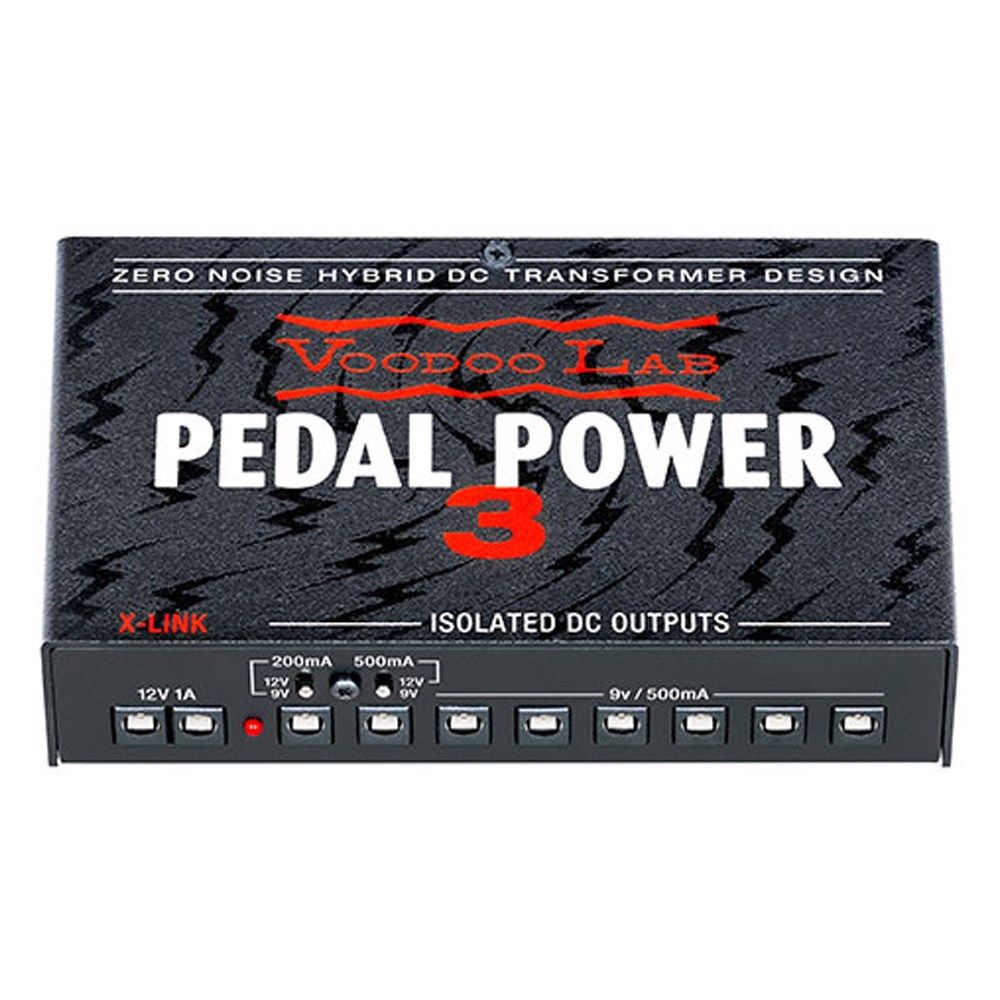

The Pedal Power 3 series represents a breakthrough in guitar effects power supply technology, combining zero-noise performance with international voltage compatibility in an ultra-lightweight design. This innovative power supply utilises a Hybrid DC transformer design that integrates exotic components, linear regulation, and computer optimised filtering to produce audiophile-quality power that reveals the hidden sonic potential of any pedalboard setup. From standard battery-operated pedals through to modern high-current DSP effects, the Pedal Power 3 merges proven analogue engineering with cutting-edge technology.

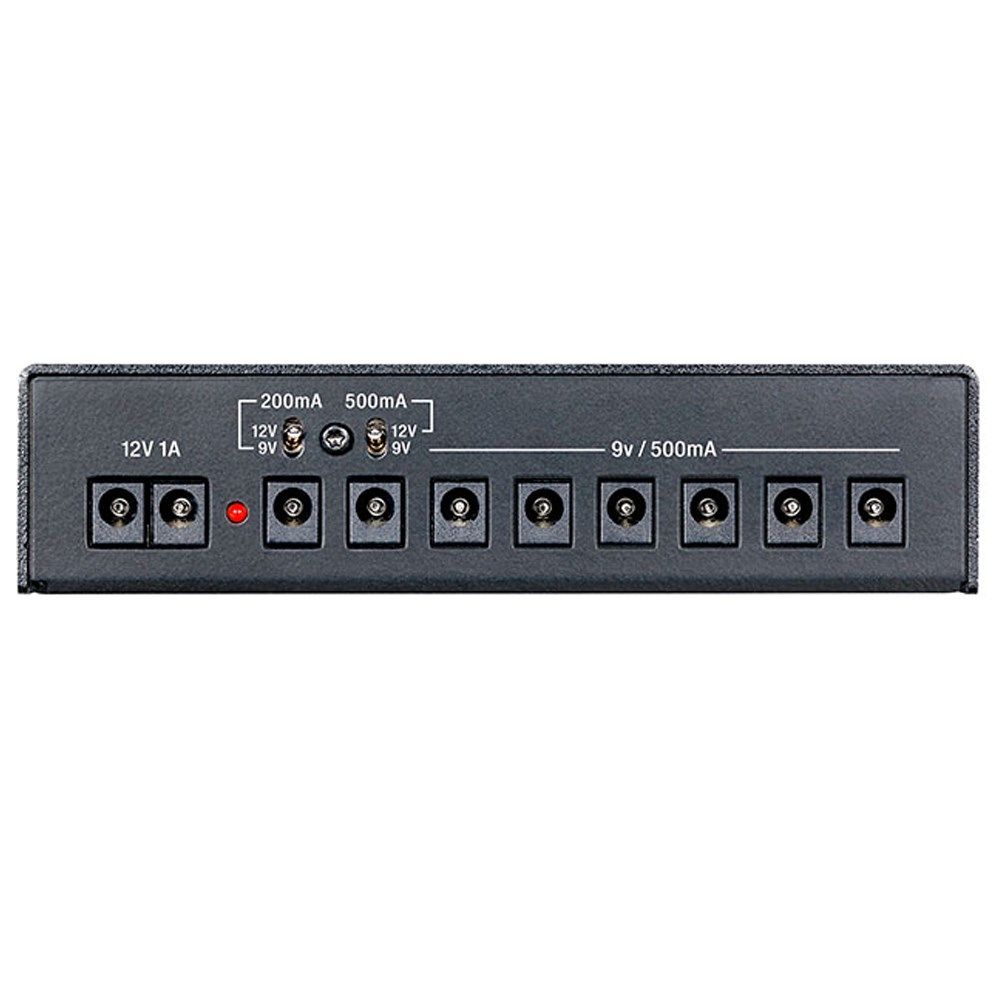

Featuring eight galvanically isolated DC outputs, this power supply eliminates ground hum and prevents unwanted interaction between pedals. Each output supplies 9V DC, with two outputs including a voltage selector switch for 12V DC operation. For pedals requiring 18V and 24V, you can combine outputs using an optional voltage doubler cable. Every output provides up to 500mA of current, easily handling power-hungry modern DSP effects whilst maintaining the audiophile specifications needed to preserve the musical character of sensitive vintage stompboxes.

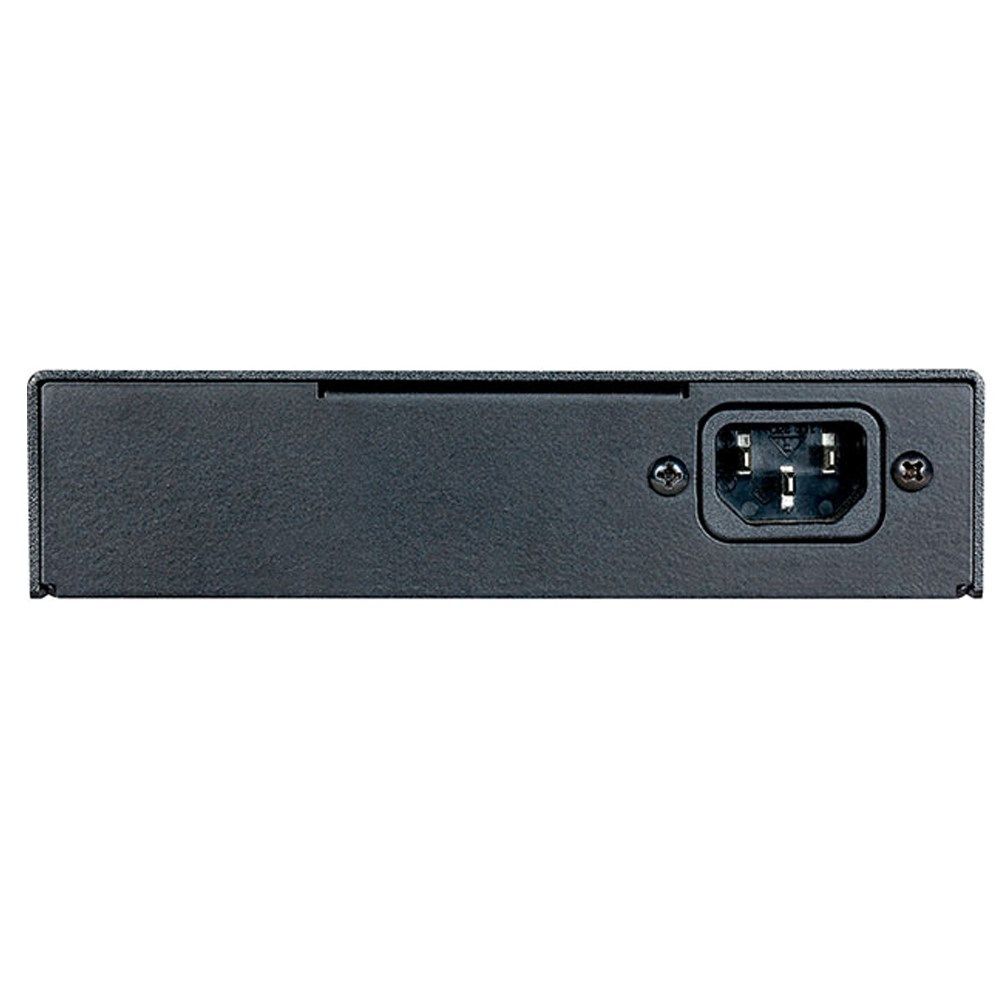

The system’s expandability sets it apart from conventional power supplies, with two X-LINK expansion ports allowing you to add up to 16 isolated outputs. Simply connect a Pedal Power X4 or X8 to the X-LINK ports to expand your power supply capacity as your pedalboard grows. The low-profile, ultra-lightweight design mounts easily to any pedalboard without adding noticeable weight, whilst the universal input voltage range of 100V-240VAC makes international touring straightforward – no voltage converters required.
