Universal Audio UAFX Ruby 63 Amplifier Guitar Pedal
UA-RUBY
$759
Free Shipping
Anywhere Australia wide*

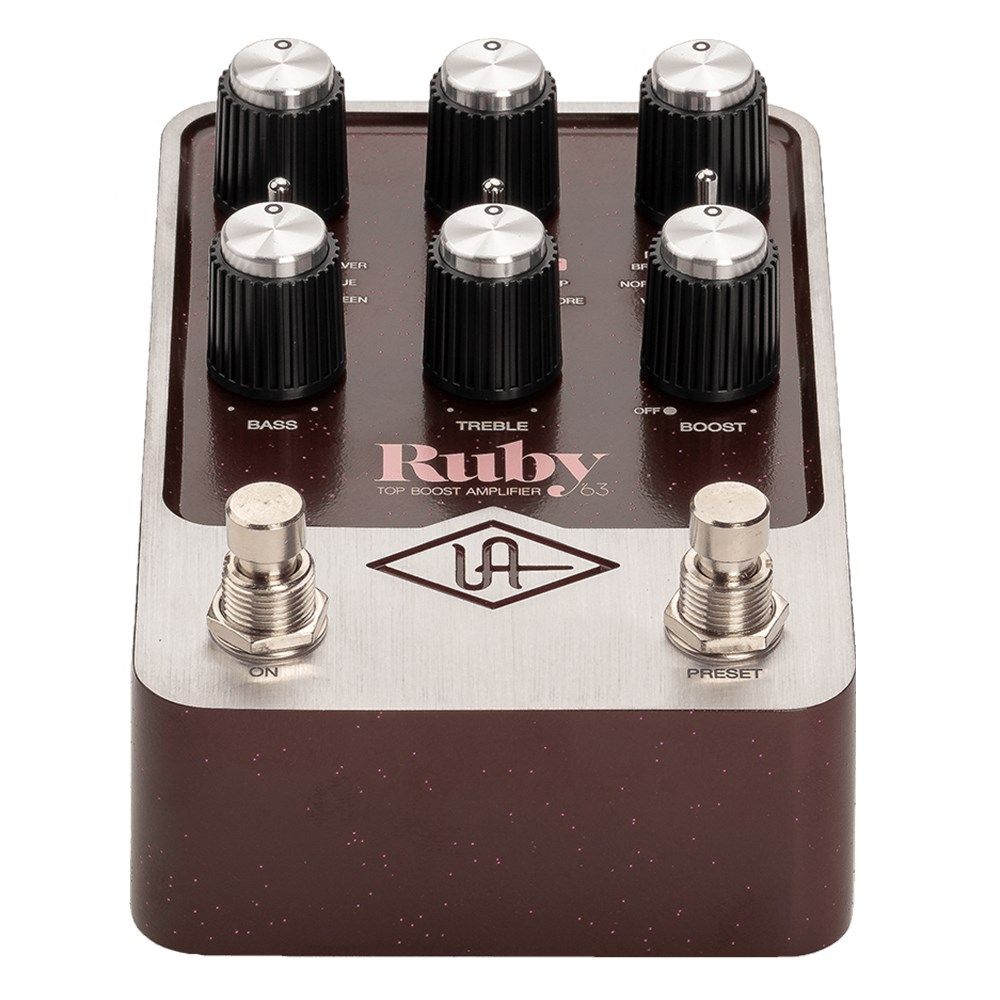

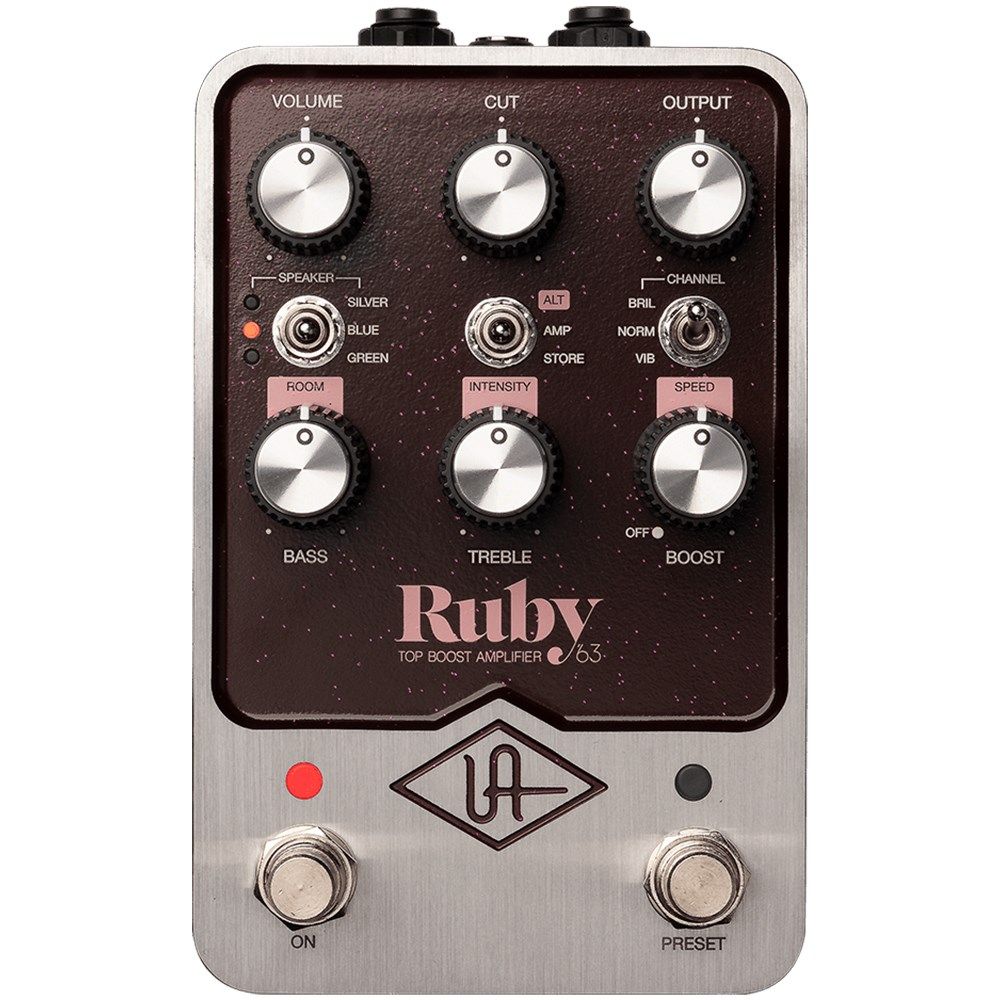

The UAFX Ruby '63 Top Boost Amplifier pedal captures the legendary British valve amp sound that has defined rock music for over six decades, from Queen's stadium anthems to U2's atmospheric soundscapes and Radiohead's innovative textures. This powerful stompbox harnesses UAD's renowned modelling expertise and dual-engine processing to recreate the choirboy cleans, complex overdrive, and classic vibrato that made the original amp a studio and stage favourite.
Ruby '63 stands apart as the only pedal offering all three channels from the original amplifier - Normal, Brilliant, and Vibrato - allowing musicians to access the full tonal spectrum with a simple switch flip. The pedal excels both as a complete amp replacement for direct-to-FOH performances and as a recording solution, providing album-ready tones that sound like an expertly miked vintage tube combo straight out of the box.
Built-in classic boosts include the legendary '60s Dallas Rangemaster germanium treble booster and the preamp circuit from a '70s Maestro EP-3 tape delay, accessible via the onboard Boost switch for those searing layered tones that cut through any mix. The UAFX Control mobile app expands the pedal's capabilities further, offering custom artist presets, preset management, and deeper exploration of the amp that sparked the British Invasion.
Technical specifications include dual 1/4" inputs and outputs supporting stereo and 4-cable mode operation, 24-bit/44.1kHz conversion, 115dB dynamic range, and Bluetooth connectivity. The pedal requires 9VDC centre-negative power at 400mA minimum and features USB Type-C for registration and firmware updates.

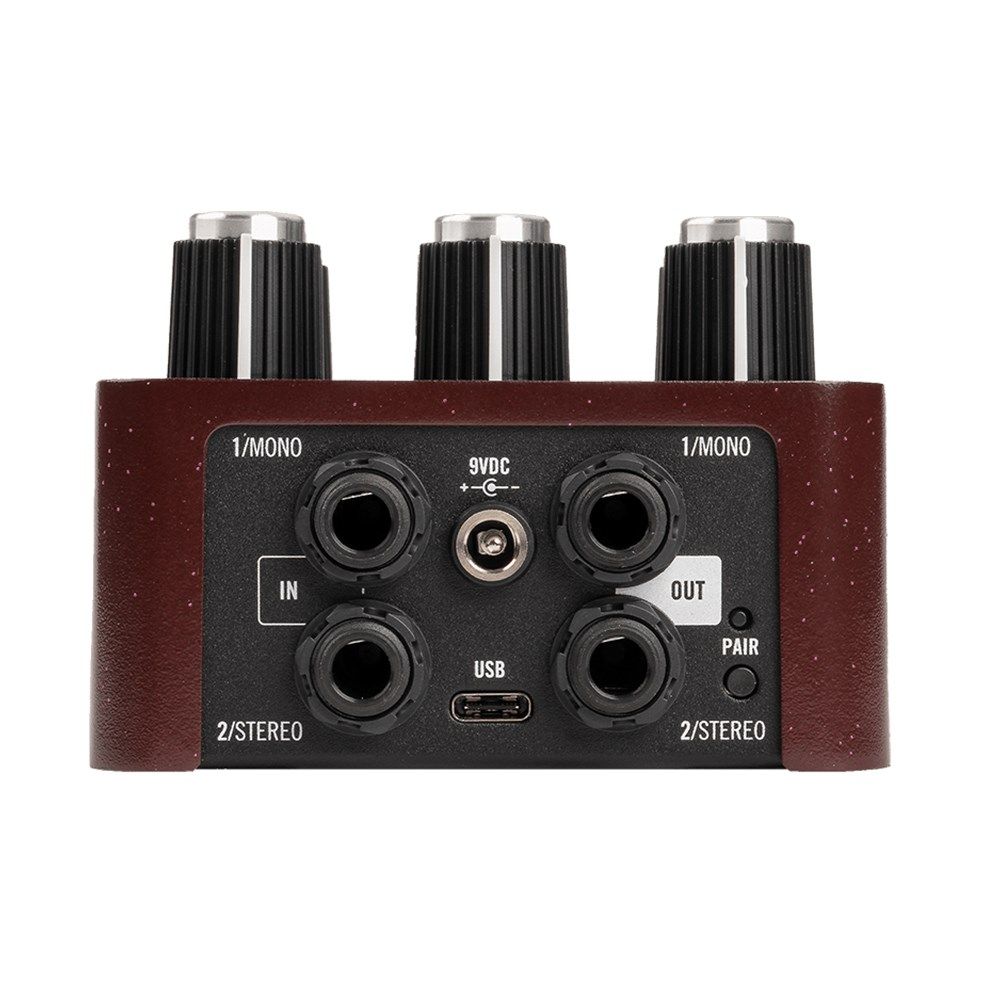

- Isolated 9VDC, center-negative, 400mA minimum
- Inputs: 2 x 1/4” unbalanced TS (input 2 for stereo connections and 4-cable mode)
- Outputs: 2 x 1/4” unbalanced TS (output 2 for stereo connections and 4-cable mode)
- Input Impedance: 500 Kilohms (Mono In), 1 Megohms (Stereo In)
- Output Impedance: 500 Ohms
- Maximum input level: 12.2 dBu
- Maximum output level: 12.1 dBu
- Dynamic Range: 115 dB (A-weighted)
- Signal to noise ratio: -115 dB (A-weighted)
- Frequency Response: 20 Hz to 20 kHz, ±3 dB
- A/D and D/A conversion: 24-bit, 44.1 kHz
- USB Type-C: For registration and firmware updates via computer
- Bluetooth v5, Transmitted Frequency Range 2.400 GHz – 2.4835 GHz, Maximum Output +4.35 dBm
- Dimensions (H x W x D): 6.5 cm x 9.2 cm x 14.1 cm
- Weight (unboxed): 0.567 kg
