TASCAM's new SERIES audio interface family redefines professional recording with over six decades of audio engineering excellence behind every circuit. Built around TASCAM's Ultra-HDDA (High Definition Discrete Amplifier) mic preamp technology, these interfaces provide transparent, natural tone with ultra-low noise performance. The new-generation audio engine supports high-definition 24-bit/192 kHz recording with rock-solid stability, whilst the distinctive angled tabletop design and large, easy-to-grab knobs set a fresh standard for mid-grade audio interfaces.

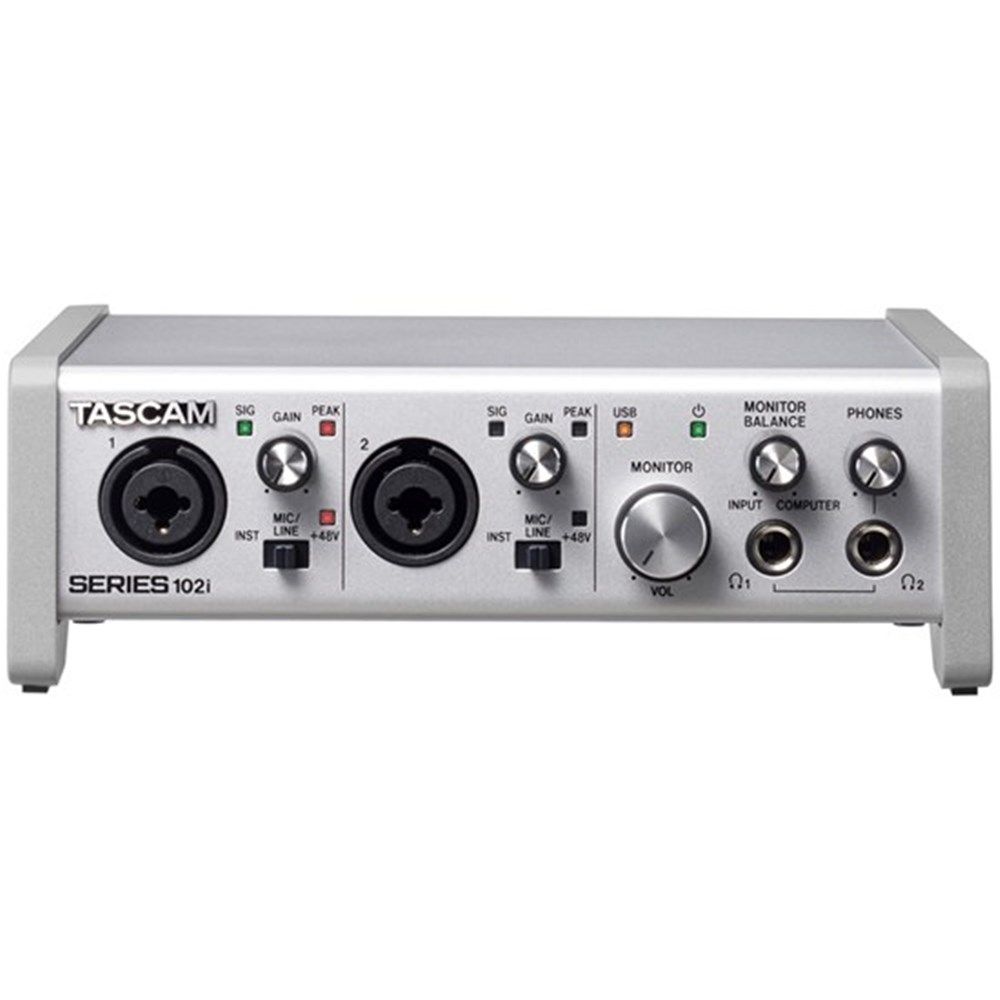

Expandability remains at the core of the SERIES design, with S/MUX optical inputs allowing up to 8 additional channels per port from ADAT or S/MUX-compatible devices. The intuitive front-panel layout includes a prominent Monitor control knob for quick level adjustments and a Monitor Balance control that blends live input with computer playback for zero-latency monitoring. Each analogue input features individually switched +48V phantom power for condenser microphones, whilst dual headphone amplifiers provide powerful monitoring capabilities for multiple users.
Internal DSP processing sets these interfaces apart from the competition, featuring digital reverb, compressor, phase invert, and 4-band EQ for each channel. The included TASCAM Control software manages faders, processing, and flexible routing between any audio input (analogue, optical, and USB) to any output. This internal processing eliminates latency issues whilst reducing computer CPU load, allowing your PC or Mac to operate more efficiently during demanding recording sessions.
The SERIES interfaces support tablets and mobile devices, ensuring compatibility with current and future recording applications. Each unit comes bundled with professional software including Steinberg Cubase LE DAW for Windows and Mac, Steinberg Cubasis LE for iPad, IK Multimedia AmpliTube guitar and bass modelling software, and T-RackS mastering suite. Both standalone and plug-in versions of AmpliTube and T-RackS are included, providing a complete recording solution straight from the box.
- Two XLR/TRS combo mic/line/instrument inputs
- Two transparent, natural-sounding, ultra-low noise TASCAM Ultra-HDDA mic preamplifiers

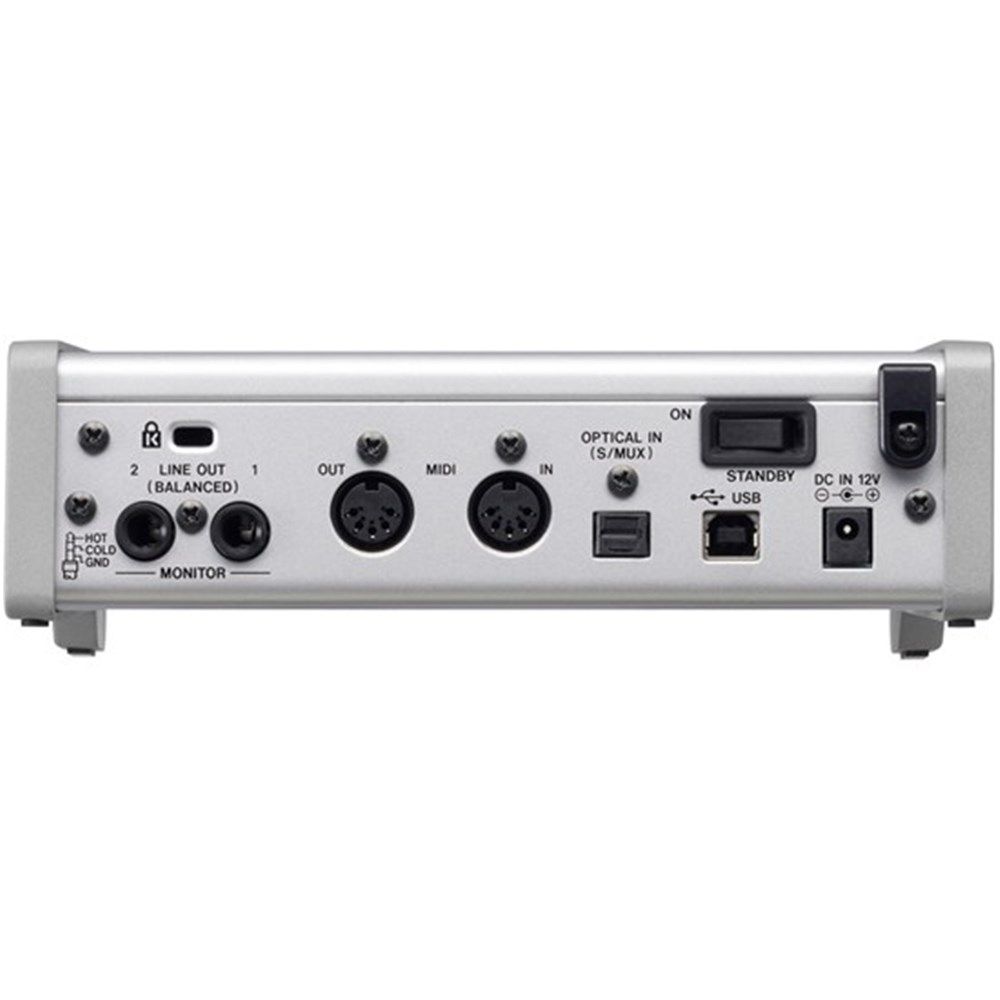

- One optical S/MUX expansion port that accepts up to 8 channels of audio input (10 total inputs)
- 2 ¼-inch analog outputs and dual headphone outputs for versatile monitoring
- Built-in effects: reverb, compressor, 4-band EQ
- Flexible DSP input/output mixer controlled via free TASCAM Control software
- Software control of faders, routing, effects, and phase invert
- Up to 24-bit/192 kHz sample resolution
- Includes Steinberg DAW software and IK Multimedia world-class guitar effects/modeling and mastering software
- MIDI interface
- Dual headphone outputs
- Compatible with Windows / Mac computers and iOS devices (supports UAC2.0)
- USB 2.0 connection and custom USB driver with high stability
- Easy-to-understand operation
- Automatic update function available for software/driver/firmware updates
- Information window function(shown in the Settings Panel screen)
- Direct monitor option for low latency monitoring
- Compatible with mainstream DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand)
