Tannoy 8 Inch Coaxial Surface-Mount Loudspeaker with Transformer - White (Pair)

TAN-486042

Buy Now
Express post

Anywhere Australia wide*

$249.75
4 payments

Late Fees Apply

Up to 12 months interest free

Fees Apply

More Info

4 payments
$30-$2000

No Fees/Interest

More Info

Derringers Music are pleased to present the Tannoy 8 Inch Coaxial Surface-Mount Loudspeaker with Transformer in White, sold as a pair.

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 8T is an ultra-compact 280-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance.

The DVS 8T is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.

Features

  • Full range surface-mount loudspeaker for indoor and outdoor installation applications
  • 70 Watts continuous, 280 Watts peak power
  • 8" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver
  • 80° constant directivity dispersion for optimum coverage
  • UL 1480 certified for general signalling systems
  • UV and weather resistant UL 94 V-0 ABS enclosure
  • Multiple transformer taps for 70 V and 100 V line systems
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • All components weather resistant to IP64 for outdoor use
  • Stylish durable enclosure in a semi matt black paint finish fits unobtrusively in any environment
  • Painted perforated aluminium mesh grille with dust protection
  • Yoke bracket included for ease of installation
  • Phoenix* connectors input and link output
  • 10-Year Warranty Program*
  • Designed and engineered in the U.K.

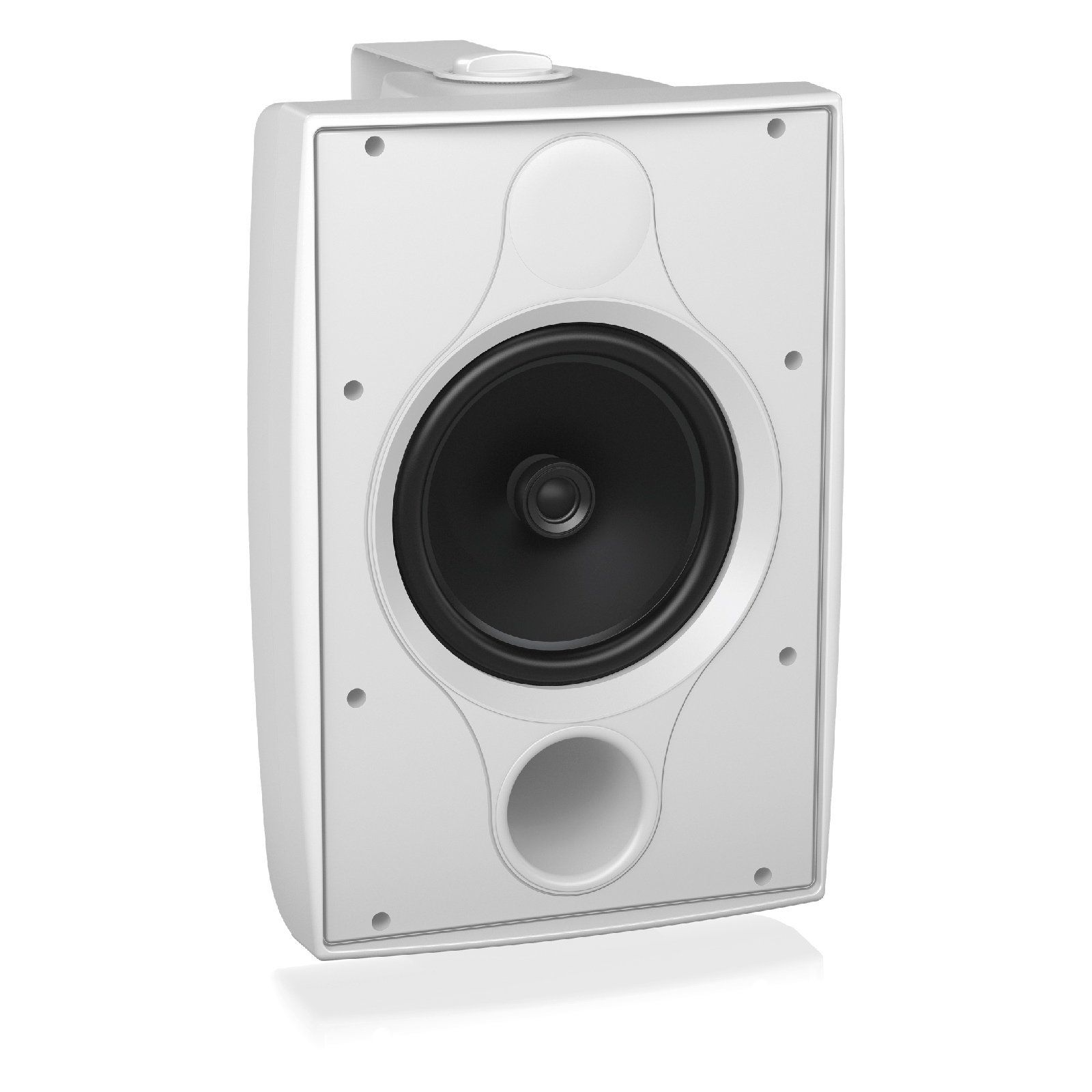

DVS 8T's point-source design comprises a 200 mm (8.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in a stylish injection moulded ABS enclosure. Certified for water and dust ingress protection to IP64 standard, the DVS 8T is an exceptional choice for challenging environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

The highly durable and scuff resistant ABS enclosure features a black painted finish, and comes with an aesthetically pleasing aluminium grille. Installation is quick and easy, thanks to the included colour-matched steel mounting bracket and finger-adjustable hardware on the enclosure top and bottom.

The DVS 8T is equipped with an internally mounted low insertion loss line transformer for 70 V or 100 V distributed sound applications. Wattage taps are configurable over a range of settings via a rotary tapping switch located on the back panel. Phoenix connectors for input and link output are provided for convenience.

Derringers Music is proud to stock a wide range of Tannoy products, including the 8 Inch Coaxial Surface-Mount Loudspeaker.

Come on in to one of Derringers stores to chat with our knowledgeable team, give us a ring, or email us! You can also simply hit the cart button and checkout to get one of these sent to your door ASAP! We've been looking after you — our musical family — for decades, offering our wealth of expertise and knowledge Adelaide and Australia wide! We won't be beaten!

Derringers Music — We're your support crew.

For more information, please visit the manufacturer's website.

Performance

  • Frequency response (-3 dB)1: 75 Hz - 20 kHz
  • Frequency response (-10 dB)1: 60 Hz - 30 kHz
  • System sensitivity (1 W @ 1 m)2: 90 dB
  • Dispersion (-6 dB): 80 degrees conical
  • Transducers: Coaxial
  • Low frequency: 200 mm (8.00") mineral loaded cone material
  • High frequency: 20 mm (0.79)
  • Crossover: 3.4 kHz - 2nd order LF, 2nd order HF
  • Directivity (Q): 12.3 averaged 1 kHz to 10 kHz
  • Directivity (DI): 10.0 averaged 1 kHz to 10 kHz
  • Rated maximum SPL 2: 108 dB (average) / 114 dB (peak)

Transformer Version

  • Maximum wire gauge for connector: 2.5 mm CSA (AWG12)
  • Safety Agency Ratings: UL-1480, CE

Power Handling

  • Average: 70 W
  • Programme: 140 W
  • Peak: 280 W
  • Recommended amplifier power: 140 W @ 6 Ohms
  • Nominal impedance: 6 Ohms

Construction

  • Enclosure: ABS
  • Grille: Aluminium, painted
  • Packed quantity: 2
  • Dimensions (H x W x D): 451.8 x 290.0 x 296.0 mm / (17.79 x 11.42 x 11.65")
