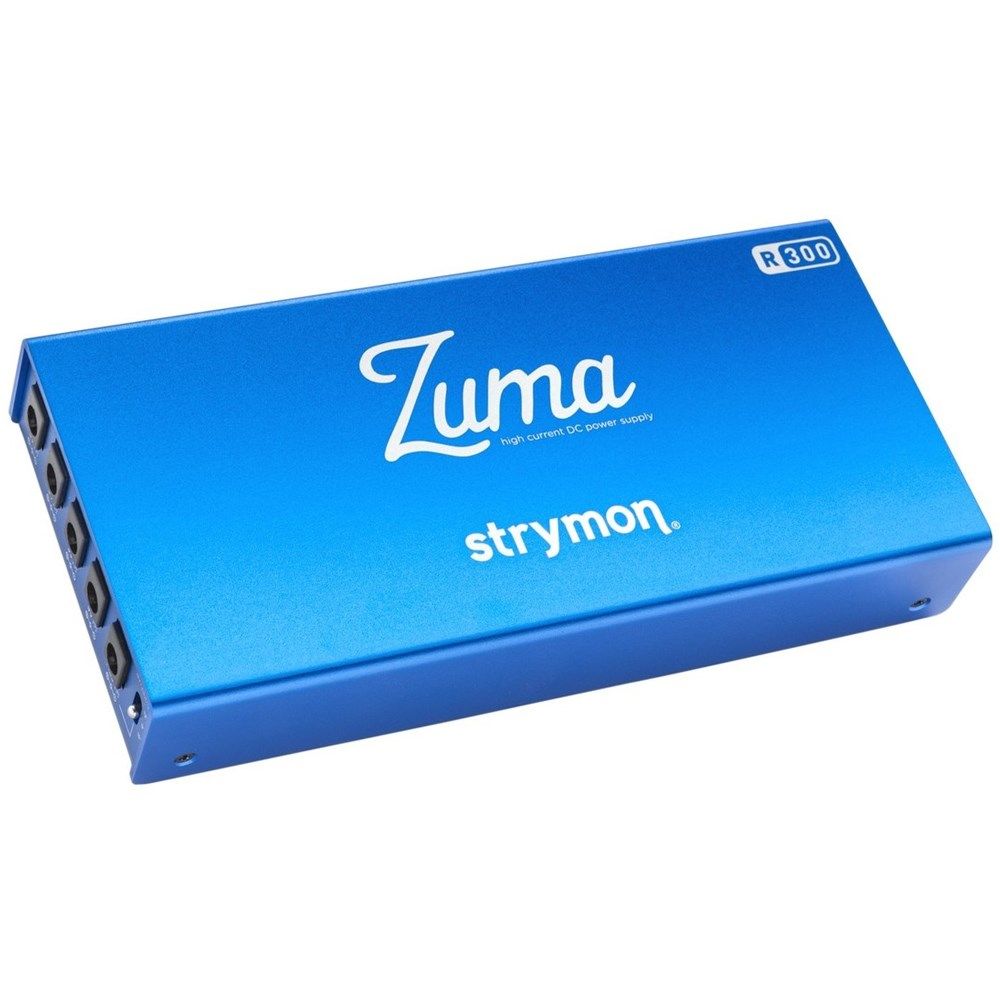

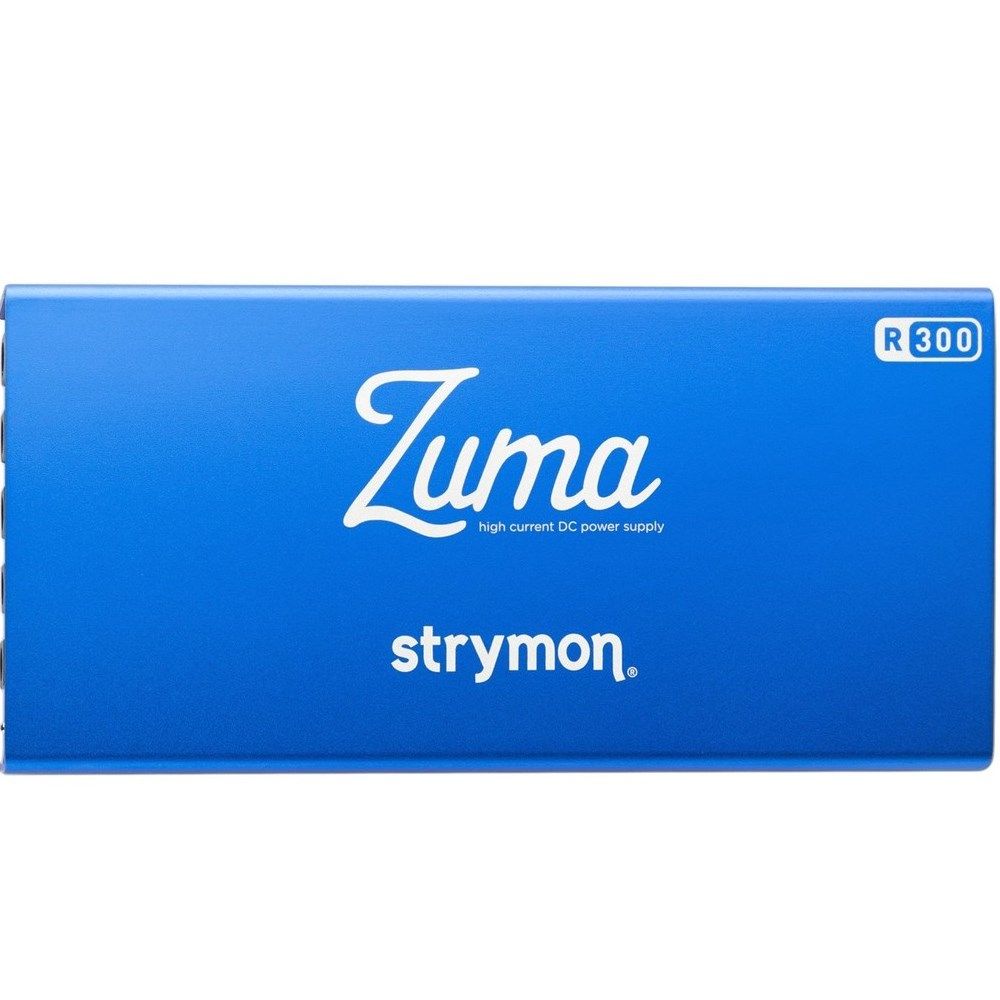

The Zuma R300 stands as the most powerful and technologically sophisticated low-profile effects pedal power supply available, engineered to provide pristine power delivery for your entire pedalboard setup. This remarkable unit supplies clean, rock-steady power to your 9V, 12V and 18V effects pedals whilst maintaining an ultra-low profile design that fits beneath virtually any pedalboard configuration.
Advanced engineering sets the Zuma R300 apart through its dual-stage topology, pre-regulated outputs, optically isolated feedback, and sophisticated multi-stage filtering system. These technical innovations work together to maximise your pedals’ dynamic range potential, ensuring each effect performs exactly as the manufacturer intended.
The all-analogue circuitry incorporates two stages of isolation, completely eliminating troublesome ground loop and AC line noise issues that can plague pedalboard setups. Built-in threaded hardware makes mounting to your board straightforward, whilst the expandable system design allows you to add more outputs by connecting a Strymon Ojai or Ojai R30 (sold separately) via the 24V Out jack, making it perfect for growing rigs.
- Highest horsepower effects pedal power supply
- Ultra-low-noise design prevents power noise from bleeding into the audio signal
- Selectable 9, 12, or 18V output voltages on one channel
- Two stages of isolation plus dual power regulation

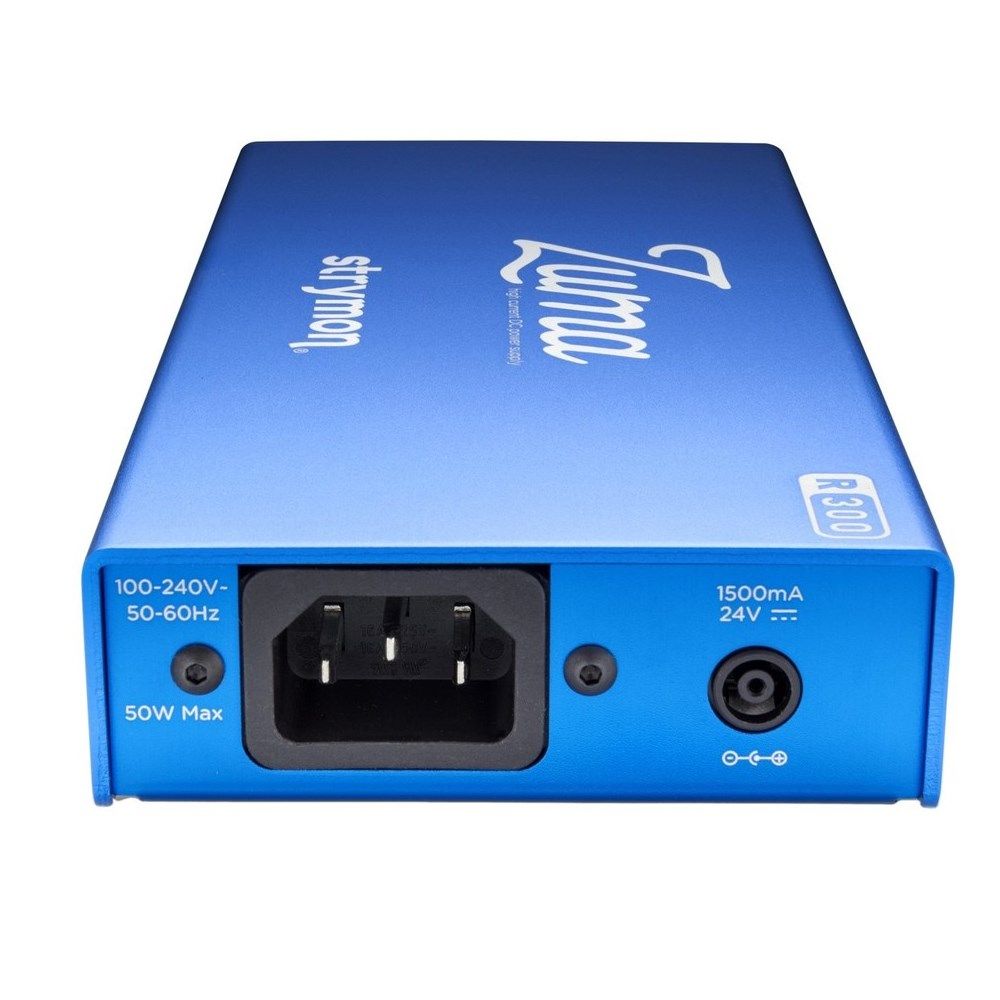

- Worldwide power compatibility built-in (when connected with the appropriate IEC cable)
- Significantly more energy efficient than linear power supplies
- Low profile design can fit under just about any pedalboard

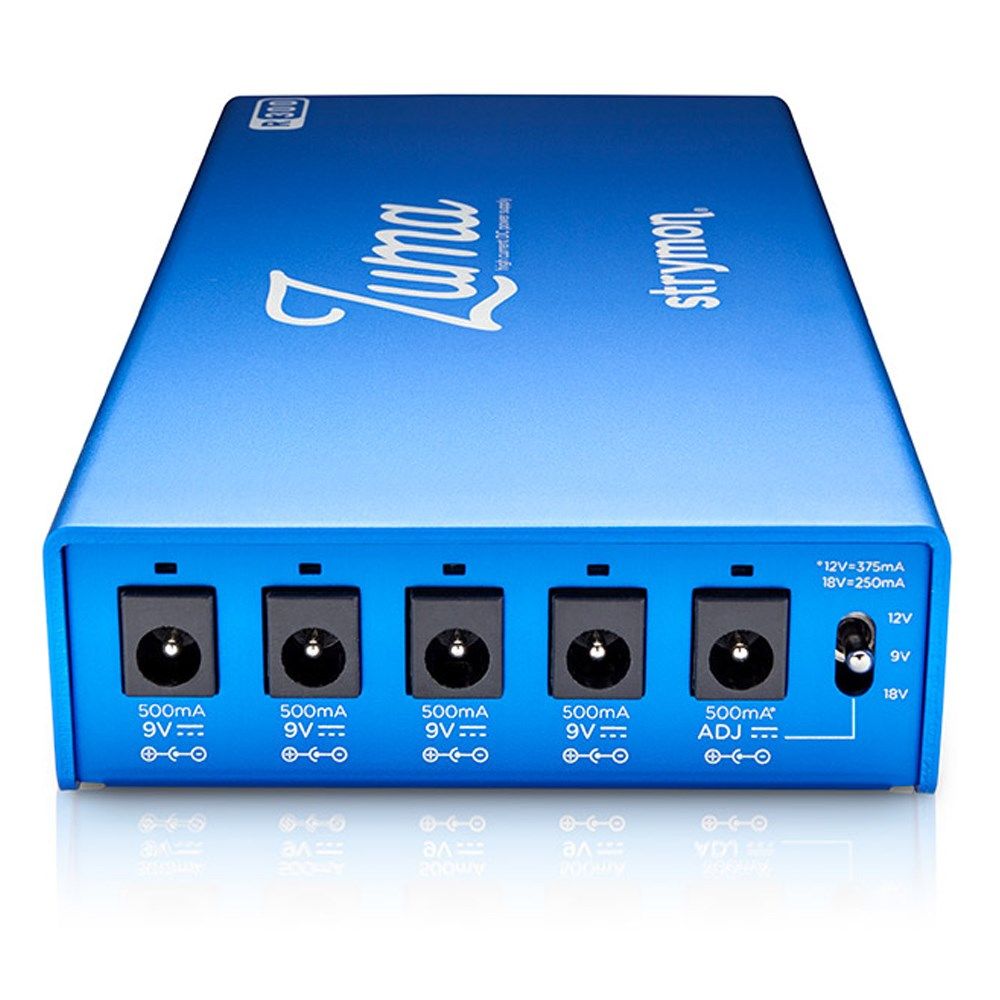

- 5 high-current, fully isolated outputs with centre-negative polarity
- 4 dedicated 9V outputs (500mA)
- 1 adjustable output offers 9V (500mA), 12V (375mA), or 18V (250mA) DC options
- 500mA per 9V output powers nearly any pedal
- Delivers a maximum of 36W
- 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18″ length)
- IEC cable included
- 24V Thru jack allows connection to Strymon Ojai or Ojai R30 (sold separately)
- Lightweight and rugged anodized midnight blue aluminium chassis
- Designed and built in the USA
