Step into the world of vintage rotary speaker magic with the Lex, a pedal that captures the soul-stirring sound of classic rotating speaker systems. The organic chorusing effect emerges as both the treble horn and bass rotor gradually build speed, while the internal tube-driven amplifier adds that distinctive grit and harmonic richness that swirls throughout your playing space.
This pedal recreates every essential component of an authentic rotary speaker system with remarkable accuracy. You’ll find the low-frequency bass rotor, rotating treble horn, tube-driven amplification, and precisely positioned microphone placement all working together to produce the complex sonic interactions that make these systems so revered.

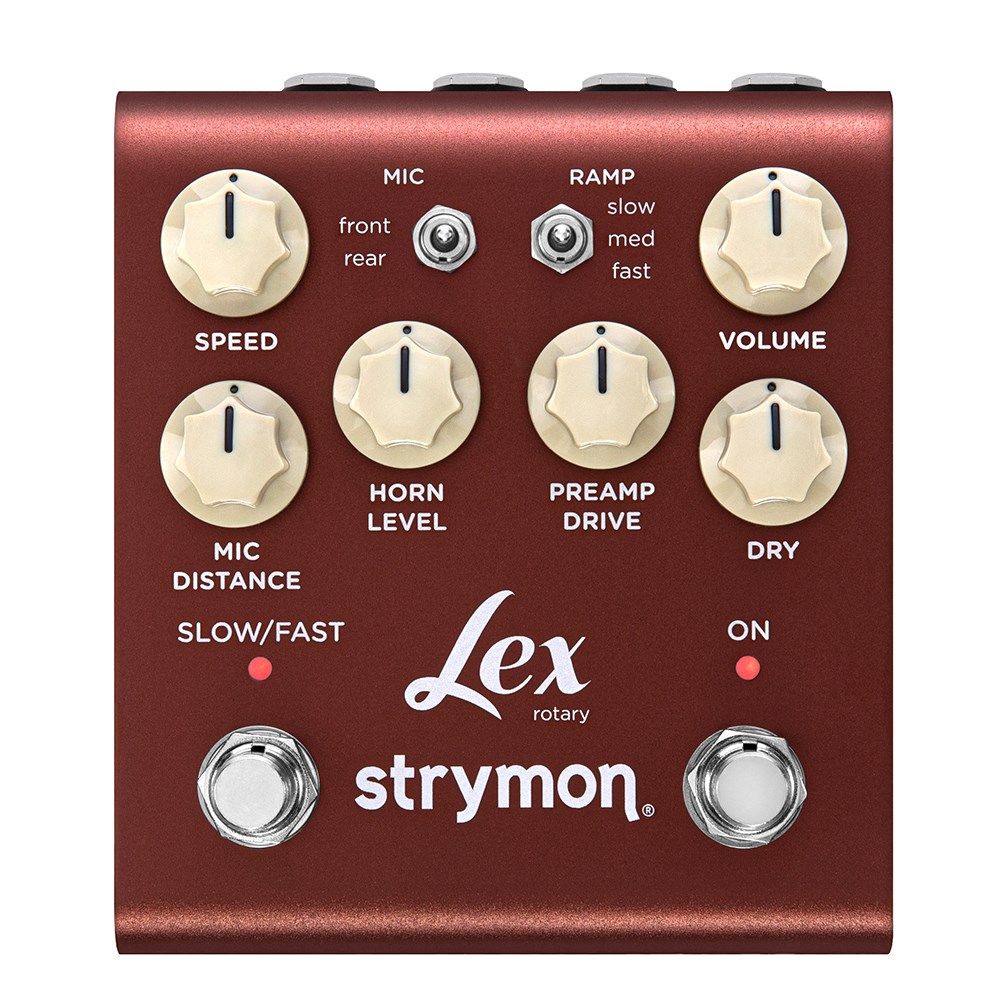

The intuitive control layout allows you to quickly shape your ideal rotary sound without getting lost in complicated settings. Close your eyes, plug in, and let the Lex transport you back to the golden age of rotary speakers, now perfectly sized for your pedalboard setup.
- MIDI
- True & Buffered Bypass
- JFET Input
- Stereo In & Out
- Line/Instrument Level
- Powerful New ARM Processor
- High impedance ultra low-noise discrete Class A JFET TRS stereo input
- Low impedance independent TS stereo outputs
- Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch, MultiSwitch Plus, or TRS MIDI connection
- USB jack for controlling via MIDI from a computer or for performing firmware updates
- Dedicated Slow/Fast rotary speed & On/Off footswitches
- Premium JFET analog front end
- Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
- 520MHz ARM Superscalar processor
- 32-bit floating point processing
- 20Hz to 20kHz frequency response
- Audio Input Impedance: 1M Ohm
- Audio Output Impedance: 100 Ohm
- Strong and lightweight anodised brown aluminium chassis
- 9V DC power supply included
- Power requirements: maximum 9 volts DC centre-negative, with a minimum of 300mA of current.
- 11.4 cm deep x 10.2 cm wide x 4.4 cm tall
- Designed and built in the USA
