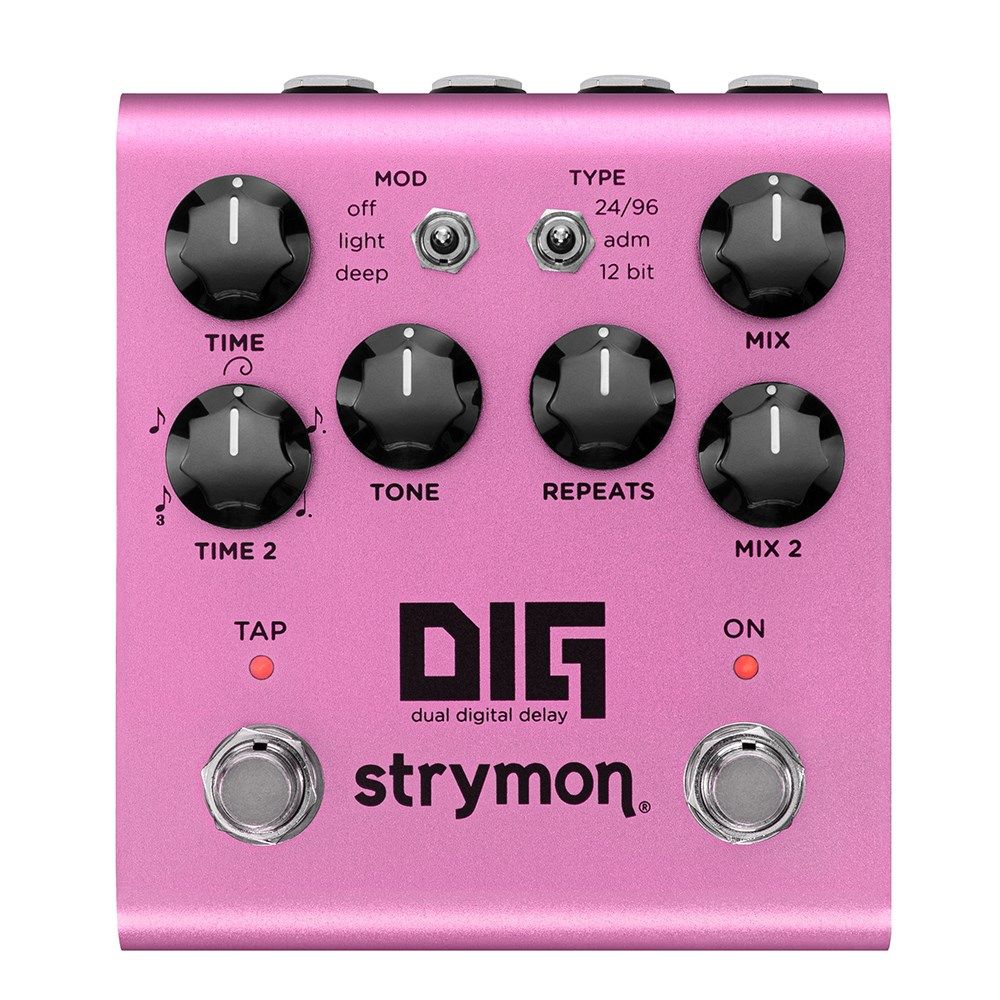

The DIG pedal captures the essence of legendary 1980s rack-mount digital delays and presents them in a dual-engine format that opens up extraordinary creative possibilities. This compact, pedalboard-friendly unit houses two simultaneous, integrated delays that draw from both vintage and contemporary digital delay technologies, allowing musicians to craft intricate synchronised echoes and atmospheric repeats that push the boundaries between traditional delay and reverb effects.
Rack-mount digital delays from the ‘80s marked a revolutionary shift in audio effects technology, introducing the cleanest delay sounds available at the time while developing their own distinctive sonic characteristics. These unique tonal qualities have remained inspiring and relevant for over three decades, continuing to shape modern music production and performance.
Strymon’s comprehensive research into digital delay technology has uncovered the individual personalities of these classic units. DIG features three carefully modelled digital delay voicings: the early ‘80s adaptive delta modulation mode, the mid-‘80s 12-bit pulse code modulation mode, and a modern high-resolution 24/96 mode. Combined with five rhythmic subdivisions and three dual delay routing options, musicians can create everything from syncopated, pulsating delay patterns to expansive, spaced-out echo trails.
- MIDI
- True & Buffered Bypass
- JFET Input
- Stereo In & Out
- Line/Instrument Level
- Powerful New ARM Processor

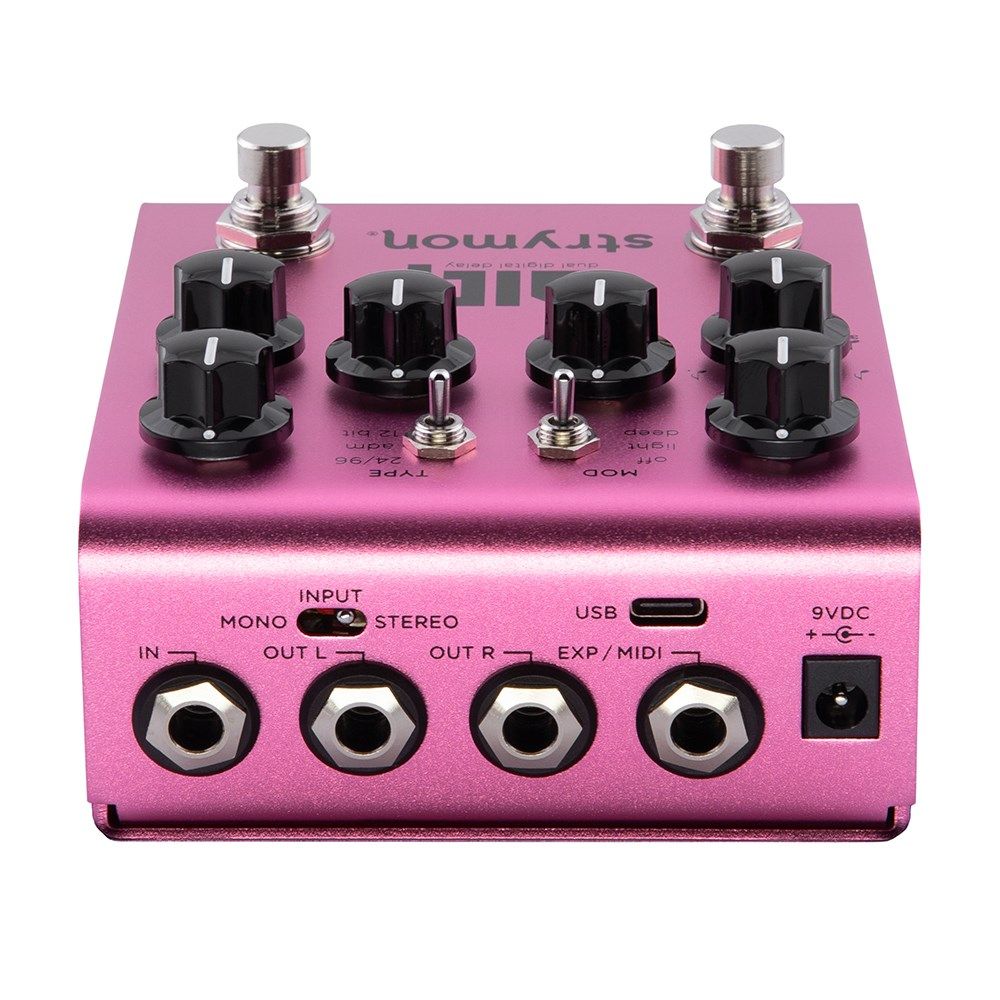

- High impedance ultra low-noise discrete Class A JFET TRS stereo input
- Low impedance independent TS stereo outputs
- Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch, MultiSwitch Plus, or TRS MIDI connection
- USB jack for controlling via MIDI from a computer or for performing firmware updates
- Dedicated Tap Tempo & On/Off footswitches
- Premium JFET analog front end
- Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
- 520MHz ARM Superscalar processor
- 32-bit floating point processing
- 20Hz to 20kHz frequency response
- Audio Input Impedance: 1M Ohm
- Audio Output Impedance: 100 Ohm
- Strong and lightweight anodised pink aluminium chassis
- 9V DC power supply included
- Power requirements: maximum 9 volts DC centre-negative, with a minimum of 300mA of current.
- 11.4 cm deep x 10.2 cm wide x 4.4 cm tall
- Designed and built in the USA
