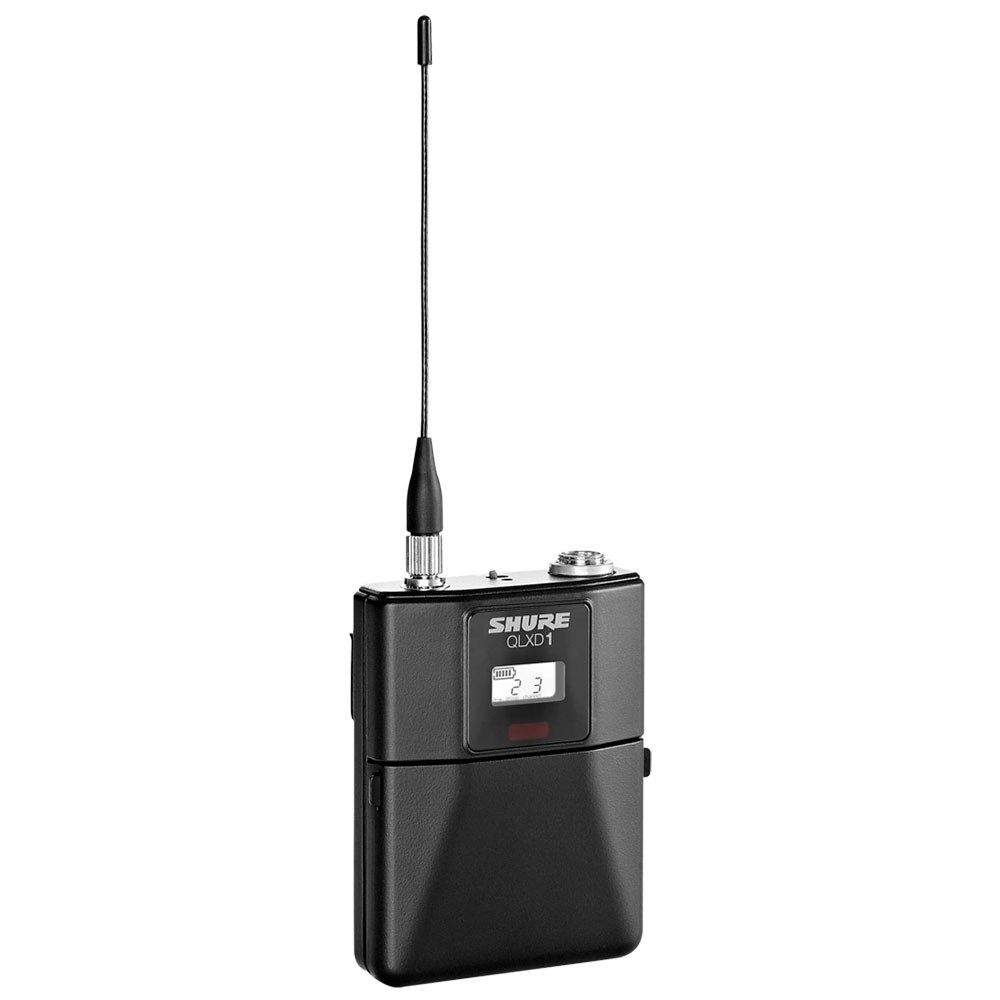

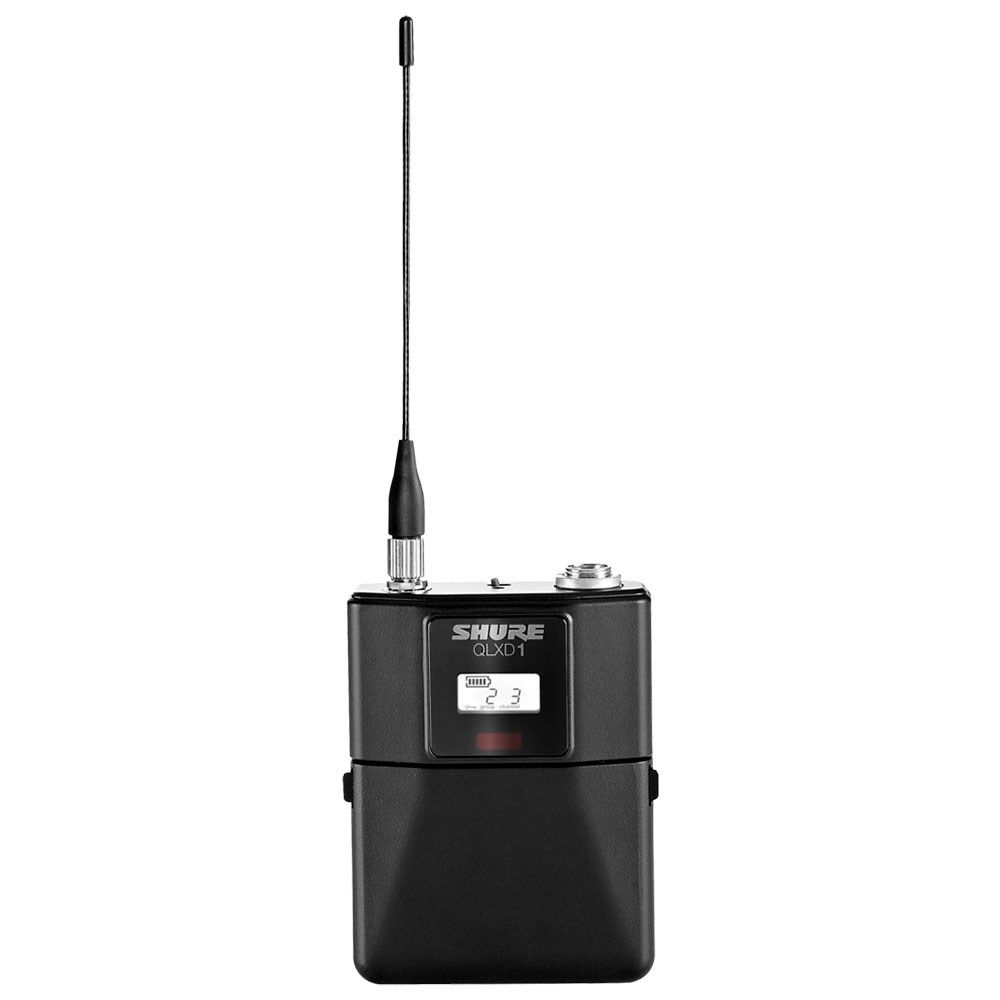

Professional wireless audio reaches new heights with the QLXD1 bodypack transmitter, engineered to meet the demanding requirements of modern performance environments. This sophisticated unit combines transparent 24-bit digital audio quality with remarkably efficient RF spectrum usage, making it perfectly suited for wireless vocals and instruments across presentation spaces, music venues, and houses of worship.
Operation couldn't be more straightforward — the QLXD1 establishes instant synchronisation with compatible wireless receivers through IR connectivity at the simple press of a button. Once connected, performers can rely on consistently clear, uninterrupted signal transmission throughout the full 100-metre (330-foot) operating range, ensuring reliable performance regardless of venue size.
Built to withstand the rigours of professional use, the all-metal construction guarantees long-lasting durability in demanding environments. The transmitter's compatibility with Shure's extensive microphone range means you can access those legendary sound signatures that have defined professional audio for decades, giving you the flexibility to match your specific sonic requirements.
- 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
- Over 120 dB of dynamic range - no transmitter gain adjustments needed
- AES 256-bit encryption for secure transmission
- Up to 9 hours continuous use with 2 x AA alkaline batteries
- Optional Shure lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
- External charging contacts for docked charging
- Backlit LCD with easy to navigate menu and controls
- Selectable display mode showing group/channel, frequency, or battery runtime
- 100 meter (300 feet) line-of-sight operating range
- 4-Pin male mini connector (TA4M)
- Rugged metal construction
- Detachable ¼ wave antenna
- Frequency and power lockout
