Musicians and presenters can now break free from cables with complete confidence using GLX-D+ Dual Band Digital Wireless technology. This innovative system operates across both 2.4 and 5.8GHz frequencies, effectively doubling the available bandwidth whilst intelligently avoiding interference to ensure reliable, dropout-free audio performance.

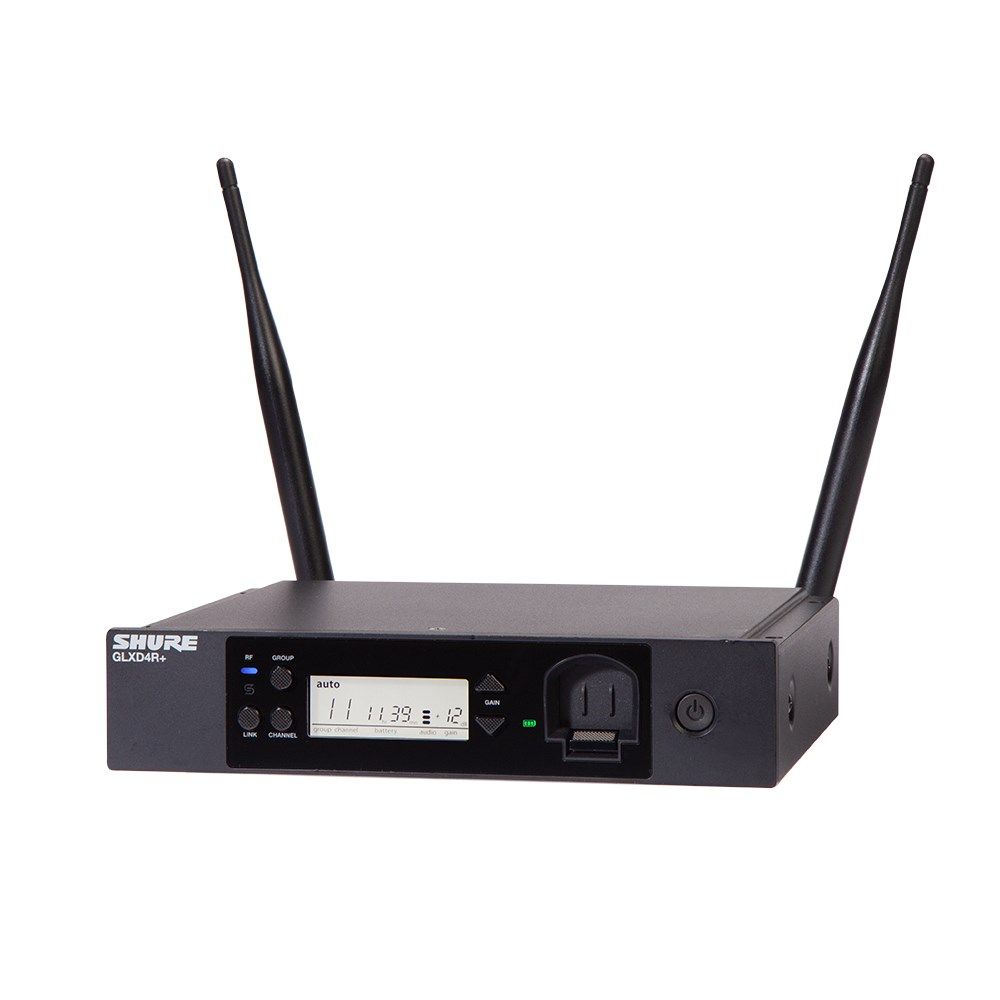

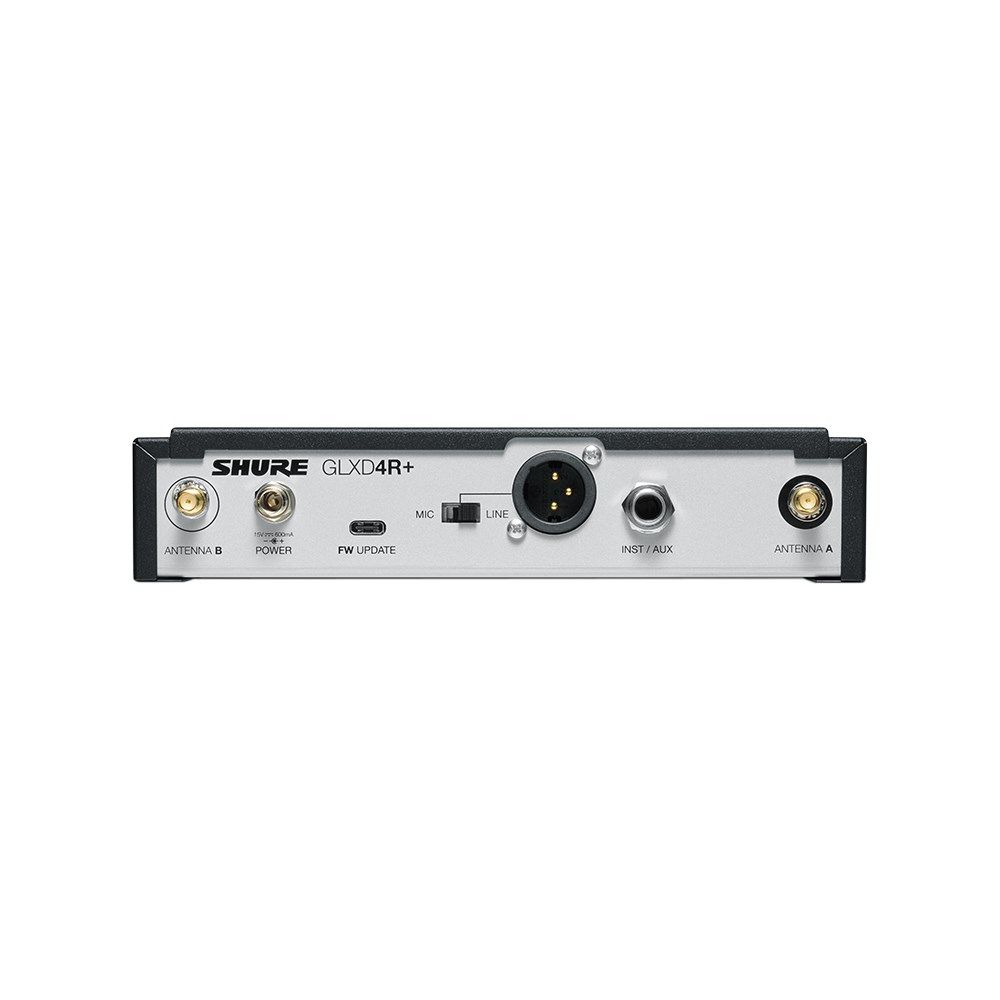

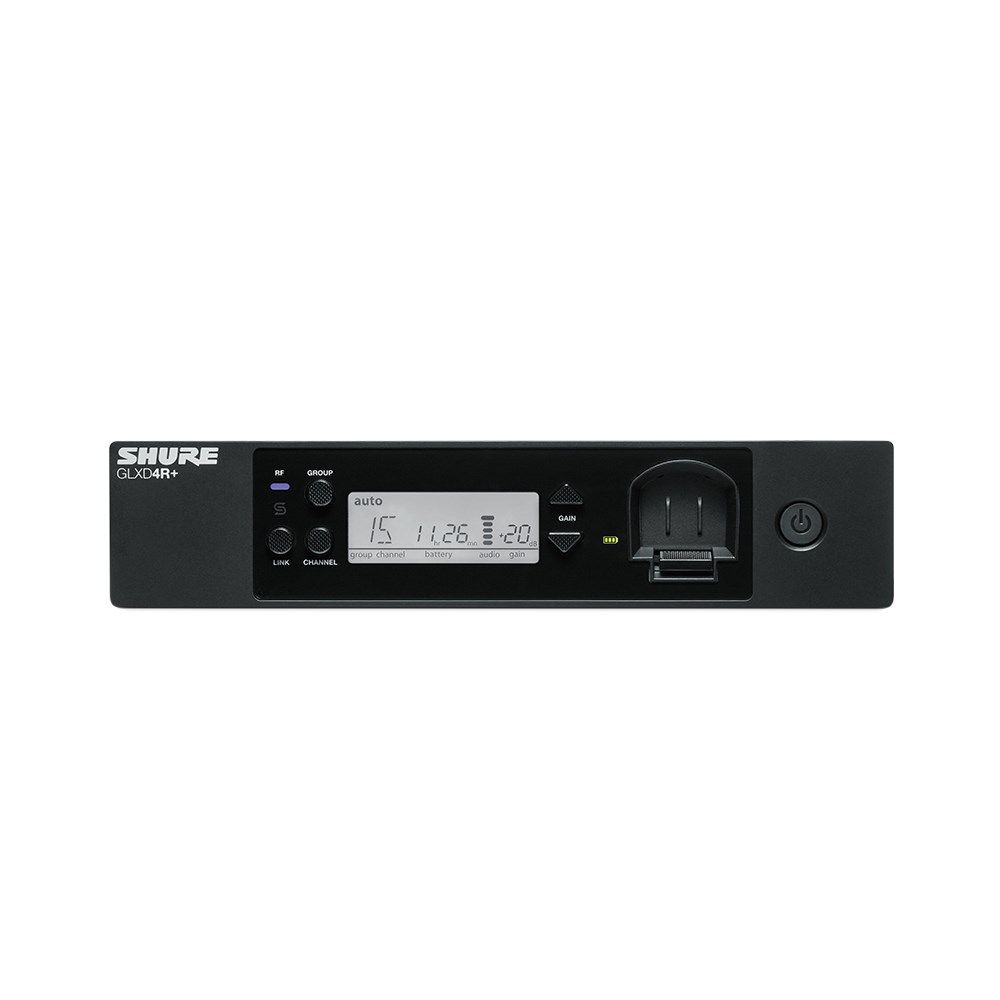

The GLXD4+ Dual Band Rack Receiver provides exceptional digital audio clarity that professionals demand. When paired with the new GLXD+ Dual Band Frequency Manager, this combination offers seamless operation with advanced RF performance, supporting up to 16 simultaneous channels without the usual complications associated with wireless systems.
GLX-D+ represents the perfect solution for those seeking wireless freedom without sacrificing audio quality or reliability. The system’s dual band technology ensures consistent performance even in challenging RF environments, making it an ideal choice for live performances and presentations where audio integrity is paramount.
- Compatibility: With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions; Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
- System Operating Range: Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions; Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
- Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
- Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
- Dynamic Range: 120 dB, A-weighted
- RF Sensitivity: -88 dBm, typical
- Total Harmonic Distortion: 0.07%, typical
- RF Output Power: 10 mW E.I.R.P. max
- Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
- Battery Life: Up to 12 hours
