Musicians and presenters can now break free from cables without sacrificing audio quality, thanks to GLX-D+ Dual Band Digital Wireless technology that operates across both 2.4 and 5.8GHz frequencies. This innovative dual-band approach more than doubles the available bandwidth compared to traditional single-band systems, whilst intelligently managing interference to ensure dropout-free performance. The system’s automatic frequency management takes the guesswork out of wireless operation, making it an ideal choice for professionals who need reliable audio without technical complications.

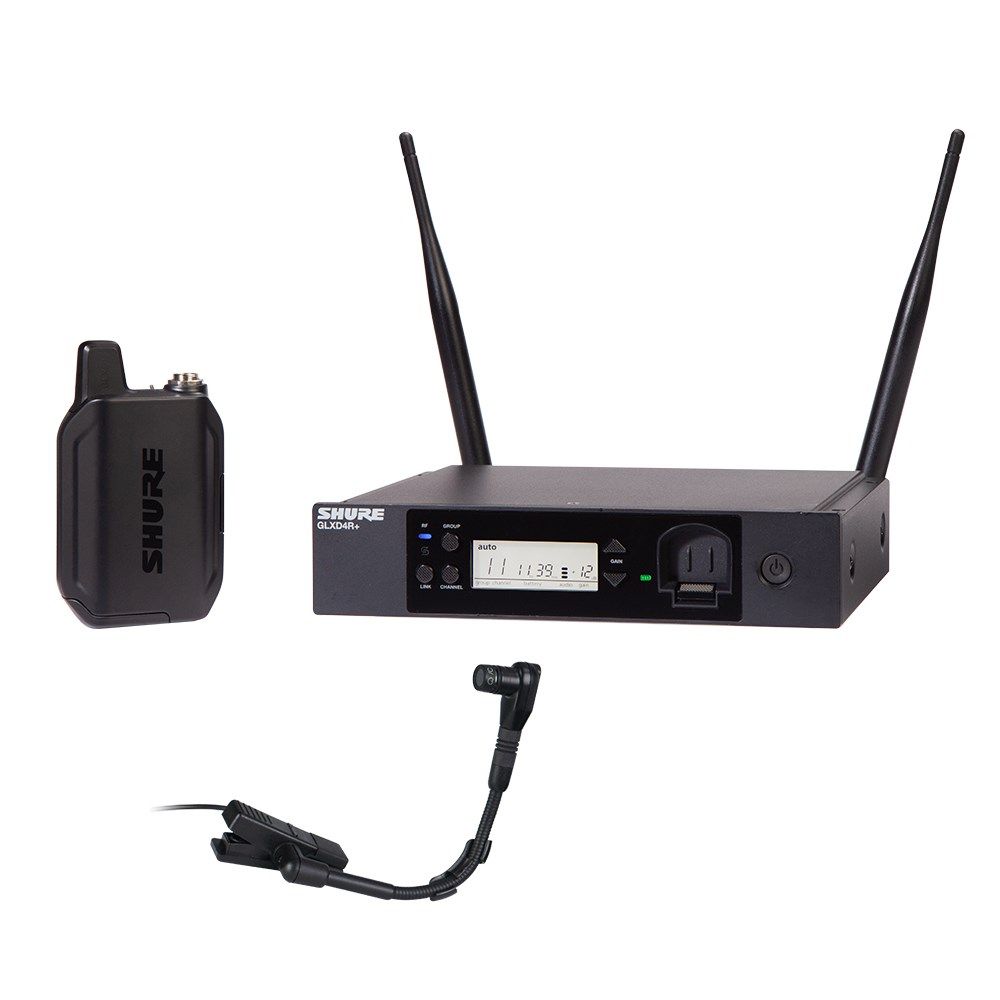

The GLX-D+ Dual Band Wireless Rack System pairs the precision-engineered BETA®98H/C flexible gooseneck microphone with the GLXD4R+ half-rack receiver, creating a purpose-built solution for brass, woodwind and percussion applications. Shure’s proprietary Lithium-Ion rechargeable batteries power the system for up to 12 hours of continuous use, whilst the dual-band technology ensures consistent performance even in challenging RF environments. This combination of advanced wireless technology and professional-grade components makes going wireless straightforward and dependable.
- Compatibility: With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions; Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
- System Operating Range: Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions; Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
- Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
- Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
- Dynamic Range: 120 dB, A-weighted
- RF Sensitivity: -88 dBm, typical
- Total Harmonic Distortion: 0.07%, typical
- RF Output Power: 10 mW E.I.R.P. max
- Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
- Battery Life: Up to 12 hours
