Musicians and presenters can now break free from cables without sacrificing audio quality, thanks to GLX-D+ Dual Band Digital Wireless technology. This innovative wireless solution eliminates the complexity typically associated with going wireless, whilst providing the confidence that comes with professional-grade performance. The system’s advanced Dual Band Wireless Technology operates across both 2.4 and 5.8GHz frequencies, effectively doubling the available bandwidth compared to traditional single-band systems.
The intelligent interference avoidance built into GLX-D+ ensures reliable, dropout-free audio transmission by automatically navigating around potential signal conflicts. This smart technology means performers can focus on their craft rather than worrying about technical difficulties during critical moments on stage or during presentations.

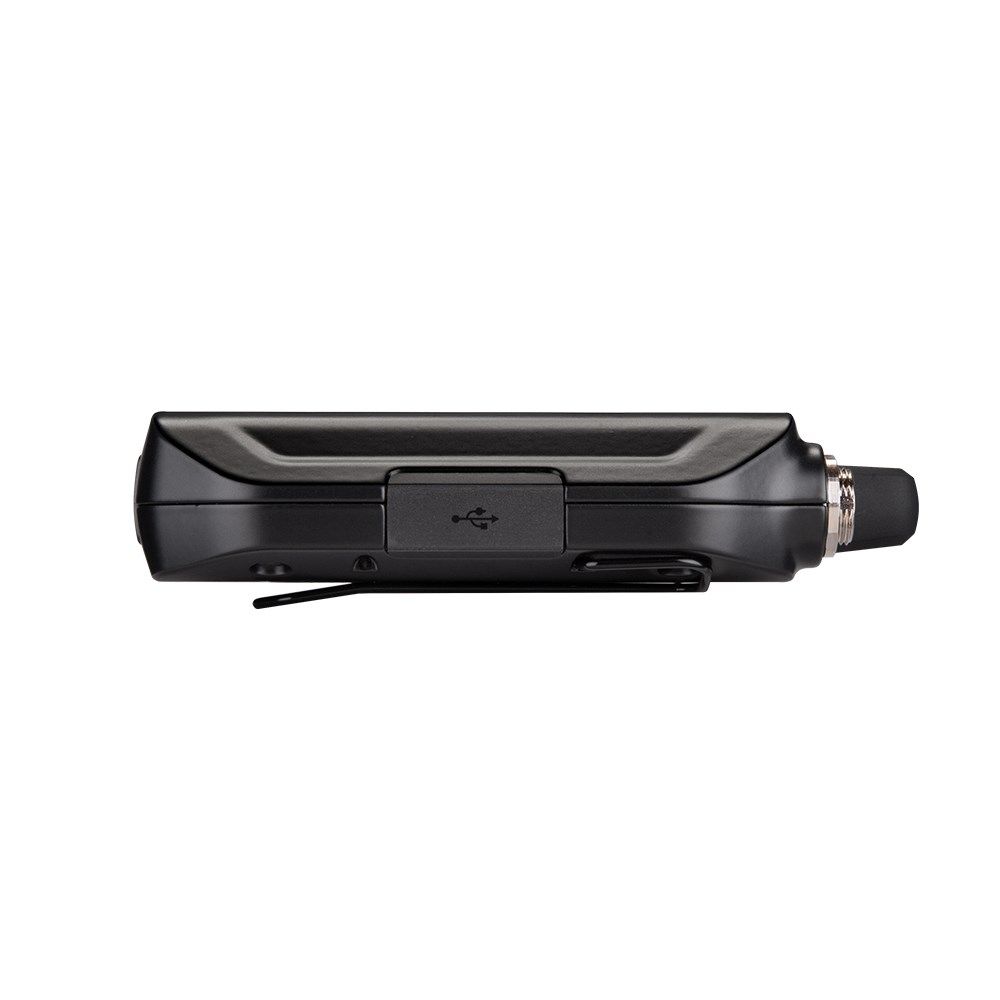

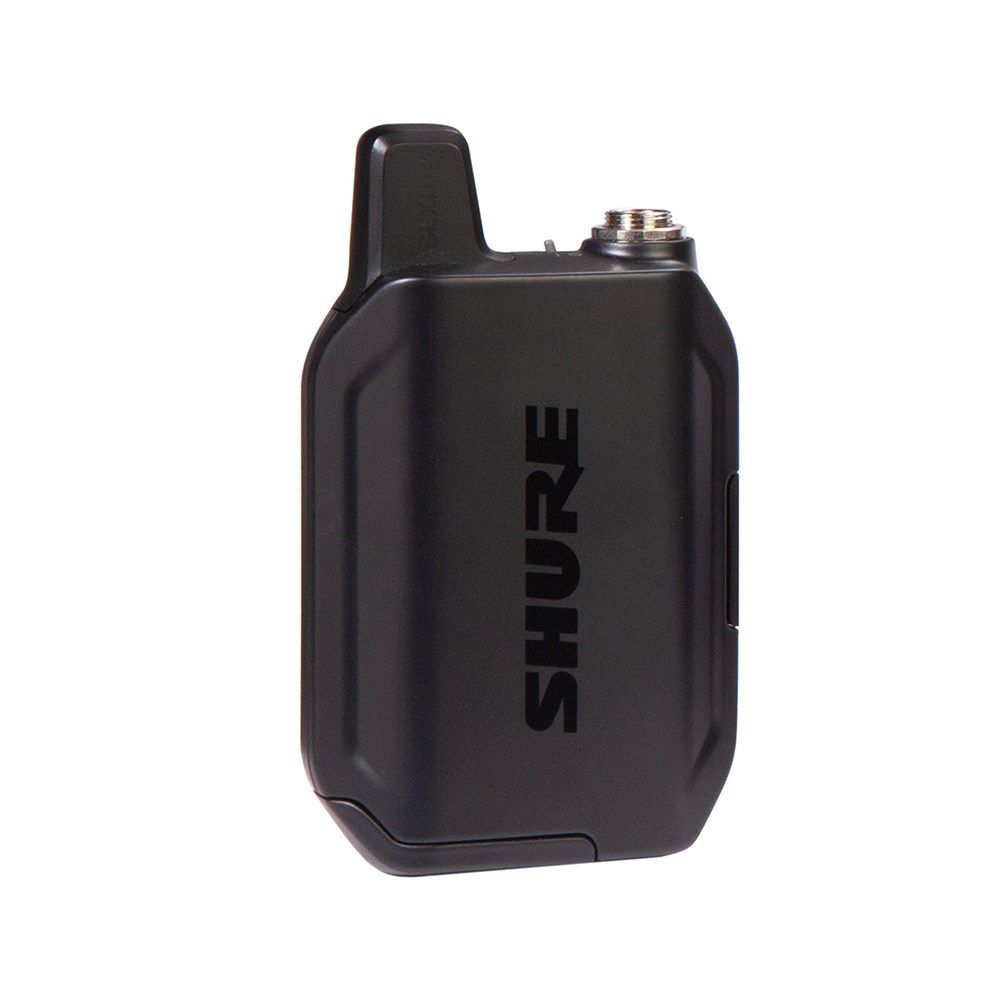

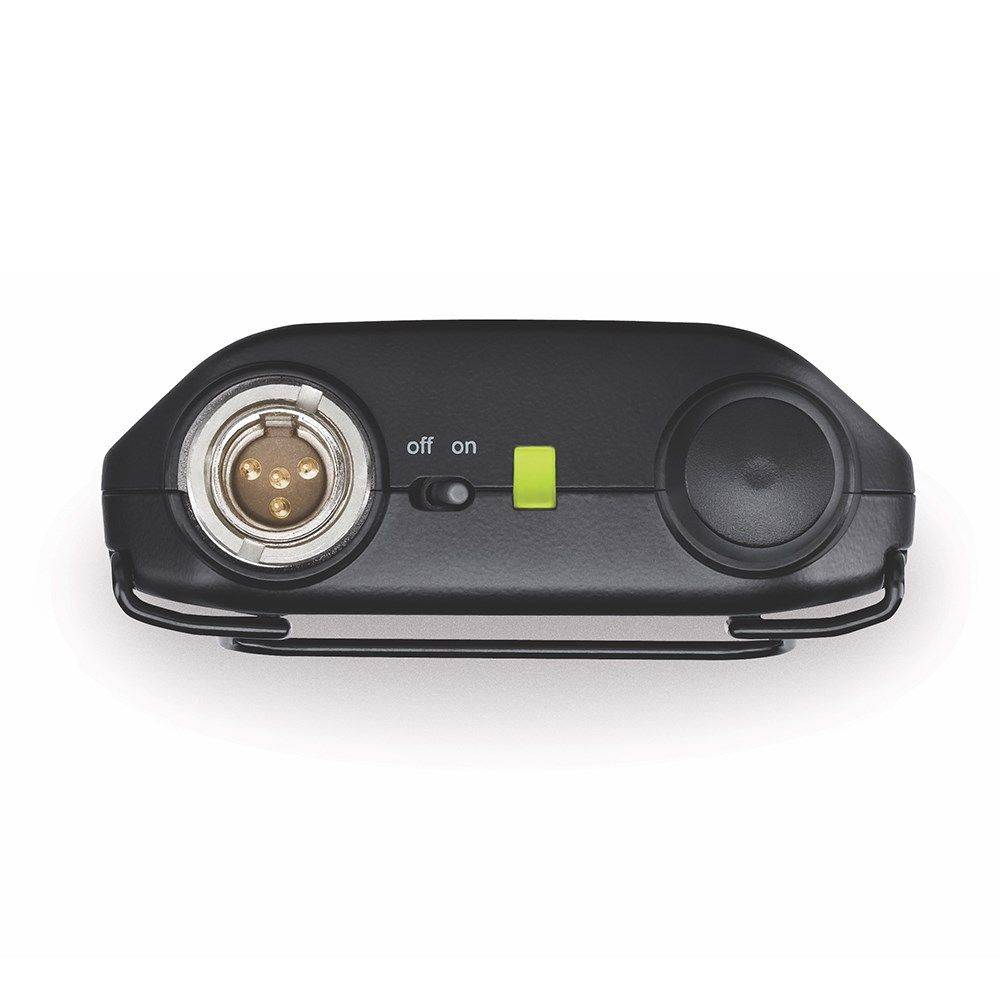

Built for real-world use, the GLXD1+ Dual Band Bodypack Transmitter features robust metal construction that can withstand the rigours of regular performance use. Its ergonomic design includes a reversible belt clip, allowing comfortable and secure positioning in various orientations to suit different performance styles and clothing requirements. The transmitter offers versatile connectivity options, supporting instrument cables as well as a comprehensive range of headset and lavalier microphone configurations.
- Compatibility: With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions; Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
- System Operating Range: Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions; Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
- Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
- Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
- Dynamic Range: 120 dB, A-weighted
- RF Sensitivity: -88 dBm, typical
- Total Harmonic Distortion: 0.07%, typical
- RF Output Power: 10 mW E.I.R.P. max
- Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
- Battery Life: Up to 12 hours
