- Three discrete VCOs per voice
- Simultaneously selectable wave shapes: triangle, sawtooth, reverse sawtooth, and variable-width pulse
- Oscillator feedback and drive controls for increased signal saturation
- White Noise source
- Switchable two/four-pole, discrete, resonant, low-pass, ladder filter per voice
- Filter can be driven into self-oscillation with the Resonance control
- Bi-polar filter envelope amount and velocity modulation of envelope amount
- Four-stage (ADSR) filter and amplifier envelopes w/ velocity modulation
- Five LFO wave shapes: sine, sawtooth, reverse sawtooth, square, and random (sample and hold)
- Poly mod from oscillator 3 (bi-polar) and filter envelope (bi-polar)
- Vintage knob recreates vintage synth characteristics by adding voice-to voice variations in component behaviour
- Master clock with tap tempo, BPM control and display, MIDI clock sync
- Powerful up, down, up/down, random, and assign arpeggiator w/ 3-octave range
- Polyphonic step sequencer with up to 64 steps and rests
- Stereo analog distortion
- Dual, 24-bit, 48 kHz digital effects, including: reverb (room, hall, plate, spring), syncable delay (full bandwidth digital delay and emulated bucket brigade), chorus, flanger, phase shifter, and ring modulator
- True bypass maintains fully analog signal path when digital effects are off
- Full-sized, semi-weighted, 4-octave keyboard with velocity and aftertouch
- Backlit pitch and mod wheels
- Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)
- Transpose controls for an 8-octave range
- Hold switch latches held notes on
- Polyphonic portamento
- Unison (monophonic) mode with configurable voice count, from one to all six voices, chord memory, and key modes
- 500 user and 500 factory programs in 10 banks of 100 programs each

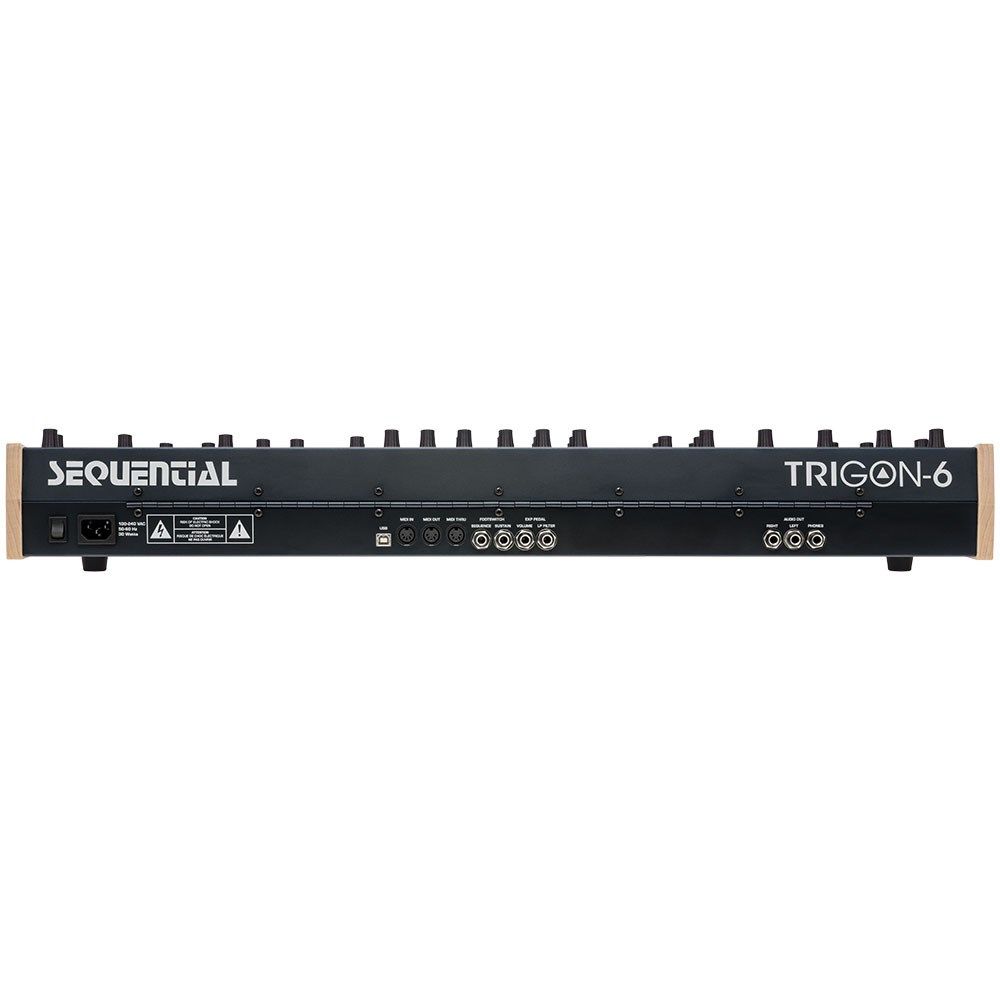

- 1/4" Left/mono and right audio outputs and stereo 1/4" headphone output
- MIDI in, out, and thru ports plus USB
- Filter cutoff, volume, sustain, and seq. start/stop expression pedal inputs
