• Dimensions 215 x 49/25 mm (L x D)
  • Frequency response 20 Hz to 20 kHz
  • Max. sound pressure level 130 dB(A) for 1 kHz
  • Transducer principle Pre-polarized condenser microphone
  • Weight 1.060 kg

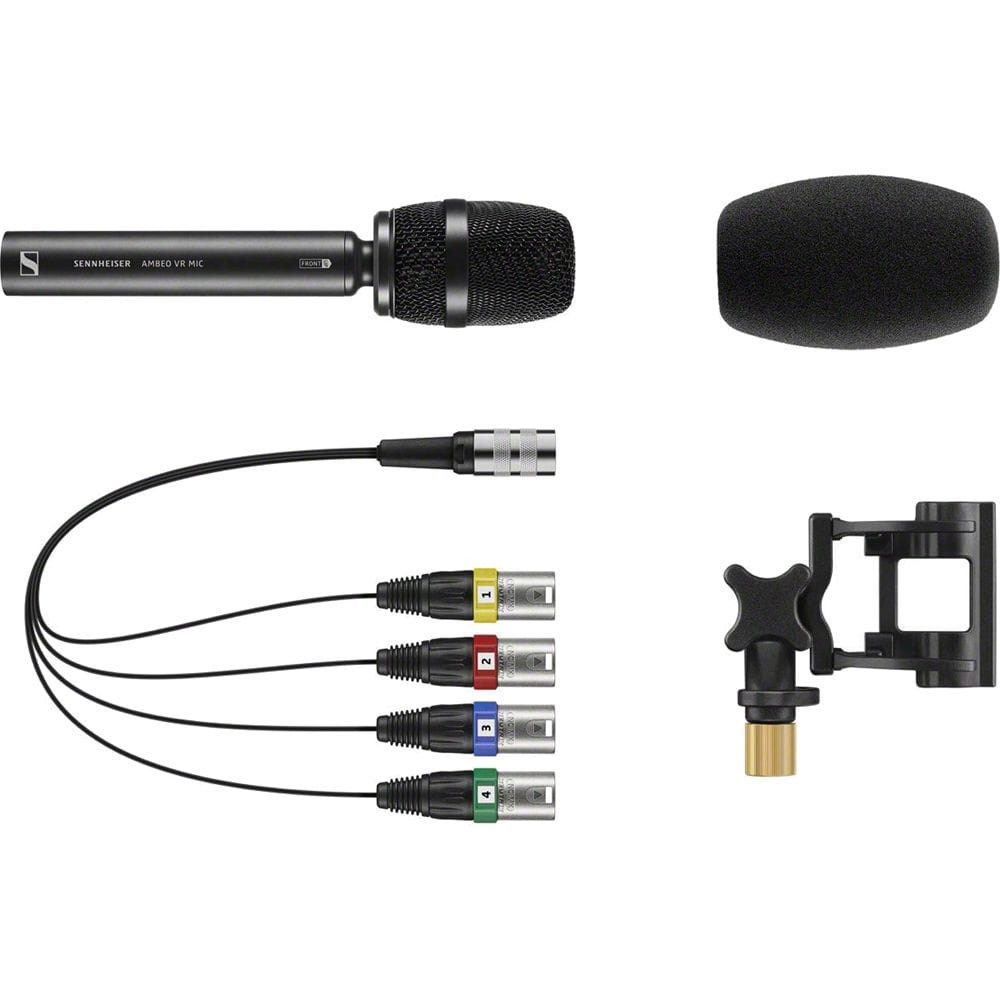

  • Microphone connector DIN12M, use enclosed adapter cable to convert to 4x XLR3M Polarity: Pin1 (GND), Pin2 (+), Pin3 (-)
  • Pick-up pattern 4x cardioid, in A-format arrangement (1: front-left-up [FLU], 2: front-right-down [FRD], 3: back-left-down [BLD], 4: back-right-up [BRU])
  • Nominal impedance Approx. 200 ?
  • Min. terminating impedance 1000 ?
  • Storage temperature -20 °C to 70 °C (-4 °F to 158 °F)
  • Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
  • Equivalent noise level 18 dB-A as per IEC 61672-1 / 27 dB CCIR as per CCIR 468-3
  • Power supply 4x phantom powering (P48) as per IEC 61938 (48 ± 4 V), 3.5 mA each
  • Sensitivity 31 mV/Pa (-30 dBV)
  • Operating relative humidity Max 90% at 40 °C
  • Matrix reference Center of the capsule holder
  • Mixing to B-format W = FLU + FRD + BLD + BRU / X = FLU + FRD – BLD – BRU / Y = FLU – FRD + BLD – BRU / Z = FLU – FRD – BLD + BRU
