RockBoard MOD 5 - Cab SIM + DI Patchbay
RB-WRMODULE5
$279
Free Shipping
Anywhere Australia wide*
Take your signature sound anywhere with the RockBoard® MOD 5 Cab SIM + DI Patchbay, a versatile unit that combines customisable IR-based stereo speaker cabinet simulation with an active DI box and comprehensive connection management. This innovative device opens up entirely new possibilities for your effects setup, regardless of which pedalboard brand you’re using. The speaker cab simulation and DI functionality allow you to go direct to any venue’s backline while maintaining your distinctive tone.
Load impulse responses of your favourite cabinets into the MOD 5 and carry those exact sounds with you to every gig. The integrated patchbay cleverly routes connections from beneath your pedalboard to the front panel, creating a central access point that keeps your setup organised and tidy. For practice sessions and travel, the unit includes a headphone amplifier with adjustable output volume, making it perfect for silent rehearsals on the road.
- Cabinet simulation & DI patchbay
- IR based speaker cabinet simulation
- 6 integrated IRs selectable
- Support of additional Custom IRs (max. 1024 pts.)
- Integrated active DI box
- Headphone amplifier

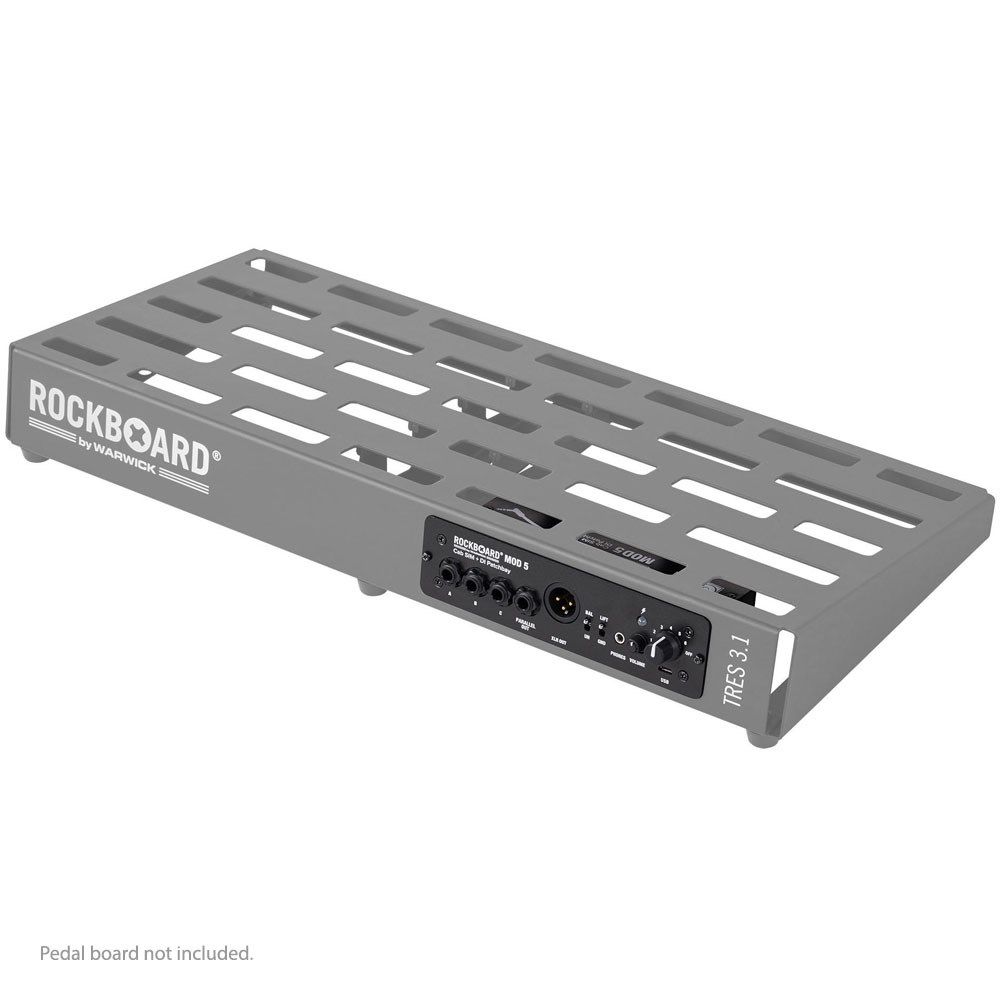

- Fits MOD slots in RockBoard® pedalboards
- Compatible with a wide variety of other pedalboards
- Acts as central access point to your effects setup
- Establishes clean cable paths to and from the pedal board

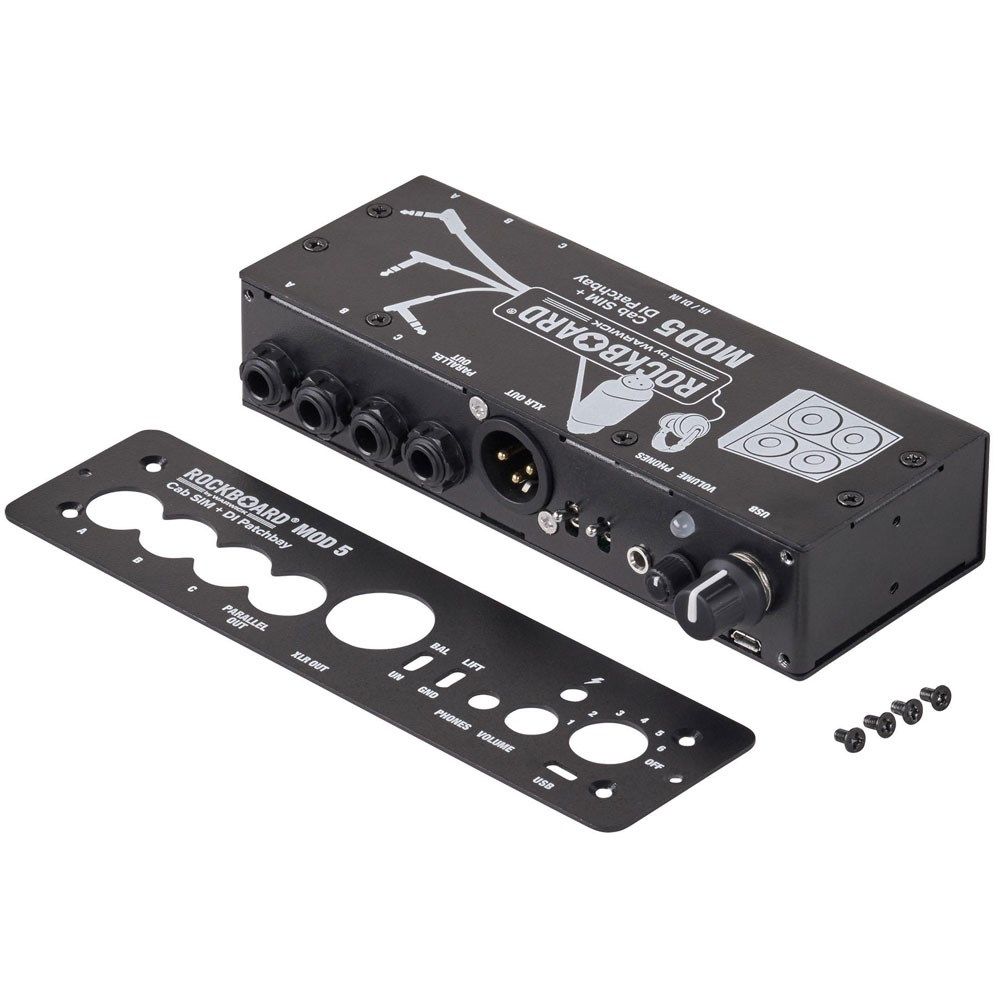

- Detachable front plate for mounting on top or underneath pedalboards
- Selectable MONO / STEREO input
- Selectable UN / BALANCED output
- Ground lift switch
- Control for Phones Volume
- 3 x 6.3 mm / ¼" TRS thru
- XLR DI Out
- 6.3 mm / ¼" Parallel TRS output
- 3.5 mm / 1/8" stereo headphone output with adjustable volume
- Micro USB connection for firmware updates and loading custom IRs
- Power supply via optional 9V DC power adapter, 2.1 x 5.5 mm barrel plug, polarity (-) centre
- Current draw 300 mA
- Battery operation not supported
- Dimensions with front plate (W x D x H) 175 x 85 x 47 mm / 6 57/64" x 3 11/32" x 1 27/32"
- Dimensions without front plate (W x D x H) 160 x 85 x 33 mm / 6 19/64" x 3 11/32" x 1 19/64"
- Weight 470 g / 1.04 lbs.
- Includes mounting screws, counter nuts and TX wrench
