RockBoard MOD 2 V2 - All-in-One TRS, MIDI & USB Patchbay Pedalboard
RB-WRMODULE2MIDI
Express Post
Anywhere Australia wide*
Streamline your pedalboard setup with the redesigned RockBoard® MODs V2, the all-in-one patchbay solution that brings professional organisation to your effects rig. These compact modules feature a refreshed design and utilise the MOD slot found on all new RockBoard® pedalboards (excluding the DUO series). The MODs V2 series provides various cable connections to accommodate a wide range of requirements, functioning as a convenient central patchbay for your entire setup.
The beauty of RockBoard® MODs lies in their ability to let you permanently connect your pedals underneath your board while organising all connections to and from your effects setup through one convenient module. This central access point manages everything from your instrument to your amplifier, plus handles your power supply requirements via IEC and a 2.1 x 5.5 barrel thru power connector.

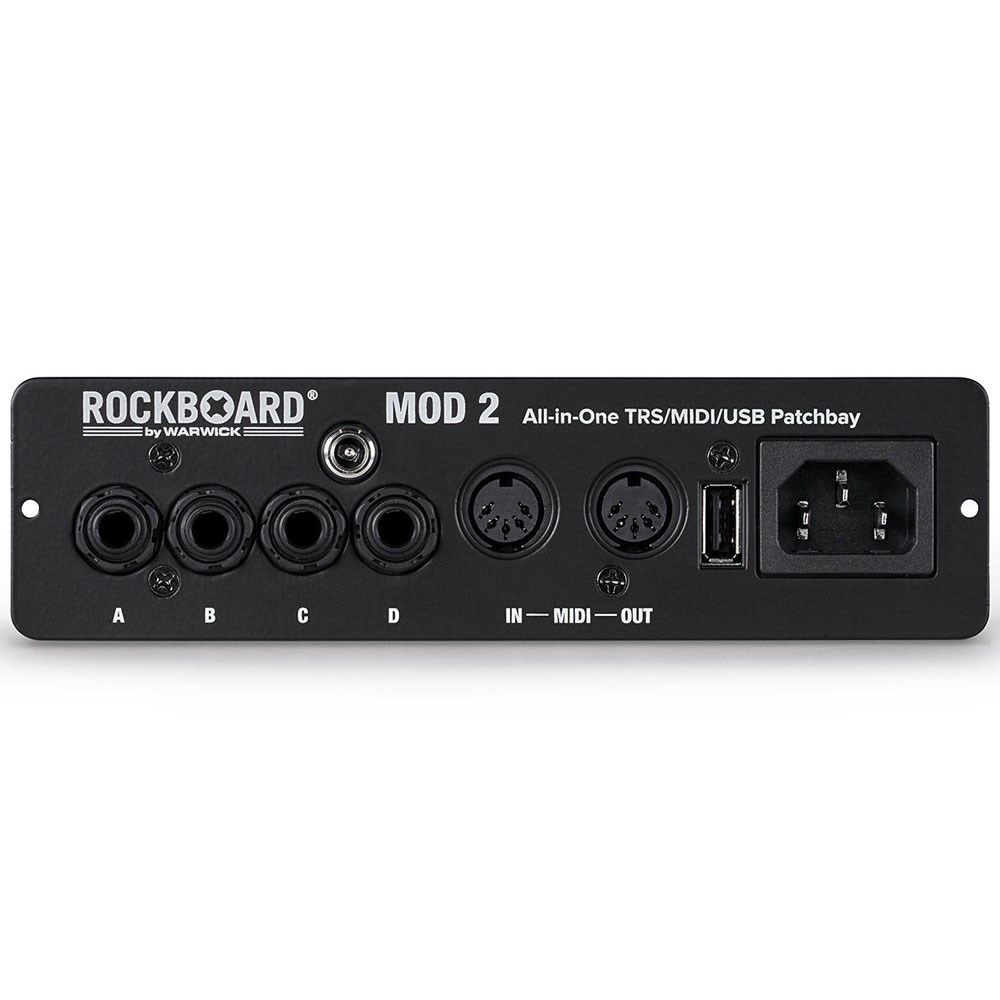

The RockBoard® MOD 2 V2 specifically caters to MIDI controlled amplifiers and devices, USB connections to computers or sound cards, making it ideal for modern digital setups. Its 4x TRS thru connections work brilliantly for true stereo configurations with keyboards or synthesizers, and can also serve as a central hub for running multiple pedals through your amp's effects loop or providing centralised access to your entire pedalboard via the four TRS thru connections.
- All-in-one patchbay for pedalboards

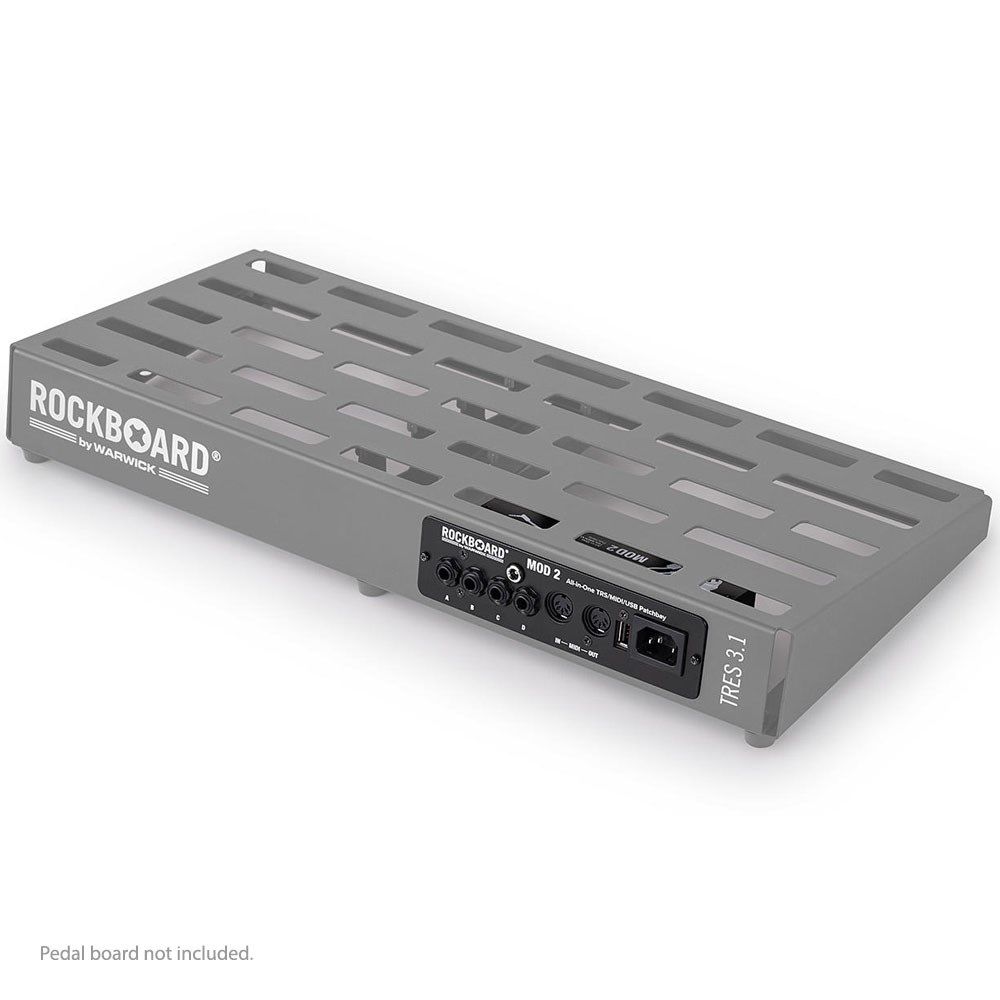

- Fits MOD slots in RockBoard pedalboards
- Compatible with a wide variety of other pedalboards
- Acts as central access point to your effects setup
- Establishes clean cable paths to and from the pedal board

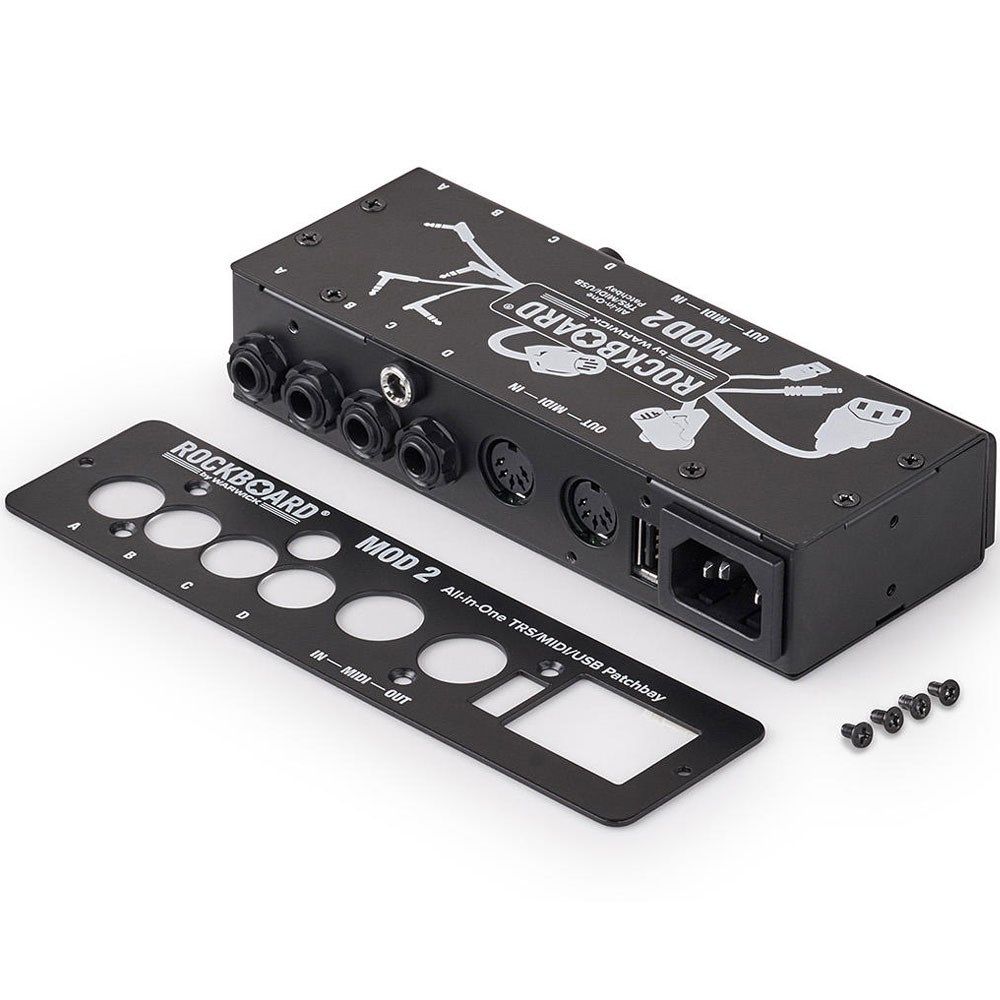

- Detachable front plate for mounting on top or underneath pedalboards
- 4 x 6,3 mm / ¼" TRS thru
- 2 x 5-pin DIN MIDI thru
- 1 x USB Type A thru
- 1 x DC 2,1 x 5,5 mm barrel thru
- 1 x AC IEC thru (male front / female back)

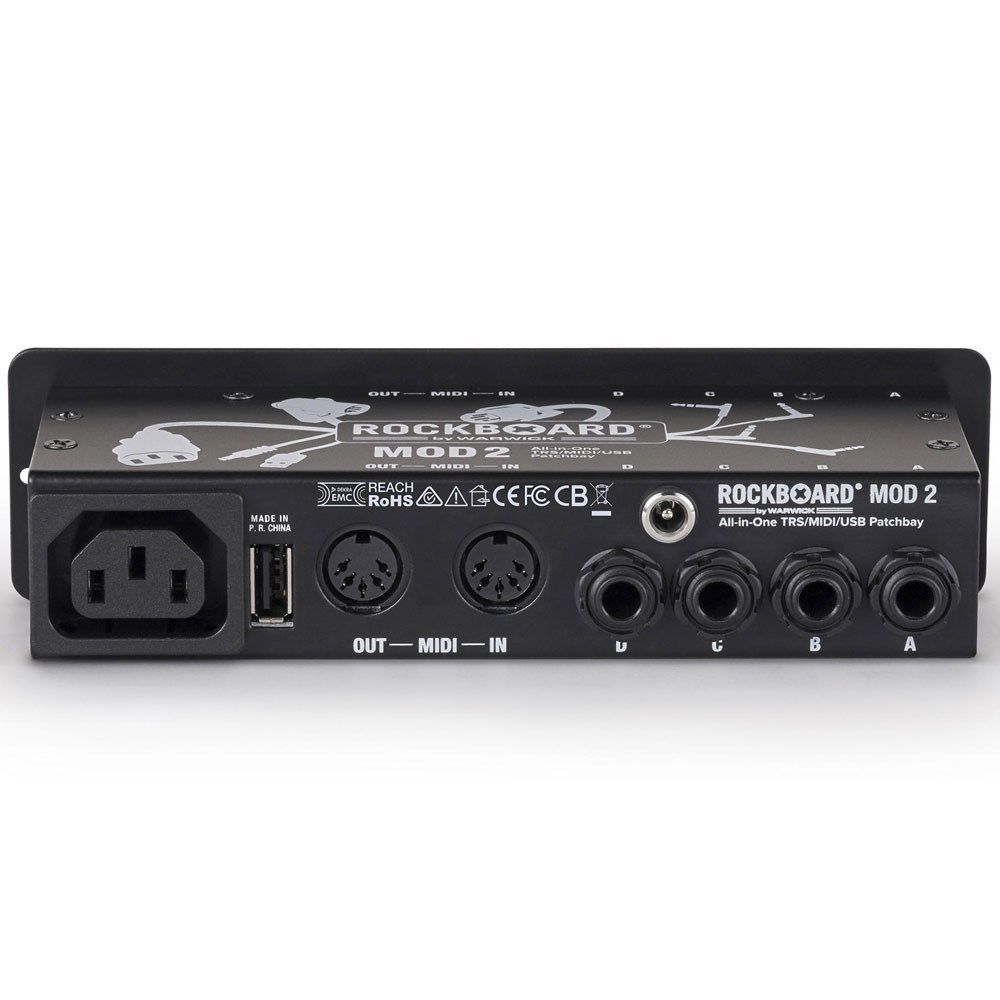

- All connections mirrored on backside
- Dimensions with front plate (W x D x H) 175 x 85 x 47 mm / 6 57/64" x 3 11/32" x 1 27/32"
- Dimensions without front plate (W x D x H) 160 x 85 x 33 mm / 6 19/64" x 3 11/32" x 1 19/64"
- Weight 420 g / 0.93 lbs
- Includes mounting screws, counter nuts and TX wrench
