Maximise every square centimetre of your pedalboard with RockBoard GOLD Series Flat Patch Cables, engineered specifically for space–conscious musicians who refuse to compromise on signal quality. These innovative cables feature an ultra–flat design that eliminates the bulk and clutter of traditional patch leads, whilst their slim angled jack plugs ensure optimal positioning even in the tightest configurations.
The flat conductor design serves a dual purpose beyond space–saving – it actively prevents the annoying cable twisting that plagues conventional round cables during setup and performance. Gold–plated contacts and plug housings provide superior conductivity and long–term reliability, ensuring your signal path remains pristine gig after gig.
Superior shielding technology sets these cables apart from standard patch leads, featuring a comprehensive double–shield construction combining braided copper wire with aluminium protection. This dual–layer approach effectively guards the flexible copper core against both high–frequency and low–frequency interference, maintaining signal integrity across your entire pedal chain for consistently clean, accurate sound transmission.

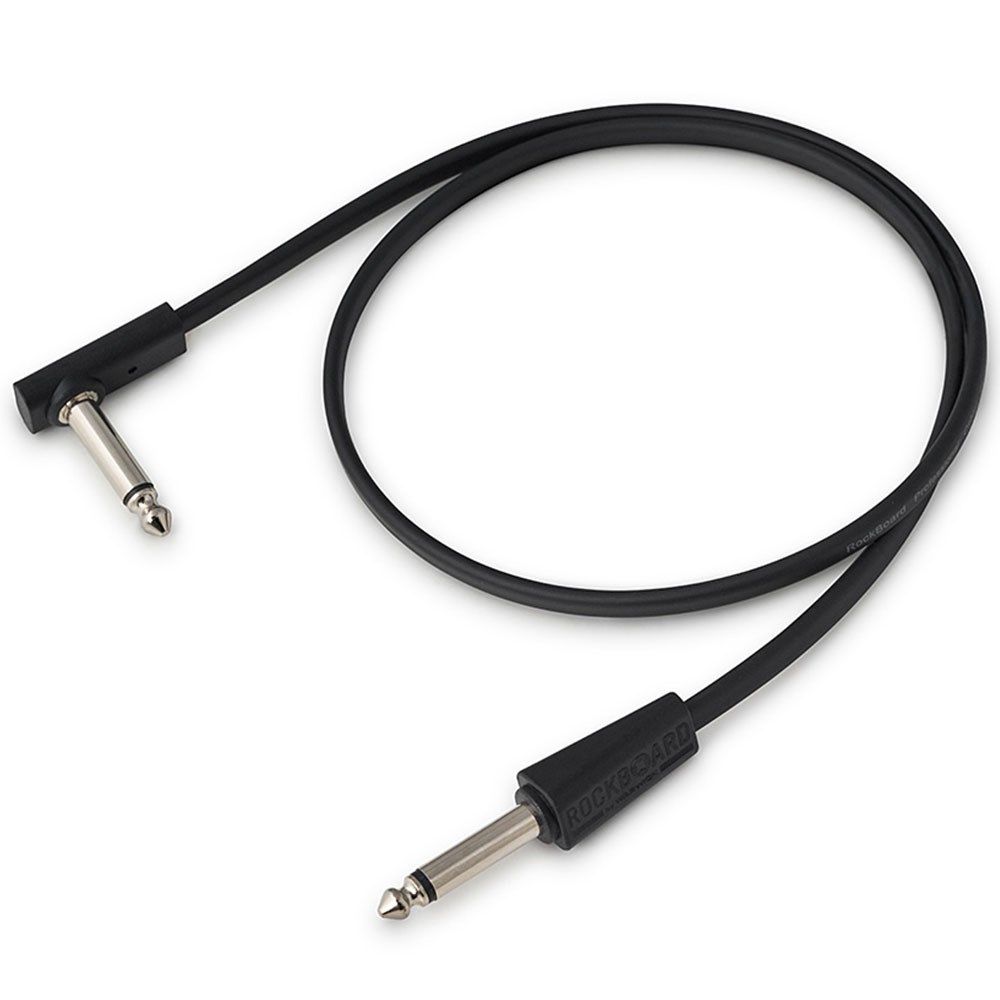

- Flat patch cables with rectangular profile

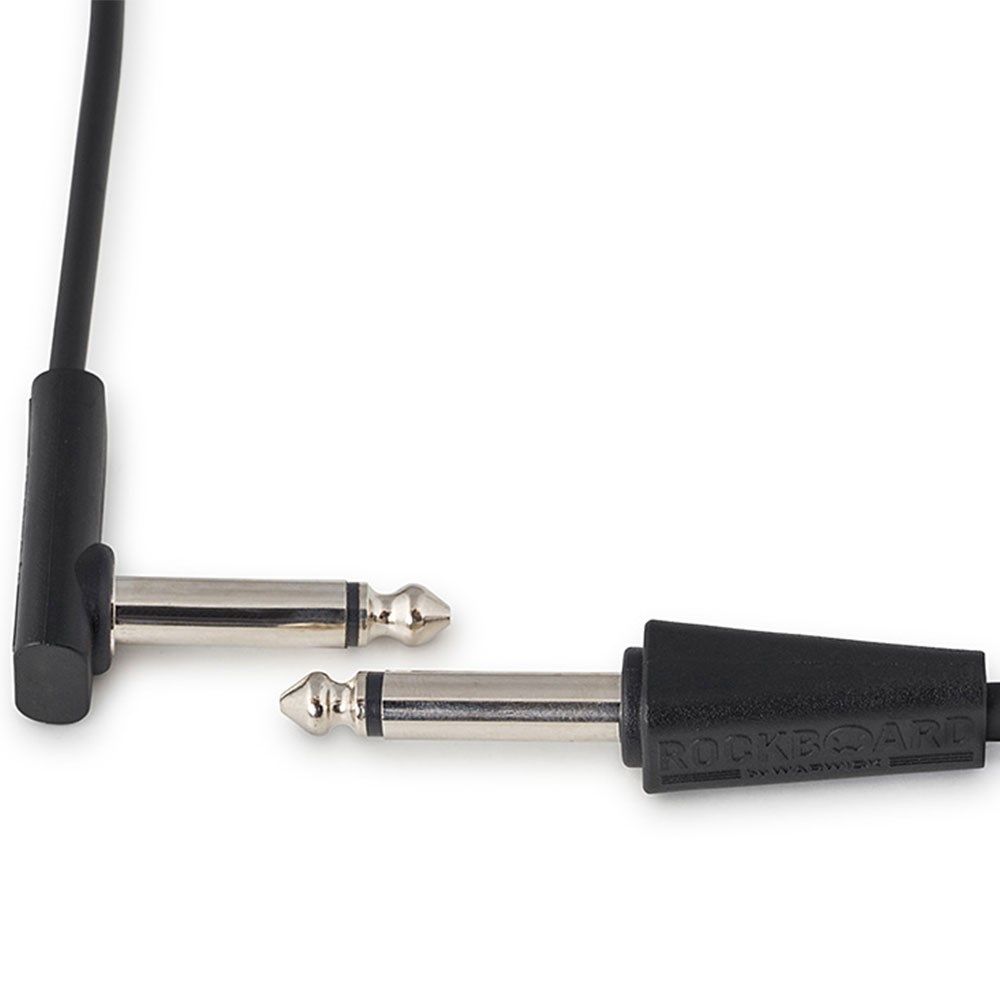

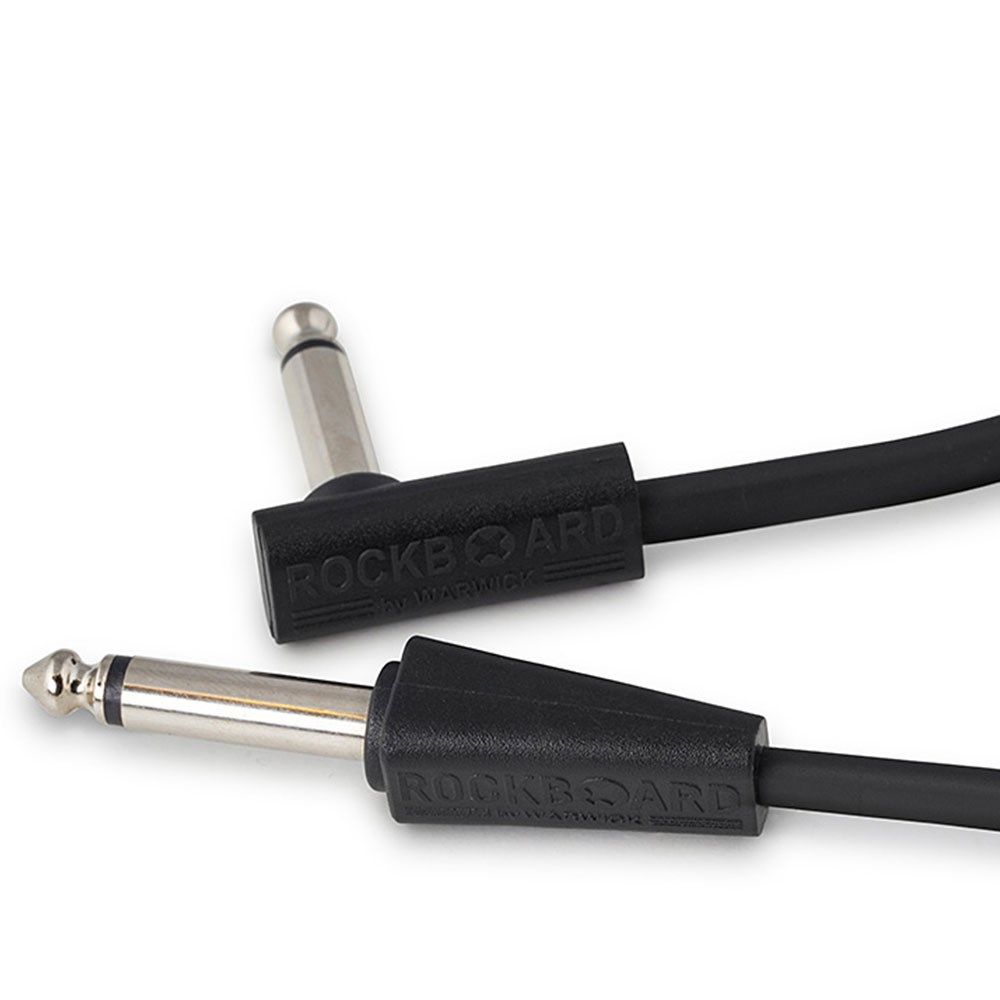

- Compact and super flat angled/straight plugs
- Perfect for use with looper/switchers or effects pedals with tightly spaced jacks
- Flexible copper conductor 20 x 0.12mm/36 AWG
- Twisted copper shielding 34 x 0.12 mm/36 AWG
- PE (polyethylene) signal insulation
- PVC cable mantle
- Capacitance less than 10 pF/decimetres
- Conductor resistance less than 10 mOhm/decimetres
- 6.3mm mono audio plugs
- Operating temperature -15º C to +70° C
- Outer dimensions cable (W x H) 7 x 3 mm
- Outer dimensions plugs (W x H) 12.5 x 7.5 mm(angled), 12.5 x 12.5 mm(straight)
- Black
- Length 60 cm
