Revolutionary engineering meets practical design in the 2018 RockBoard® pedalboard series, where a single folded aluminium sheet creates an incredibly robust platform without a single welded seam. This ingenious construction method results in a completely flat board surface, maximising your available pedal space whilst maintaining exceptional rigidity and lightweight portability. The cold–rolled aluminium frame won’t bend or wiggle under the weight of your gear, giving you confidence in both studio and live performance situations.
The innovative slot–based design accommodates multiple mounting options, working seamlessly with RockBoard® Quick Mount pedal plates or traditional solutions like hook and loop tape and cable ties. U–shaped vertical support braces add structural integrity without unnecessary bulk, whilst the integrated slots allow you to route cables beneath the surface for a clean, professional appearance. Power supply mounting is flexible too – mount directly underneath the board or utilise the optional RockBoard® The Tray universal mounting system.
With seven different sizes spanning from 47cm to 100cm in width, there’s a RockBoard® to suit any setup from compact home studios to expansive touring rigs. Most models in the 2018 series are compatible with RockBoard® MOD patchbays (excluding the Duo 2.1), and each size is available with either a protective gig bag or flight case to match your transport requirements.
- Fits approx. 20 to 30 effects pedals (depending on size)

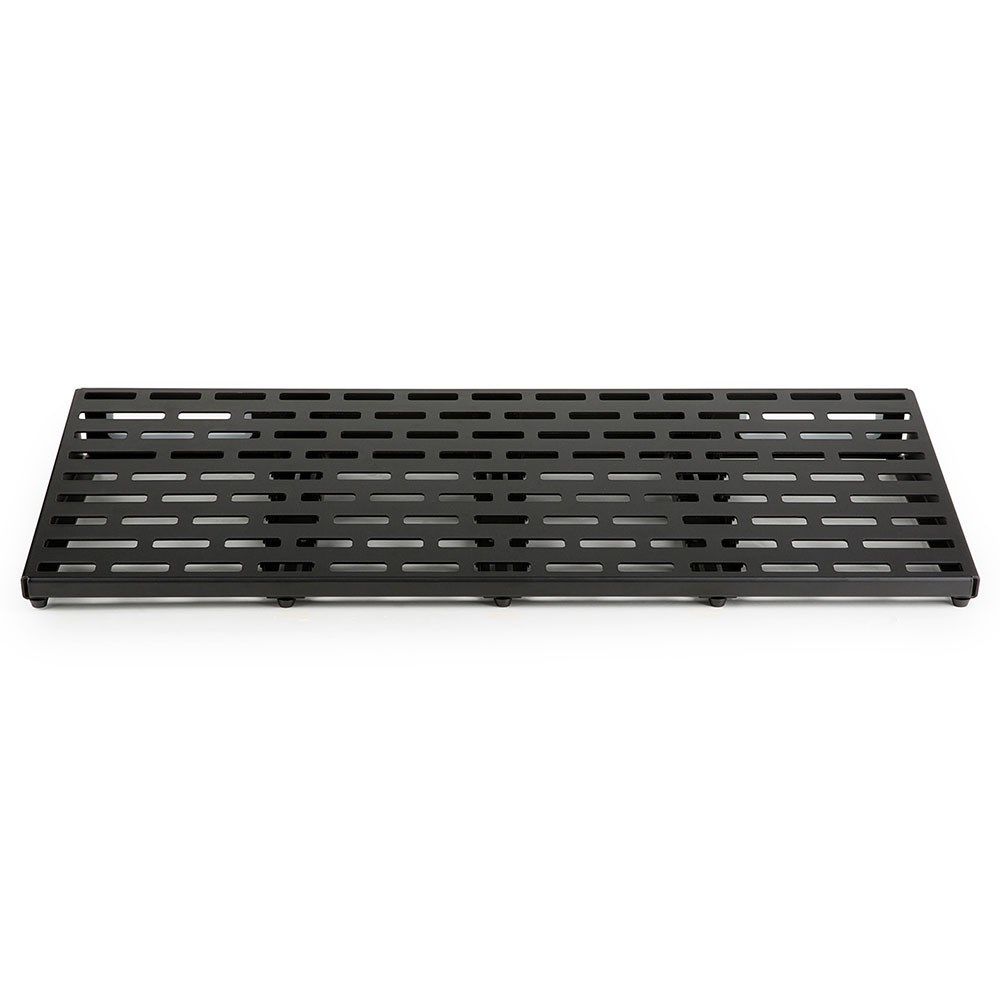

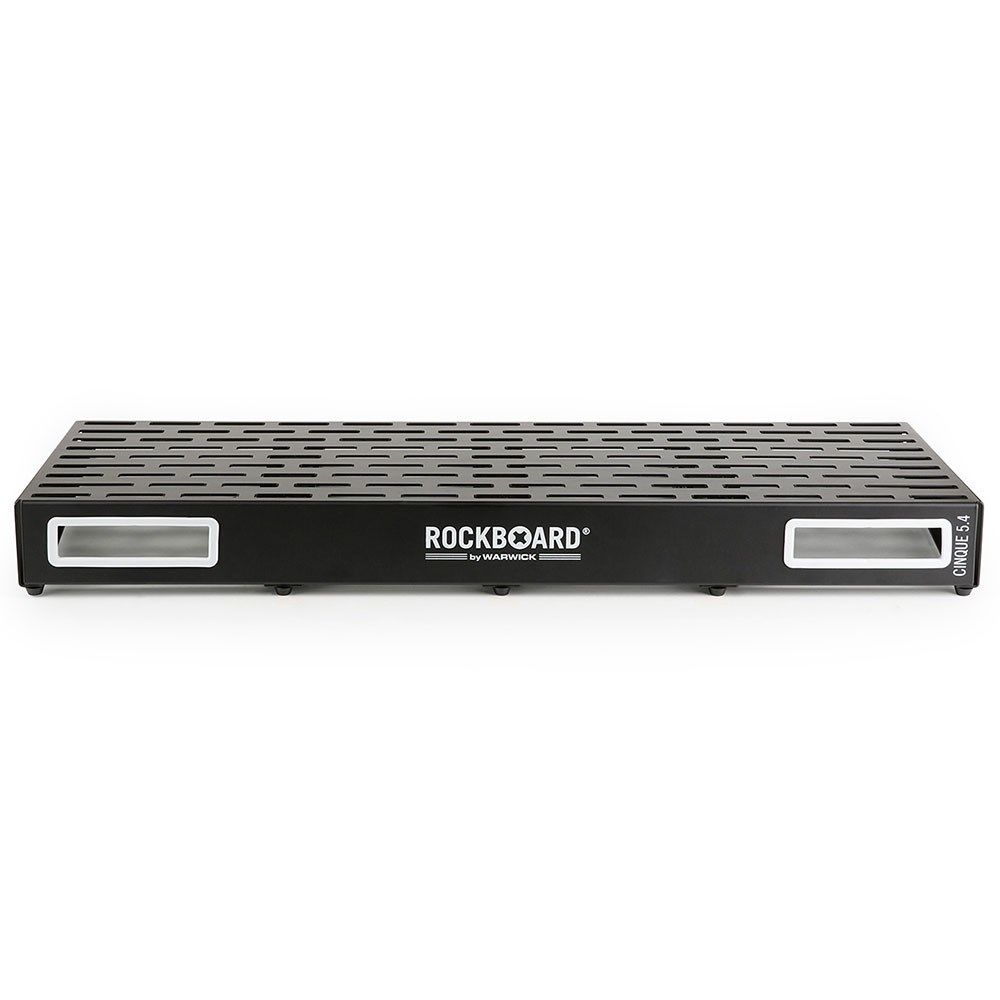

- Sturdy and light aluminium construction
- Slotted design for easy pedal mounting
- Mounting holes for RockBoard LED Light (not included) on both sides
- Made from 1 cold-rolled aluminium sheet
- Additional U-shaped support braces for added rigidity
- 10 degrees angled and absolutely plain board surface - no weld seams
- Slot for RockBoard® MOD patch bays
- Compatible with RockBoard® The Tray - universal power supply mounting solution
- Robust black powder-coated surface
- Width 1002 mm / 39 29/64"
- Depth 424 mm / 16 11/16"
- Height incl. rubber feet 37 - 71 mm / 1 7/16" - 2 13/16"
- Weight 5.1 kg / 11.2 lbs.

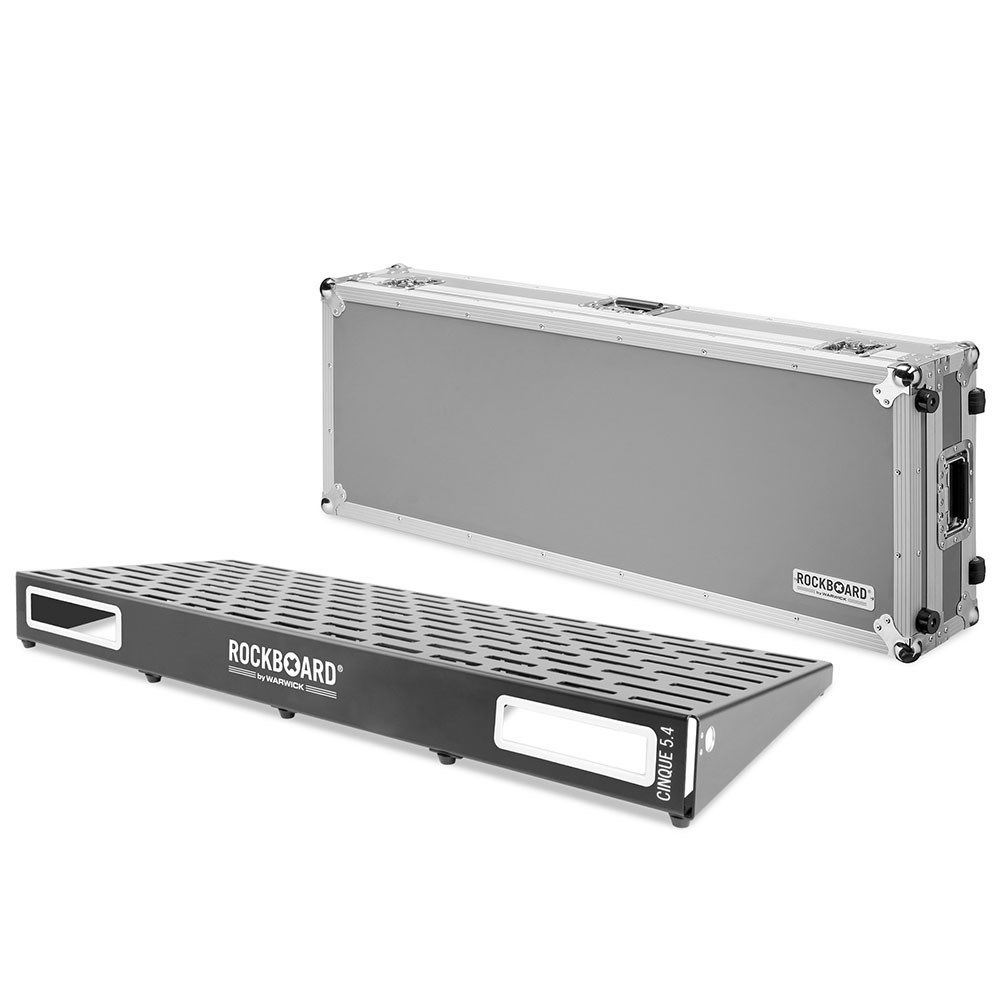

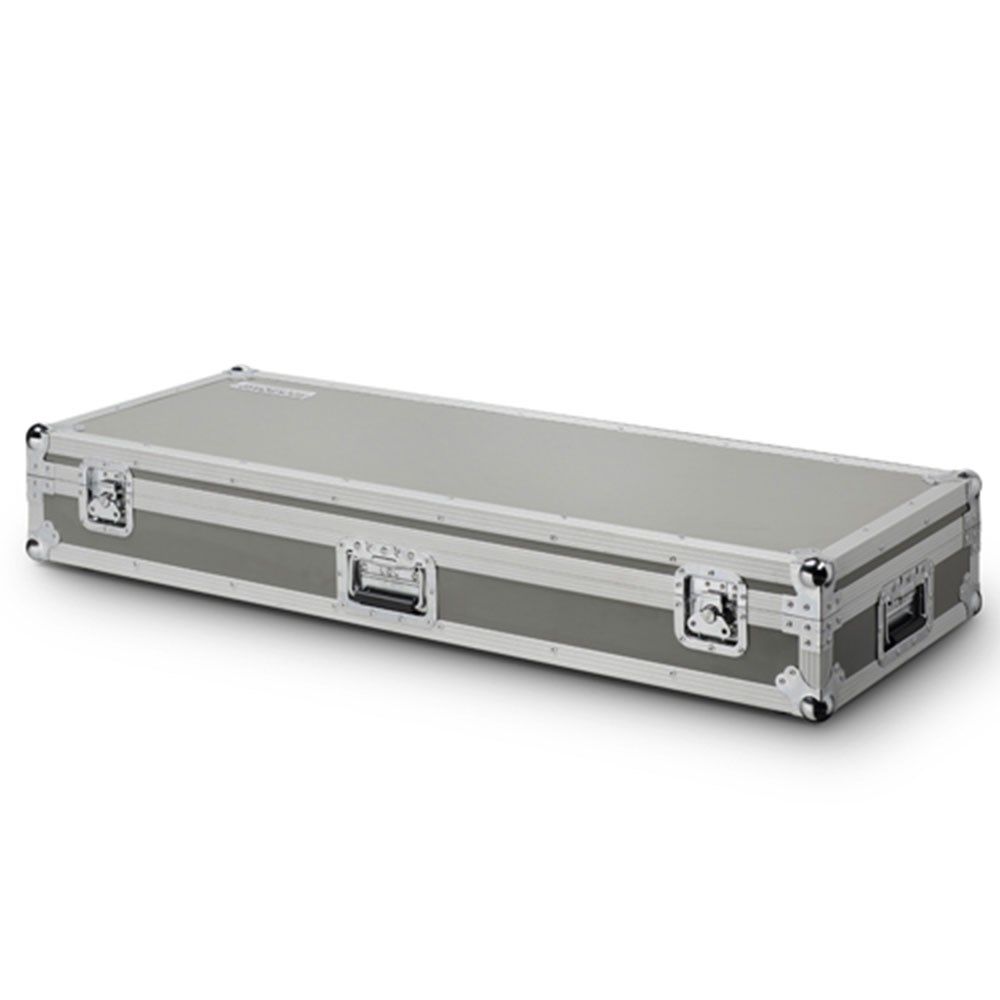

- Includes Flight Case
- Weight of flight case approx. 14.5 kg / 32.0 lbs.

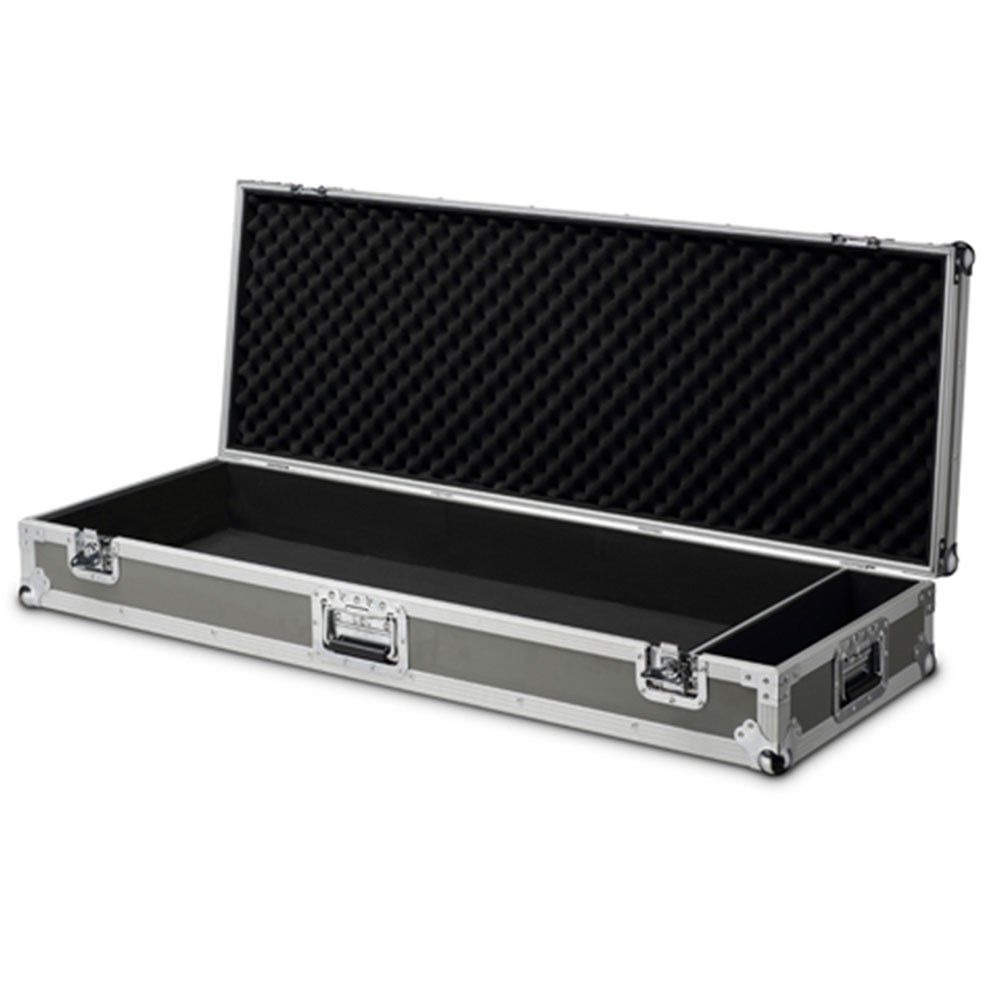

- Interior dimensions main compartment (W x D x H) 1040 x 435 x 180 mm / 40 15/16" x 17 1/8" x 7 1/16"
- Interior dimensions accessory compartment (W x D x H) 105 x 435 x 125 mm / 4 1/8" x 17 1/8" x 4 15/16"
- Includes self-adhesive hook (50 mm / 1 15/16" wide) & loop tape (25 mm / 1" wide) and cable ties
