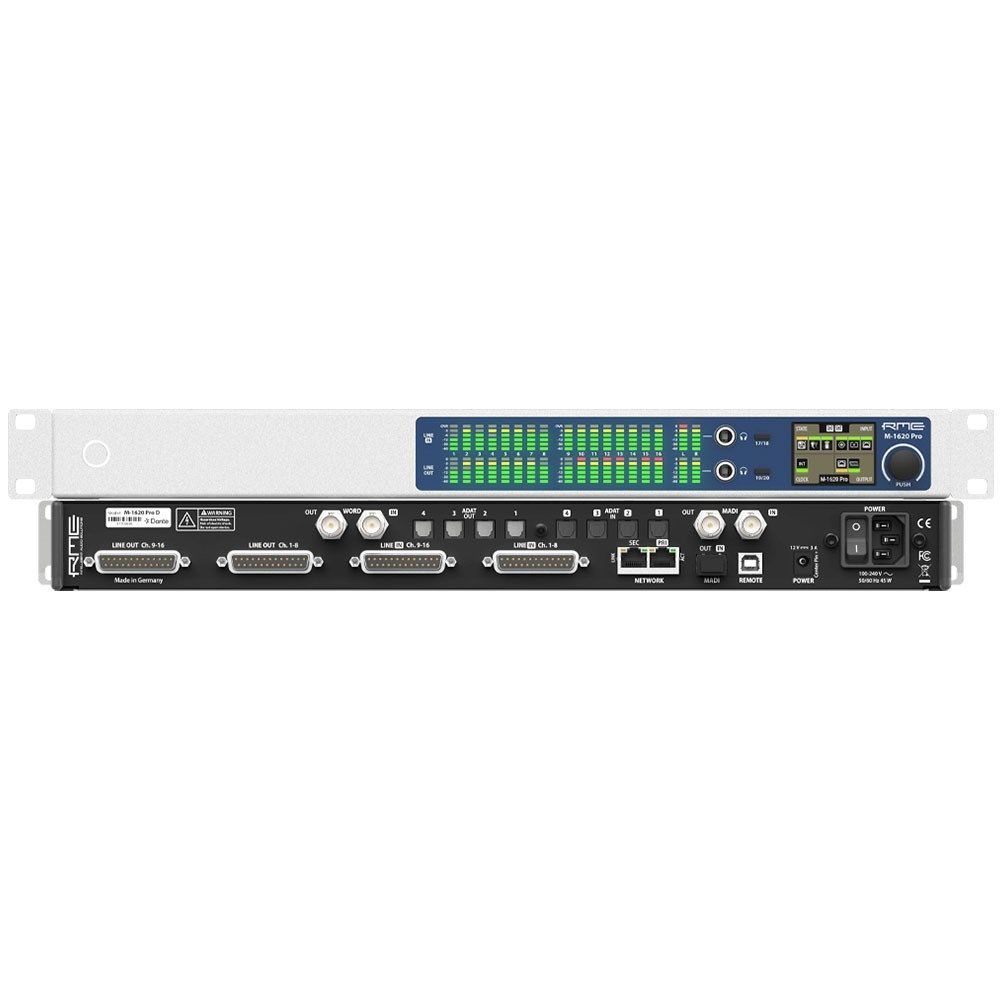

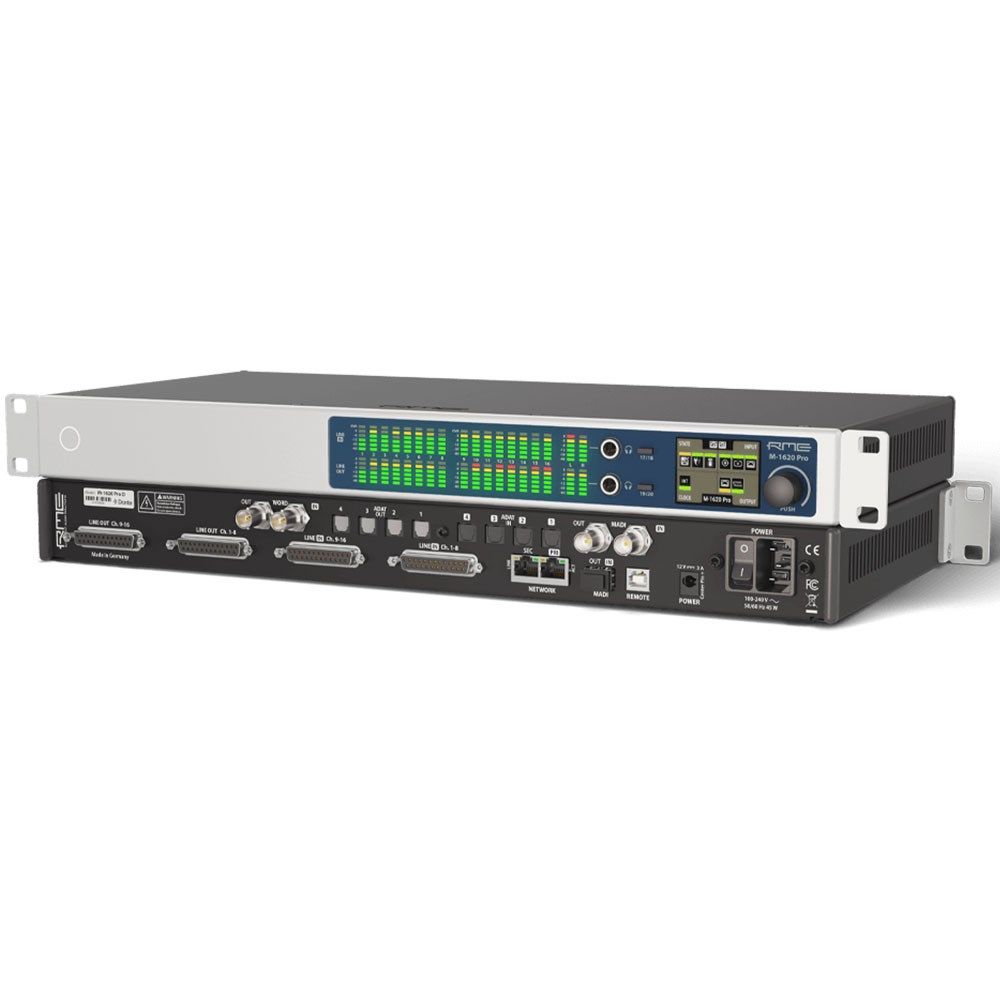

RME M-1620 16 Channel A/D 20 Channel D/A Converter w/ ADAT MADI & Dante

The RME M-1620 Pro D stands as a powerhouse converter that bridges the gap between analogue and digital audio worlds, handling 16 analogue line-level signals with switchable levels up to +24 dBu across MADI, ADAT and Dante network technologies. This single-height 19-inch rack unit features an innovative front panel design combining LED level meters with a display, plus dual headphone outputs for comprehensive monitoring. Advanced converters and flexible internal routing capabilities position this unit at the cutting edge of professional audio networking.

Reliability takes centre stage with built-in redundancy systems including dual network and dual MADI connections, complemented by a monitored DC input alongside the internal AC power supply. The unit operates with full stand-alone capability, allowing direct on-device adjustments for quick modifications or complete user-defined preset recall. A sophisticated monitoring system provides clear indication when issues arise, maintaining seamless operation throughout demanding professional applications.

The integrated 64-channel Dante connectivity opens direct pathways to other audio devices via standard ethernet switches, with the flexibility to function as a switch itself for daisy-chaining multiple Dante devices when redundancy isn’t required. Users can record and playback up to 64 channels from any of the M-1620’s analogue and digital I/O using Audinate’s Dante Virtual Soundcard™ (licence sold separately). Manual configuration of aliasing filters optimises impulse and frequency response, while SteadyClock FS technology effectively reduces jitter on digital input signals.

Comprehensive control options include front panel access to all device states, plus network-based remote control (including wireless Wi-Fi connectivity) and USB connections for convenient management of gain groups, phantom power switching and clock configuration. The integrated routing matrix provides single channel routing across all analogue and digital I/O, making troubleshooting of signals, clocking and connectivity issues remarkably straightforward. Additional control flexibility comes through JSON-based API and SysEx MIDI commands for seamless integration into virtually any professional audio environment.
