ACOUSTICAL SPECIFICATIONS

  • Frequency Response: 45 Hz / 20000 Hz
  • Max SPL @ 1m: 135 dB
  • Horizontal coverage angle: 100 degree
  • Vertical coverage angle: 60 degree

TRANSDUCERS

  • Compression Driver: 1 x 1.4" neo, 4.0" v.c
  • Woofer: 15" neo, 3.5" v.c

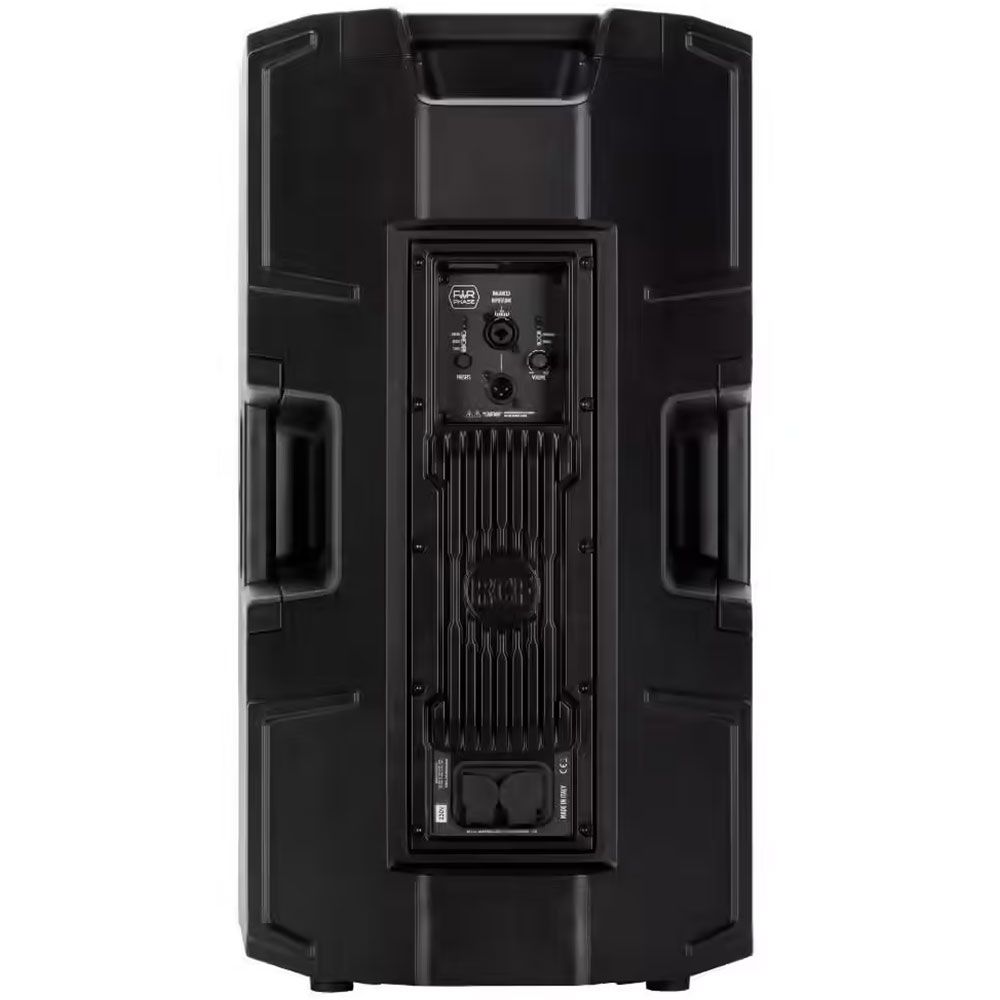

INPUT/OUTPUT SECTION

  • Input signal: bal/unbal
  • Input connectors: XLR, Jack
  • Output connectors: XLR
  • Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

  • Crossover Frequencies: 650Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter

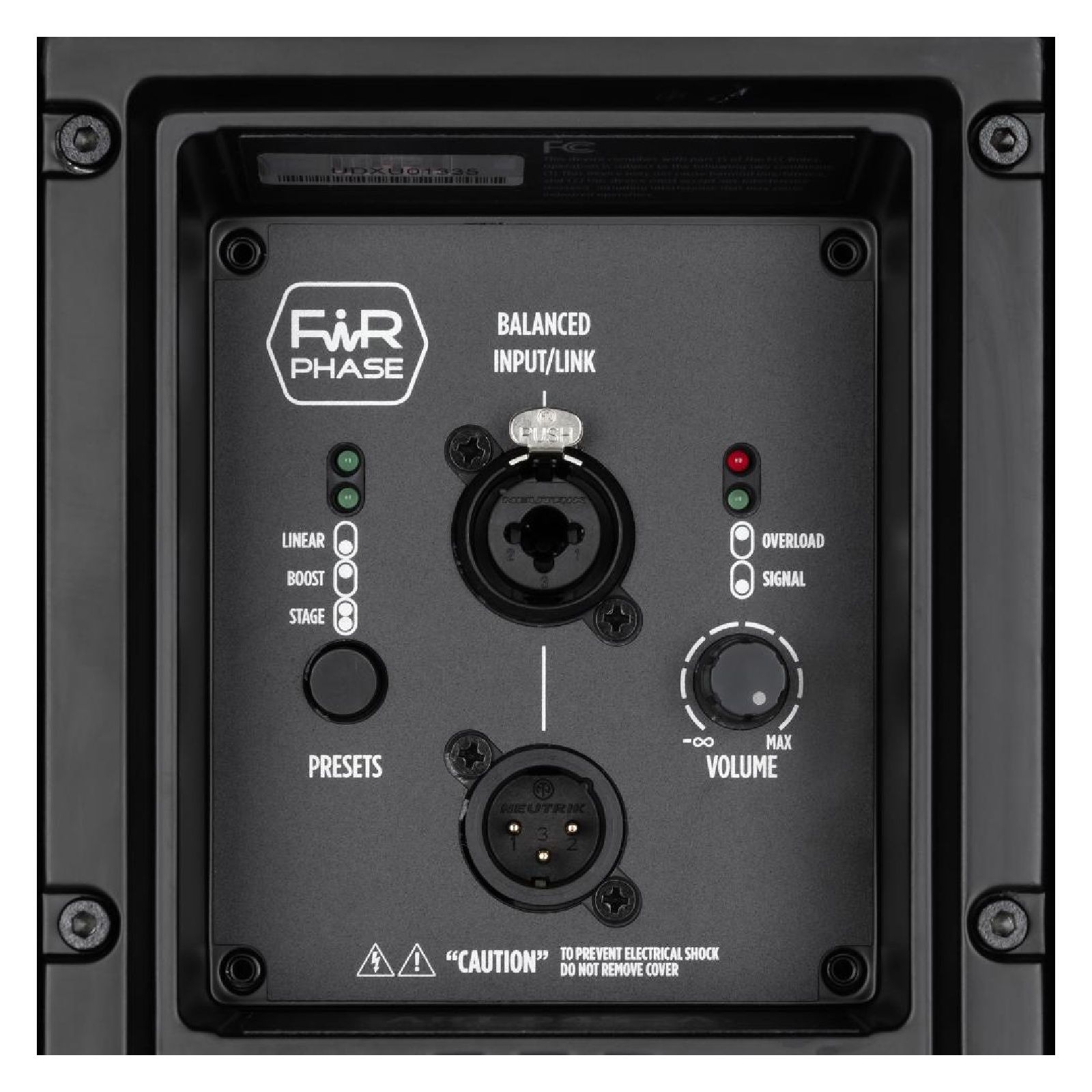

  • Controls: Linear, Boost, Stage, Volume

POWER SECTION

  • Total Power: 2100 W Peak
  • High frequencies: 700 W Peak
  • Low frequencies: 1400 W Peak
  • Cooling: Convection

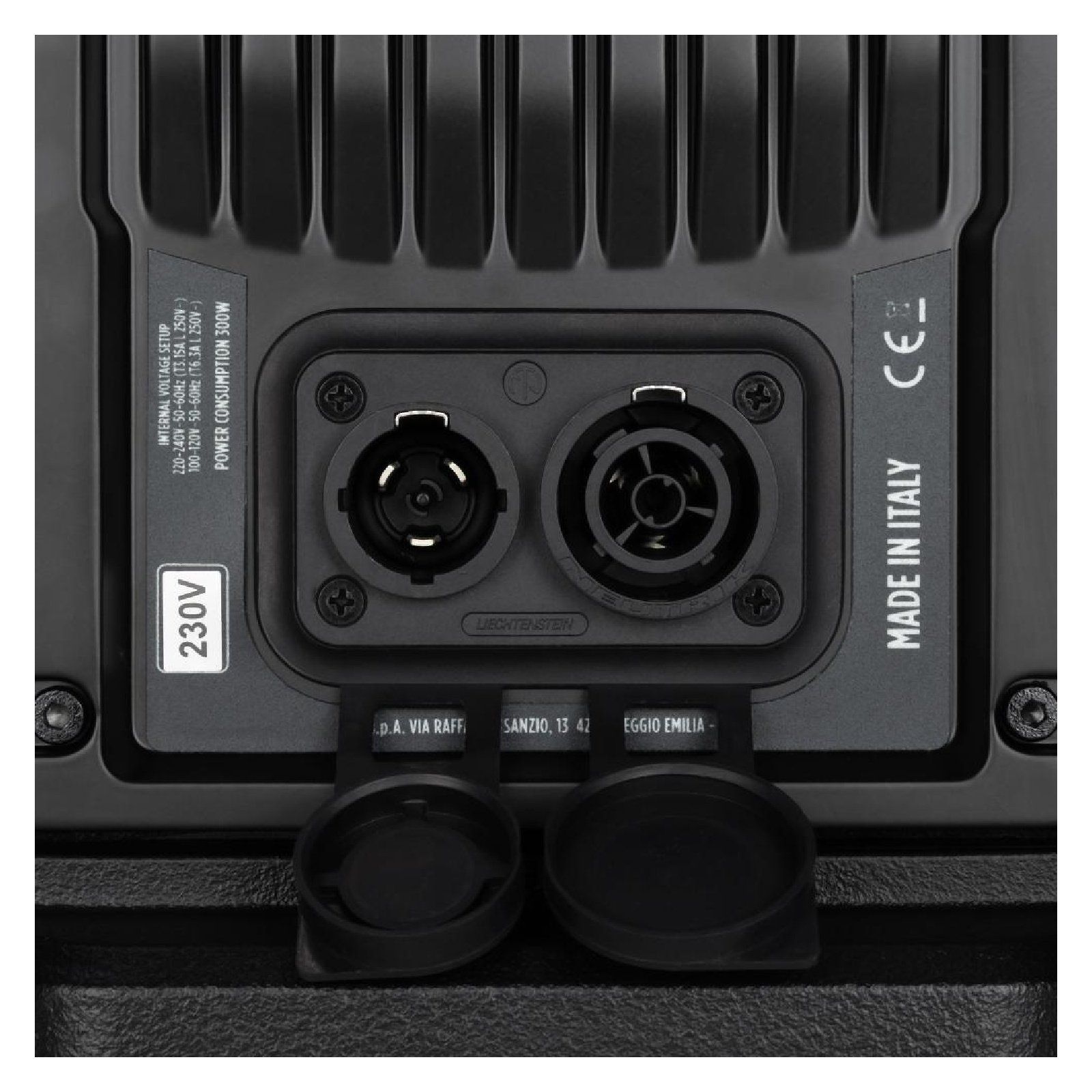

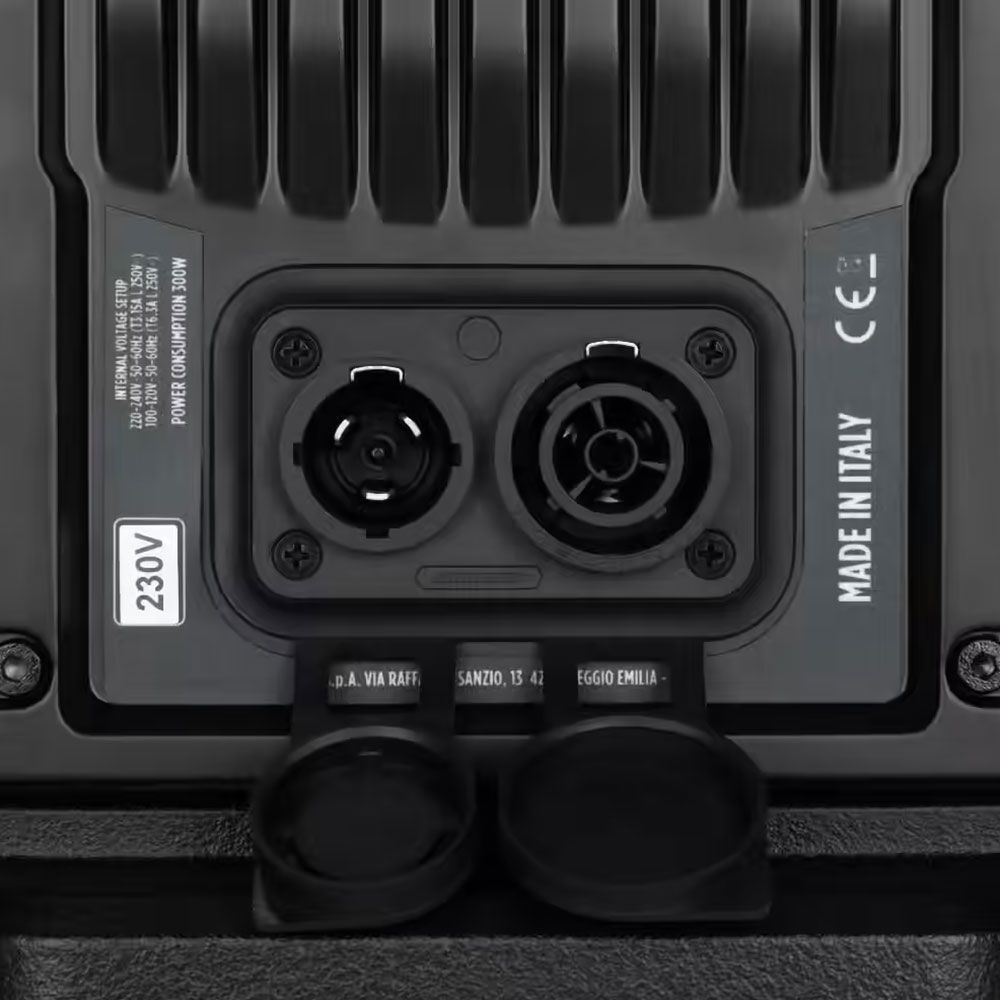

  • Connections: Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

  • Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

  • Cabinet/Case Material: PP Composite
  • Hardware: 1 x M10 Top, 1 x M10 each side

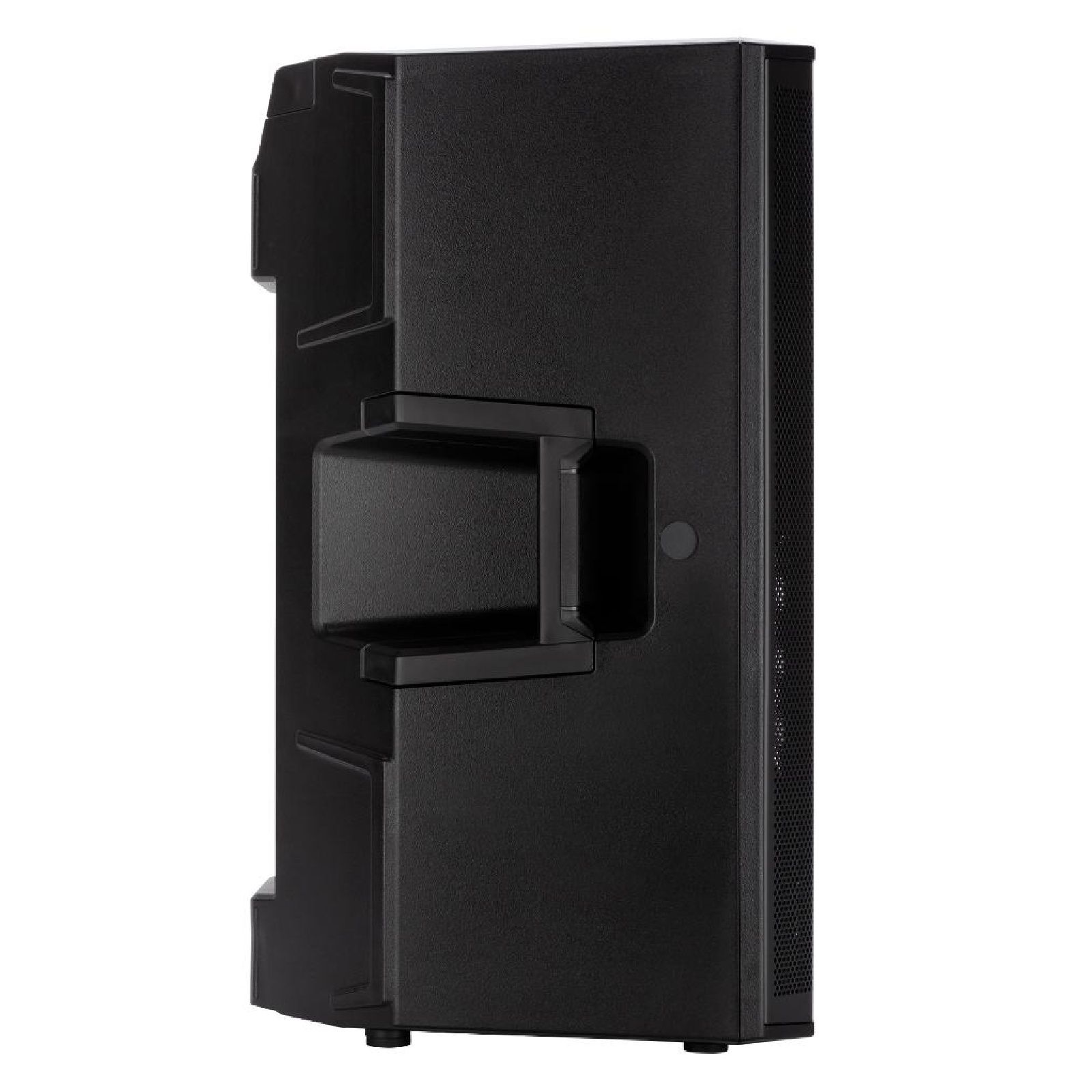

  • Handles: 1 Top , 1 each side
  • Pole mount/Cap: Yes
  • Grille: Steel
  • Colour: Black

SIZE

  • Height: 717 mm / 28.23 inches
  • Width: 415 mm / 16.34 inches
  • Depth: 410 mm / 16.14 inches
  • Weight: 22.4 kg / 49.38 lbs

SHIPPING INFORMATION

  • Package Height: 760 mm / 29.92 inches
  • Package Width: 475 mm / 18.7 inches
  • Package Depth: 470 mm / 18.5 inches
  • Package Weight: 26.2 kg / 57.76 lbs
Features
  • Up to 135 dB Sound Pressure Level
  • 2100W Class‐D Bi‐Amplification
  • 45‐20000 Hz linear frequency response
  • 4" Titanium/Neodymium Compression Driver
  • 15" Neodymium Woofer
  • FiRPHASE zero degrees phase technology
  • Bass Motion Control woofer excursion management
