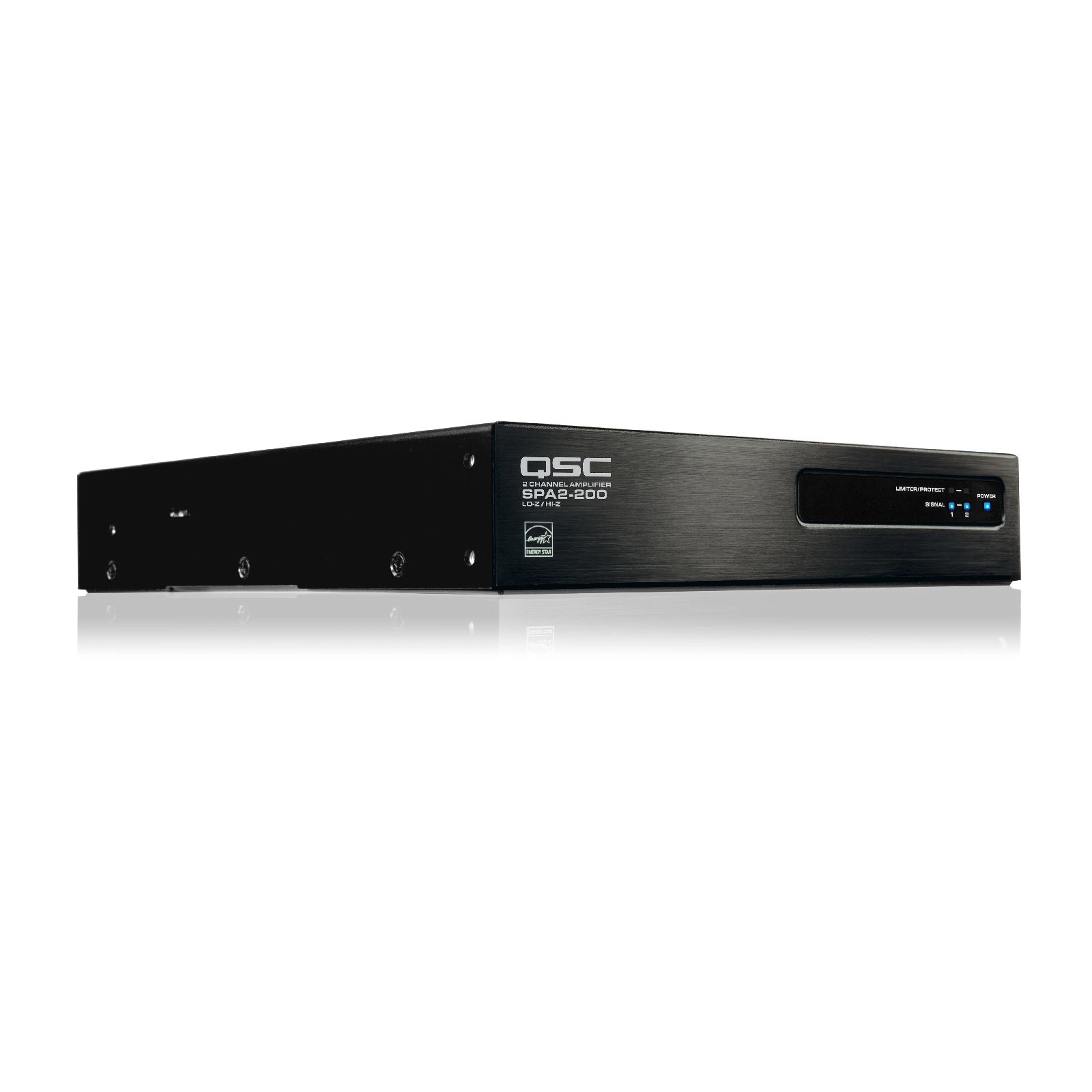

QSC SPA Specs

  • Number of Channels: 2
  • Power Rating:
  • 200 W per Channel
  • 400 W Bridged
  • Amplifier Class: Class-D
  • Load Impedance / Voltage:
  • 4 / 8 Ohms
  • 70 / 100 V

Performance

  • Frequency Response: 20 Hz to 20 kHz ±0.1 dB (4 Ohms, 8 Ohms)
  • Input Sensitivity: 1.23 V / +4 dBu
  • Input Impedance: >10 Kilohms (Balanced/Unbalanced)
  • Max Gain: 30 dB (at 8 Ohms)
  • Max Input Level: +24 dBu / 12.3 V
  • SNR: > 100 dB
  • EQ: None
  • Filters:
  • 1 x High-Pass: 80 Hz
  • Ducking/Muting: None

Connectivity

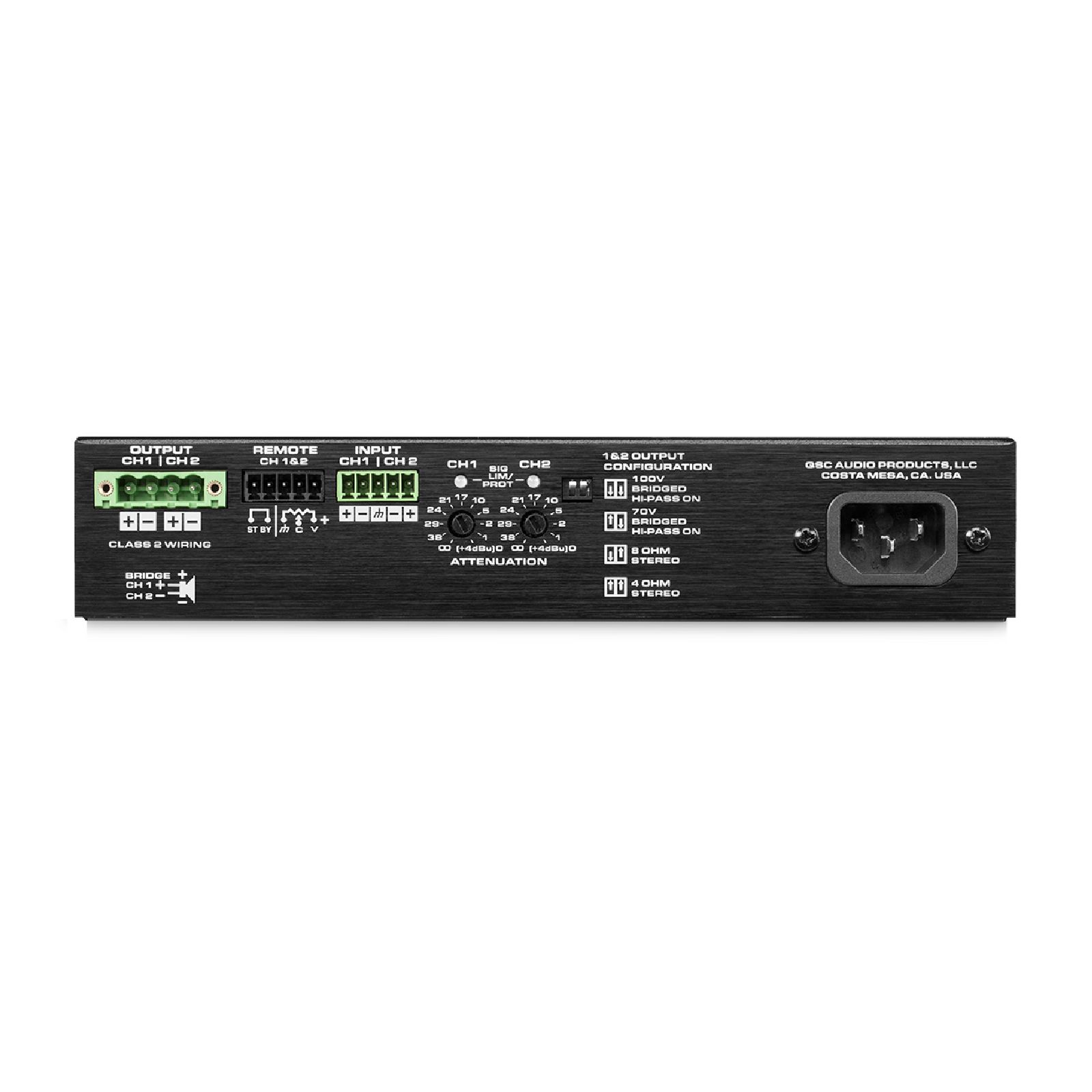

  • I/O:
  • 1 x Block 5-Pin Line Input
  • 1 x Block 5-Pin Remote Input
  • 1 x Block 4-Pin Speaker Output
  • Digital I/O: None
  • USB: None

Power

  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
  • AC Power Connector: 1 x IEC 15 A / NEMA 5-15

Physical

  • Display & Indicators:

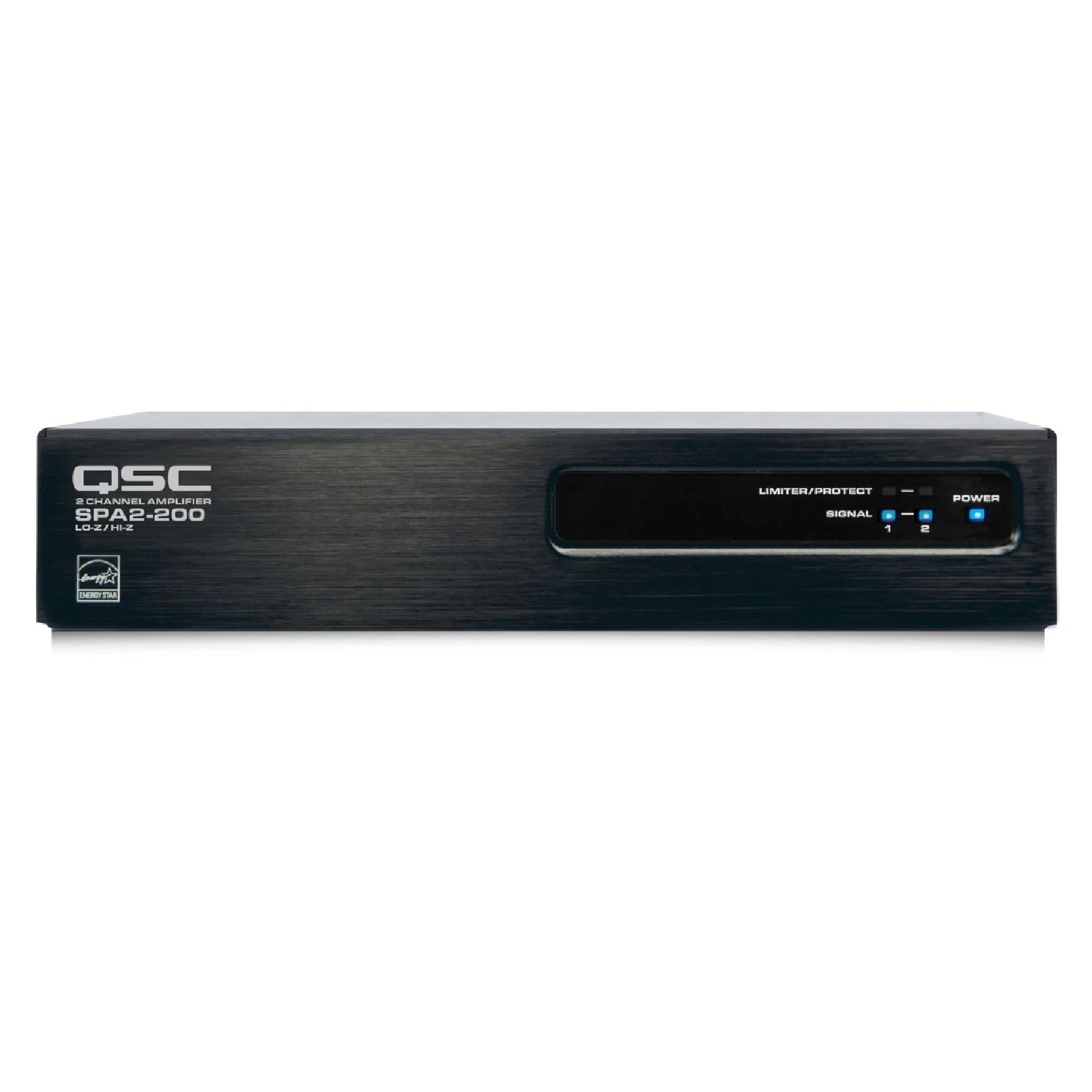

  • Front Panel: LED (Power/Protect/Signal)
  • Rear Panel: LED (Limit/Protect/Signal, per Channel)
  • Rackmount Size: 1 RU (with Included Hardware)
  • Cooling: Convection
  • Certifications: CE, ENERGY STAR, FCC, RoHS, UL, WEEE *as per Manufacturer
  • Dimensions: 9.5 x 1.8 x 8.7" / 241.3 x 45.7 x 221.0 mm
  • Weight: 4 lb / 1.8 kg

Packaging Info

  • Package Weight: 6 lb / 2.7 kg
  • Box Dimensions (LxWxH): 15.55 x 11.55 x 3.45"
