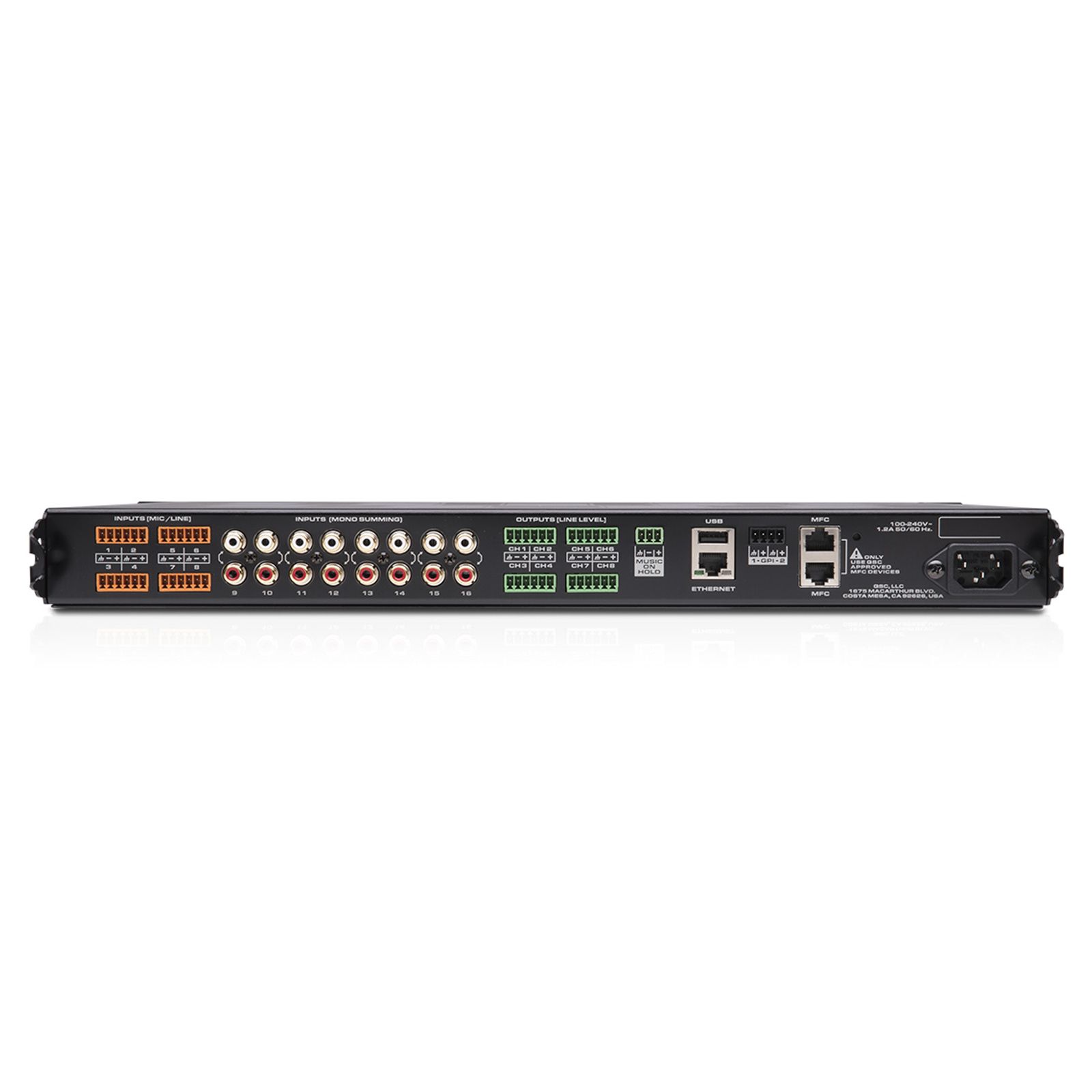

• Inputs
  • Total: 16
  • Mic/Line: 8 (Euroblock)
  • RCA: 8 (mono-summed RCA pairs)

    Outputs
  • Total: 10
  • Line: 8 (Euroblock, balanced)
  • Music on Hold: 1 (Euroblock, transformer balanced)
  • Cue (phones): 1 (3.5 mm, stereo)

    Input Processing
  • EQ: 4-band parametric EQ with high/low shelving option, variable 24/octave HPF and LPF
  • Dynamics: Gate, choice of Auto Gain Control (AGC) or Compressor

    Output Processing
  • EQ: 1/3 octave GEQ
  • Anti-feedback Filters: 12-band variable notch filters
  • Dynamics: Comp/limiter, ducker, loudness
  • Delay: 100 msec
  • Loudspeaker tunings: Factory: Intrinsic Correctionโ„ข voicing for QSC loudspeakers
  • User: 6-band parametric EQ, HPF & LPF (Linkwitz-Riley or Butterworth; 12, 18 or 24 dB/octave)

    Effects & RTA
  • Effects: 1 multi-effects processor
  • RTA: 1/3 octave RTA
  • Control Accessories
  • MP-MFC: Optional wall controller
  • MP Install app: For configuration/design functions (for iOS/Android tablets, Windows and Mac OS PCs)
  • MP Manage app: For end user control functions (for iOS/Android tablets and smartphones)

    Other Connections
  • Ethernet: 1 x RJ45 for connection to Wi-Fi router (user supplied)
  • MP-MFC ports: 2 x RJ45
  • GPI: 2 Inputs (Euroblock)

    Power & Indicators
  • Phantom Power: All microphone inputs (+12 volts)
  • Power Requirements: TBD W, 100-240 VAC, 50-60 Hz, universal supply, IEC inlet
  • Indicators: Blue POWER LED, blue STATUS LED

    Dimensions
  • Net Dimensions (HWD): 1.75-inch x 19-inch x 14-inch (4.5 cm X 48.3 cm X 35.6 cm)
  • Weight - Shipping: 11.0 lb (5.0 kg)
  • Weight - Net: 7.0 lb (3.2 kg)
