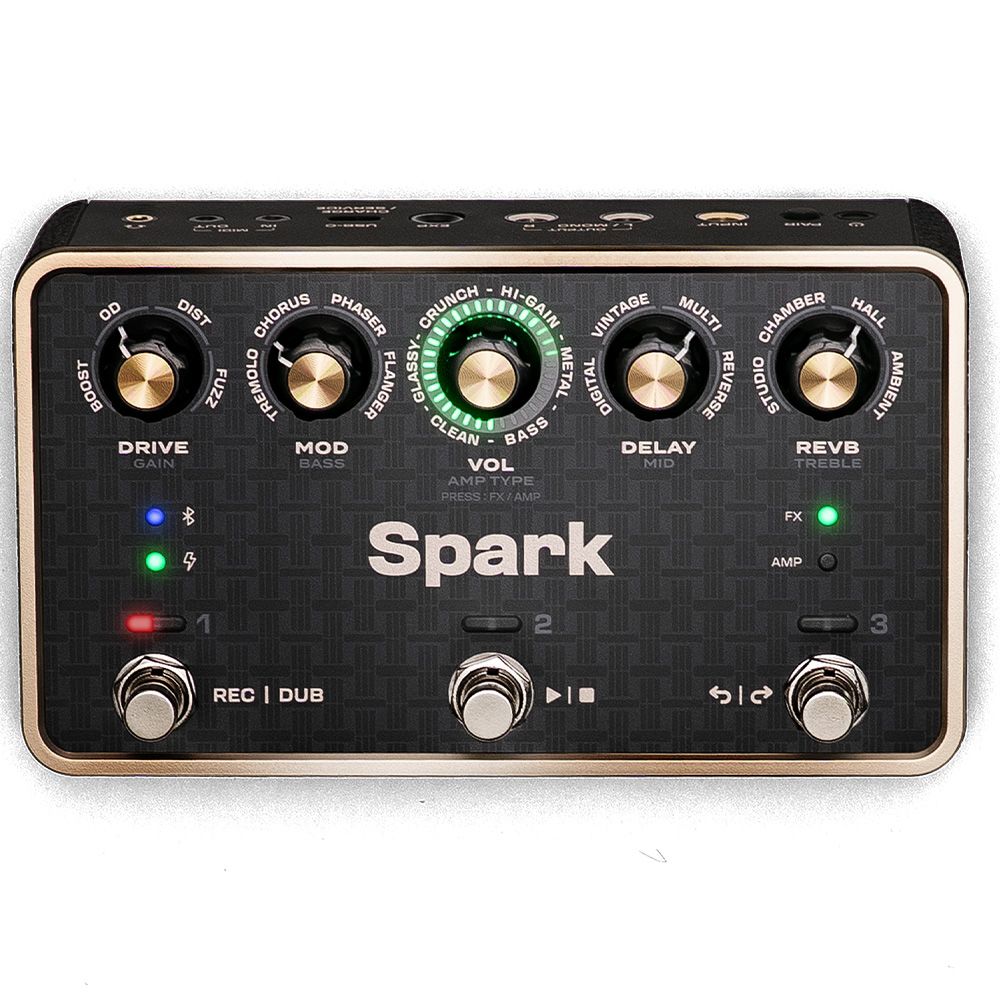

The Positive Grid Spark Pedal is a compact floor processor that combines amp modelling, multi-effects, and audio interface functionality in a battery-powered format measuring 175 x 104 x 47.2mm. Three steel footswitches control preset switching and looper functions, while four dedicated knobs manage effects and amp tone. A multifunction control knob handles amp selection and volume, backed by six footswitch LEDs and a global status ring that provide clear visual feedback during performance.

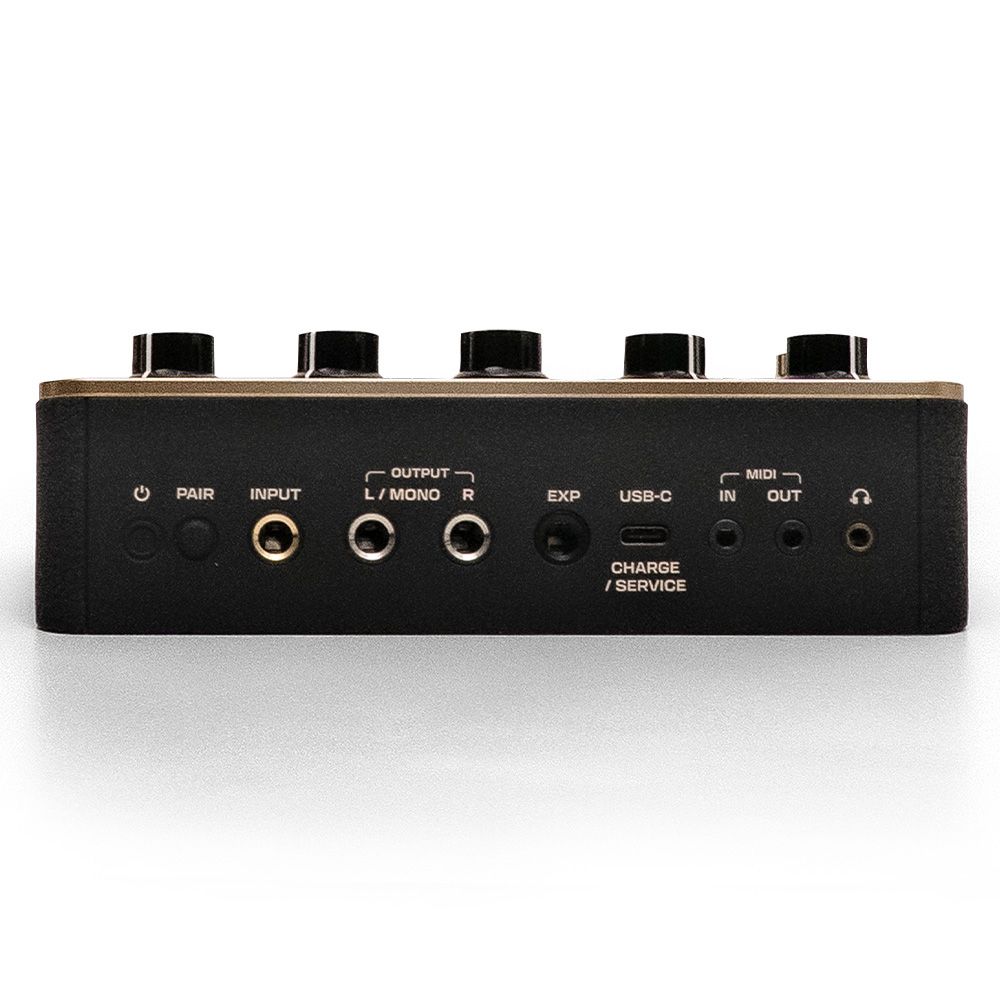

Bluetooth 5.0 and Wi-Fi (2.4GHz) enable wireless connection to the companion app and over-the-air firmware updates, while a USB-C port provides charging, audio interface capability, and service access. The built-in 3000mAh rechargeable lithium-ion battery delivers portable operation without mains power. MIDI connectivity is supported via included 3.5mm to standard DIN 5-pin adapters. Multiple colour LED indicators track preset status, looper activity, battery level, and charging state across the unit's compact control surface.
Features
- Compact dimensions: 175 x 104 x 54.8mm with knobs and switches included
- Three steel footswitches for preset switching and built-in looper control
- Four dedicated knobs for effects control and amp tone shaping
- Multifunction control knob for amp selection and master volume adjustment
- Built-in 3000mAh rechargeable lithium-ion battery for portable operation
- Bluetooth 5.0 and Wi-Fi (2.4GHz) for wireless app connectivity and updates
- USB-C port for charging, audio interface, and firmware service access
- Includes two MIDI 3.5mm to standard DIN 5-pin adapters for external control
