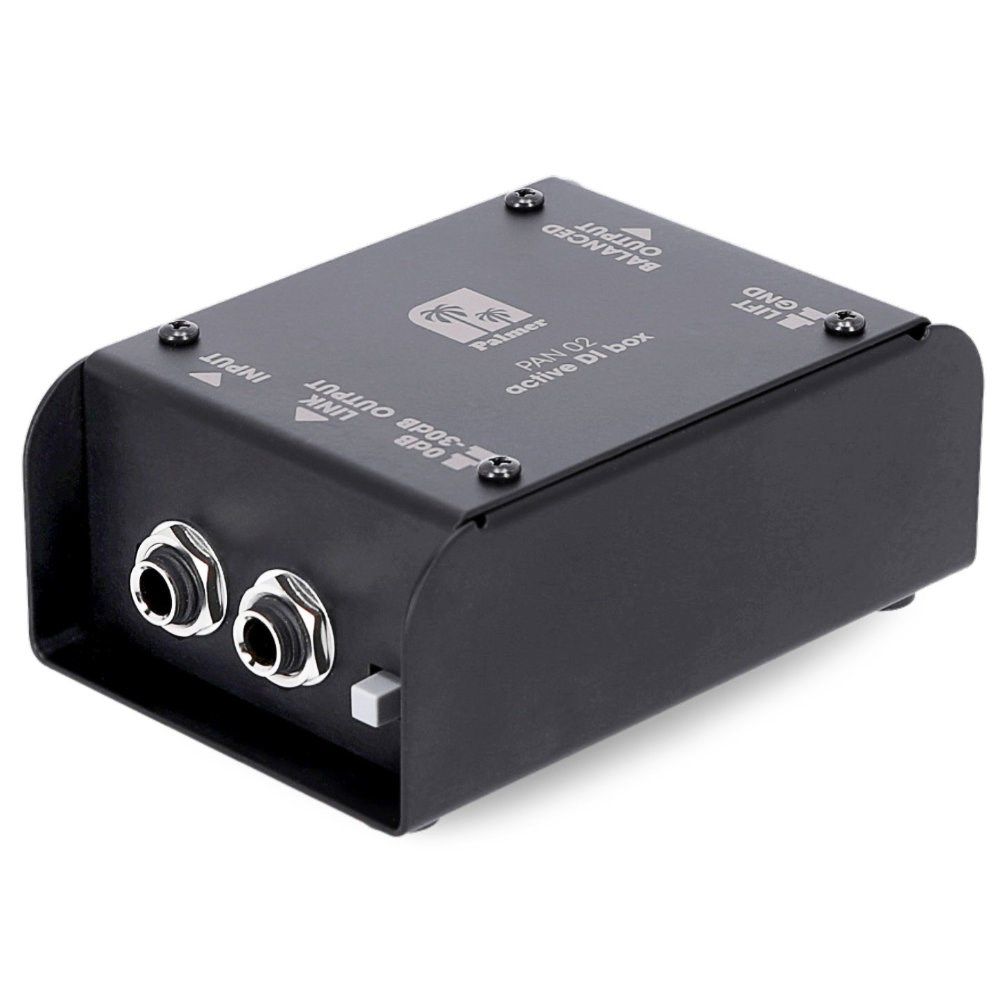

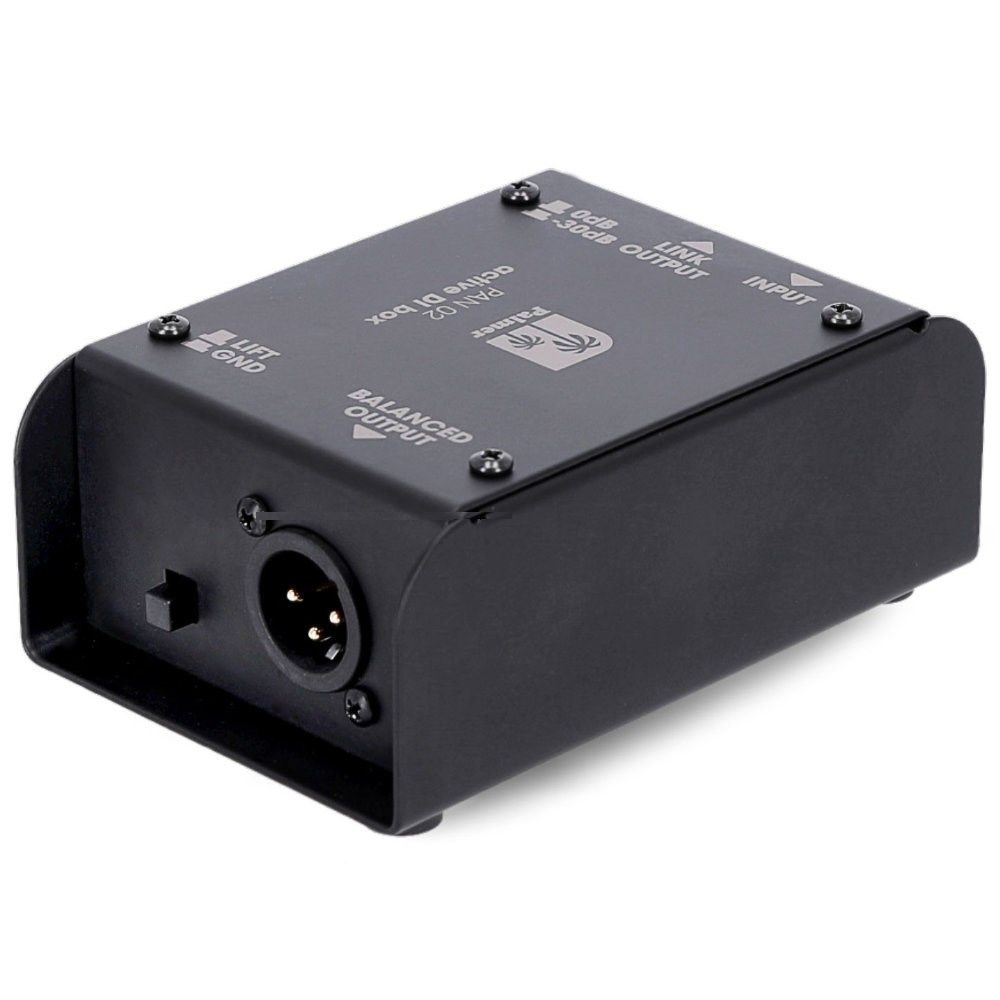

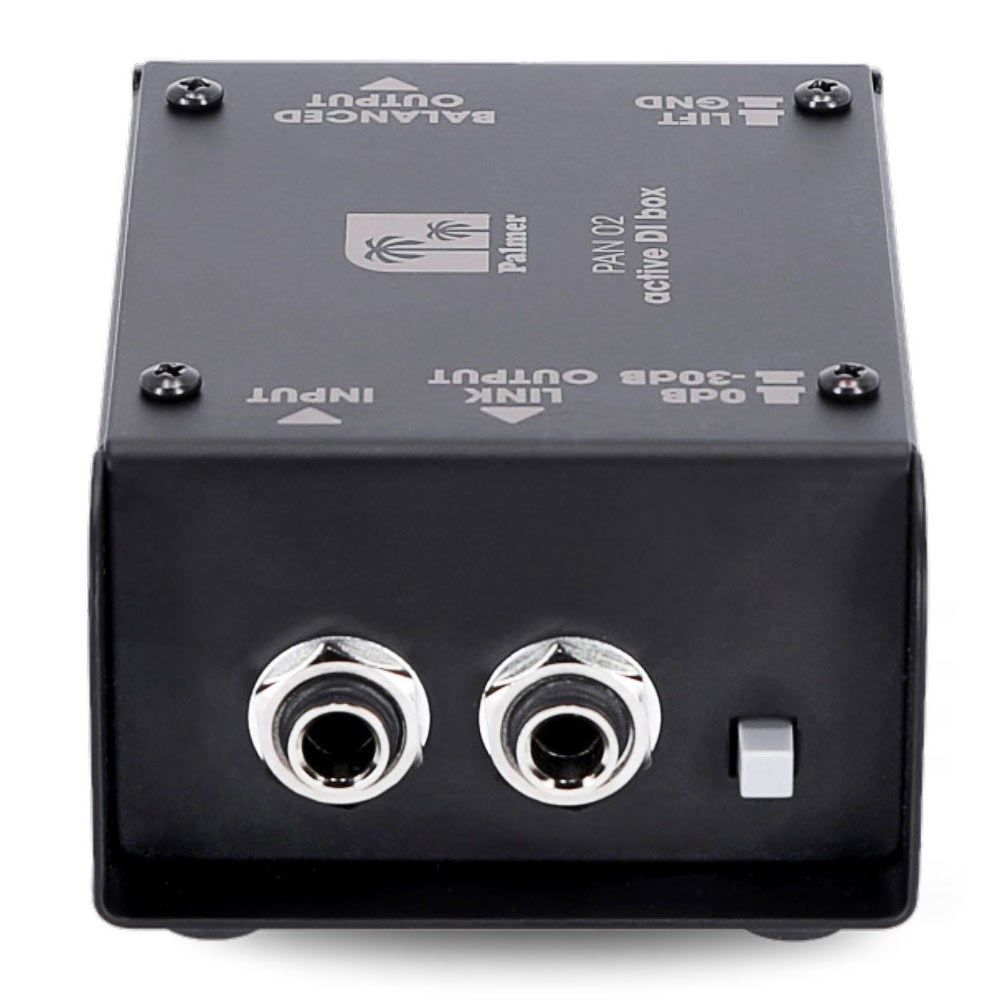

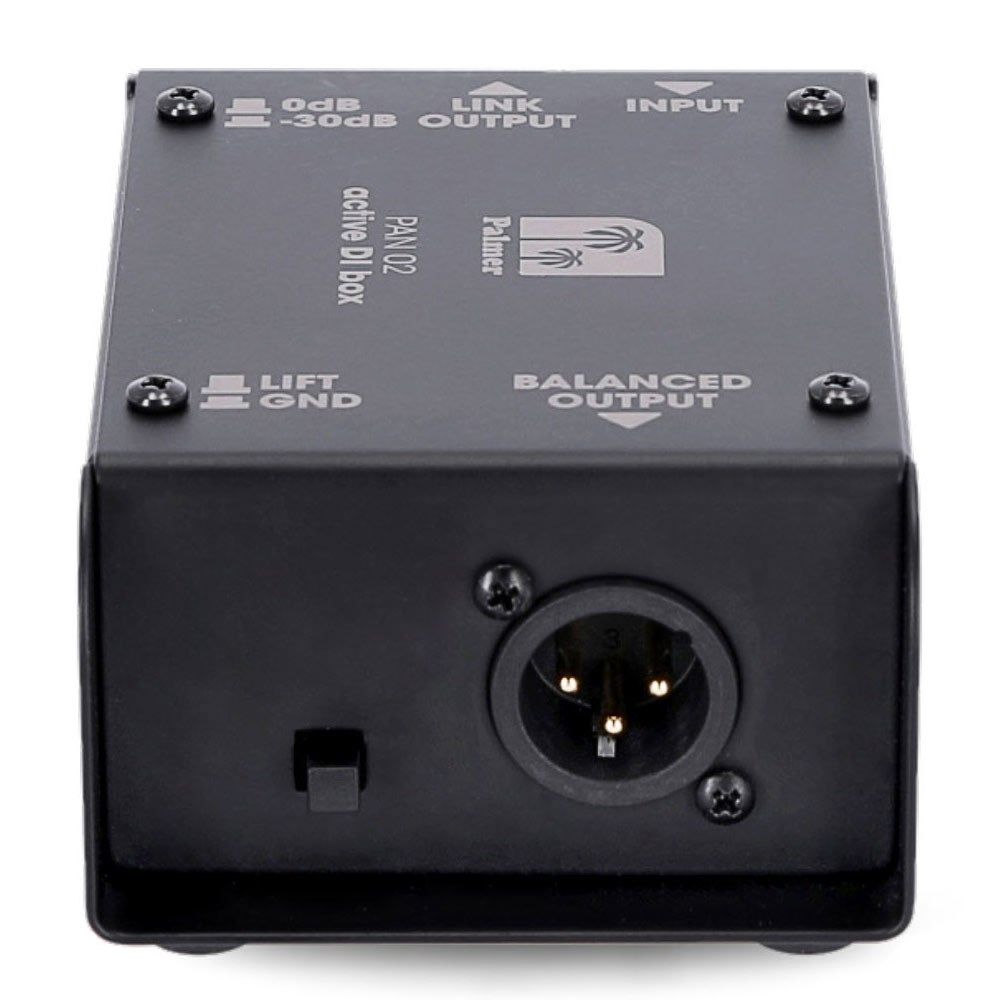

This professional active DI box combines versatility with superior performance, offering dual power options through either 9V batteries or 48V phantom power for maximum flexibility in any recording or live sound environment. The active circuitry provides significant advantages over passive alternatives, including a high input impedance of 1 megohm and enhanced input sensitivity with only -4dB difference between input and output signals.
The unit achieves a maximum output level of +10dB when operating on phantom power, making it ideal for demanding professional applications. Its transformer-balanced output ensures clean, noise-free signal transmission, while the innovative "floating ground" circuitry allows ground lift functionality even during phantom power operation - a feature that sets this DI box apart from conventional designs.
Built for reliability in studio and stage environments, this active DI solution handles high-impedance sources with ease while maintaining exceptional signal integrity. The dual power capability means you’re never caught without power options, making it an essential tool for professional audio engineers and musicians who demand consistent, high-quality performance.
- Type: Active
- Input Connectors: 6.3 mm jack
- Output Connectors: 6.3 mm jack, XLR
- Operating Voltage: +48 V phantom power, 9 V block
- Width: 110 mm
- Depth: 73 mm
- Height: 42 mm
- Weight: 0.353 kg
