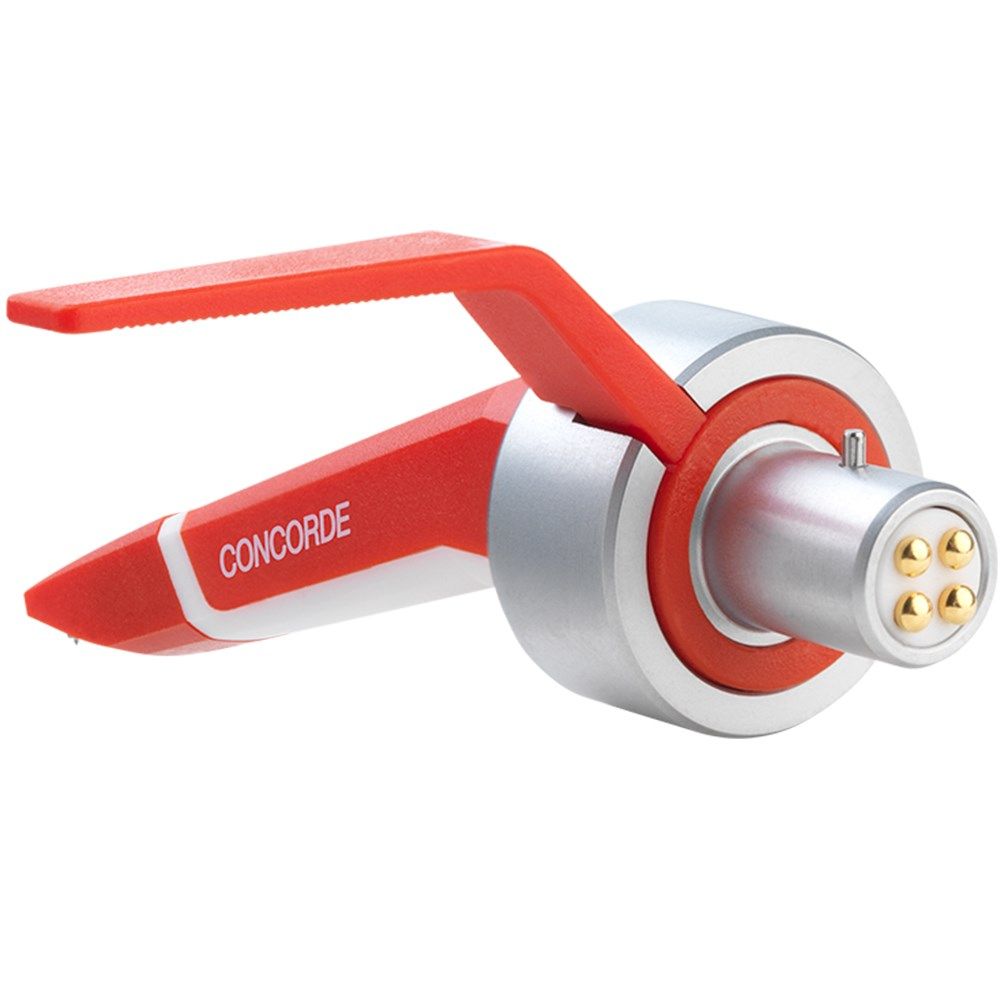

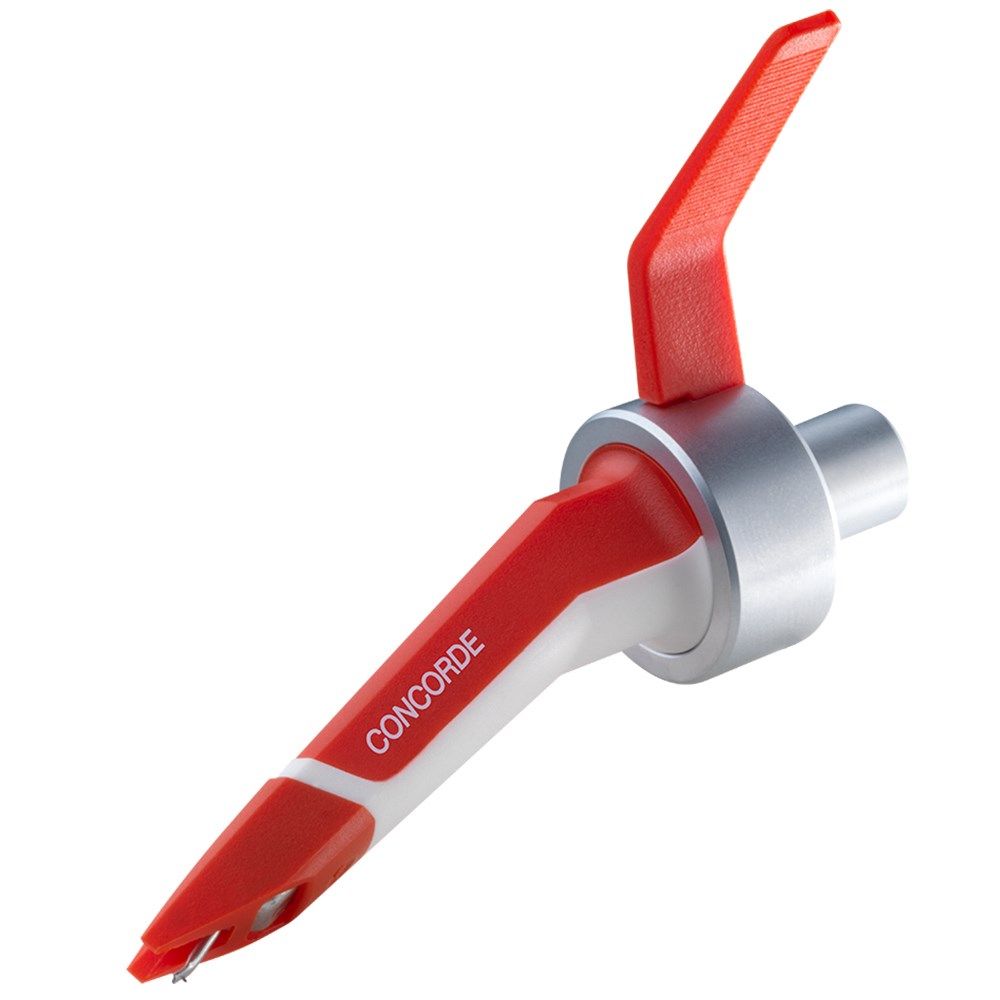

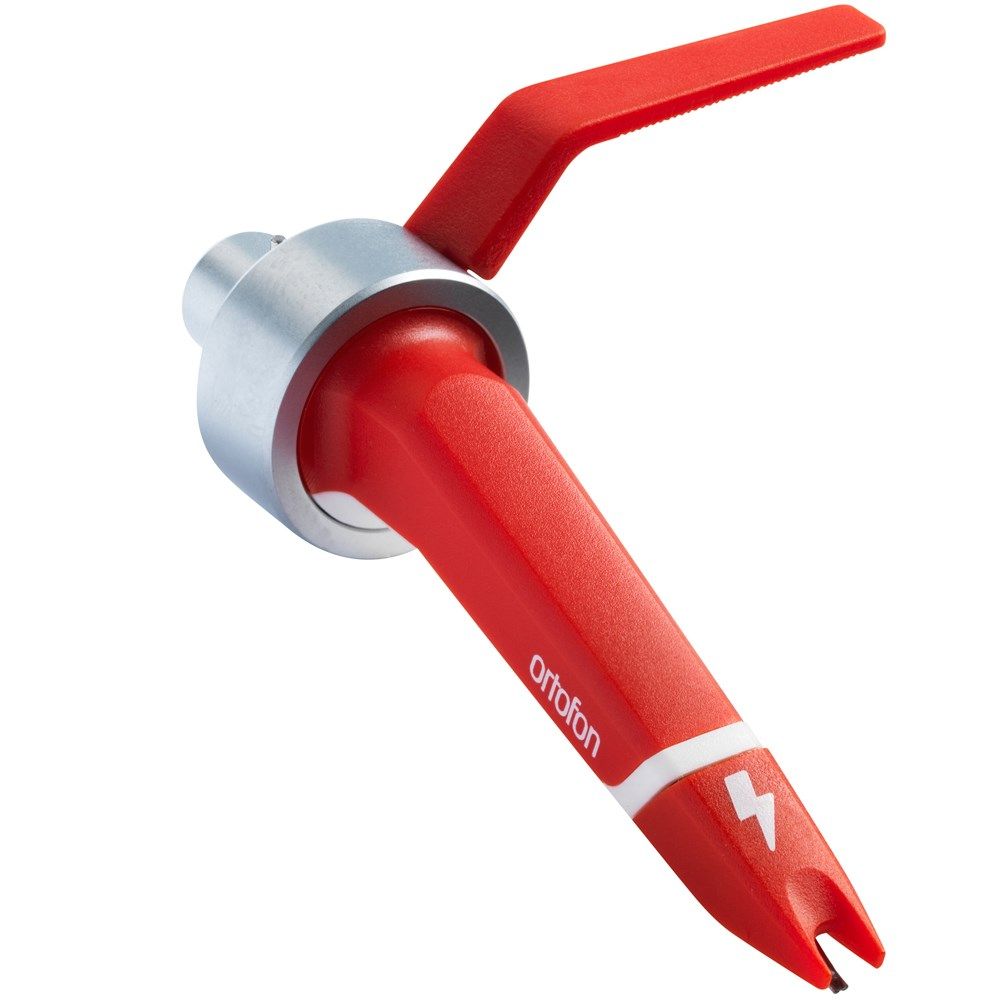

The Concorde DIGITAL cartridge represents a breakthrough in timecode vinyl technology, specifically engineered to tackle the common challenges faced by digital DJs and vinyl enthusiasts. This innovative cartridge addresses two critical issues: extending the lifespan of your valuable timecode records whilst simultaneously reducing decoding errors that can disrupt your performance.
At the heart of the DIGITAL's performance lies its optimised 10 mV output voltage, which significantly improves the signal–to–noise ratio of audio fed into your DJ software. This enhanced signal clarity results in superior interpretation of timecode signals, giving you more reliable control and responsiveness during your sets. The cartridge also maintains excellent compatibility with traditional vinyl records, ensuring versatility across your entire collection.
The DIGITAL incorporates clever frequency response characteristics that reduce reproduction in ranges where vinyl wear and surface noise typically occur. This targeted approach not only minimises errors in timecode interpretation but also helps preserve your timecode vinyl records for longer periods, making it a smart investment for any serious digital vinyl system.
- Channel balance at 1kHz - 1 dB
- Channel separation at 1kHz - 22 dB
- Channel separation at 15 kHz - 15 dB
- Frequency range at -3dB - 20-18.000 Hz
- Tracking ability at 315 Hz at recommended tracking force - 100 μm
- Compliance, dynamic lateral - 14 μm/m N
- Stylus type - Spherical R 18 μm
- Tracking force range - 3 - 5 g
- Tracking force recommended - 4 g
- Cartridge weight - 18,5 g
- Replacement stylus unit - Digital
- Wireless range up to 9 m (30 ft.)
- Additional, replacement finger lifts are now available as an additional purchase
