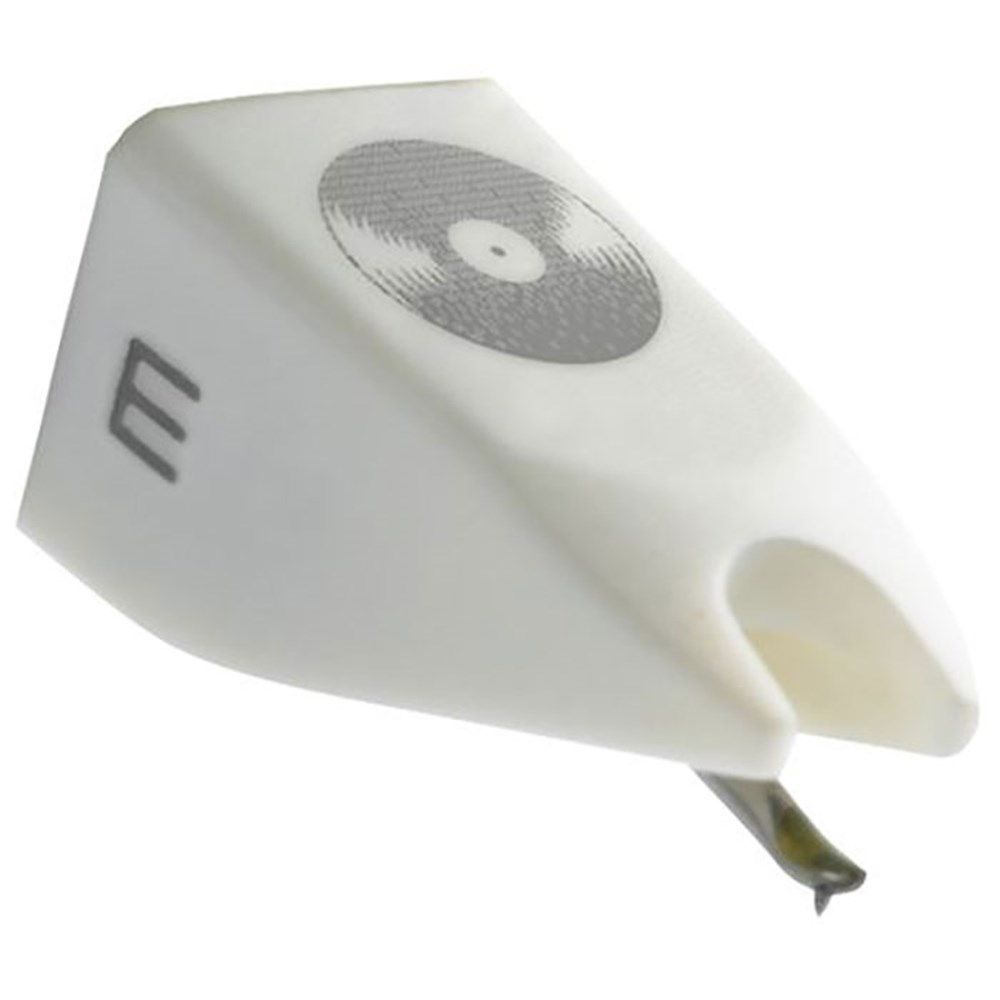

Ortofon Arkiv Stylus - White (Elliptical)

The surge in vinyl-to-digital conversion has created a specialised market for cartridges that prioritise recording accuracy above all else. The Arkiv cartridge emerges as a purpose-built solution for this exact application, engineered specifically to optimise sound quality during transcription and sampling work. Its design philosophy centres on clear, accurate sound reproduction paired with exceptional stereo imaging capabilities, making it an ideal choice for professional recording applications.

At the heart of the Arkiv's performance lies its Special Elliptical stylus, which enables more detailed sound reproduction and extends high frequency response well beyond standard cartridge capabilities. The cartridge achieves impressive technical specifications including a frequency range extending to 22,000 Hz, channel separation of 23 dB at 1 kHz, and remarkably low FIM distortion of less than 1% at recommended tracking force.

Technical specifications reveal a well-balanced design with an output voltage of 6 mV at 1000 Hz, dynamic lateral compliance of 9 ?m/mN, and a recommended tracking force of 3.0 g. The cartridge features a stylus tip radius of r/R 13/25 ?m and operates optimally with a load resistance of 47 kOhm and capacitance between 200-600 pF. Weighing 18.5 g, the Arkiv represents a professional-grade solution for those serious about preserving their vinyl collections in digital format.
