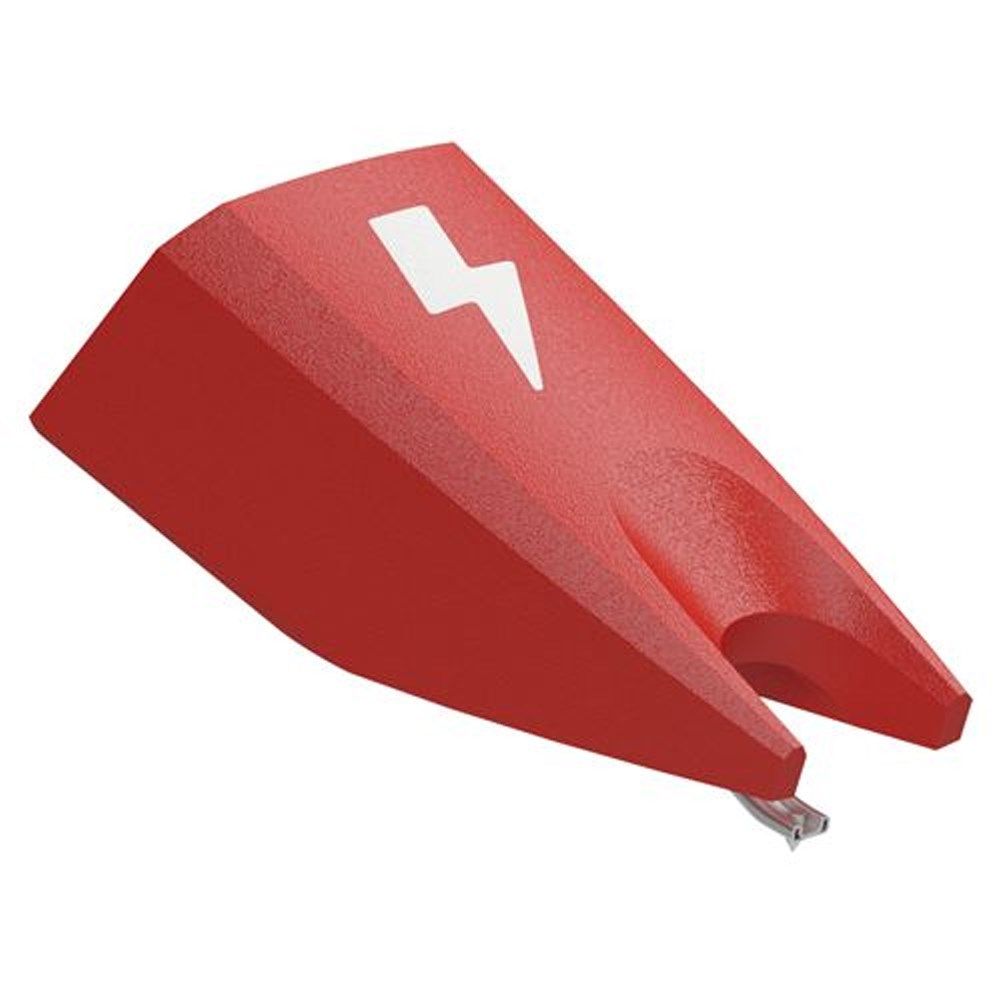

Feel the satisfying click that confirms your stylus is properly seated with this precision-engineered replacement needle. The tactile feedback mechanism ensures you achieve a snug and secure fit every time, eliminating guesswork during installation.
The thoughtfully designed cut-out area at the front provides enhanced visibility and control for accurate needle drops. This feature allows for more precise cueing and positioning, making it easier to locate specific tracks or sections on your records with confidence.
For more information, please visit the manufacturer's website.
- Larger, wider and more robust stylus body
- Easier to grip and handle
- Better fix by metal spring
- Tactile feedback of correct mount
- Large stylus viewing cut-out
- Output voltage at 1000Hz, 5cm/sec. - 10 mV
- Channel balance at 1kHz - 1 dB
- Channel separation at 1kHz - 22 dB
- Channel separation at 15 kHz - 15 dB
- Frequency range at -3dB - 20-18.000 Hz
- Tracking ability at 315 Hz at recommended tracking force - 100 μm
- Compliance, dynamic lateral - 14 μm/m N
- Stylus type - Spherical R 18 μm
- Tracking force range - 3 - 5 g
- Tracking force recommended - 4 g
- Recommended exclusively for Concorde MkII Digital
