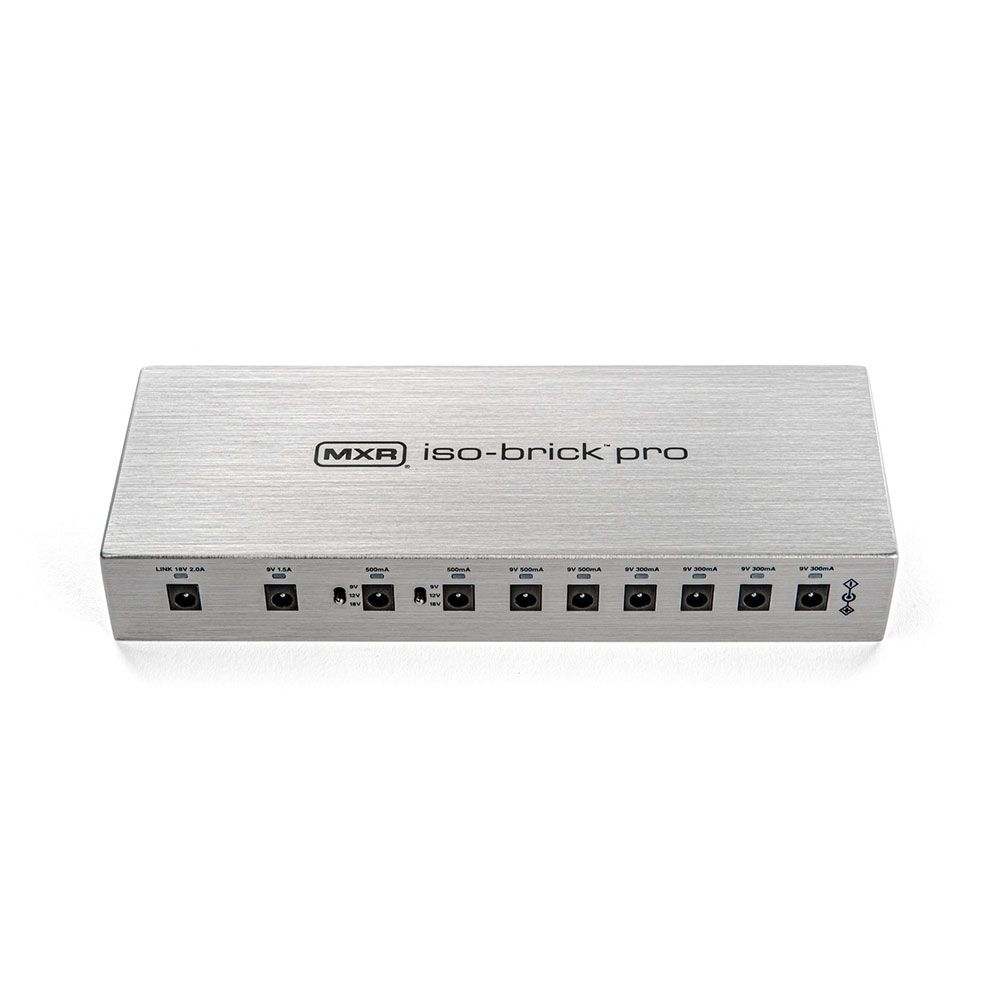

MXR M242 ISO-BRICK Pro Power Supply

The MXR Iso-Brick Pro Power Supply delivers clean, steady voltages to a diverse range of pedal types in a sleek form factor so that you can confidently power your entire board without any extra bulk. Every one of the MXR Iso-Brick Pro Power Supply’s outputs is fully isolated to preserve signal purity and cut out environmental noise. Catering to an array of power requirements, this unit offers six fixed outputs—two 9V DC at 500mA and four 9V DC at 300mA—and two switchable 9/12/18V DC outputs at 500mA.

Even high-demand multi-effects units are covered, with a dedicated 9V DC output at 1.5A for units such as the Line 6 HX Effects processor and HX Stomp amp/processor. The MXR Iso-Brick Pro Power Supply will keep your effects pedals running smoothly and quietly, and its slim-yet-robust construction allows you to keep space open for all of your favourite pedals—whether low-powered analog overdrives or high-powered digital multi-effects processors.

With its compact, lightweight design, the MXR Iso-Brick Pro Power Supply is perfectly sized to fit under most Pedaltrain pedalboards—and it comes with all the mounting brackets and screws you need to set it up.

Features

• MXR® Iso-Brick™ Pro Power Supply
• Provides isolated and regulated power to multiple pedals simultaneously without noise or interference
• 9V 300mA (x4)
• 9V 500mA (x2)
• 9/12/18V 500mA (x2)
• 9V 1.5A (x1)
• 18V 2.0A (x1)
• Short-circuit protection on all outputs ensures safety for your precious gear
• Can be used worldwide thanks to universal AC input
