Mipro MRM70B5 Wireless Mic Receiver Module 5nb Band
MIP-MRM70B5
$349
Free Shipping
Anywhere Australia wide*
Professional wireless audio just got more flexible with this single MIPRO wireless microphone receiver module, designed to expand your MA505 system capabilities. The modular design allows you to install up to two modules per MA505 unit, giving you two wireless microphones from an MA505PA or MA505DPM3, or four wireless channels from a MA505R2DPM3.

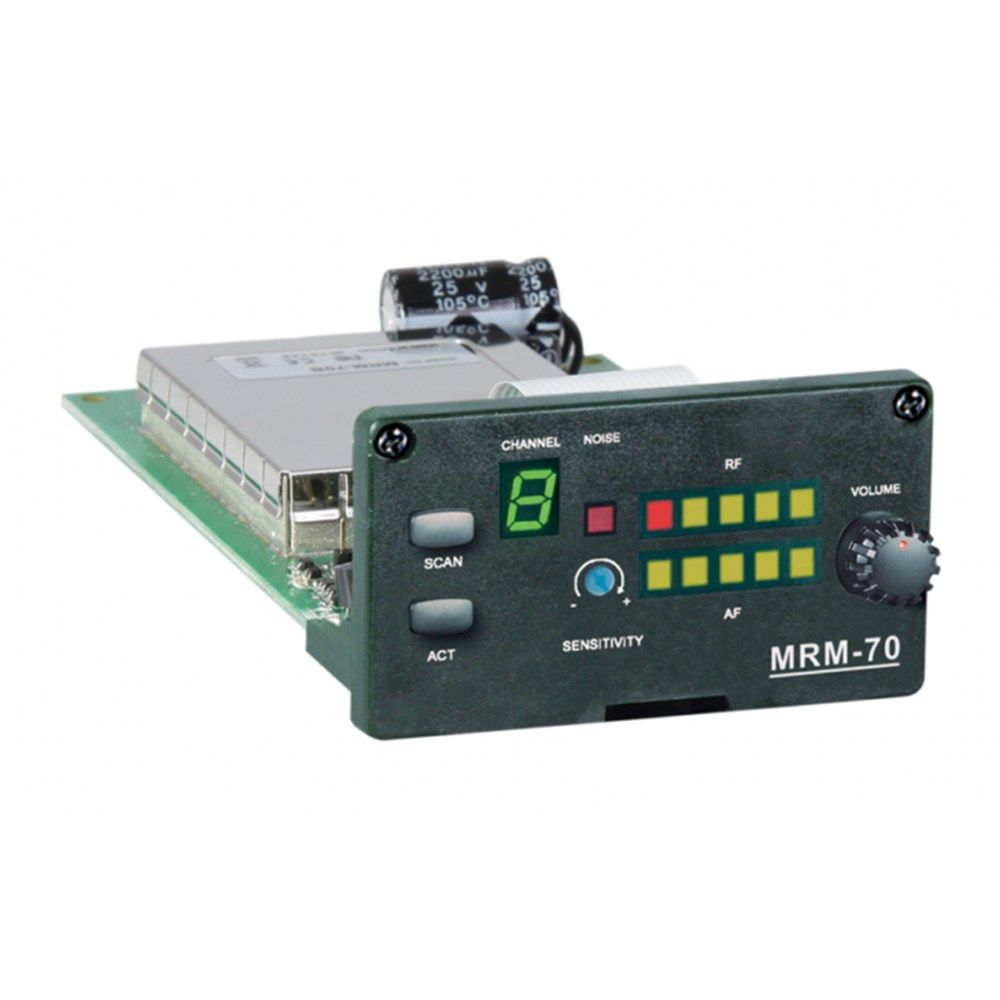

Operating on the 5NB frequency band, this receiver module features 16 preset auto-scannable frequencies for reliable performance. The unit includes convenient “SCAN” and “ACT” buttons, plus an interference warning indicator and adjustable sensitivity control to optimise your wireless reception in any environment.
The clear LED channel display works alongside 5-segment RF and AF meters, making it simple to monitor your wireless signal strength and audio levels at a glance. CPU-controlled diversity receiving technology ensures optimal reception quality, while the modular construction makes installation and future replacement straightforward for sound professionals.
- Name: UHF Single-Channel Receiver Module
- Frequency Band: 5NB
- Frequency Range: 480~934 MHz
- Bandwidth: 24 MHz
- Preset Channels: 16
- Channel Setup: Manually set up the desired channel or scan for an open channel. Press the ACT button to synchronise the transmitter and receiver.
- Display: Channel, RF/AF meters, sensitivity meters and interference warning indicator.
- Receiving Mode: MCU-controlled diversity receiving
- Sensitivity: S/N > 80 dB at 10 dBμV
- S/N Ratio: > 100 dBA
- T.H.D.: < 0.5% at 1 kHz
- Frequency Response: 50 Hz ~ 18 kHz
- AF Output: 610 mV rms
- Power Supply: 12 ~ 15 V DC
- Dimensions: 75 × 35 × 141 mm (W×H×D)
- Weight: Approx. 110 g
- Note: Refer to the actual product in the event of product description discrepancy
