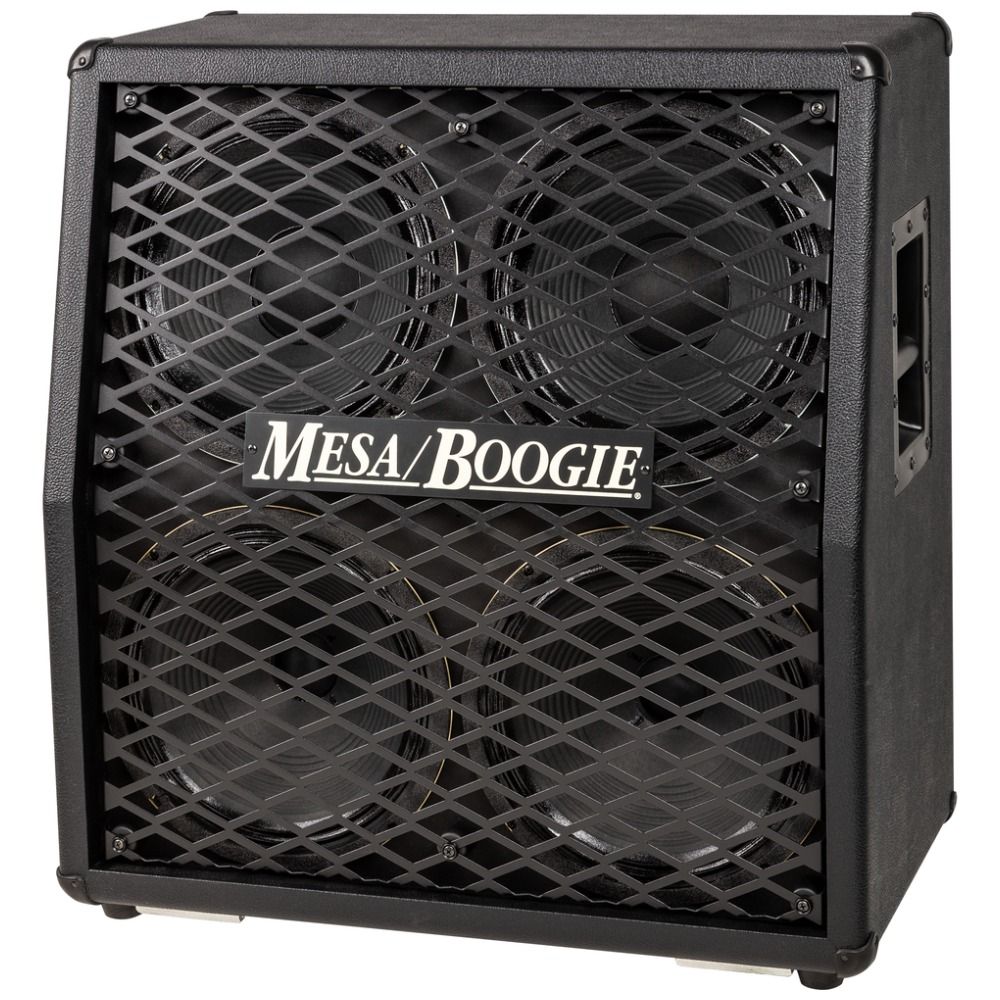

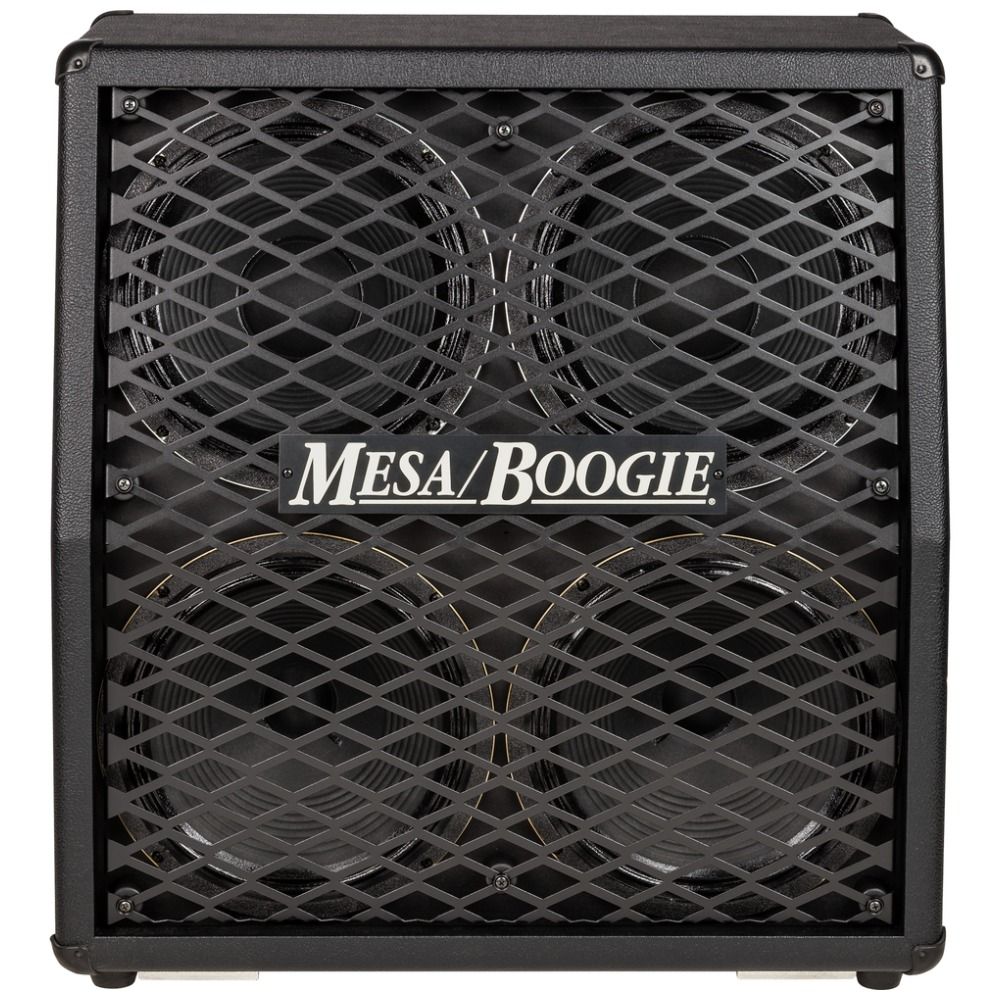

Mesa Boogie VTG Split Back 4 x 12 Slantedl Amp Cab (Black)

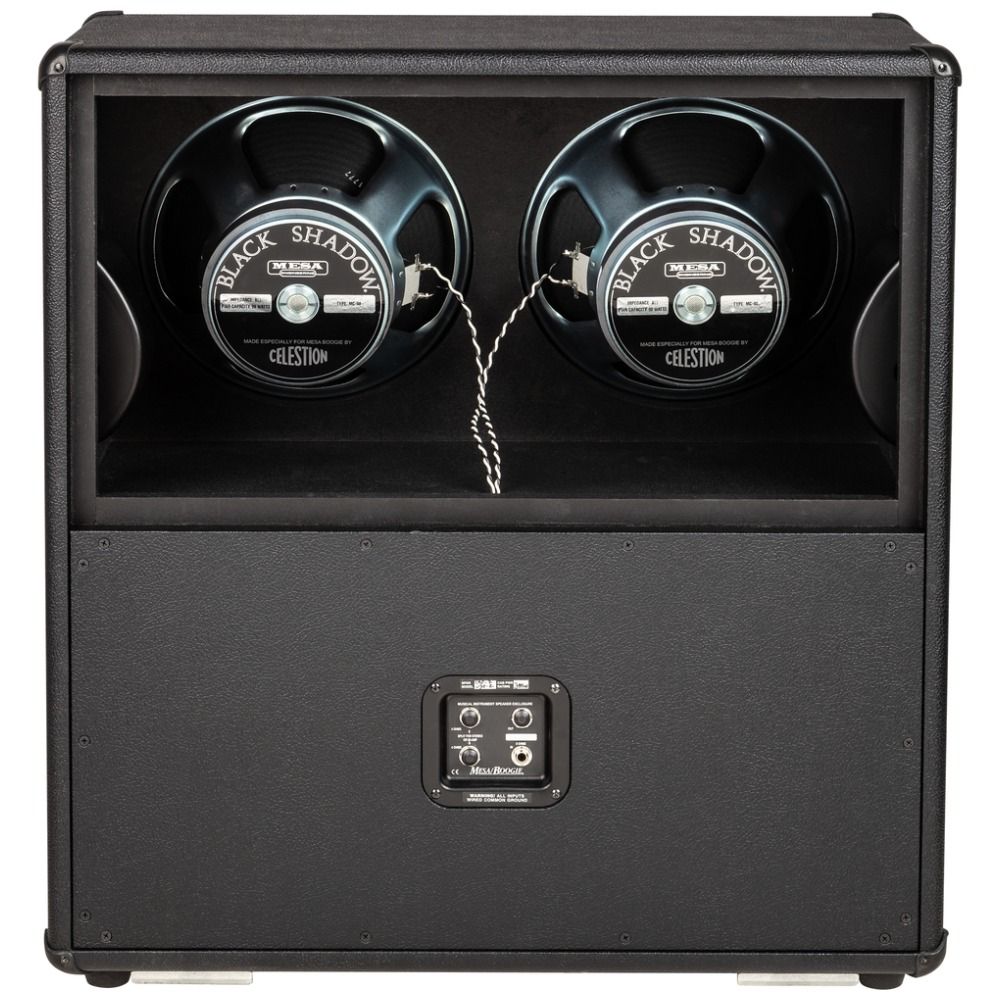

Mesa/Boogie's Split Back 4×12 cabinet resurrects a design that defined 80s rock tones–a hybrid topology combining open-back clarity with sealed-chamber punch. The dual-chamber architecture pairs two Celestion C90 drivers in the upper open section with two Celestion Vintage 30s below in a sealed compartment, delivering airy highs alongside tight, defined low-end articulation. This approach eliminates the need for multiple dedicated cabinets when chasing texturally complex sounds across gain structures and song dynamics.

Construction centres on void-free marine-grade Baltic birch plywood braced with Bronco Tolex™ covering and hand-formed leather corners. The cabinet handles 300 watts and ships configured at 8 ohms mono, with dual parallel input jacks for linking additional 8-ohm cabs (resulting in a 4-ohm load). Stereo operation is possible via split-mode inputs that isolate left and right halves at 4 ohms per side. Expanded metal grille protects the drivers, whilst Track-Loc™ guide plates with removable castors simplify transport. Dimensions measure 81.28 cm height, 68.26 cm width, and 39.37 cm depth; total weight is 45.81 kg.

Features

• Split back design: open chamber (top) and sealed chamber (bottom)
• 2× Celestion C90 drivers front-mounted in top open section
• 2× Celestion Vintage 30 drivers front-mounted in bottom sealed section
• 300-watt power handling capacity
• 8-ohm impedance (mono); 4 ohms per side (stereo mode)
• Dual parallel input jacks for mono or stereo operation
• Baltic birch plywood shell with Bronco Tolex™ and leather corners
• Track-Loc™ guide plates with removable castors for easy repositioning
