- Modular Instrument Synthesizer architecture
- 5 Synthesizer modes including Mono, Polyphonic and Dry Processing modes
- Polyphonic Pitch Detection with no special pickup necessary
- Synthesizer playable via instrument input OR MIDI keyboard
- 6 Fully Polyphonic Voices available simultaneously
- ADSR Envelope Generators for both Amplitude and Filter
- Configurable Oscillator and Filter types
- SAW, TRIANGLE, and SQUARE Waveforms selectable per Oscillator w/ Cross modulation
- Intuitive, Award Winning Colour Screen based User Interface adapted from LVX and MercuryX
- Expressive Hold Modifier Switch for on the fly control
- 99 Preset Locations in 33 Banks
- Favourite Preset Bank for instant access to your 3 favourite presets
- Instant Access Tuner with configurable Reference and Output mode
- Deep Modifier Section lets you route control signals to processing parameters
- All New Processing Elements including Meris custom Flanger and Phaser
- Digitally controlled analogue mix bus

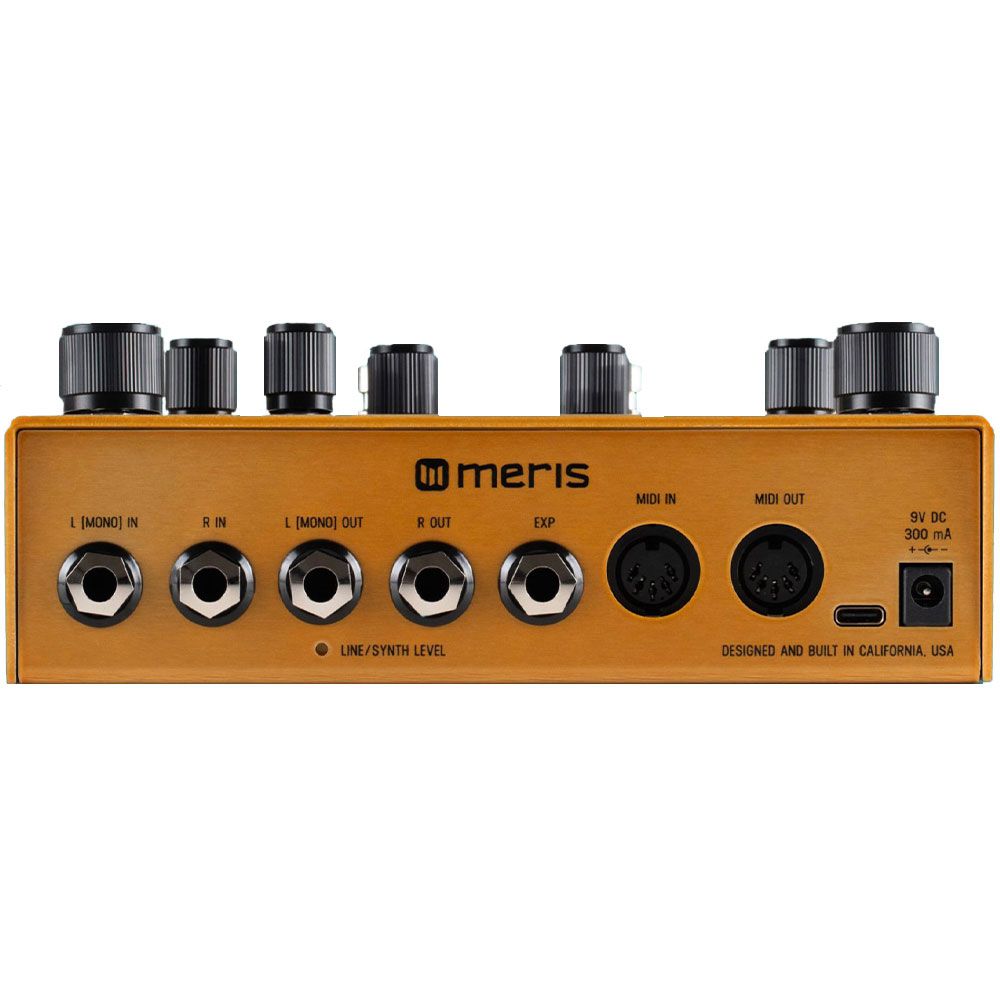

- Stereo input and output with separate jacks for each
- Switchable input/output headroom level for Instrument or Synthesizer / Line levels
- MIDI In and Out over standard MIDI Din Jacks
- Assignable Expression Pedal control for multiple parameters simultaneously
- Dedicated Expression Pedal Jack
- MIDI implementation for Continuous Control Parameters
- MIDI Preset Send and Receive
- MIDI beat clock synchronisation
- Advanced ARM Processor
- Premium analogue signal path and 24-bit AD/DA w/32 bit floating point DSP
- Premium analogue Devices JFET input section
- Dimmable screen and logo light
- Colour – Translucent Gold with Subtle Metallic Flake
- Conversion 24 bit A/D and D/A
- DSP 32 bit floating point
- Sample Rate 48000 Hz
- Input Impedance 1 Meg Ohm
- SNR 115 dB Typical
- Frequency Response 20Hz-20kHz
- Max Input Level +9 dBu (instrument level setting)
- +12.5 dBu (line/synth level setting)
- Power 9V DC centre-negative, 300mA, 2.1mm jack
- Bypass Selectable True Bypass (Relay) or analogue Buffered Bypass
- Dimensions 7.25” wide, 4.5” long, 2” tall. (Same depth and height as all other pedals)
- Weight 24 ounces
