Inputs

  • INPUT impedance: 1M ohm, max. voltage: 9 Vpp
  • RETURN impedance: 22K ohm, max. voltage: 10 Vpp

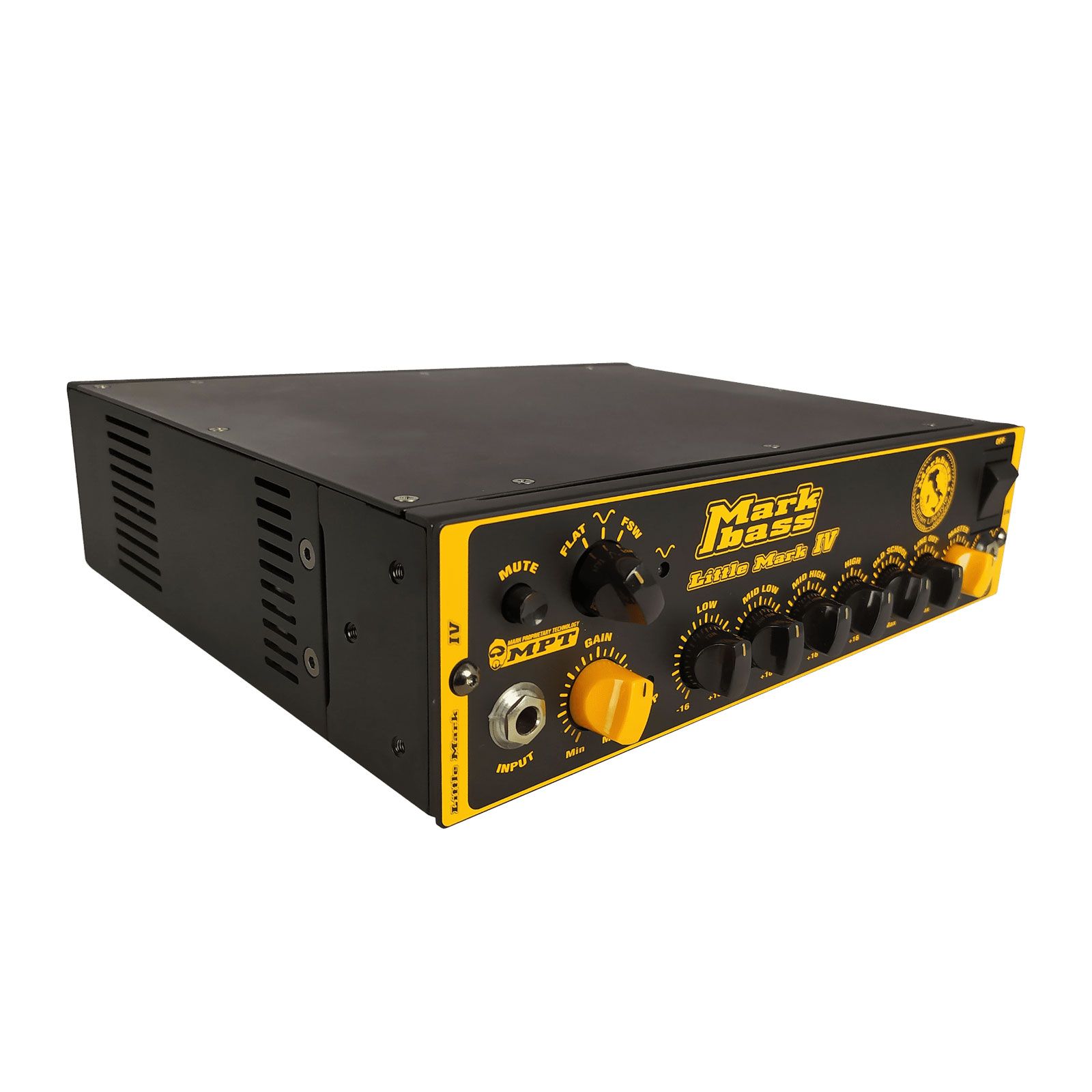

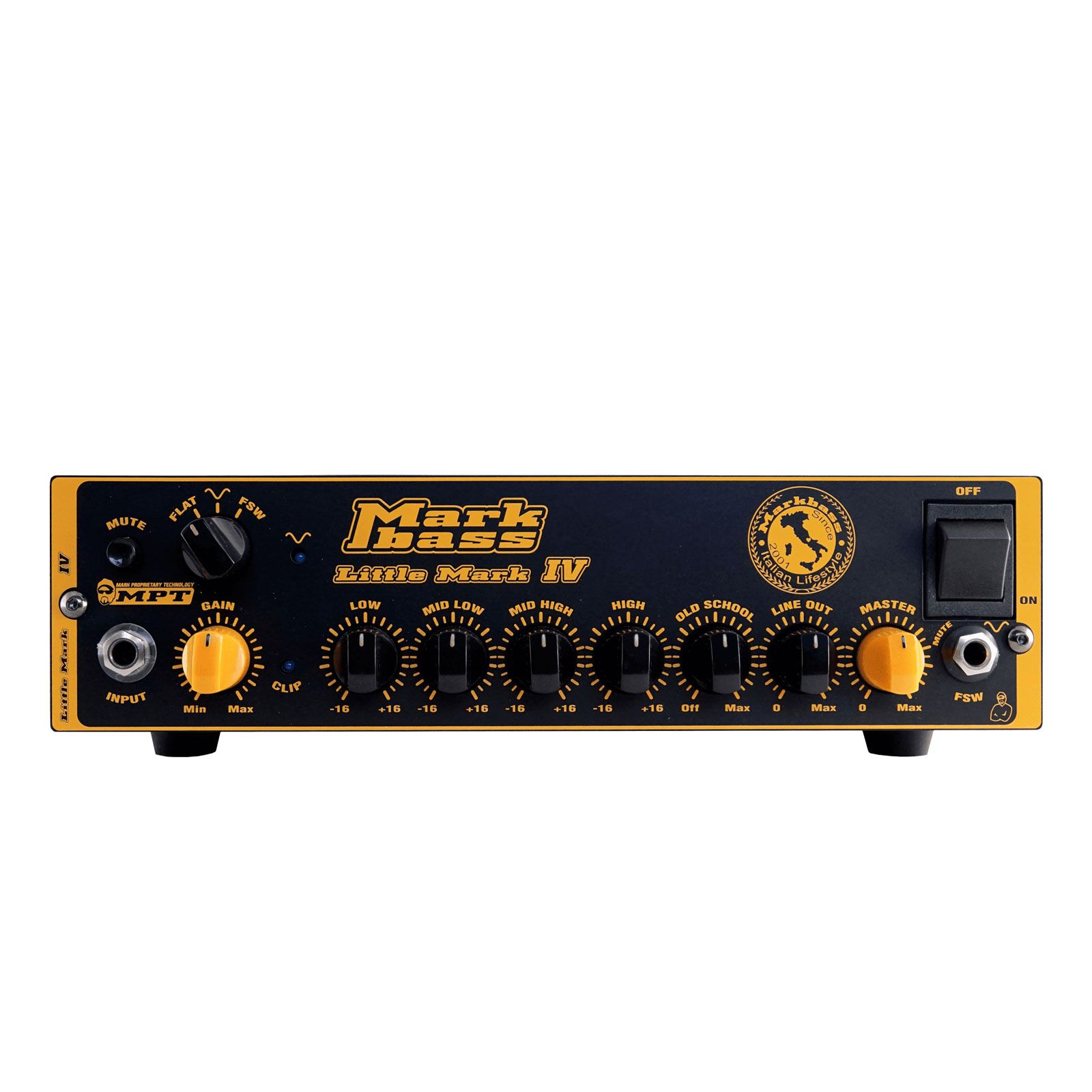

Controls

  • GAIN –46dB to +23dB range
  • LINE OUT level control on front panel
  • PRE/POST EQ (for line out) switch on rear panel
  • GROUND LIFT switch on rear panel
  • MUTE SWITCH
  • MASTER VOLUME

Equalization

  • LOW: Center frequency 68Hz; level: ±16dB
  • MID LOW: Center frequency 360Hz; level: ±16dB
  • MID HIGH: Center frequency 800Hz; level: ±16dB
  • HIGH: Center frequency 10kHz; level: ±16dB
  • OLD SCHOOL: Max cut range: 250Hz–20kHz
  • 3 WAY SWITCH: Flat/scooped-mid/FSW

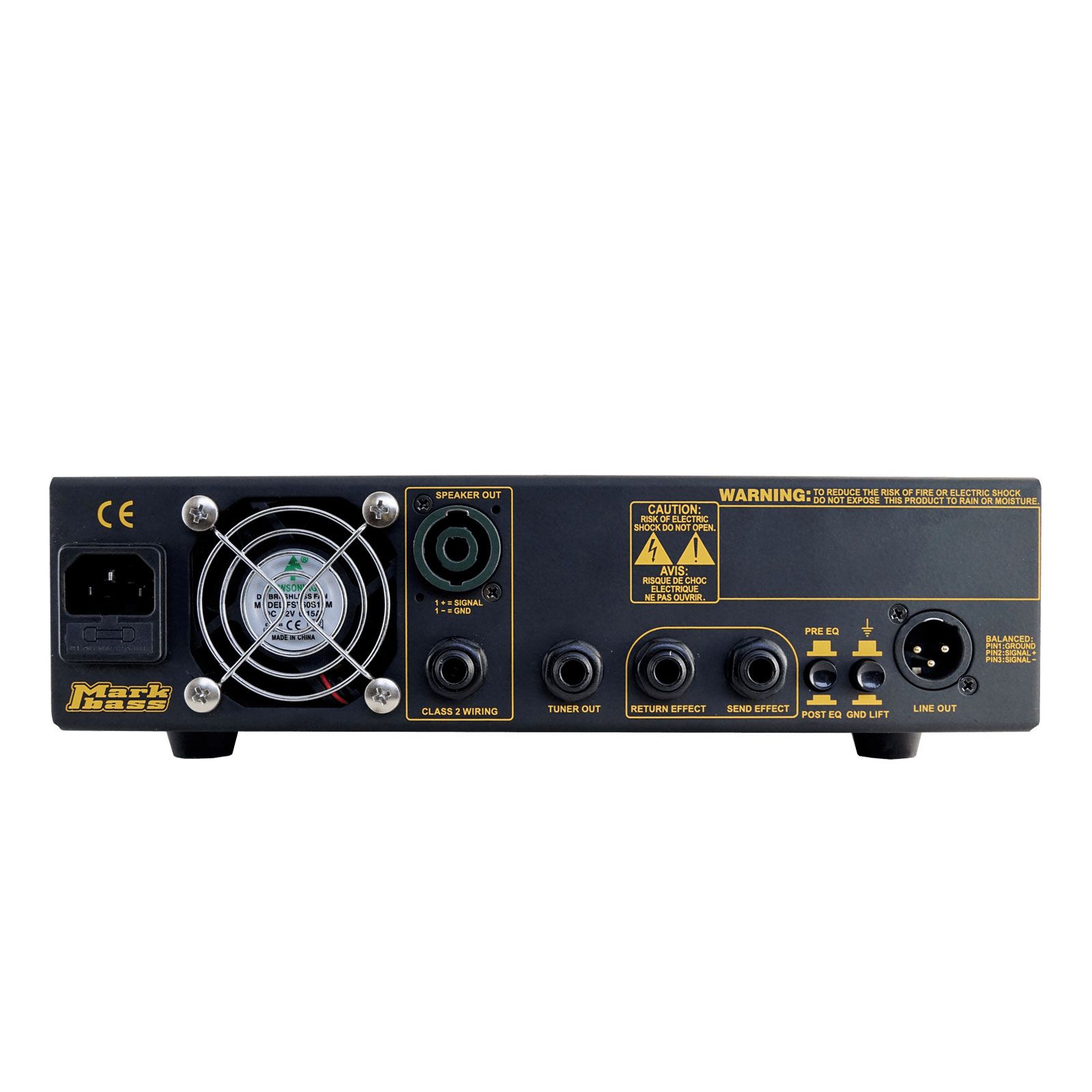

Outputs

  • SEND EFFECTS: Unbalanced, max. voltage 20 Vpp
  • TUNER OUT: Unbalanced, max. voltage 2 Vpp
  • LINE OUT: Balanced XLR, max. voltage 20 Vpp
  • SPEAKER OUT: speakON/1/4" combo, 1/4"

Dimensions

  • HEIGHT: 2 rack units 3.27"
  • WIDTH: 10.87"
  • DEPTH: 10.04"
  • WEIGHT:  6.17 lb.
