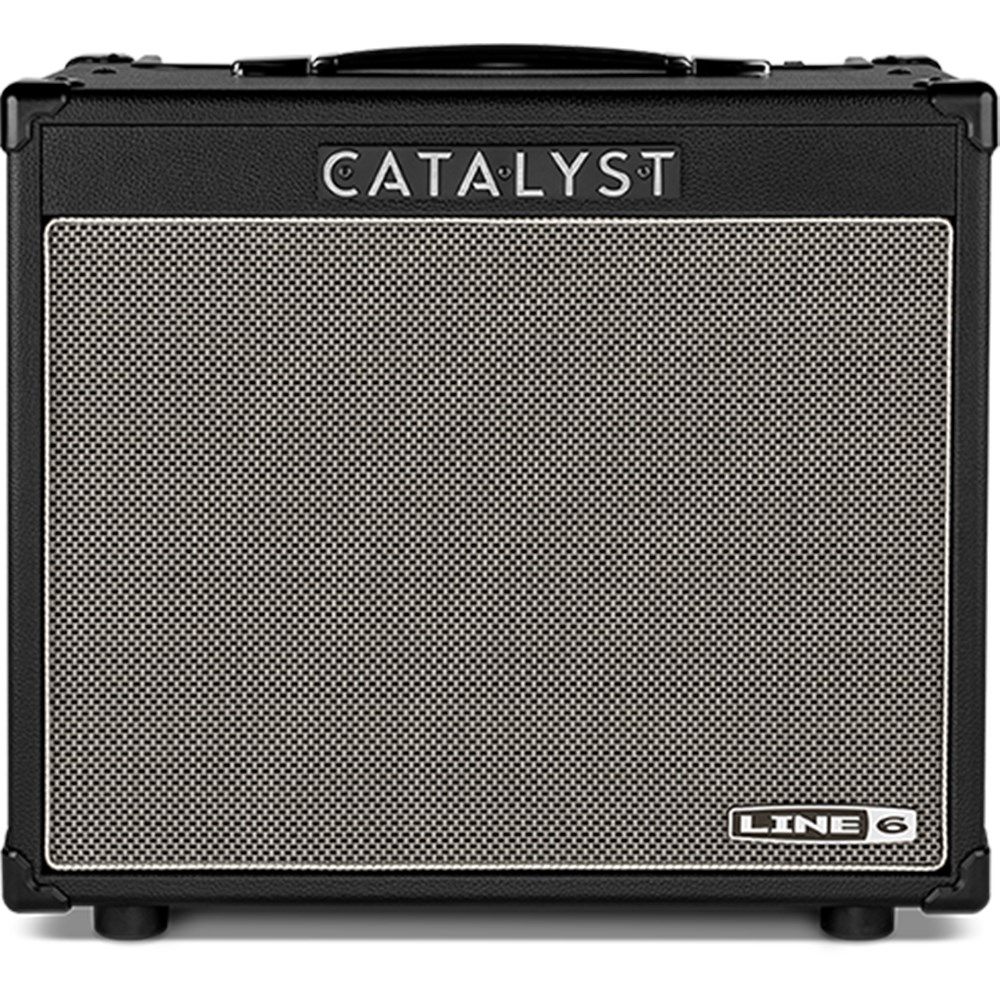

The Catalyst CX 60 bridges the gap between traditional guitar amplification and modern versatility, offering 60 watts of power through a dual-channel 1x12 combo design that feels familiar yet opens up new sonic possibilities. This amplifier features 12 Amp Voicings sourced from the acclaimed Helix® platform, spanning everything from crystal-clear clean tones to crushing high-gain sounds, with each voicing paired to a custom Boost type for enhanced tonal shaping.
Beyond its core amplification, the CX 60 includes 24 HX®-quality effects across four distinct categories, providing studio-grade processing power in a compact package. The amplifier’s comprehensive connectivity includes XLR line output for direct recording or PA connection, an effects loop for external pedals, and a Power Amp input that transforms the unit into a powered monitor speaker when needed.
Modern functionality extends to MIDI control, a built-in 2-channel USB recording interface, and the free Catalyst Edit app available for both desktop and mobile platforms, allowing detailed parameter adjustment and preset management. Optional accessories include the LFS2 footswitch for hands-free control and a protective cover, while the broader Catalyst CX range scales from this 60-watt model perfect for home studios and smaller venues, up to the 200-watt CX 200 designed for larger performance spaces.
- 12 Amp Voicings, derived from the Helix amp and effects processor
- Volume, Gain, Tone, and Reverb controls
- Numerous effect and other options available just “under the hood”
- Each Amp Voicing is matched with an optimal adjustable Boost type
- Select up to two of 24 Reverb, Delay, Modulation, and Pitch effects derived from Helix.
- Built-in tap tempo when using time-based effects such as delay and tremolo
- On-board chromatic tuner
- Connect an optional LFS2 footswitch to toggle between channels and turn effects on and off remotely
- Connect Catalyst CX to professional P.A. or recording devices using the XLR line output (with Ground Lift switch)
- Insert external effects and other devices into your signal chain using the Effects Loop
- Use Catalyst CX as a powered speaker by bypassing the preamp. Perfect for use with amp modellers and simulators
- In-built attenuation; Provides half power, 0.5 watts, and speaker Mute options for reduced volume with minimal tone variation
- Connect to the Catalyst Edit app (Mac®, PC, iOS®, Android™) and to the onboard audio interface with integrated USB connectivity
- Catalyst 100 and 200 receive Program Change (channel/preset selection) and Continuous Controller messages via 5-pin DIN
- Catalyst 60 supports MIDI over USB-B
