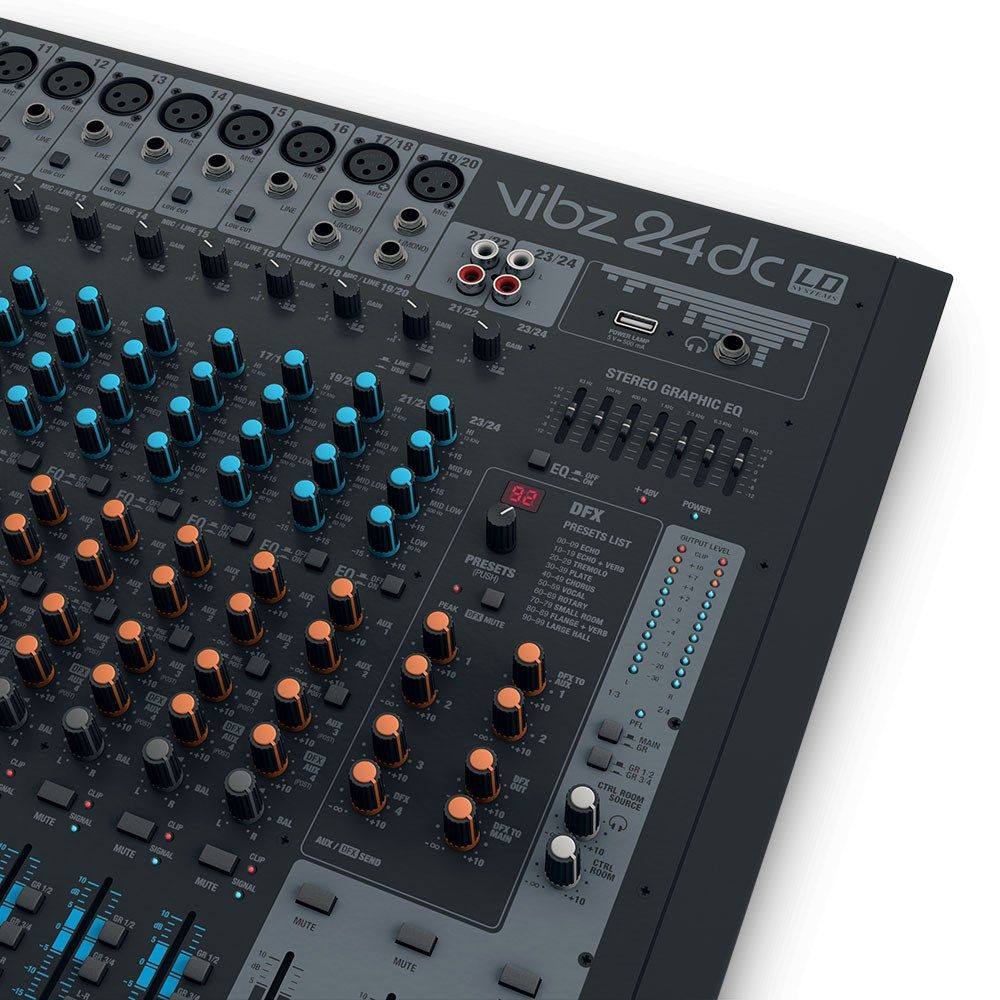

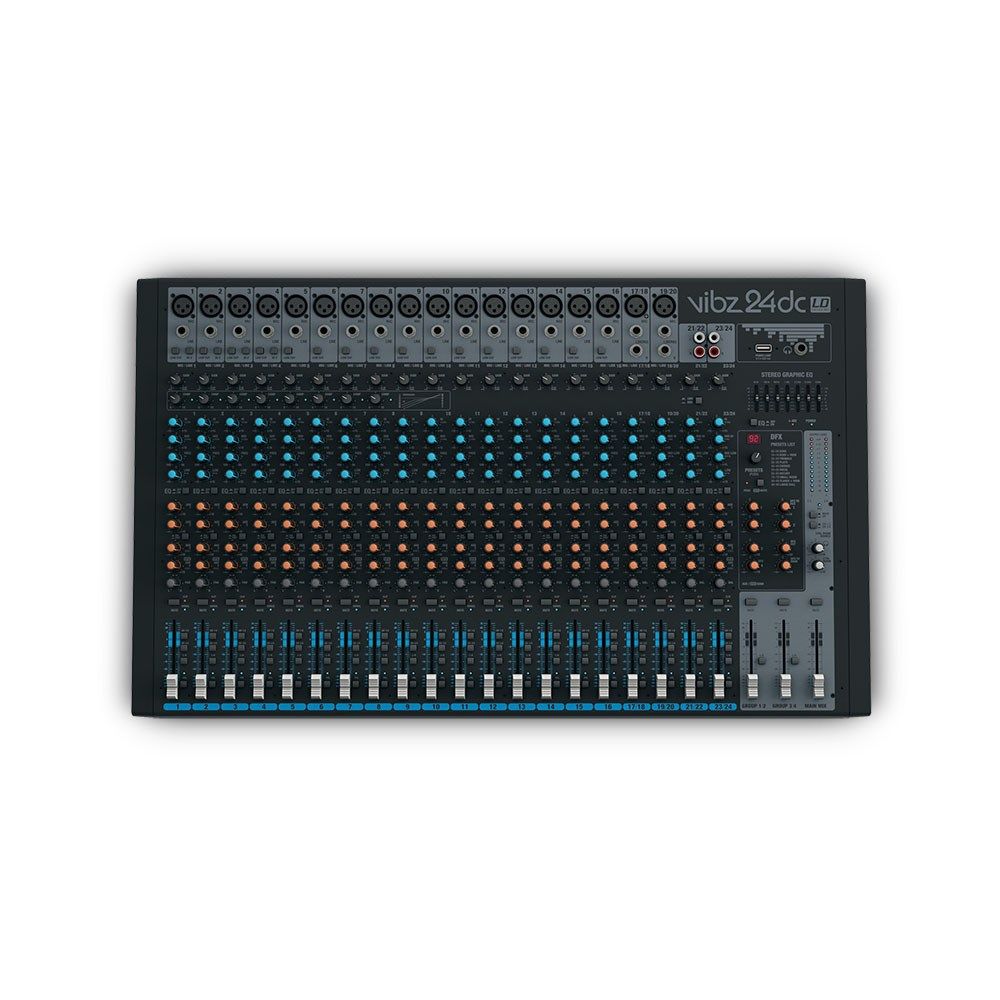

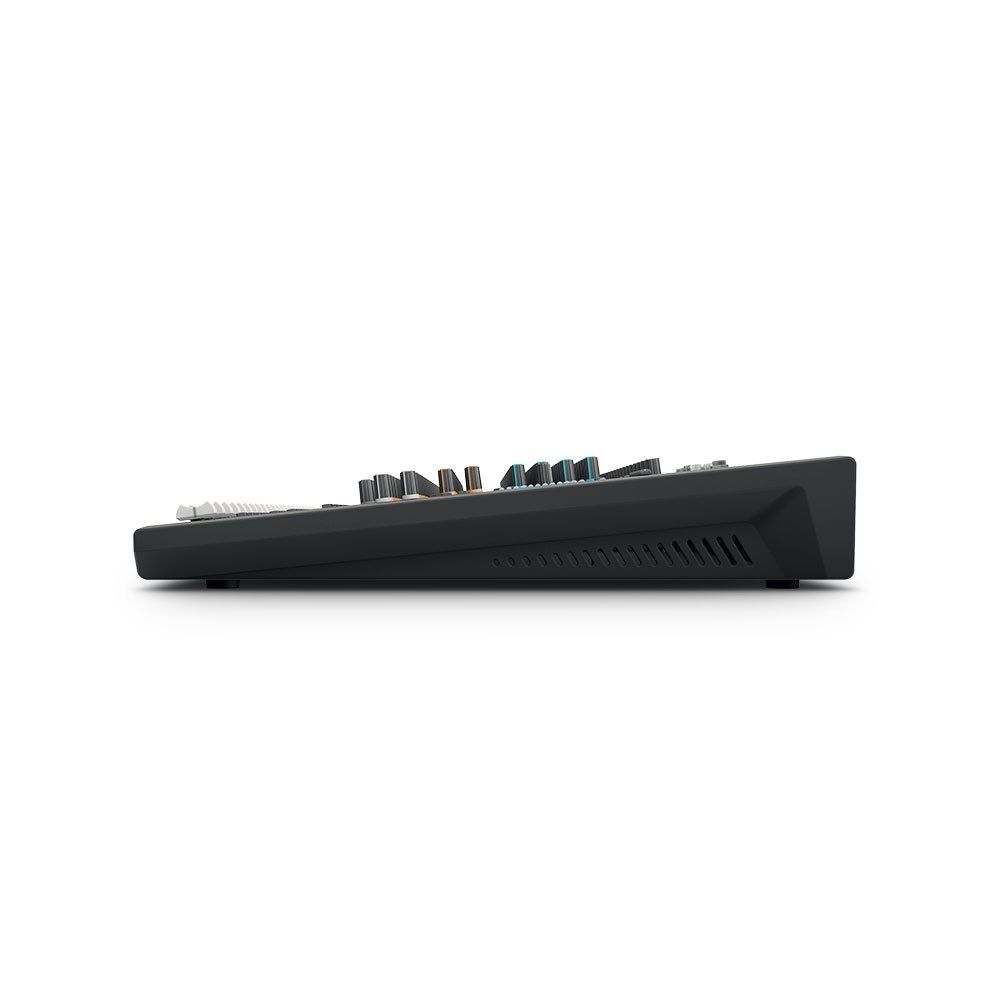

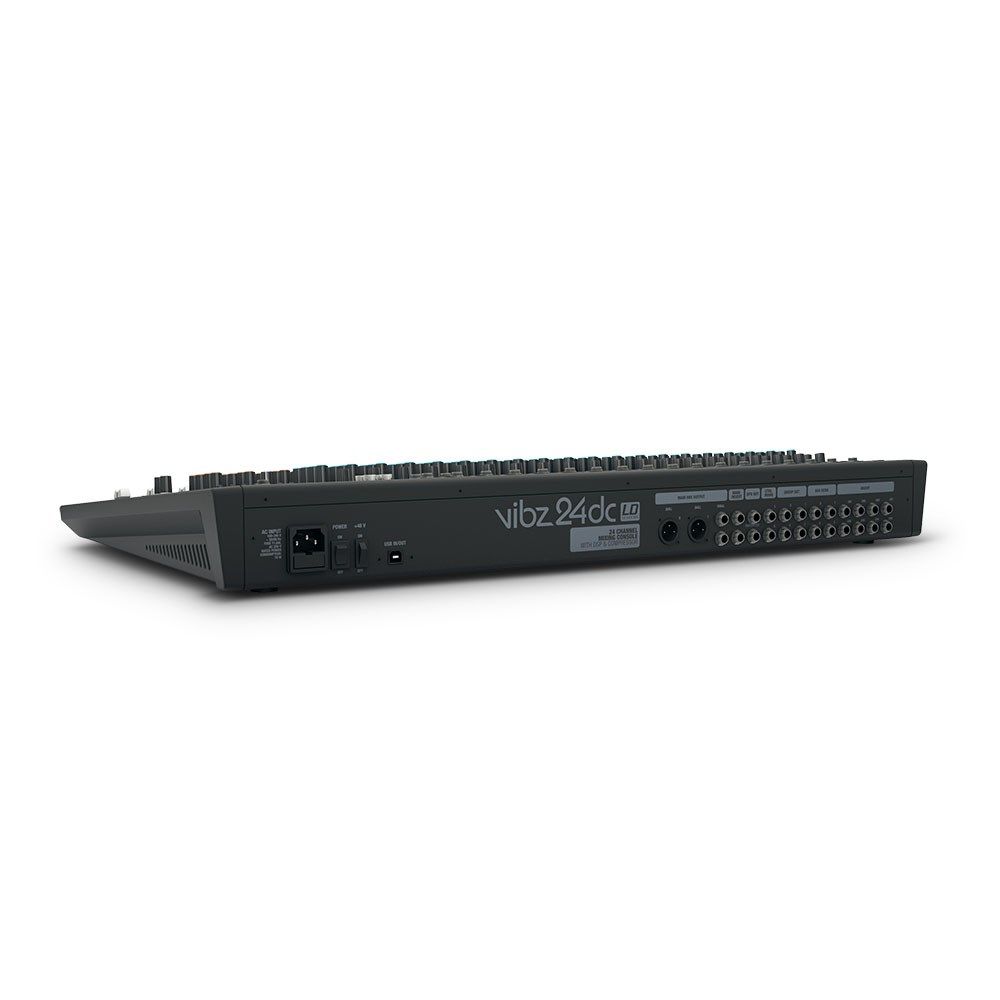

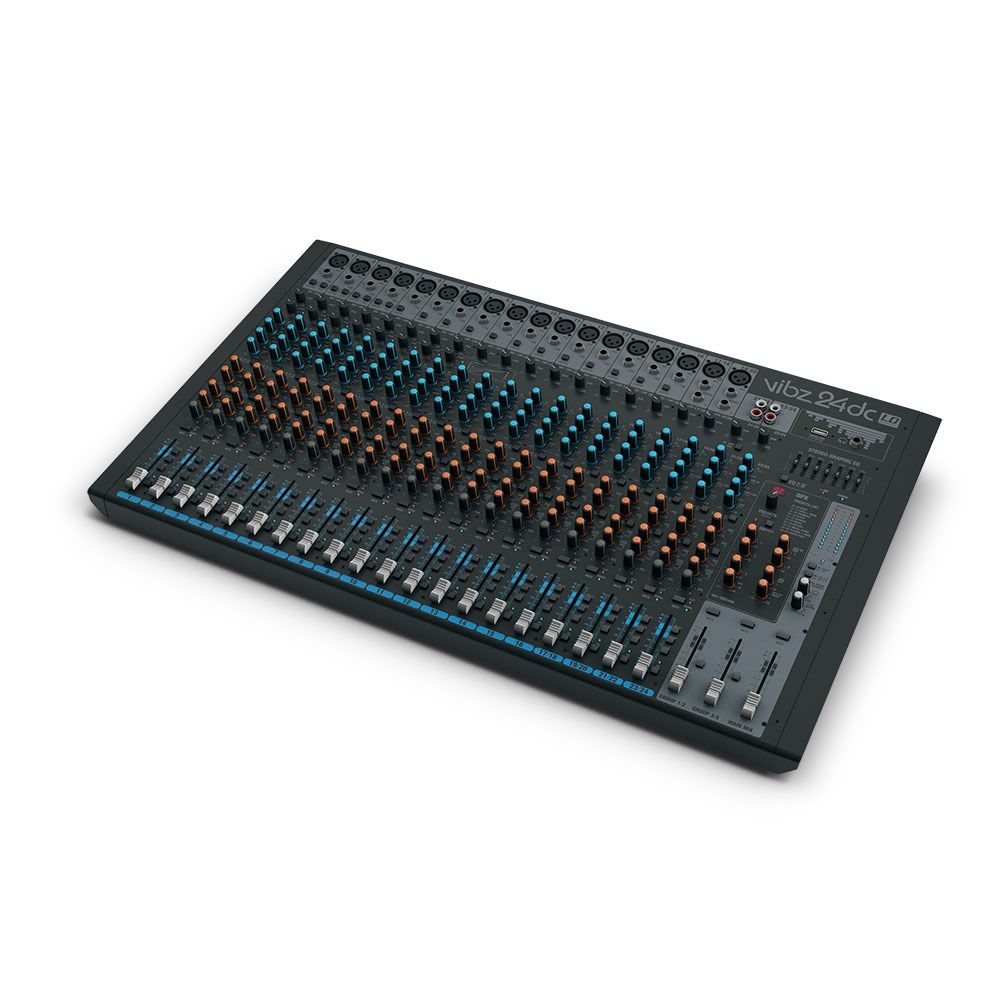

LD Systems VIBZ 24 Channel Mixing Console w/ DFX and Compressor

Professional audio mixing reaches new heights with the VIBZ 24 DC, the premium flagship model in the acclaimed VIBZ Series that brings studio-grade performance to both home recording environments and live sound applications. This comprehensive mixing desk combines 16 mono channels featuring 3-band EQ with semi-parametric midrange alongside 4 stereo channels equipped with 4-band EQ, creating a versatile platform for complex audio production.

Each channel incorporates high-quality preamps with precise gain control, complemented by 4 auxiliary sends, mute and PFL functions, plus routing switches and clear signal/clip LED indicators. The first eight mono channels include convenient one-knob compressor control and individual insert points for external processing, while two sends offer pre/post fader switching to accommodate both monitoring and effects applications. All mono channels provide electronically balanced XLR microphone and TRS line inputs for professional connectivity.

The master section houses balanced and unbalanced main mix outputs plus individual group outputs with accurate metering, alongside dedicated control room and headphone outputs with independent level controls. A comprehensive 7-band graphic EQ provides global tonal shaping, while the integrated 24-bit digital effects processor offers 100 presets for creative sound enhancement. The unit’s multi-voltage power supply accommodates 100-240V AC operation, and smooth 65mm audio taper faders complete the professional control surface across all 4 subgroups.
