The LD Systems ICOA 12 A BT W redefines what a single loudspeaker can achieve, combining exceptional low-frequency response with the versatility to eliminate the need for additional subwoofers in many applications. This powered 12" coaxial speaker features a horn-loaded woofer design that produces outstanding bass reproduction, making it an ideal solution for musicians, bands, entertainers, and dance schools. DJs will particularly appreciate its ability to handle full-range audio without requiring separate bass reinforcement.
Built around advanced DynX DSP technology, the speaker offers maximum clarity and power across all operating conditions. The system includes four carefully calibrated presets, a 3-band EQ, and delay function that allow precise sound adjustment to match venue acoustics. Two line/mic input channels with individual gain controls and a mono mix output provide flexible connectivity options for various signal sources.
The ICOA 12 A BT W’s design prioritises both performance and practicality. Its efficient Class-D amplifier generates 126 dB maximum SPL with 1200W peak power, while the rotating, BEM-optimised CD horn and coaxial configuration ensure consistent sound dispersion. The white finish with matching grille integrates seamlessly into any environment without drawing unwanted attention.
Versatility extends to mounting and positioning options, with the speaker performing equally well as a vertical satellite or horizontal installation. The shock-resistant front grille and 55° tilt angle make it particularly effective as a floor monitor, while the 36mm dual tilt stand attachment offers 0° or 5° positioning angles. Four ergonomic aluminium handles with rubber surfaces facilitate easy transport, with optional accessories available for installation and touring applications.
- A genuine all-rounder for full-range, satellite, and monitor applications
- 126 dB max. SPL and 1200 W peak power

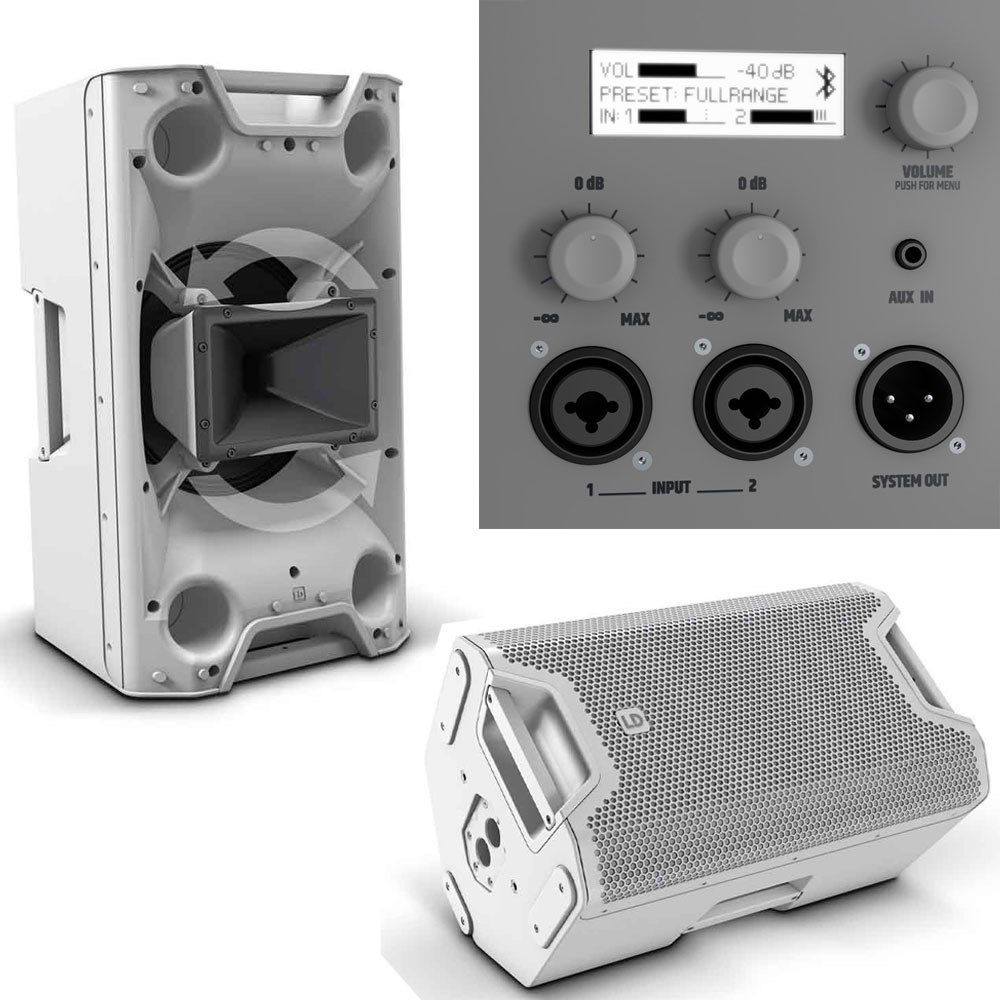

- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
- Horn-loaded woofer
- DynX DSP with 4 presets, 3-band EQ, and delay function
- 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
- 6 x M10 flying points
- Shock-resistant front grille for optimal protection of the speaker
- 4 aluminium grips with ergonomic, rubber surface
- Extensive, optionally available accessories for installation and transport
