Professional audio applications demand power amplifiers that can handle the rigours of continuous operation whilst maintaining exceptional sound quality. The DEEP2 amp series addresses these requirements with four class-H power amplifiers built around toroidal cores, providing amplification levels ranging from 2 x 400W up to 2 x 810W at 4 ohms.

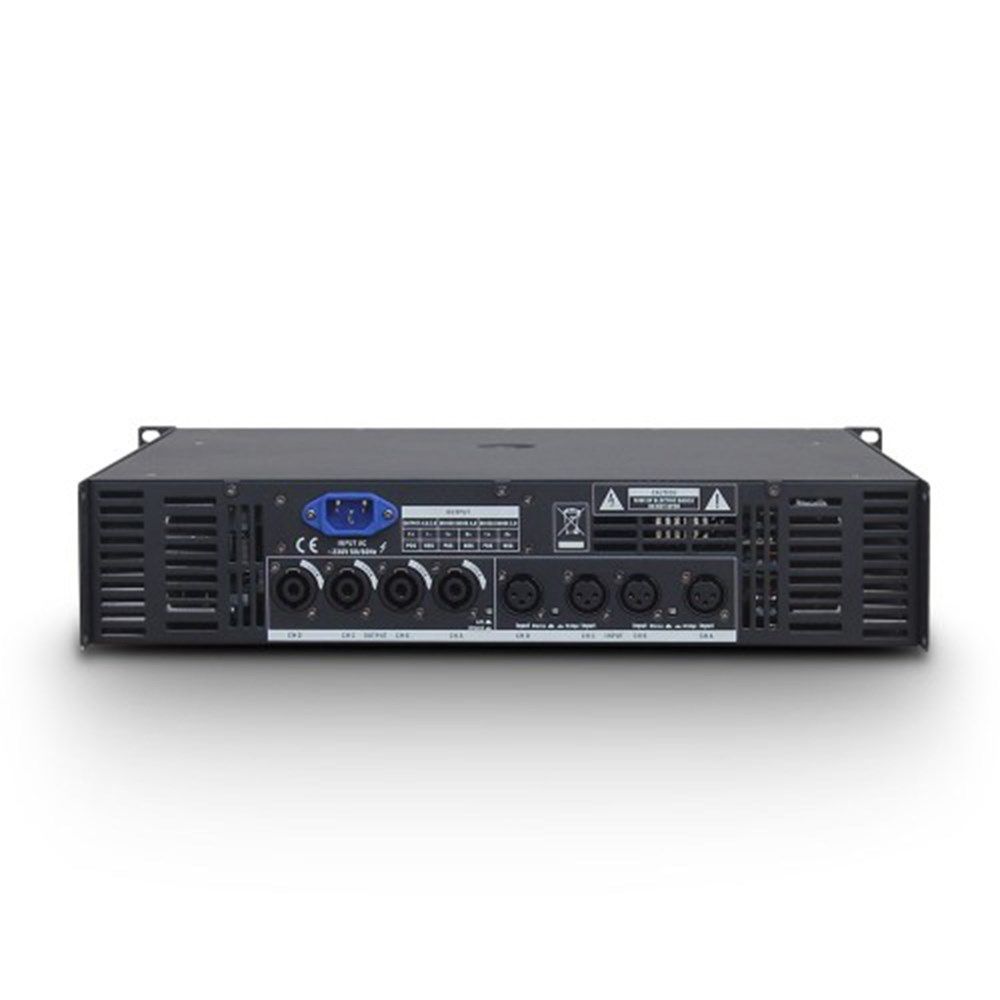

LD Systems has prioritised reliability and longevity throughout the development process, incorporating exclusively high-end, carefully selected components into the construction. Each amplifier includes comprehensive protection circuitry alongside a clip limiter, with all standard inputs and outputs conveniently located on the rear panel for straightforward integration into existing setups.
The series produces dynamic, crystal-clear audio reproduction that suits both subbass applications and multifunctional speaker systems equally well. Despite their robust steel plate housing, these amplifiers maintain a lightweight profile with a compact, user-friendly design that simplifies transport and installation.
With their outstanding price-to-performance ratio, the DEEP2 series represents a sound investment for touring bands, hire companies, and professional audio engineers seeking dependable amplification solutions that won't compromise on quality or durability.
- Product type: Power Amplifiers
- Type: PA Power Amplifiers
- Rated ouput power (1kHz @ 4 Ohms): 4 x 810 W
- Rated ouput power (1kHz @ 8 Ohms): 4 x 490 W
- Rated ouput power (1kHz @ 8 Ohms, bridged): 2 x 1600 W
- Output circuitry: Class H
- Frequency response: 20 - 20000
- Total Harmonic Distortion (THD): < 0.1 %
- Signal-to-noise ratio: 105 dB
- Damping factor (20Hz-500Hz @8ohm): >400
- Crosstalk: >70 dB
- Gain: 38 dB
- Input sensitivity: 0.775 V
- Protection circuits: DC protection, Short circuit, thermal overload
- Controls: 4 x volume, bridge/stereo mode selector, ground lift, mains switch (on/off)
- Indicators: Limit, Power, Protect (protection circuit engaged), Signal
- Loudspeaker outputs: 4
- Speaker output connections: Speakon compatible
- Cooling: highly efficient, automatic
- Power supply: transformer
- Operating voltage: 230 V AC / 50-60 Hz
- Weight: 19,6 kg
