The Pitchblack XS revolutionises guitar tuning with its innovative dual-mode design that combines true bypass with a built-in ULTRA BUFFER system. This clever engineering addresses the common problem of tone loss that occurs with passive pickup guitars when using cables longer than 6 metres, where high frequencies typically begin to deteriorate. The ULTRA BUFFER maintains signal integrity and tonal clarity even when the pedal is switched off, making it particularly valuable for complex effects boards or long cable runs to your tuner.

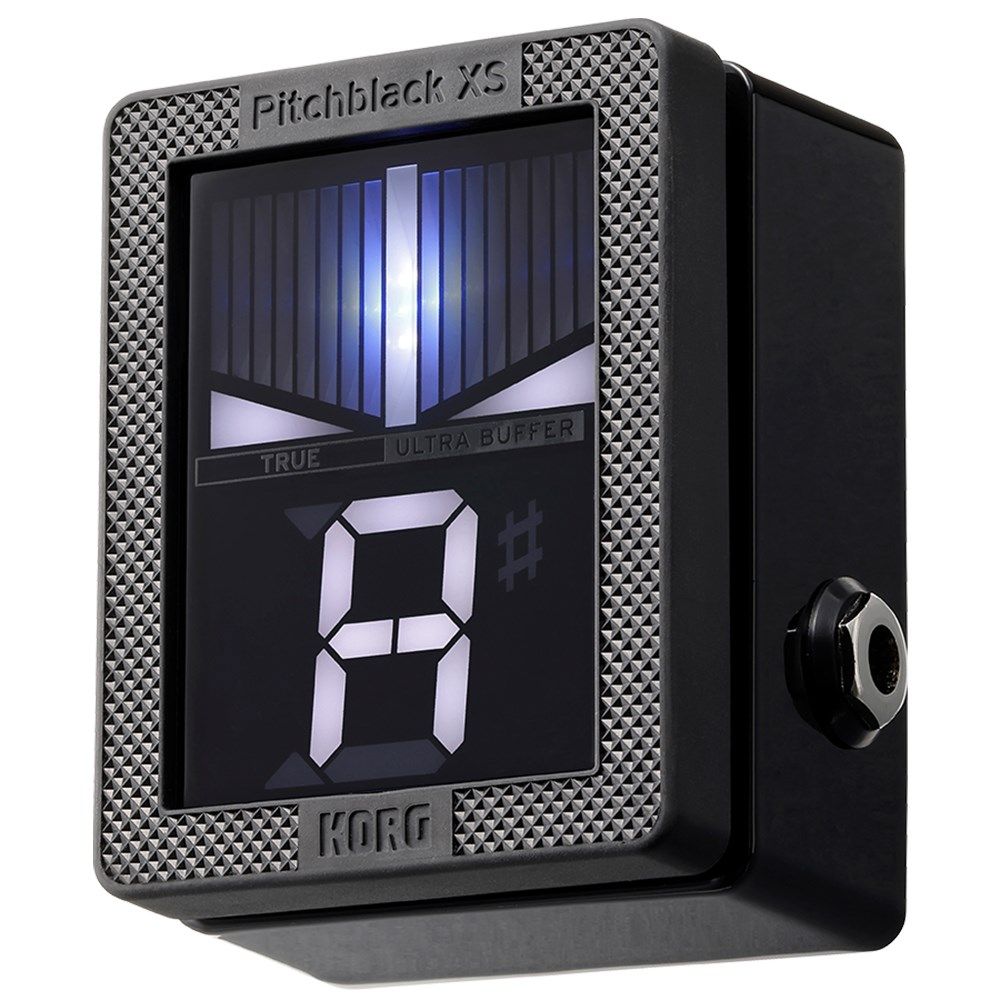

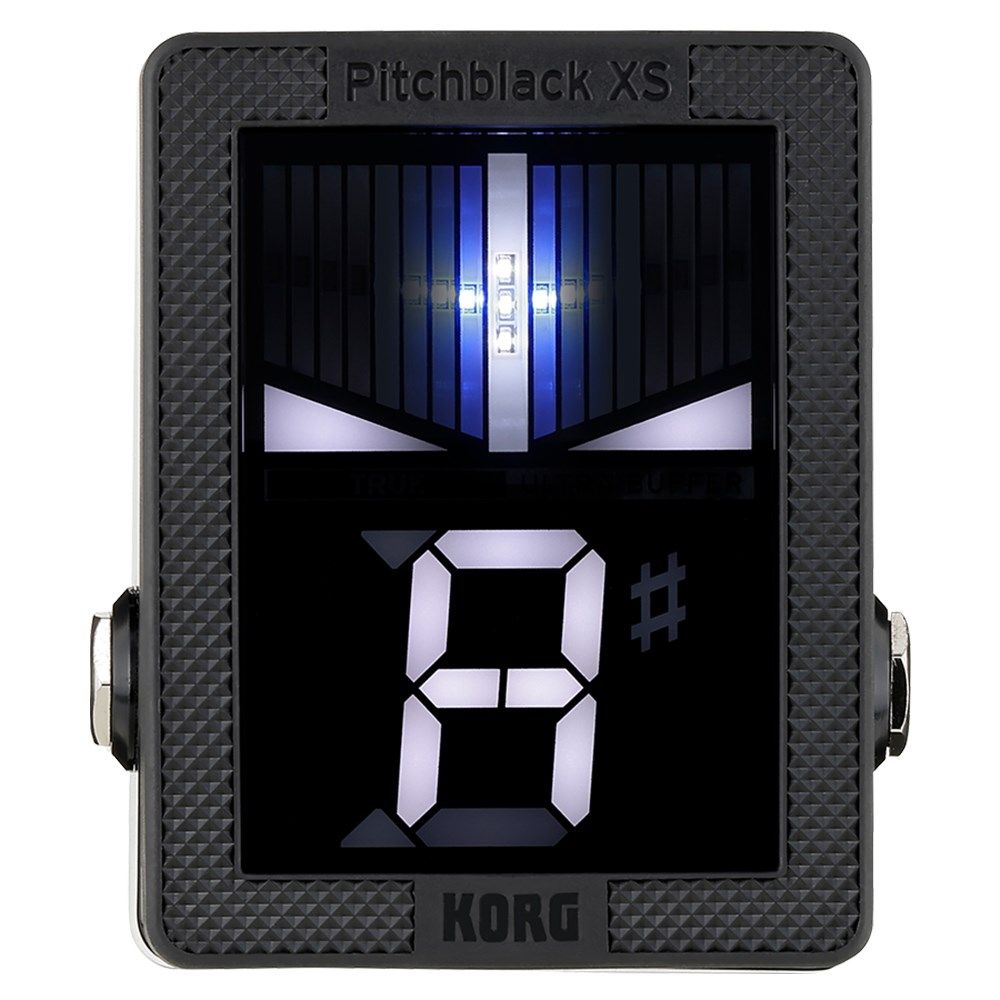

Built for durability and ease of use, the Pitchblack XS features a unique footswitch integrated directly into the display, creating a compact yet robust design with maximum screen real estate. The powdered finish housing can handle the rigours of live performance, and the responsive switch works regardless of foot placement or pedal angle. Enhanced visibility comes courtesy of additional meter LEDs and a two-level brightness setting, ensuring clear readability even under harsh stage lighting or bright outdoor conditions.
Precision tuning reaches new heights with the Pitchblack XS's �0.1 cent accuracy in Strobe mode, making it suitable for both studio recording and live performance applications. Four distinct meter display options cater to different tuning preferences: Regular mode for standard use, Strobe and Half Strobe modes that show pitch changes through directional LED flow patterns, and Mirror mode where LEDs converge from left and right towards the centre. The "just-right tuning" function adds visual confirmation through blinking triangular LEDs when perfect pitch is achieved, streamlining the tuning process for musicians.
- Unique design with a large display in a compact design
- Allows switching between true bypass and the newly-developed ULTRA BUFFER
- Meter LED also offers bright mode settings for high visibility
- Ultra-high tuning accuracy down to ±0.1 cents
- Four meter display modes
- Built-in “just-right tuning” display
- Scale1: 2 note equal temperament
- Detection Range: E0 (20.60Hz)~C8(4,186Hz)
- Calibration Range: A4=436?445Hz ?1Hz steps?
- Detection Accuracy: +/- 0.1 cent (display mode: Strobe)
- Input Impedance: 1 M-ohm (tuner on)
- Display Modes: Regular, Strobe, Half-strobe, Mirror

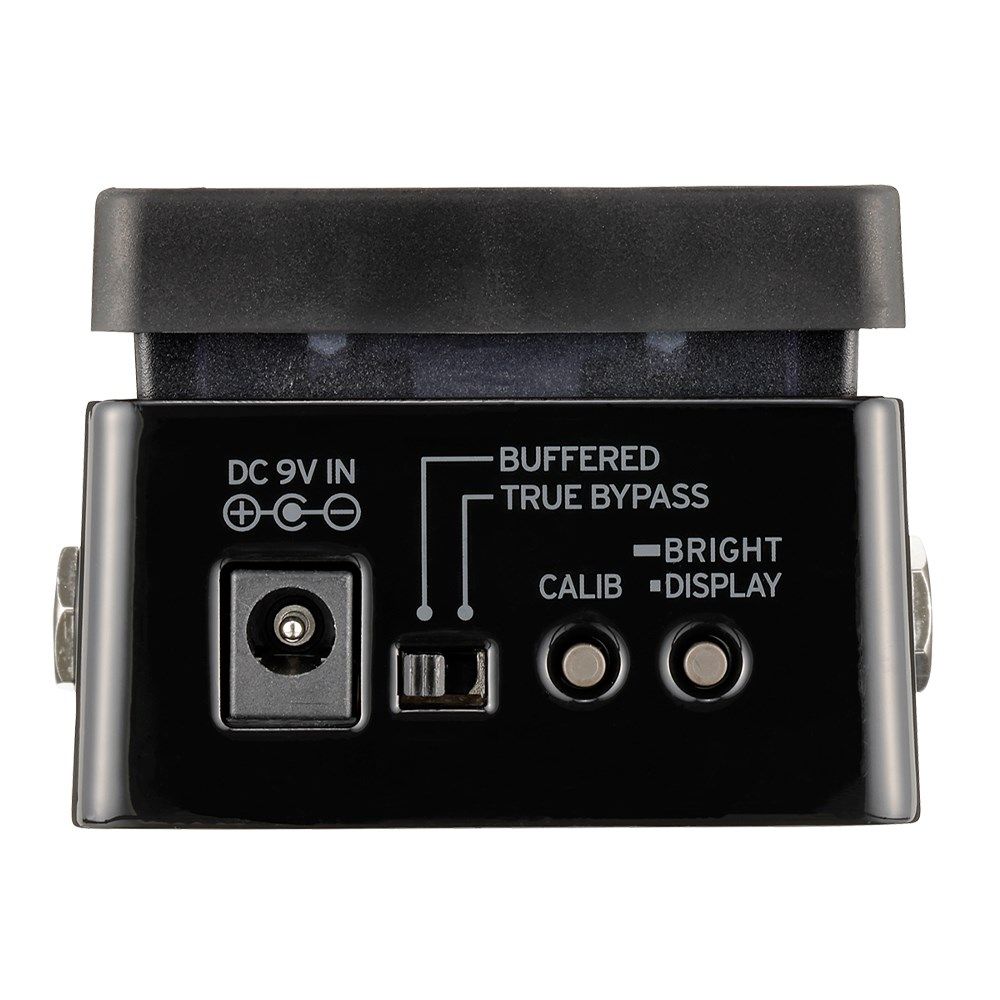

- Connectors: INPUT (mono 1/4” jack), BYPASS (mono 1/4” jack), DC 9V IN
- Power Supply: AC adaptor (9V)
- Power Consumption: Maximum 40 mA
- Dimensions (W x D x H): 70 x 80 x 47 mm (including protrusions)
- Weight: 198 g
- Includes Notices, Rubber feet, 9V battery x 1
