The drumlogue represents a groundbreaking fusion of analog warmth and digital versatility that redefines what a drum machine can achieve. This innovative instrument combines the raw power of newly developed analog circuits with flexible digital voices and an SDK for fully customizable User Custom Synthesizers. Legendary Korg analog synth engineer Junichi Ikeuchi (known for the ARP 2600 M, MS-20 mini, and ARP Odyssey) has crafted completely new analog circuits for the Bass Drum, Snare Drum, Low Tom and High Tom, providing exceptional harmonic richness and thick low-end response that forms a solid foundation for any track.

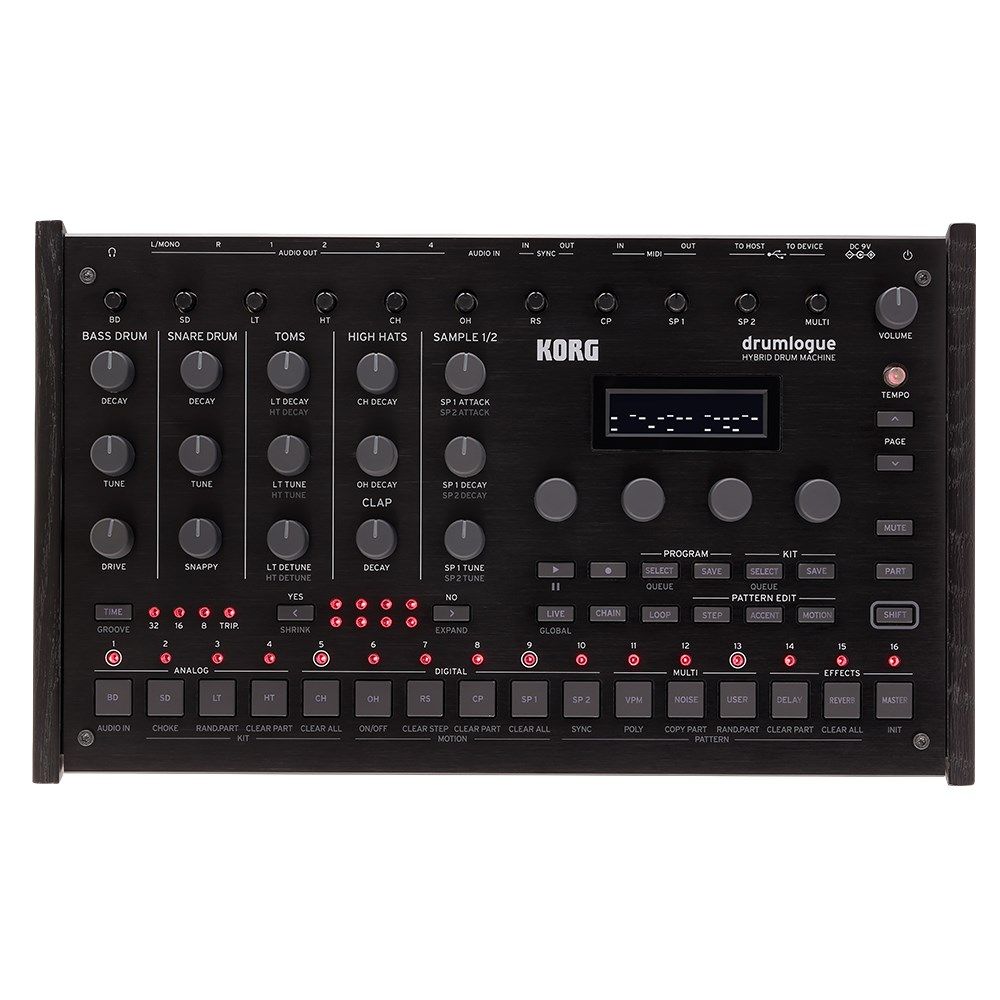

The analog section features dedicated front-panel knobs for the most important controls, allowing intuitive real-time sound shaping without menu diving. Each part includes a dedicated volume knob for seamless mixing, while deeper sound exploration is available through the comprehensive onboard editing system. Complementing the analog voices are 7 digital parts - 6 sample-based and 1 synthesis-based Multi-Engine - that can play preloaded PCM banks or your own imported User Samples via simple USB drag-and-drop functionality.
The enhanced Multi Engine builds upon the popular technology from the prologue and minilogue xd, now featuring Variable Phase Modulation (VPM), Noise generator engines, and a revolutionary User Custom slot. This slot can run full-fledged synth voices with built-in filters, LFOs, MIDI-controlled polyphony and other parameters - capabilities never before available on a drum machine. With 64 preloaded drum kits spanning multiple genres, heavy-duty dynamic sequencing, customizable effects, and virtually limitless sonic possibilities through third-party development, the drumlogue stands ready to support your musical craft across any genre or style.
- 11 voices (User synths may be played polyphonically via MIDI, the actual voice count will depend on the synth's implementation)
- Analog x 4
- PCM / User samples x 6
- Multi-engine (NOISE, VPM,User Synthesizer) x 1
- Number of Programs (including rhythm patterns): 128 (64 preset programs by factory default)
- Number of drum kits: 128 (64 preset kits by factory default)
- Reverb, Delay and Master Effects
- Headphones

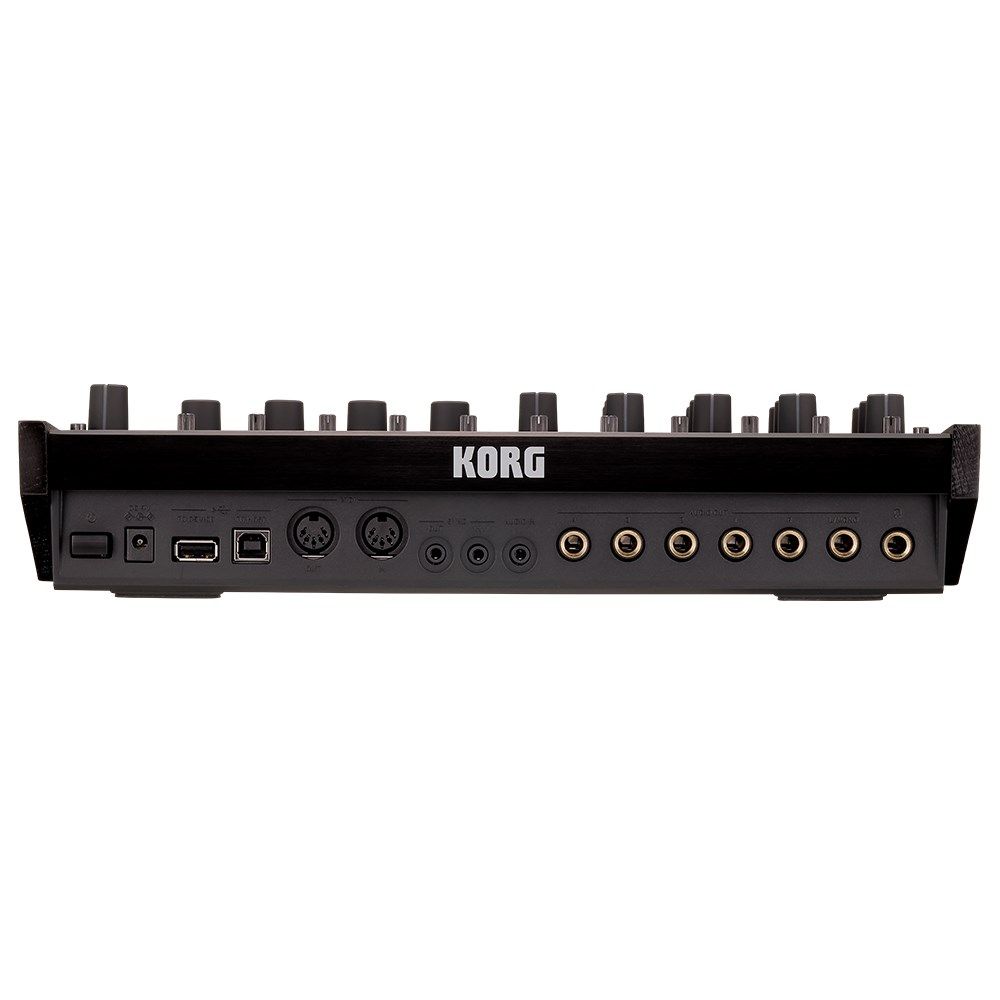

- Output (L Mono, R Mono, Audio, Out 1-4)
- Sync in/out
- Audio In, MIDI In/Out
- USB A (to device), only for midi controllers
- USB B (to host)
- AC adapter (DC9V)
- Dimensions: 317 × 189 × 73 mm
- Weight: 1.4 kg
- Includes AC adapter, Precautions, Quick Start Guide
