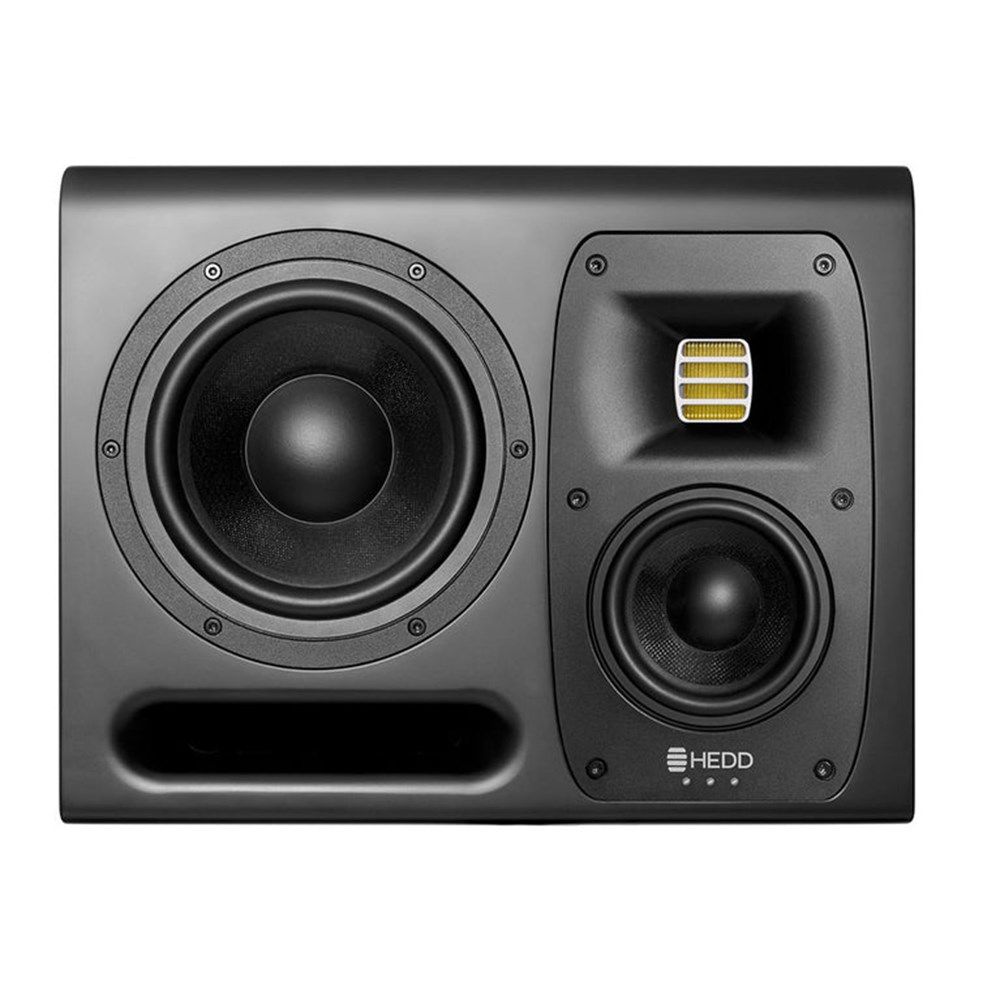

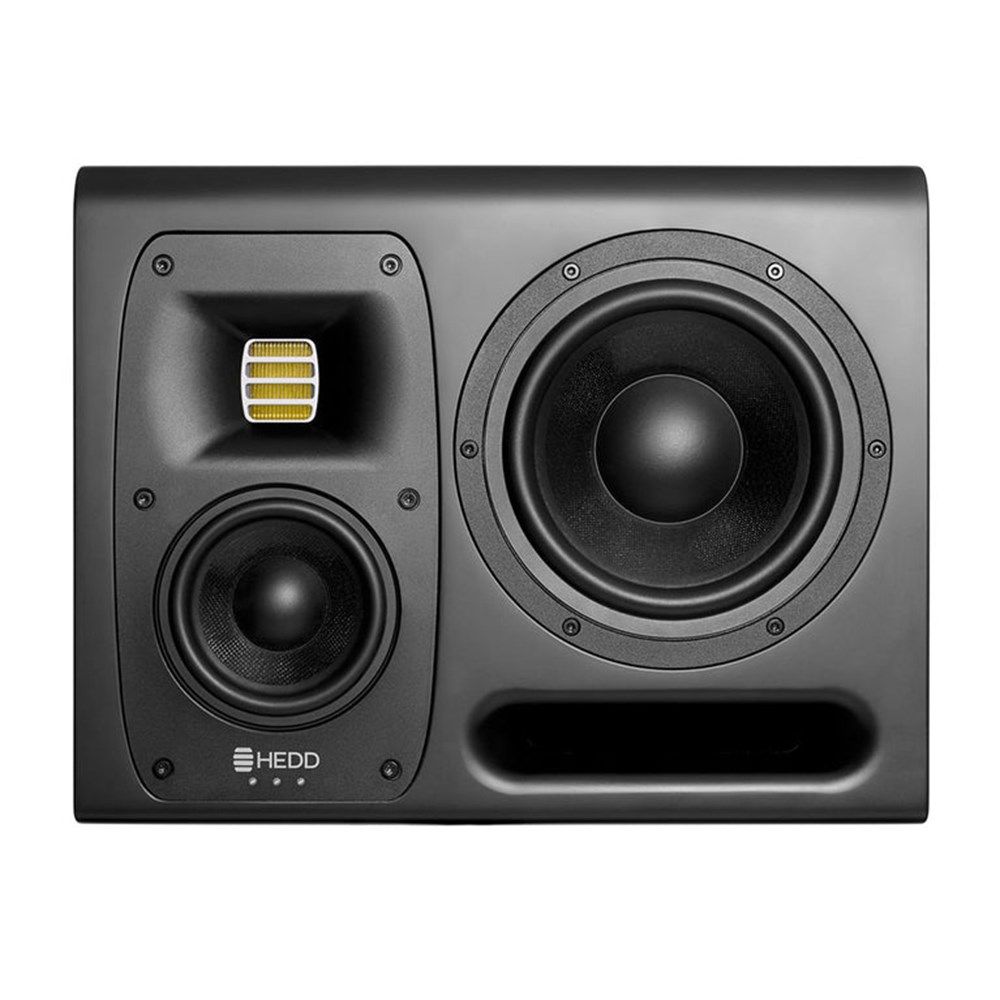

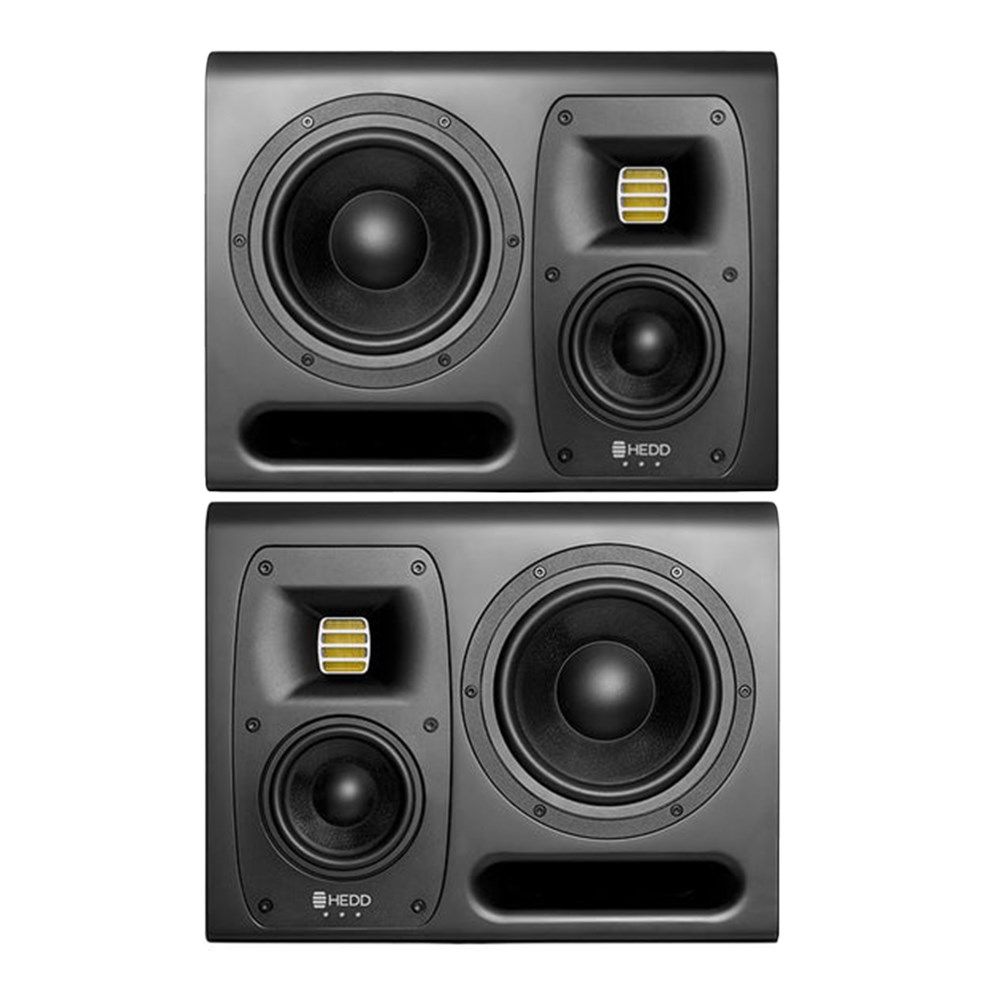

The TYPE 20 MK2 redefines what's possible from a compact 3–way studio monitor, combining 7" woofers with a dedicated 4" midrange driver and HEDD's proprietary Air Motion Transformer (HEDD AMT) technology. This powerhouse system handles everything from near–field mixing to detailed mastering work, maintaining exceptional dynamics and clarity even at demanding volume levels. The flexible design makes it suitable for any studio application, from tracking sessions to final mix–downs.
At the heart of this MK2 model lies a sophisticated SHARC–DSP processor that powers the onboard Lineariser® system, completely flattening speaker phase response to create remarkable stereo imaging and depth. The innovative Closed or Ported (CoP) technology gives you two distinct sonic personalities: insert the custom foam plugs for maximum accuracy and detail in Closed mode, or remove them for higher SPL capability and extended low–end response in Open mode.
Fine–tuning your monitoring environment is straightforward with three Desktop filters, dual Shelving filters for room adaptation, and a Bass–Extension mode that reaches deeper into low frequencies. All adjustments are made through precision–stepped aluminium potentiometers, giving you tactile control over your monitoring setup's response characteristics.
- HEDD Lineariser®, CoP, GDC, LFE, Desk and Shelf Filters
- Custom high-resolution 96 kHz / 32 Bit AD / DA converter
- 3-Way: Proprietary 7" and 4" Honeycomb Woofers, HEDD AMT Tweeter
- 3x300 W ICEpower amplification (85-264 V)
- 250 Hz / 3.200 Hz Crossovers
- Frequency range: 32 Hz - 40 kHz (LFE: 26 Hz - 40 kHz)
- 120 dB SPL (sound pressure level) per pair at 1m
- Inputs: Analog (XLR / 22 k?) and Digital 2ch (AES / XLR)
- Outputs: Digital AES pass-through via XLR
- Dimensions: 280 x 358 x 338 mm
- Weight: 15.4 kg per unit
