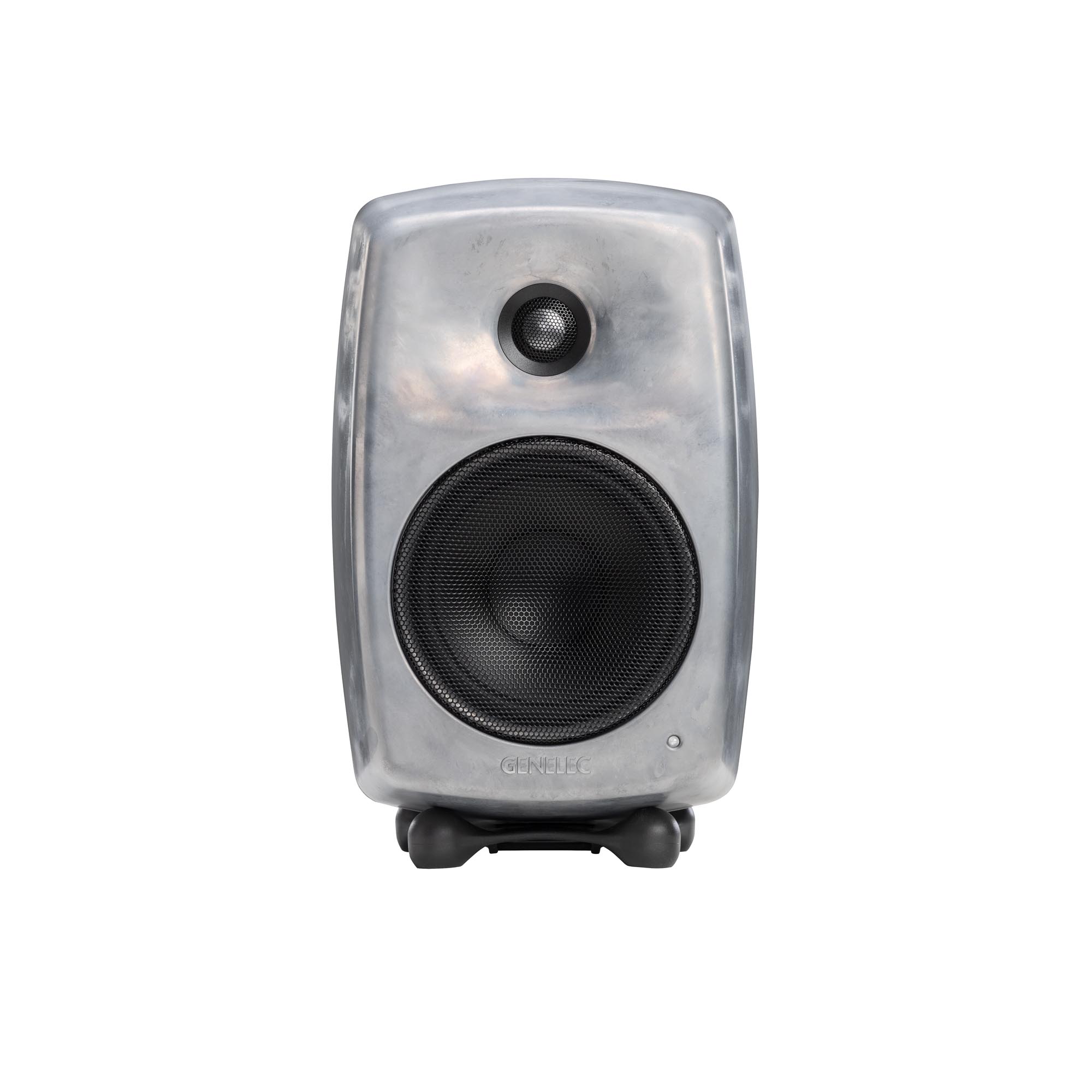

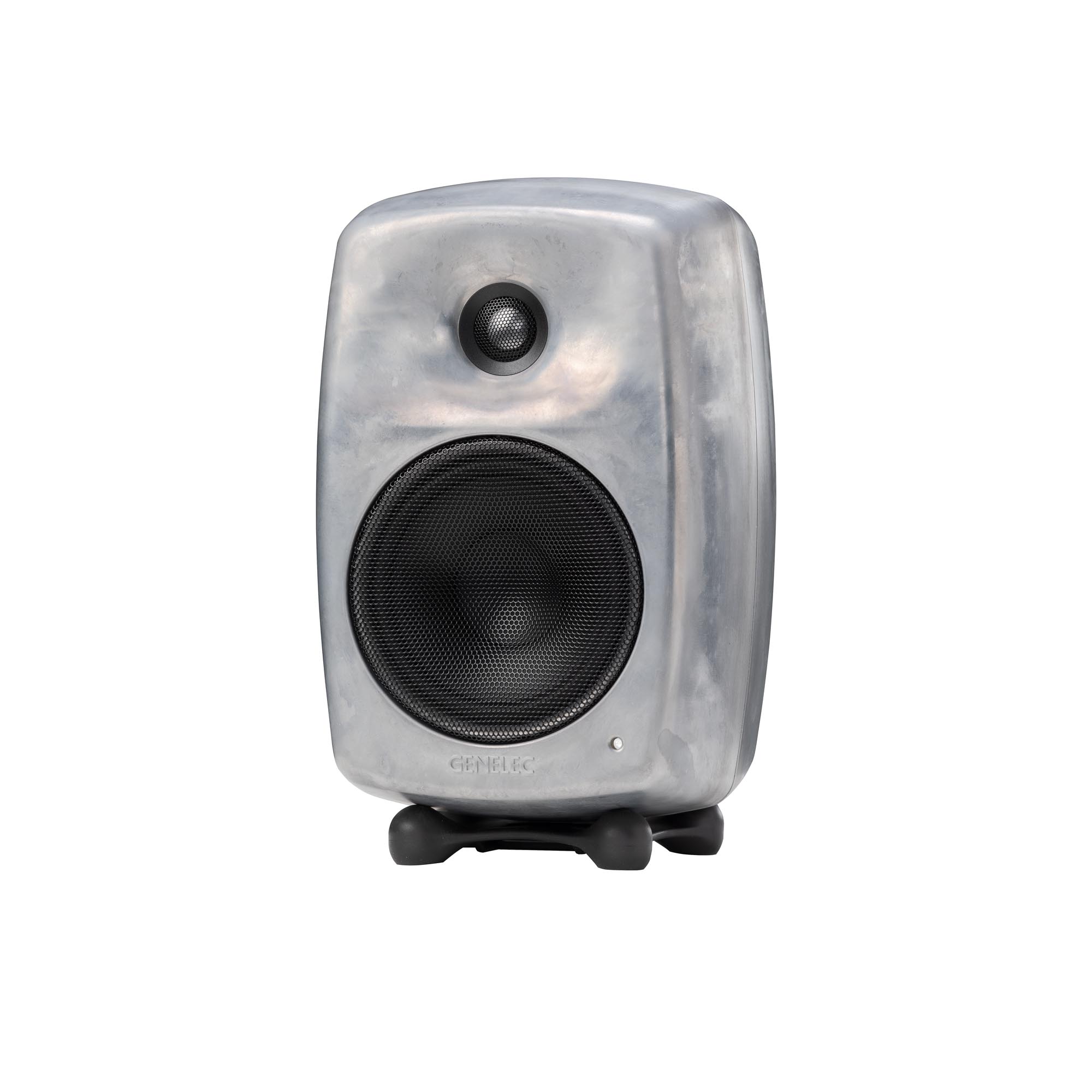

The Genelec 8330A Raw combines precision monitoring with adaptability and a compact footprint, delivering colour‐free sound and powerful room compensation features. Offering more SPL and extended low‐frequency response than its 8320A sibling, the 8330A Raw is the choice for professionals who demand both power and flexibility in a small format monitor.
With its wide, uncoloured sweet spot, the 8330A Raw provides transparent and reliable reproduction, allowing mix decisions to be made with confidence. As part of Genelec’s Smart Active Monitor (SAM™) range, it integrates seamlessly with GLM software, enabling calibration and optimisation for any listening environment — from stereo setups to immersive systems — compensating for acoustic challenges and ensuring consistent results.
Built with Genelec’s renowned acoustic innovations including DCW™, MDE™, and Iso‐Pod™ technologies, the 8330A Raw delivers truthful monitoring in demanding environments. Compact, clever, and uncompromising, it is a monitoring companion that adapts to your workflow wherever you need it.
Features
- Smart Active Monitor (SAM™) system with GLM integration
- Intelligent Signal Sensing (ISS™) power‐saving technology
- Directivity Control Waveguide (DCW™) for wide, consistent sweet spot
- Minimum Diffraction Enclosure (MDE™) for accurate imaging
- Iso‐Pod™ stand for acoustic decoupling and angle adjustment
- Reflex port design for extended low‐frequency performance
- Active crossovers and optimised Class D amplifiers
- Protection circuitry for safe operation at high SPL
- Versatile mounting options for flexible studio placement
Specifications
- SPL: 104 dB
- Amplifier Power: 50 W bass (Class D) + 50 W treble (Class D)
- Frequency Response: 45 Hz – 23 kHz (−6 dB)
- Frequency Accuracy: ±1.5 dB (58 Hz – 20 kHz)
- Drivers: ?130 mm bass + ?19 mm treble
- Dimensions: 299 mm (H) × 189 mm (W) × 178 mm (D), with Iso‐Pod™
- Weight: 5.5 kg / 12.1 lb
- Connections: 1 × XLR analog input, 1 × XLR AES/EBU input, 1 × XLR AES/EBU output, 2 × RJ45 control
- Colour: Raw finish
